Sida 1/5

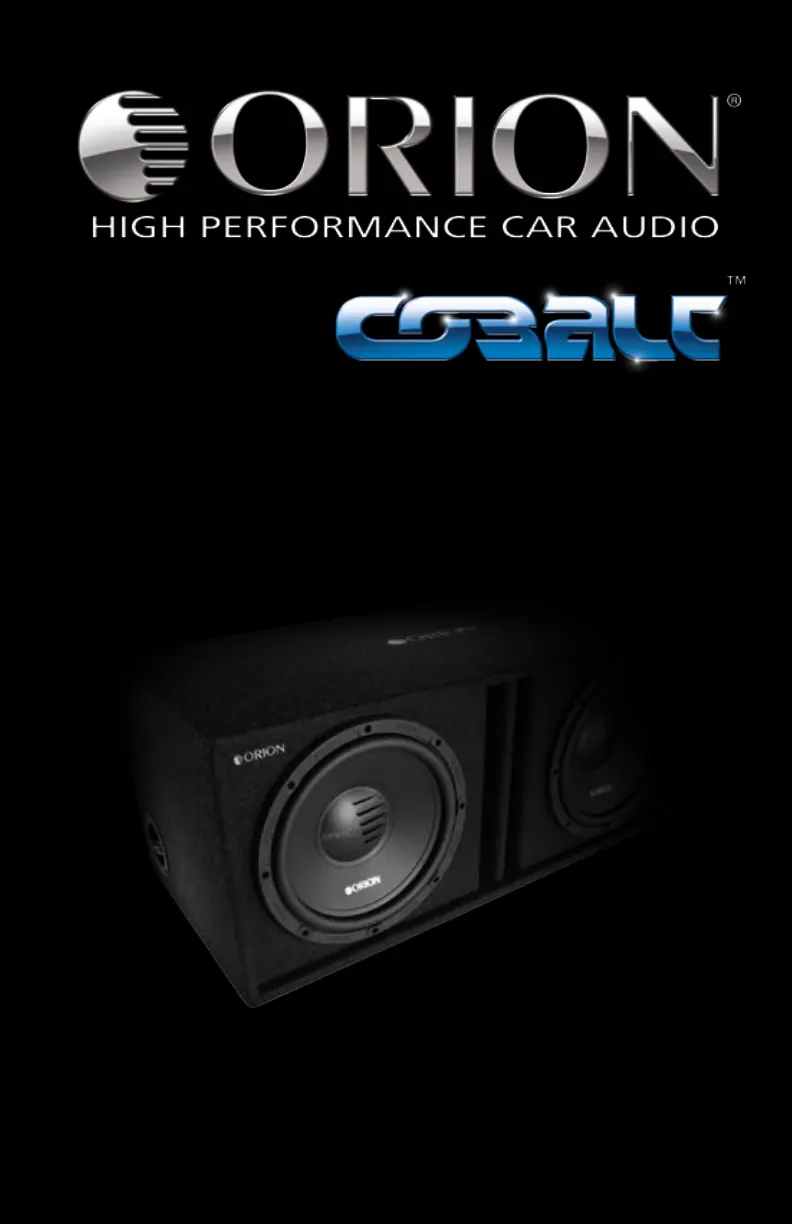

Single/Dual,10"/12"
Vented Subwoofer
Enclosure System
MODEL
CO104SBX
CO124SBX
CO104DBX
CO124DBX
OWNER'S MANUAL
© 2009 Directed Electronics—All rights reserved. 1
INTRODUCTION
Thank you for your purchase of the Orion vented subwoofer enclosure system from
Directed Electronics. The Orion vented subwoofer enclosure system will excite and
delight the auto sound enthusiast with years of high quality audio reproduction.
Orion vented subwoofer enclosure systems are covered by a limited warranty. Be sure
to retain your original sales receipt, and refer to the warranty section on the back
cover of this guide for full details about your coverage.
PRACTICE SAFE SOUND™
High-powered car audio systems may produce sound pressure levels that
exceed the threshold at which hearing loss may result. They may also impair a
driver’s ability to hear traffic sounds or emergency vehicles. Use common sense
and practice safe listening habits when listening to or adjusting your audio
system. If your subwoofer enclosure is installed in the passenger compartment, make sure
it is restrained from moving in case of an accident.
YOUR PRODUCT INFORMATION
Model Number:
Date of Purchase:
INSTALLATION
Place the speaker assembly in your vehicle. Common placement will normally be 1.
the trunk, back seat, or back of a van.
Connect each speaker to an amplifier output (not supplied), observing that the 2.
polarity markings on the back of the speaker enclosure are connected to the
corresponding polarities on the amplifier.
NOTES:
Do not use an amplifier that can drive the speakers beyond their specifications.•
Leave at least three inches of clear space in front of the port(s) and woofer(s) to •
allow for adequate air flow and woofer movement without obstruction. Orienting
the woofers toward the rear of the vehicle will in most instances enhance the bass
performance.
WARNING: Loose objects can become projectiles in the event of a rapid
deceleration, abrupt turn or accident. Secure the enclosure in place with the
mounting brackets provided to prevent it from shifting.
2 © 2009 Directed Electronics—All rights reserved.
SINGLE ENCLOSURE WIRE CONNECTION GUIDE
The following diagram shows a standard connection to a mono amplifier or single
channel of a multi-channel amplifier.
NOTE: Refer to your amplifier owner’s manual before connecting the subwoofer
enclosure system.
Subwoofer Enclosure System
+
-
+
Amplifier
STANDARD
AMPLIFIER CONNECTION
4 ohm
load
-
SPECIFICATIONS
Feature CO104SBX CO124SBX
Frequency response 35 Hz – 250 Hz 25 Hz – 250 Hz
Power handling (rms) 200 watts x 1 200 watts x 1
Power handling peak 400 watts x 1 400 watts x 1
Box Impedance 4 ohms x 1 4 ohms x 1
Efficiency (1W/1M) 86 dB 87 dB
Woofer size (inches) 10” 12”
Number of woofers 1 1
Enclosure type slot vented slot vented
Typical output level @ full power 114 to 123 dB 117 to 126 dB
Depth x Width x Height (inches) 15.47" x 15" x 12.44" 15.98" x 17" x 14.17"
Weight 25 lb (11.5 kg) 27 lb (12.5 kg)
