Sida 1/2

18AWG minimum - for distances up to ………………………. . 10 ft

16AWG - from ……………………………………………. 10 to 50 ft

14AWG - from …………………………………………… 50 to 100ft

- Where is the best place to install the speakers

- Where do the speakers sound the best?

- Try to separate the speakers 6 - 10 feet apart.

- If you intend to paint the grilles, try to do so before installation.

Quick installation guide

- Pencil

- Drill

- Tape Measure

- Wire cutter

- Philips-head screwdriver

- Sandpaper

Tools needed for installation

STEP 4: Mounting Dog Ear

Tighten the dog-ear brackets by simply turning the screws on the

slowly clockwise. The quick-turn mounting system and frame will

"sandwich" or clamp around the wall to hold the speaker securely in

place. (See Diagram 3)

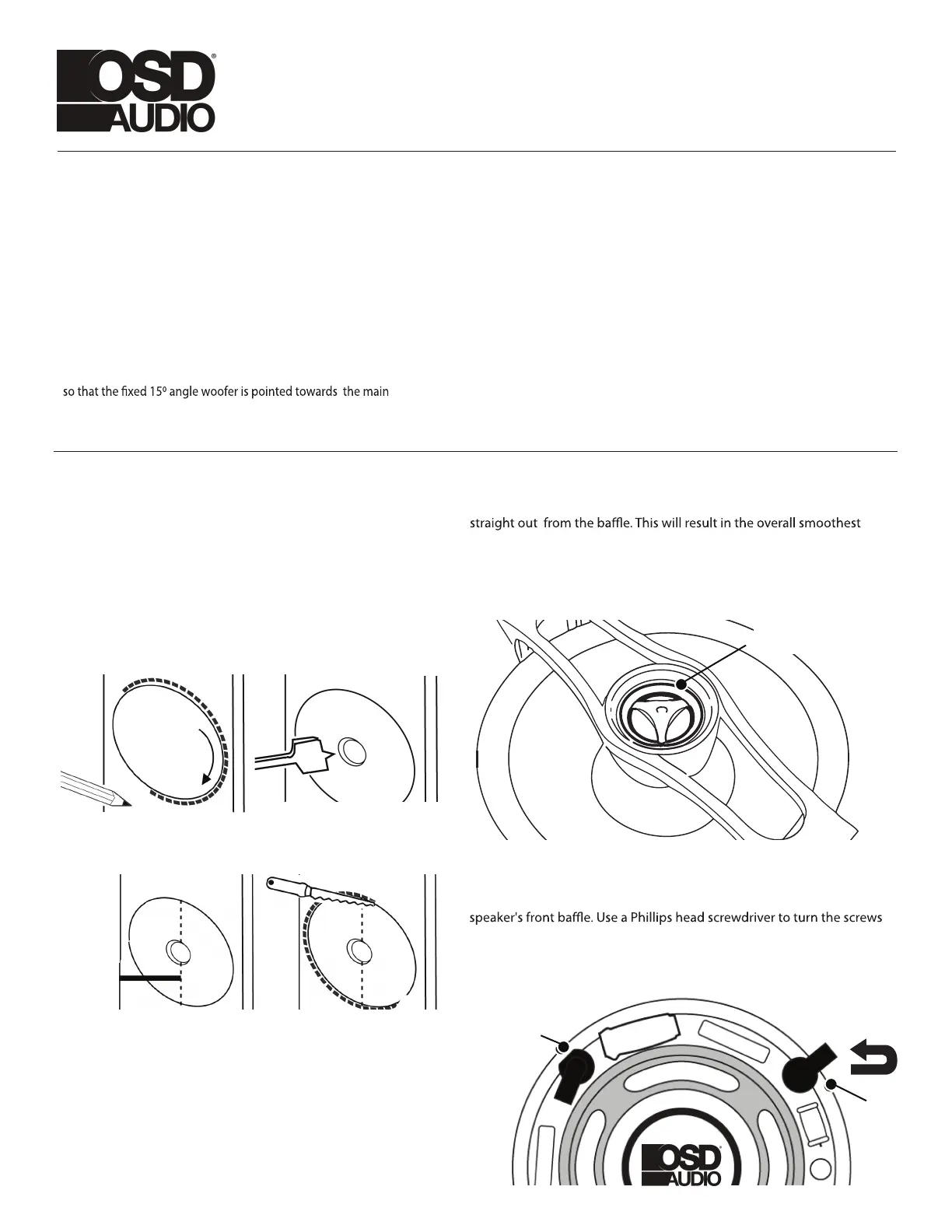

STEP 1: Cutout Tracing

Trace along the inclusive template. Cut along the traced line using a

drywall saw or rotary drill. A simple, inexpensive drywall saw (about

$10 at your local hardware store) is the best choice for beginners.

Caution: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw. Use a

piece of sandpaper to sand down the cut out edge for a smoother

contour. (See Diagram 1 )

STEP 3: Tweeter Adjustment

To determine the length and the gauge of speaker wire, you will need to

measure the distance between your receiver/amplifier to the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

- Utility knife

- Safety eyewear

- Gloves

Speaker wire

In-Ceiling Speakers

Owner’s Manual

- When placing the speakers in the ceiling, try to install them

listening area. (For LCR model only)

Your in-ceiling speakers come from the factory with the tweeter facing

response. However, you can adjust the tweeter to focus the sound at

your listening location. In order to do this, gently press on the grill (See

Diagram 3). Caution: Do not touch the tweeter dome while adjusting for

your hearing preference. (See -Pivoting Tweeter Model Only.

Adjust the tweeter here

Tweeter

Diagram 1:

Diagram 2:

Dog Ear

Diagram 3:

Mounting Dog Ear

Lock

LOOSE

Diagram 2:

Run the cable into the cut out location while leaving an extra two

feet to make the connection to the speaker easier. Strip back

approximately ½ inch of the speaker cable insulation and twist

the copper wires tightly for easy insertion.

On the back of the speaker, press down on the gold-plated

compression terminal to reveal the "eye" and insert the speaker

cable through the eye for secure connection. Release the compres-

sion terminal to lock each cable securely.

STEP 2: Connection

wattage is comparable to the speaker’s power handling. Please refer to

your owner’s manual for reference.

Note: The wire for both speakers should be about the same length.

the excess wire behind the wall

TIP: Blown-in insulation can sometimes work its way into th mo g e vin

components of the pes aker, negatively impac erformance. I s ting p t i

best to replace about a one square fo ec on direc nd the ot s ti tly behi

s aker ith rollpe w ed-in (ba insulati . t) on (See Diagram 5)

Note: Speaker terminals have corresponding (+) and (-) terminals. It is

important to connect both speakers in phase. Out of phase will result in

thin sound and weak bass.

BASS

TREBLE

+3 0 -3 +3 0 -3

+_+_

Bass Adjustment SwitchTreble Adjustment Switch

- + Receiver/Amplifier

LEFT OUT

- +

RIGHT OUT

RIGHT

LEFT

Power handling

(10 watts)

minimum

Diagram 4 Adjustment Switches

Diagram 6

Warranty & Repair

A A ducts ( year mited Warranty inst d e f of p e ompany ll OSD UDIO speaker pro have 10) Li aga efects in mat rials and workmanship. Proo urchas must acc all claims.

Duri g d efe ip rt abn t cti r nhe warranty period OSD AUDIO will replace any defe ve pa t a corr ct anye d ct sh in workman without her a ch ge for eitar p s l or or

necessary and

are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit

must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage are not considered defects, nor

is damaged resulting from abuse or from servicing performed by an agency or person

OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD AUDIO product

purchased from an unauthorized dealer or other source, including retailers, mail over dealers and online sellers will not be honored or serviced under existing OSD

AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable

product.

Da gema to or dest ctru ion of components due to application of excessive powe r s the void warranty on thos e parts. In th ese es, r cas epairs will be made on th e basis of the retail

v of e s o servialue th part and labor. To return for repairs, you must email cust mer ce RMat A@audiogeargroup com. for a Re ed e Mturn Merchandis Authorization (R A) num r# be .

T u i ng with a n e exphe nit must be sh pped to OSD AUDIO at the owner's expense, alo ot lainin th naturg e e of servic uire req ed. e p e s e a g ed Be sur to ack th peak r(s) in corru at
