Sida 1/8

Closed

Loose

Closed

Loose

..... ......

dog ear

18AWG minimum - for distances up to ………………………. . 10 ft

16AWG - from ……………………………………………. 10 to 50 ft

14AWG - from …………………………………………… 50 to 100ft

- Where is the best place to install the speakers

- Where do the speakers sound the best

- Try to separate the speakers 6 - 10 feet apart.

- When placing the speakers in the ceiling, try to install them

so that the xed 15 angle woofer is pointed towards the main

listening area. (For LCR model only)

- If you intend to paint the grilles, try to do so before installation.

Q alla ouick inst ti n guide

- Pencil

- Drill

- Tape Measure

- Wire cutter

- Philips-head screwdriver

- Sandpaper

Tools needed for installation

STEP 4

Tighten the dog-ear brackets by simply turning the screws on the

slowly clockwise. The quick-turn mounting system and frame will

"sandwich" or clamp around the wall to hold the speaker securely in

place. (See Diagram 4)

STEP 1

Trace along the inclusive template. Cut along the traced line using a

drywall saw or rotary drill. A simple, inexpensive drywall saw (about

$10 at your local hardware store) is the best choice for beginners.

Caution: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw. Use a

piece of sandpaper to sand down the cut out edge for a smoother

contour. (See Diagram 1 and Diagram 2)

STEP 2

Run the cable into the cut out location while leaving an extra two

feet to make the connection to the speaker easier. Strip back

approximately ½” inch of the speaker cable insulation and twist

the copper wires tightly for easy insertion.

On the back of the speaker, press down on the gold-plated

compression terminal to reveal the "eye" and insert the speaker

cable through the eye for secure connection. Release the compres-

sion terminal to lock each cable securely.

STEP 3

Your in- speakers come from the factory with the tweeter facing wall

response. However, you can adjust the tweeter to focus sound at the

your listening location. In order to do this, gently press on the grill (See

Dia am 3). gr Caution: Do not touch the tweeter dome while adjusting for

your hearing preferen . (ce See Diagram 3)

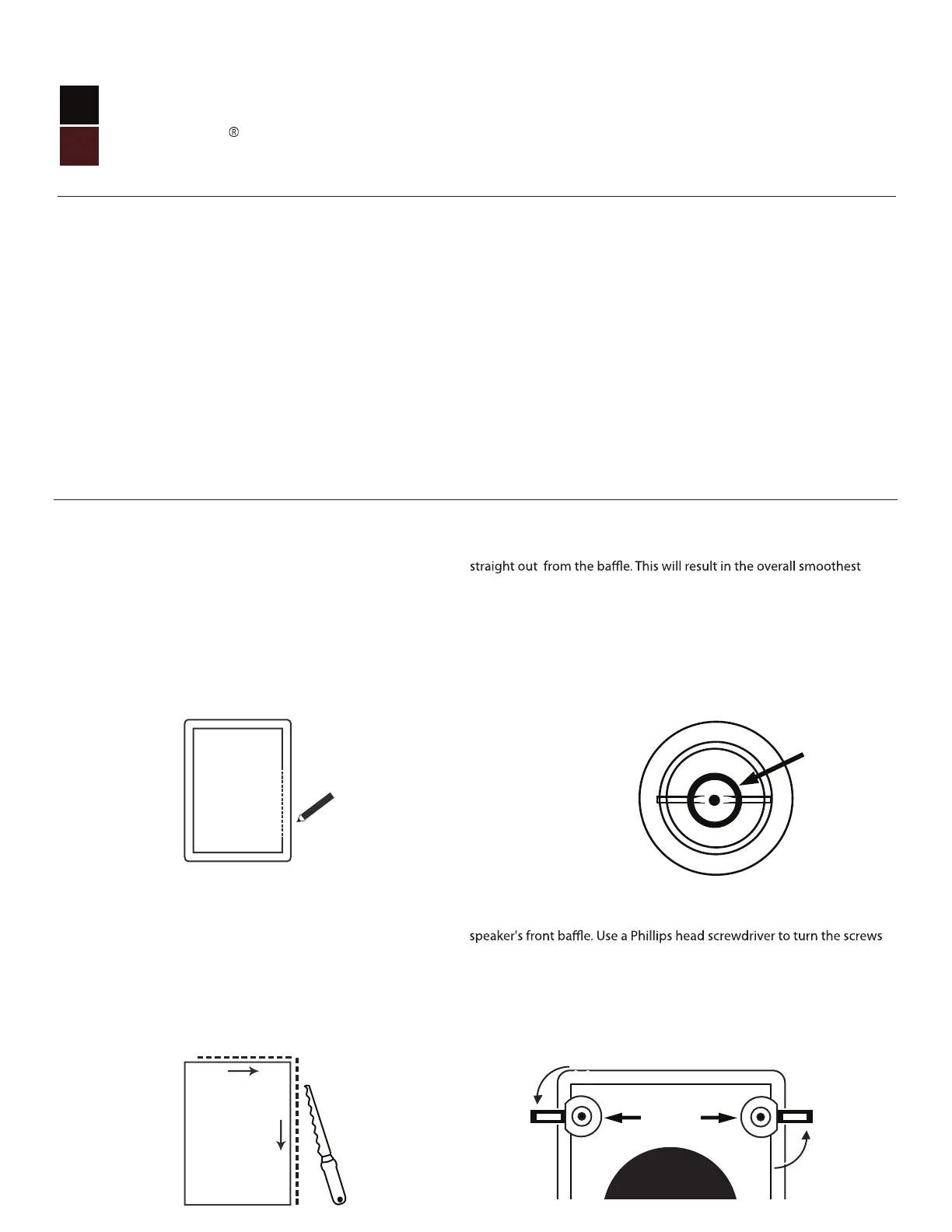

Diagram 1:

Cutout tracing

Diagram 2:

Cut Out

To determine the length and the gauge of speaker wire, you will need to

measure the distance between your receiver/amplifier and the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

- Utility knife

- Safety eyewear

- Gloves

Diagram 3:

Adjust the tweeter here

- - - - - - - -

Tweeter

Diagram 4:

Mounting Dog Ear

Speaker wire

- - - - - - - - - - -

- - - - - - - - - - - - - - - - -

Owner’s Manual In-Wall Speakers

---------------

A U D I O

OSD

- Measure the distance from the receiver/amplifier to the speakers.

wattage is comparable to the speaker’s power handling. Please refer to

your owner’s manual for reference.

Note: The wire for both speakers should be about the same length.

the excess wire behind the wall

TIP: Blow in- n nsi ulation can sometimes wor ik ts way into e m vingth o

c pom onent os f he speaket r, negatively impa ting pec rform cean . t isI

be t s to epr lace about a one square fo c rec he ot se tion di tly behind t

s kpea er wi h t rol ed-il n (ba ns ati t) i ul on. (Se De iagram 6)

Note: Speaker terminals have corresponding (+) and (-) terminals. It is

important to connect both speakers in phase. Out of phase will result in

thin sound and weak bass.

BASS

TREBLE

+3 0 -3 +3 0 -3

+_+_

Bass Adjustment SwitchTreble Adjustment Switch

-+Receiver/Amplifier

LEFT OUT

- +

RIGHT OUT

RIGHT

LEFT

Power handling

(10 watts)

minimum

Diagram 5 Adjustment Switches

Diagram 7

Diagram 6

Terminal identification

Warranty & Repair

All OSD AUDIO speaker products have (10) year Limited Warranty against defects in materials and workmanship. Proof of purchase must accompany all claims.

During the warranty period OSD AUDIO will replace any defective part and correct any defect in orkmanship without charge for either parts or laborw

OSD AUDIO may replace returned speakers with a product of equal value and performance. In such cases, some modications to the mounting may be necessary and

are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit

must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage are not considered defects, nor

is damaged resulting from abuse or from servicing performed by an agency or person not specically authorized in writing by OSD Audio

OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD AUDIO product

purchased from an unauthorized dealer or other source, including retailers, mail over dealers and online sellers will not be honored or serviced under existing OSD

AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable

product.

Damage to or destruction of components due to application of excessive power voids the warranty on those parts. In these cases, repairs will be made on the basis of the retail

value of the parts and labor. To return for repairs, you must email customer service at RMA@OSDAUDIO.com for a Returned Merchandise Authorization (RMA) number# then

the unit must be shipped to OSD AUDIO at the owner's expense, along with a note explaining the nature of service required. Be sure to pack the speaker(s) in a corrugated

container with at least 3 inches of resilient material to protect the unit from damage in transit.

This Warranty Does Not Cover:

Damage caused by abuse, accident, misuse, negligence, or improper operation (installation) Any products that have been altered or modied Any product whose • •

identifying number of decal, serial #, etc. has been altered, defaced or removed Normal wear and maintenance.•

STEP 5

TIP: Adjust the bass and the treble setting on your speakers by

shifting the knob either to the left or rig . Speakers positioned ht

with the tweeter switch in the +3dB position. Speakers located

within a few feet of a listener's ear will often sound better with the

tweeter switch set to -3dB. Furthermore, rolled in insulation materi-

als, such as a foam bedding would work as a dampening material

(See Diagram 5)

(Not applicable to certain models)

Diagram 8

70 Volts Consideration ( Applicable to only 70V tap Speakers)

The 70V transformer offers you the ability to daisy chain multiple

number of speakers in series. In doing so, you would simply connect

1 pair of outputs to each speaker and daisy to subsequential

speaker/s. If you don’t intend to daisy chain the speakers, set the

default setting to 8 Ohm (See Diagram 8)

When connecting any speakers to the amplier or receiver, always make

sure the power is o. Locate the connection terminals on the back of

your receiver or amplier. Always make sure to connect audio out from

the back of your receiver or amplier to the speakers. (See Diagram 7)

closer to a corner often produce more bass and will usually benefit

Amplier/Receiver Considerations

Speaker Type:

Tweeter:

Woofer:

Impedance:

Sensitivity:

Frequency Response:

Power Handling:

Dime ions: x W x D) ns (H

IW-840

Pro Series In Wall Speakers

8” Polypr yleneop

8 Ω

90dB

36Hz - 22kHz

175 Watts

13 ¾” x 10“ x 3 ¾”

12 ¾” x 8 ¾”

In Wall Model

Co our Switches:nt 2-Position Front-Mounted

±3dB Bass & Treble Switches

IW-810

8” Custom Series

In Wall Speakers

8” Polypropylene

8 Ω

90dB

38Hz - 22kHz

150 Watts

12 ¾” x 8 ¾”

N/A

IW-670

6 ½” Custom Series

In Wall Speakers

6 ½” Polypropy nele

8 Ω

87dB

48Hz - 22kHz

125 Watts

”

N/A

IW-680

Pro Series In Wall Speakers

6 ½” P ypropy neol le

8 Ω

90dB

38Hz - 22kHz

150 watts

N/A

IW-620

6 ½” Contractor Series

In Wall Speakers

1/2 ” PEI Dome

6 ½” P ypropy e ol len

8 Ω

88dB

60Hz - 22kHz

100 Watts

N/A

IW-850

8” Kevlar In wall

Home Theater Speakers

1” Pivoting Aluminum

Tweeter

8” vl ConesKe ar

8 Ω

92dB 1w/1m

26Hz - 22kHz

175 Watts

2-Position Front-Mounted

±3dB Bass & Treble Switches

IW-800

8” Contractor Series

In Wall Speakers

1” Pivoting Silk Dome

8” Pol opy neypr le

8 Ω

89dB

45Hz - 22kHz

120 watts

12 ¾” x 8 ¾”

N/A

IW-690

6 ½” Kevlar Inwall

Home Theater Speakers

1” Pivoting Aluminum

Tweeter

6 ½” Kevlar Cones

8 Ω

92dB 1w/1m

30Hz - 22kHz

150 watts

2-Position Fro -Mou ed nt nt

±3dB Bass & Treble Switches

IW-540

Pro Series In Wall Speaker

5 ¼” Poly opylene pr

8 Ω

90dB

58Hz - 22kHz

100 Watts

N/A

Pair

Wall Cut Out: (H x W)

Pair

CW - 840SQ

8” Squared Co-Axial

Speaker In Wall Speaker

8” Polypropylene

8 Ω

90dB

36Hz - 20kHz

150 Watts

10” x 10” x 3 ½”

N/A

1” Pivoting Silk Dome

Unit of M re: easu Pair Pair Pair

Pair

MKW-850

In Wall Speakers

1 Pivoting Aluminum”

Tweeter

8” l onesKev ar C

8 Ω

92dB 1w/1m

25Hz - 22kHz

200 Watts

2-Position Front-Mou ed nt

±3dB Bass & Treble Switches

Pair

Pair Pair Pair

Pair

MKW-650

In Wall Speakers

6 ½” Polypr ene opyl

8 Ω

92dB

28Hz - 22kHz

175 Watts

Pair

N/A N/A N/A N/A

N/A N/A2-Position Front-Mounted

±3dB Bass & Treble Switches

CW - 640SQ

6 ½” Squared Co-Axial

Speaker In Wall Speaker

6 ½” Pol ropy neyp le

8 Ω

91dB

38Hz - 22kHz

150 Watts

N/A

Pair

CW - 540SQ

5 ¼” Squared Co-Axial

Speaker In Wall Speaker

5 ¼” Polypr yleneop

8 Ω

90dB

58Hz - 22kHz

125 Watts

5 ¾” x 5 ¾”

N/A

Pair

N/A N/A

N/A

1” Pivoting Silk Dome

1 Pivoting Aluminum”

Tweeter

1” Pivoting Silk Dome

1” Pivoting Silk Dome1” Pivoting Silk Dome

1 Pivoting Aluminum”

Tweeter

”
