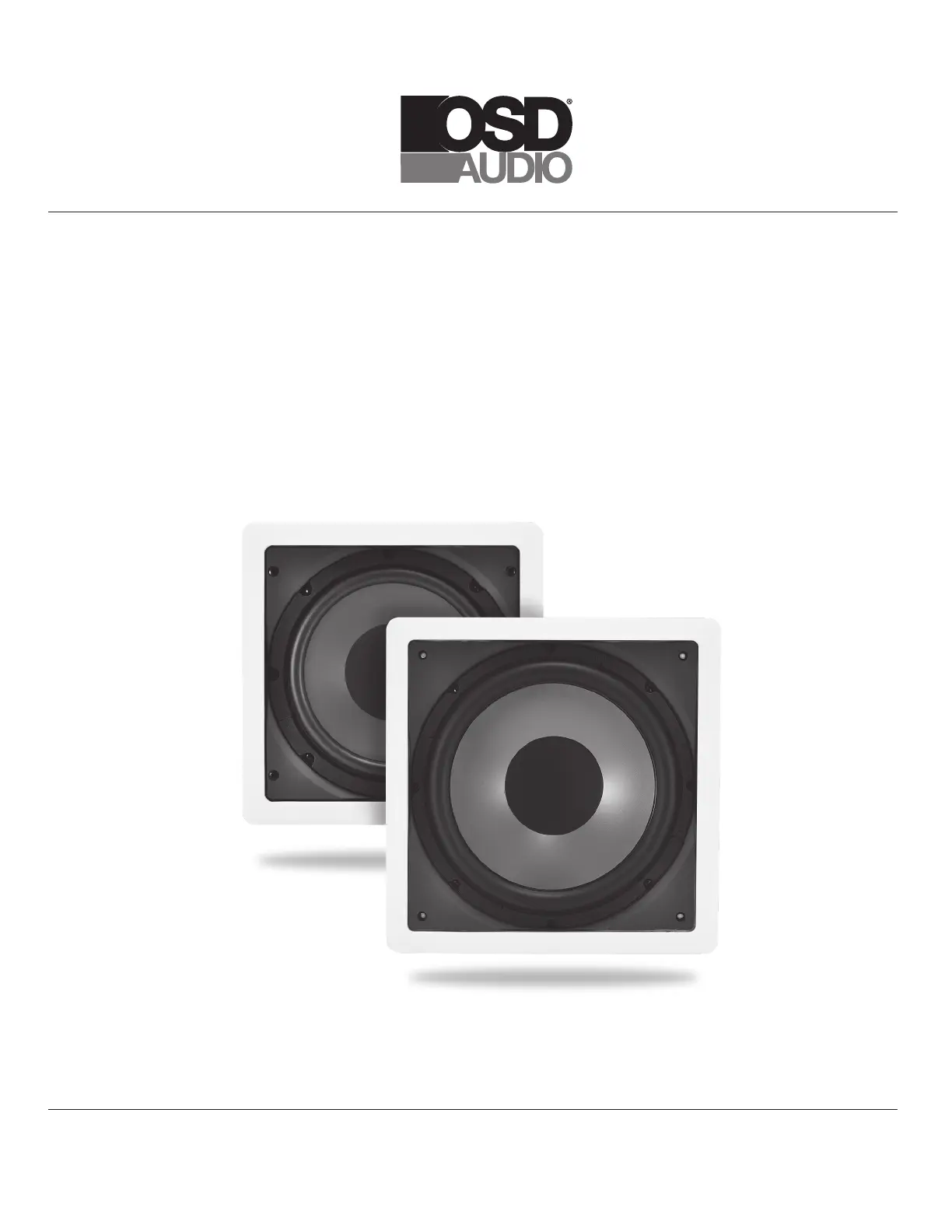

In-Wall Subwoofer Series Owners Manual

IWS-10 IWS-8

18AWG minimum - for distances up to ………………………. . 10 ft

16AWG - from ……………………………………………. 10 to 50 ft

14AWG - from …………………………………………… 50 to 100ft

- Where is the best place to install the speakers

- Where do the speakers sound the best

- Try to separate the speakers 6 - 10 feet apart.

- When placing the speakers in the wall, try to locate them so that the

sound is projected towards the general listening area.

- If you intend to paint the grilles, try to do so before installation.

Qu k installation guideic

- Pencil

- Drill

- Tape Measure

- Wire cutter

- Philips-head screwdriver

- Sandpaper

Tools needed for installation

STEP 1

Trace along the inclusive template. Cut along the traced line using a

drywall saw or rotary drill. A simple, inexpensive drywall saw (about

$10 at your local hardware store) is the best choice for beginners.

Caution: This is the most important part of the entire installation.

If you are not certain whether any obstructions exist behind the

desired mounting area, you should start by cutting a small hole in

the center of your penciled mounting hole with a drywall saw. Use a

piece of sandpaper to sand down the cut out edge for a smoother

contour. (See Diagram 1 and Diagram 2)

STEP 2

Run the cable into the cut out location while leaving an extra two

feet to make the connection to the speaker easier. Strip back

approximately ½” of the speaker cable insulation and twist

the copper wires tightly for easy insertion.

On the back of the speaker, press down on the gold-plated

compression terminal to reveal the "eye" and insert the speaker

cable through the eye for secure connection. Release the compres-

sion terminal to lock each cable securely.

Diagram 1:

Cutout tracing

Diagram 2:

Cut Out

To determine the length and the gauge of speaker wire, you will need to

measure the distance between your receiver/amplifier and the speakers.

- Always buy more than you think you would need.

- Equal wire lengths should always be used to maintain an equal

balance in sound volume.

- Sound quality is lost when using thin wire gauge over a long

distance.

- Utility knife

- Safety eyewear

- Gloves

Speaker wire

- - - - - - - - - - - - - - -

- Measure the distance from the receiver/amplifier to the speakers.

-----------------

----------------

-----------------

----------------

-----------------

STEP 3

Tighten the dog-ear brackets by simply turning the screws on the

slowly clockwise. The quick-turn mounting system and frame will

"sandwich" or clamp around the wall to hold the speaker securely in

place. (See Diagram 3)

Diagram 3:

Mounting Dog Ear

Closed

Loose

Closed

Loose

..... ......

......

dog ear

STEP 4

Screw Screw

Tighten the four mounting screws with the same amount of force until

the speaker is aligned and held securely to the wall surface. Caution:

do not over tighten! (See Diagram 4)

Diagram 4:

Installation

comparable to the speaker’s power handling. Please refer to your owner’s

manual for reference.

(See Diagram 7)

Note: Speaker terminals have corresponding (+) and (-) terminals. It is

important to connect both speakers in phase. Out of phase will result in

thin sound and weak bass. (See Diagram 6)

Diagram 6:

Terminal identification

Warranty & Repair

All OSD A IO r oducts e ( ) year Limited Warranty against d ects in materi s and wo a hip. Proof of pur se must company all cl s. UD speake pr hav 10 ef al rkm ns cha ac aim

Dur h r iod O A O w ti part and correct any d ect in workmanship without char for either parts or l oring t e wa ranty per SD UDI ill replace any defec ve ef ge ab

are not OSD AUDIO’s responsibility.

For this warranty to apply, the unit must be installed and used according to its written instructions. If necessary, repairs must be performed by OSD AUDIO. The unit

must be returned to OSD AUDIO at the owner's expense and with prior written permission. Accidental damage and shipping damage are not considered defects, nor

is damaged resulting from abuse or from servicing performed by an agency or person

OSD AUDIO sells products only through authorized dealers and distributors to ensure that customers obtain proper support and service. Any OSD AUDIO product

purchased from an unauthorized dealer or other source, including retailers, mail over dealers and online sellers will not be honored or serviced under existing OSD

AUDIO warranty policy. Any sale of product by an unauthorized source or other manner not authorized by OSD AUDIO shall void the warranty on the applicable

product.

Damage to or destruction of p ecom on nts due to a c n of e essive power voids the warrppli atio xc anty on those parts. In these cases, repairs will be made on the basis of the retail

value of the parts and b . To return for rla or epair yos, u t e l tomer service at RMA@OSDAUDIO.com for a Returned Merchamus mai cus ndise Authorizat n (RMA) numio ber# then

the unit must be s d to OSD A IO at e s ex se, g with a note explaining the nature of service required. Be sure to pack the speaker(s) in a corrugated hippe UD th owner' pen alon
