Sida 1/8

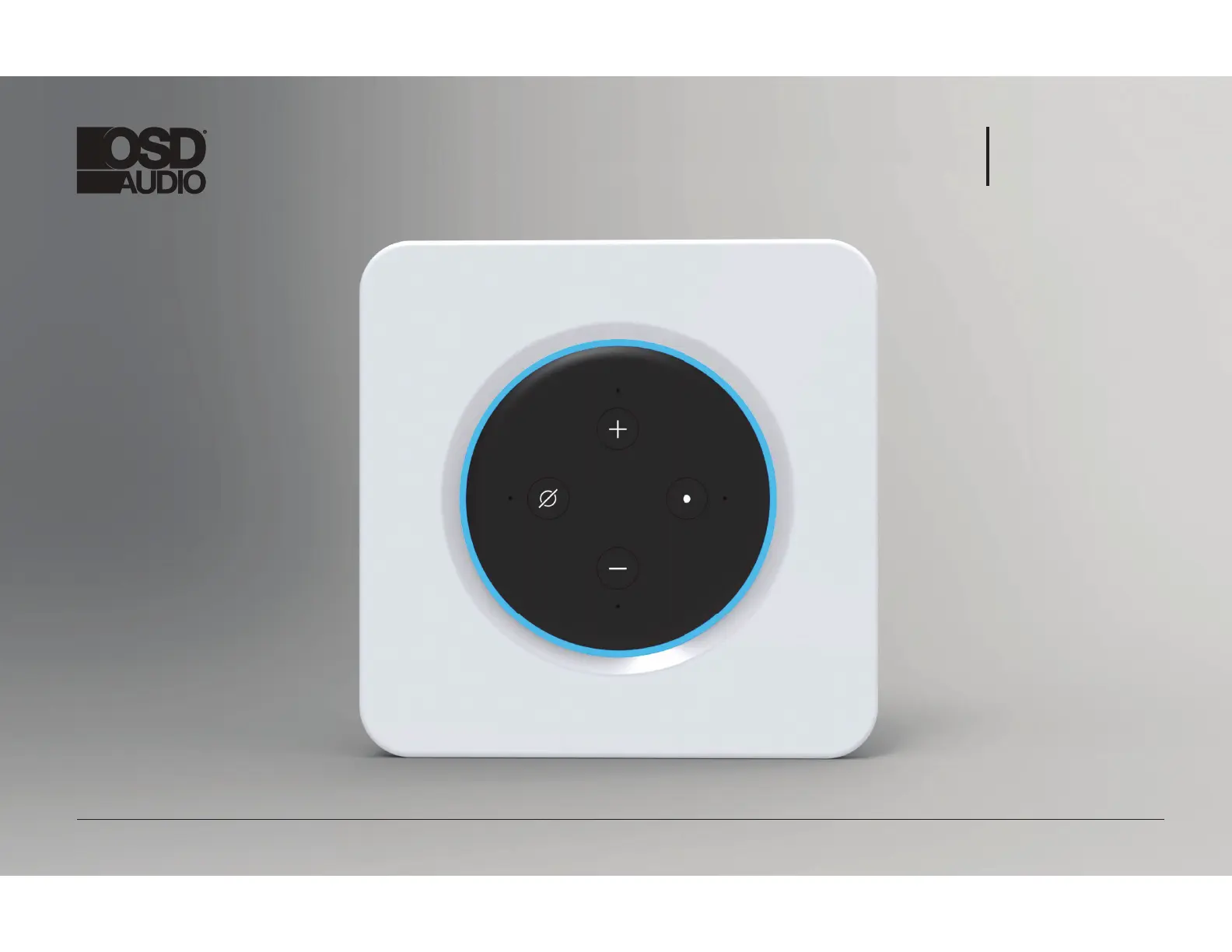

USERS GUIDE
NERO VOX ECHO DOT 3RD GEN
IN-WALL AMPLIFIER
The NERO VOX was designed for the Amazon Echo Dot 3rd Generation.
CAT-5 cable and a 16-2 AWG power cable are used to connect the
NERO VOX to the Wall Plate. Extend these common wire standards to
mount the NERO VOX and Wall Plate in opposite sides of the room if
desired, up to 300ft, or a remote location like an equipment rack.
The NERO VOX wall plate is designed to match the look of standard
electrical outlets. Ideal placement of the Wall Plate is next to an electrical
outlet for easy access for the power plug. The wall plate has a audio
input, subwoofer/pre output, and power plug. The audio input provides a
second audio source to the NERO VOX. The subwoofer output provides
a convenient location to connect any powered subwoofer to add more
bass.
Note: Any second audio source must have a variable audio output.
4-OHM – Connect any pair of 4 Ohm speakers OR any two pairs of 8
Ohm speakers.
8-OHM – Connect any pair of 8 Ohm speakers.
Note: NERO VOX will automatically go into Overload Protection if the
incorrect impedance is used or too many speakers are connected to
the unit. Maxing out the Gain Control may also trip protection mode. If
overload protection occurs check the gain and/or impedance to resume
normal amp function.
• Voice Command Built-In
• Multi-Room Capable
• /P,ѝJPLU[+PNP[HS(TWSPÄLY>H[[Z
• 4 ohm stable
• Overload Protection
• Provides Power for ECHO DOT Gen3
• Sub Output Dual RCA (Right/Left)
• 3.5mm Aux Input (TV, Smartphone)
• Power Connection for Ext Power Supply
• >HSS7SH[L*VUULJ[ZÄ[ZZ[HUKHYK1IV_
• NERO VOX to Wall Plate extendable 300’
• Includes 1,5m Cat5 2-way Audio Cable
• Includes 1.5m Power Connecting Cable
• 18V DC External Power Supply
• Paintable Snap-On Square Trim Cover
OVERVIEW FEATURES
• AC Input Multi-Voltage 100-240VAC
• DC Input: 18V/2A
• Signal Voltage: 500mV
• Power Output: 40W peak 20 Watts RMS
• DC Output 12V/2A
• Dimensions:
Trim Plate: 5.9” x 5.9”x .27”
Trim Plate hole: 3.6”
VOX Flange Diameter: 5.9”
VOX Cutout Hole: 4.84”
Wall Plate: 2.77” x 4.48”
WP Connector Depth: 2.05”
SPECS & DIMENSIONS
145mm
5.7in
150mm
5.9in
150mm
5.9in
3.14in
1.42in
.27in
RCA OUTPUT
3.5JACK INPUT
DC18V
R
L
114
4.48"
70.3
2.77"
