Sida 1/17

JIMBU STOVE

ANNATTO STOVE

OLIDA STOVE

INNOVATIVE FAMILY CAMPING

MODEL: 650800 / 218-BT

MODEL: 650804 / 204PI-BT

MODEL: 650604 / 220V1-BT

UK: INSTRUCTION MANUAL

DE: BEDIENUNGSANLEITUNG

DK: BRUGERVEJLEDNING

FR: MODE D'EMPLOI

NL: GEBRUIKSAANWIJZING

CZ: NÁVOD K POUŽITÍ

NO: BRUKERVEILEDNING

UK: INSTRUCTION MANUALUK: INSTRUCTION MANUAL

Read these instructions for use carefully so as to familiarize yourself

with the appliance before connecting it to its gas cartridge.

Keep these instructions for future reference.

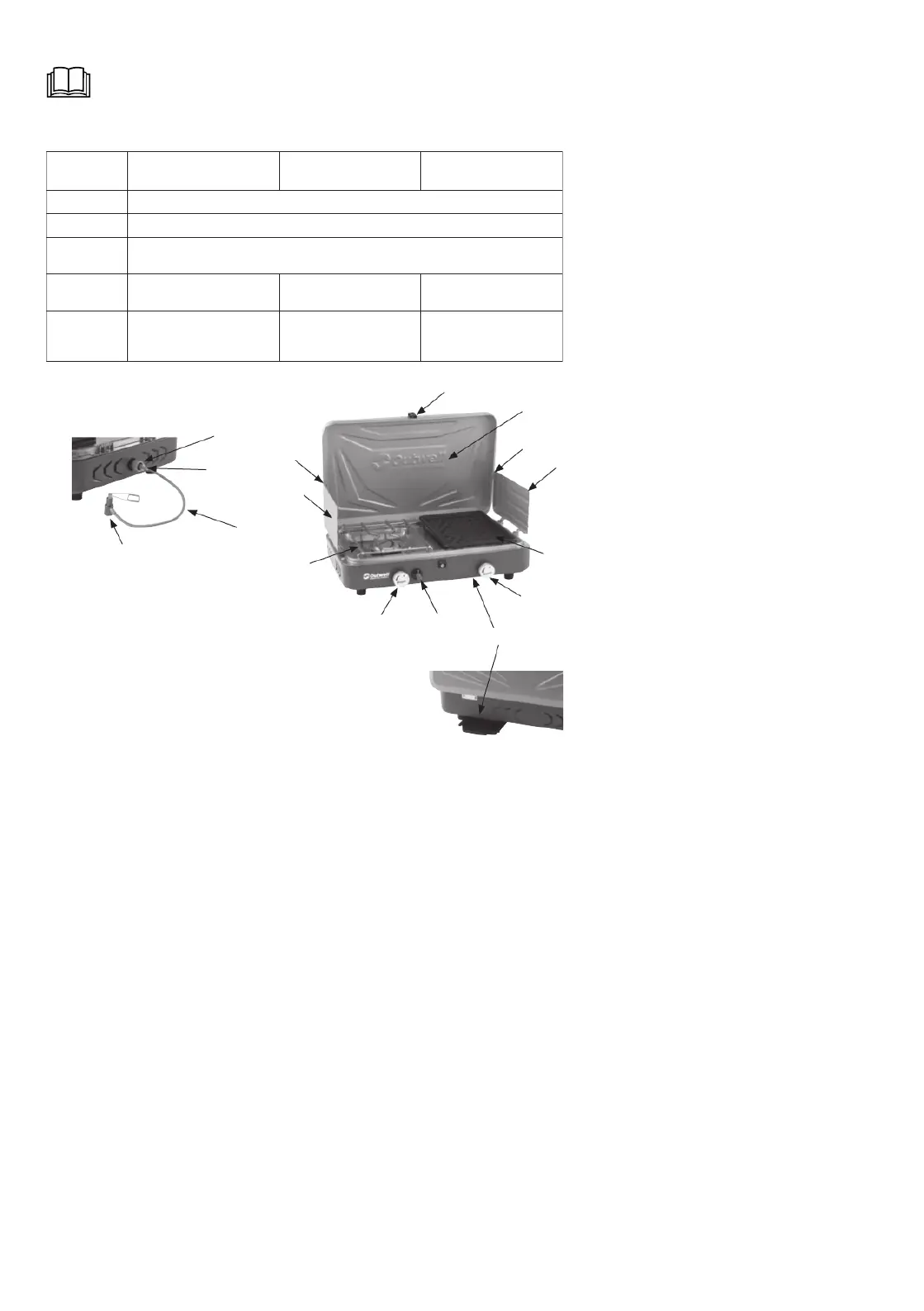

TECHNICAL DATA:

10.

14.

12.

11.

13.

1. Windshield protection

2. Grate for pots or pans

3. Grill grate with non-stick coating

(Only applicable for Jimbu Stove / 650800-218-BT)

4. Appliance lid

5. Individually controlled burner knob

6. Individually controlled burner knob

7. Auto piezo ignition

8. Inlet for connector / gas hose

9. Drip tray (only applicable for Jimbu Stove / 650800-218-BT)

10. Easy-close latch

11. Gas hose

12. Connector with female valve and female thread

13. Gas valve adaptor with tap

14. Connection points

1. ASSEMBLY

Appliance

name:

Jimbu Stove

(650800/218-BT)

Olida Stove

(650604/220V1-BT)

Annatto Stove

(650804/204PI-BT)

Type of gas: Butane-propane mixture

Category: Direct pressure

Type of gas

cartridge:

All 3 appliances should only be used with Primus 220693, 220794

or 220294 Butane-propane mixture gas cartridges compliant with EN 417.

Injector size: Ø 0.30 mm (Burner) &

Ø 0.20 mm (Grill)

Ø 0.28 mm Ø 0.30 mm

Nominal rate

in g/h and

in kW (Hs):

3.5 kW (255 g/h) (Burner) &

1.5 kW (109 g/h) (Grill)

2 x 3.0 kW (218g/h) 2 x 3.5 kW (255 g/h)

UK: INSTRUCTION MANUAL UK: INSTRUCTION MANUAL

• Applicable for Jimbu Stove: Hot fat may drip out at the bottom of the appliance. Do not light your

appliance on a greasy surface.

Connecting your appliance to a gas cartridge

To be able to use your appliance you will need to purchase a gas cartridge which is suitable for this

specic appliance. Please see TECHNICAL DATA table for information regarding the gas cartridge.

1) Position the gas cartridge at the side of your appliance, keeping in mind that the cartridge must be

kept away from heat and in a safe and upright position.

2) Make sure that the tap on the adaptor (13) is fully closed by turning it clockwise towards the symbol

“–“.

3) Make sure that both individually controlled knobs (5+6) are closed by turning them fully clockwise

towards the small “•” symbol.

4) Carefully screw the gas cartridge onto the adaptor (13) while taking care not to cross thread.

Screw down until the sealing washer meets the cartridge (hand-tight only).

5) Always check for leaks at all joints before lighting the appliance.

6) Never leave the adaptor (13) attached to the gas cartridge if the hose with connector (12)

is disconnected from the appliance.

Lighting Your Gas Appliance

1) Make sure your gas appliance is assembled and gas cartridge connected according to above

instructions.

2) Open the tab on the adaptor (13) by screwing the tab counterclockwise towards the “+” symbol.

3) Open the individually controlled burner knob 1, 2 or both (5+6), depending on which burner you

want to use, by screwing the knob(s) counterclockwise  away from the small “•” symbol.

4) Hold and push the auto electric igniter (7) to ignite the burner(s).

5) If it fails to ignite after 3-5 attempts close the tap and wait 5 minutes to allow for the unburned gas to

evaporate before making a new attempt.

6) When the burner is lit, turn the control knob(s) (5+6) clockwise to decrease the heat intensity or

extinguish, and counterclockwise to increase.

7) Do not open the valves beyond the point where maximum intensity is reached as this may cause

unnecessary aring and waste gas.

8) Do not move the appliance or gas cartridge once lit as this may result in aring. A warm-up period of

about 1 minute is required to avoid aring.

9) Avoid twisting of the exible hose.

10) If the gas pressure drops or the gas will not light, check if there is still gas left in the cartridge.

If there is gas left in the cartridge the gas temperature may be too low.

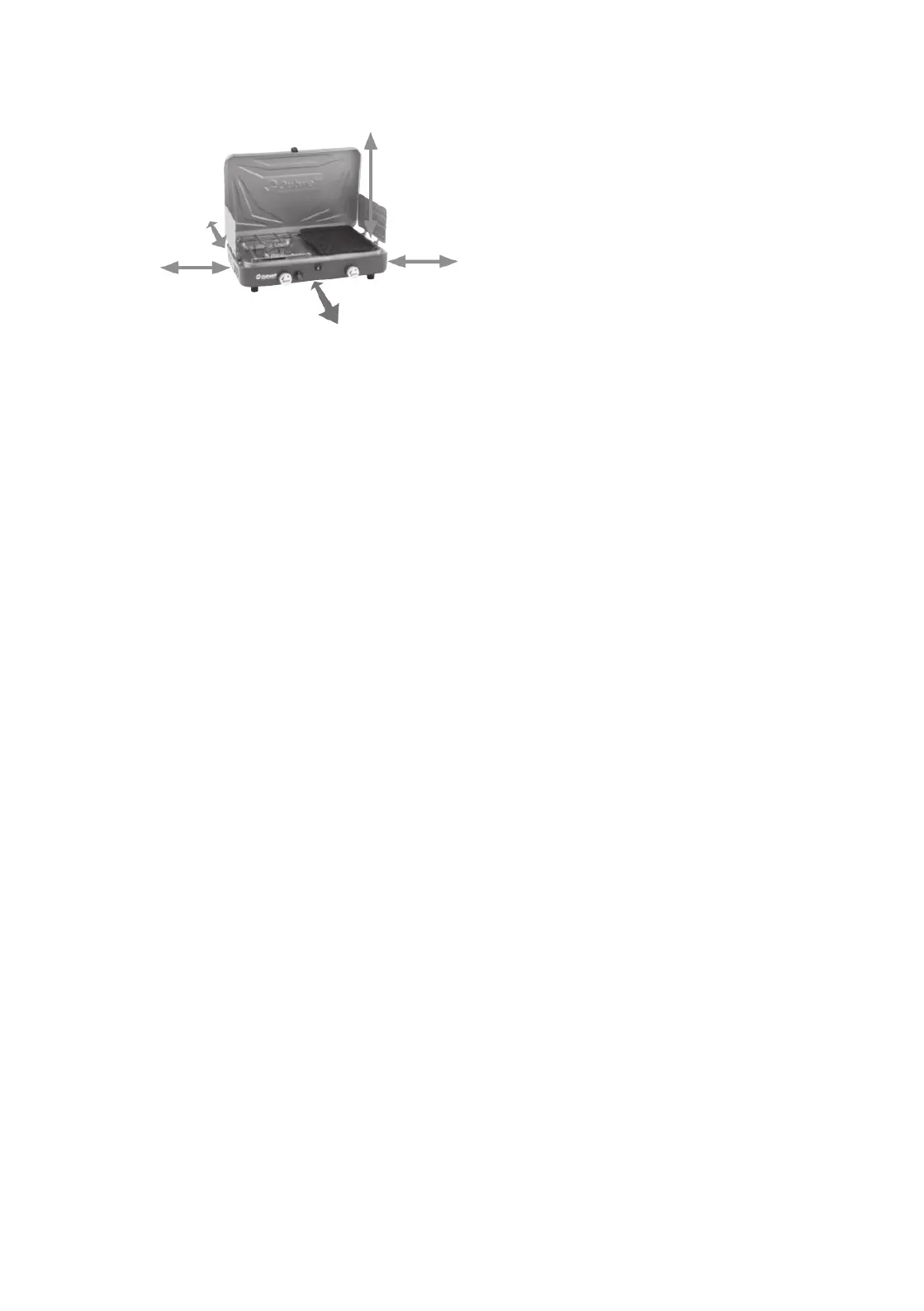

150 cm

60 cm

• Do not use the appliance if it is leaking, damaged or does not operate properly.

• The appliance shall be operated on a stable and horizontal surface.

• The appliance shall be used away from ammable materials with minimum distances to any adjacent

surfaces (wall, ceiling) as shown below:
