Sida 1/36

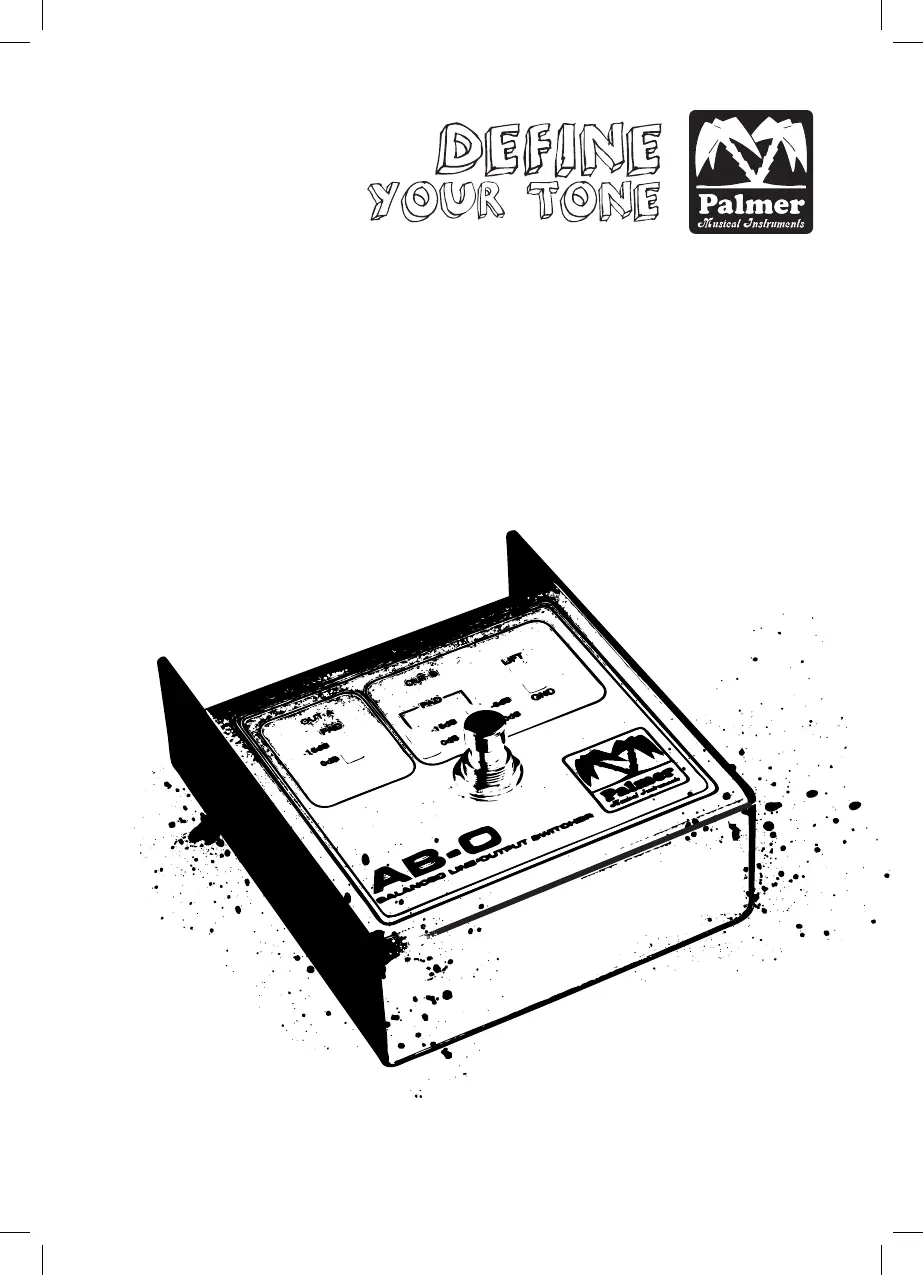

PEABO
BALANCED LINE OUTPUT SWITCH
USER´S MANUAL
BEDIENUNGSANLEITUNG
MANUEL D`UTILISATION
MANUAL DE USUARIO
2
DEFINE
YOUR
TONE
EN
EN FRDE ES
INTRODUCTION
Congratulations on your purchase of the PALMER ABO! The ABO is a simple
passive Output switcher. This useful little tool will open a whole new
world of options when working with line or mic signals on stage or in the
studio.
APPLICATION
The Palmer PEABO is a balanced switcher with one input and two outputs.
This makes it the perfect choice for routing a signal to one of two dif-
ferent inputs.
•Onstage,switchyourvocalmikebetweenFOHandmonitormixingdeskso
youcancommunicatewiththemonitormixerorthebandinprivate.
•Twodifferentsoundconfigurations.Supposeyousometimeswantadif-
ferenteffectorsoundonyourmicrophone,forexample,a“telephoneef-
fect”ormoreHall.RunbothoutputsofthePEABOtotwochannelsofthe
mixingdesk-nowyoucanconfigurethesedifferentlyandtogglebetween
the two channels onstage whenever you want.
•YoucanalsousethePEABOtoaddresstwodifferentroomsorzonesse-
lectively.
Switchingiscontrolledbyasturdylatchingfootswitch;theselected
outputisindicatedbyaredLED.Slideswitchesmakeitpossibletose-
lectvariousattenuationlevels(6,15or21dBattenuation)individually
for both outputs. A ground lift helps to avoid ground loop hum.
Housedinasolidmetalcasewithextendededgesforoptimumprotection
of the in- and outputs. Pre-drilled holes permit simple and secure mount-
ing in a rack or on a pedal board.
The PEABO’s strictly passive circuitry means that it requires no power
supply at all. A 9-volt block battery is only required to power the LED.
3
