PCE-TC 32N

ENGLISH

THERMAL IMAGER

USER MANUAL

3 4

1.1 1.2

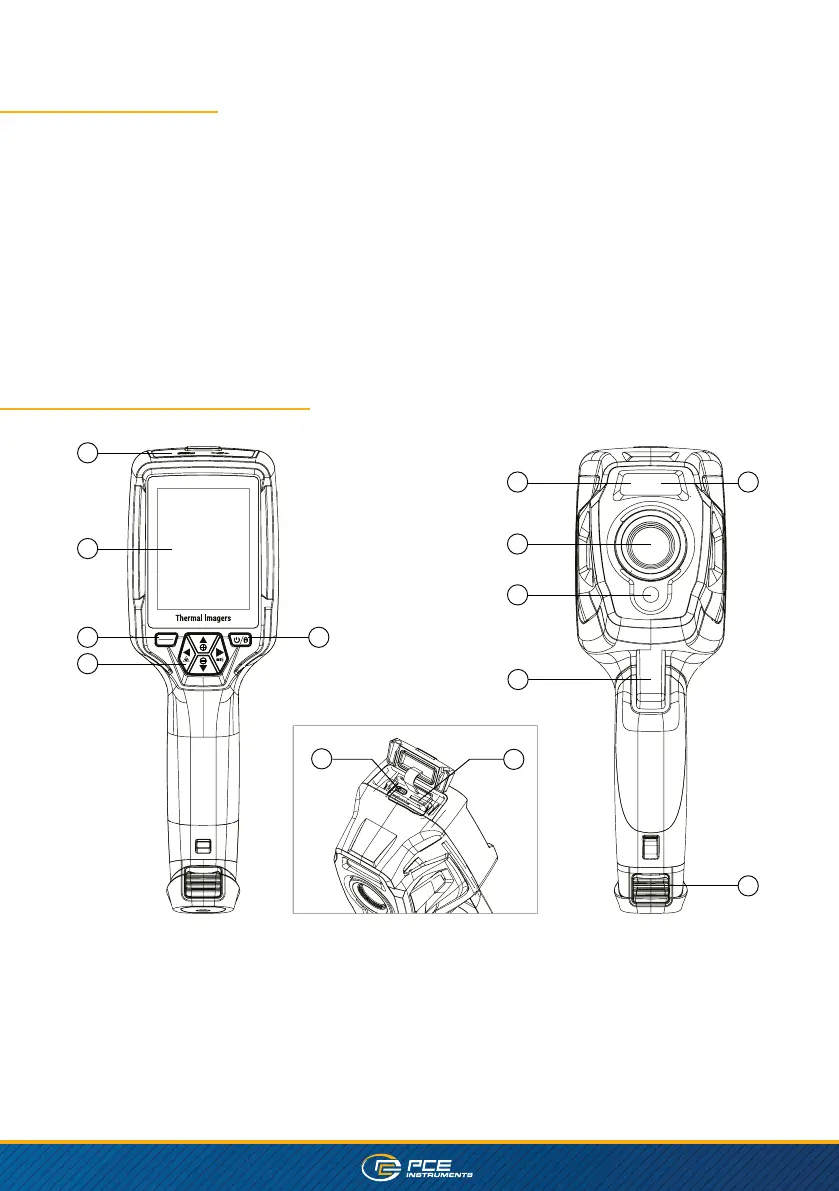

1. Interface and Cover

1-1. TypeC USB/Charge

1-2. Micro SD card slot

2. LCD Display

3. Menu/OK Button

4. Power/lock Button

5. Up/down/Right /Left Button

6. FlashLight

7. Laser Pointer

8. Infrared Camera Lens

9. Visual Camera

10. Trigger

11. Battery

The Thermal Imager is handheld imaging camera used for predictive maintenance, equipment trouble-

shooting, and verication. Focus the len to the object, Then the thermal and visual images are displayed

on the LCD and can be saved to a Micro SD Memory card. Transferring images to a PC is accomplished by

removing the SD memory card and connecting it to a PC through the included card reader, or transfer the

images and video stream to the smart device with “Thermoview” apps installed.

In addition to the features mentioned above, the Thermal Imager provide video recording and play back.

1. INTRODUCTION

2. STRUCTURE DESCRIPTION

»To prevent eye damage and personal injury, do not look into the laser. Do not point laser directly at

persons or animals or indirectly o reective surfaces.

»Do not disassemble or do a modication to the Thermal Imager.

»Do not point the Thermal Imager (with or without the lens cover) at intensive energy sources, for

example devices that emit laser radiation, or the sun.

»This can have an unwanted eect on the accuracy of the camera. It can also cause damage to the

detector in the Thermal Imager.

»Do not use the Thermal Imager in a temperature higher than +50°C (+122°F), lower than -20°C (-4°F).

High temperature or low temperature can cause damage to the Thermal Imager.

»Only use the correct equipment to discharge the battery.

If you do not use the correct equipment, you can decrease the performance or the life cycle of the

battery. If you do not use the correct equipment, an incorrect ow of current to the battery can occur.

This can cause the battery to become hot, or cause an explosion and injury to persons.

»Do not pull out the battery when the thermal imager is working.

If you pull out the battery when the thermal imager is working, it may cause the thermal imager work

unnormal.

»Do not disassemble or do a modication to the battery.

The battery contains safety and protection devices which, if they become damaged, can cause the

battery to become hot, or cause an explosion or an ignition. If there is a leak from the battery and the

uid gets into your eyes, do not rub your eyes. Flush well with water and immediately get medical care.

»Do not make holes in the battery with objects. Do not hit the battery with a hammer. Do not step on the

battery, or apply strong impacts or shocks to it.

»Do not put the battery in or near a re, or in direct sunlight, or other high-temperature locations. Do not

solder directly onto the battery.

»Always charge the battery in the special temperature rang.

»The temperature range through which you can charge the battery is 0°C to +50°C(+32°F to +122°F). If

you charge the battery at temperatures out of this range, it can cause the battery to become hot or to

break. It can also decrease the performance or the life cycle of the battery.

»Do not get water or salt water on the battery, or permit the battery to get wet.

»Clean the case with a damp cloth and a weak soap solution. Do not use abrasives, isopropyl alcohol, or

solvents to clean the case or lens/screen.

»Be careful when you clean the infrared lens. Do not clean the infrared lens too vigorously. This can

damage the antireective coating.

»Avoid condensation

Take the Thermal Imager from from cold to hot, it will appear condensation in thermal Imager. To

protect the Thermal Imager, you should power of the Thermal Imager, wait until the Thermal Imager has

become war enough for the condensation to evaporate.

»Storage

If you do not use the Thermal Imager, put the Thermal Imager in cool and dry environment, if you store

Thermal Imager equipped with the battery, the power of the battery will be exhausted.

3. SAFETY INFORMATION
