Manual

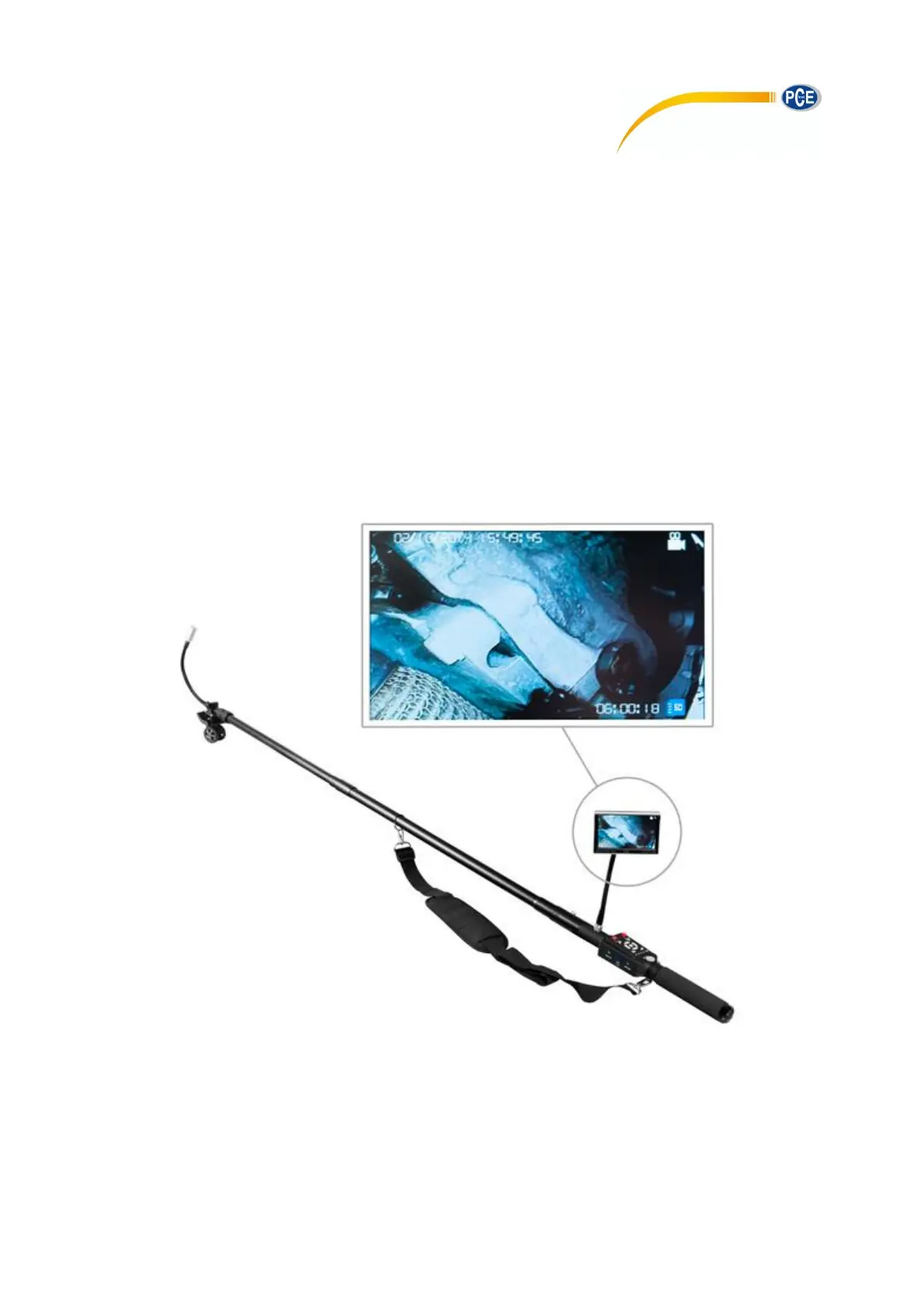

Inspection Camera PCE-IVE 320 / PCE-IVE 330
Version 1.1
Date of creation: 06.09.2016
Date of last change: 25.10.2017
Manual
2
Contents
1 Introduction ............................................................................................................. 3
2 Safety notes ............................................................................................................. 3
3 Specifications .......................................................................................................... 3
4 System Description ................................................................................................. 4
4.1 Camera Head ............................................................................................................................. 4
4.2 Telescopic stick .......................................................................................................................... 4
4.3 Rotary Coupling .......................................................................................................................... 4
4.4 Digital monitor ............................................................................................................................. 5
4.5 Operating Element ...................................................................................................................... 5
4.6 Handle ........................................................................................................................................ 6
4.7 Guide roller with mounting xture ............................................................................................... 7
4.8 Mounting ..................................................................................................................................... 7
5 Instructions .............................................................................................................. 8
6 Screen symbols ....................................................................................................... 8
6.1 Standby mode 8............................................................................................................................
6.2 Recording mode ......................................................................................................................... 8
7 DVR setting .............................................................................................................. 9
7.1 Image setting .............................................................................................................................. 9
7.1.1 Image quality adjustment ............................................................................................................... 9
7.1.2 Frame rate setting ........................................................................................................................ 10
7.1.3 Resolution setting ......................................................................................................................... 10
7.2 REC setting .............................................................................................................................. 10
7.2.1 Overwrite ...................................................................................................................................... 11
7.2.2 Rec. duration ................................................................................................................................ 11
7.3 Playback and deletion of a video le ........................................................................................ 11
7.4 System settings ........................................................................................................................ 12
7.4.1 Language settings ........................................................................................................................ 12
7.4.2 13 Time and date setting ...................................................................................................................
7.4.3 Formatting .................................................................................................................................... 13
7.4.4 14 SD card capacity check ...............................................................................................................
7.4.5 Date format .................................................................................................................................. 14
7.4.6 Time display on the screen .......................................................................................................... 15
8 FAQ .........................................................................................................................15
9 Disposal ................................................................................................................. 16
10 Contact ................................................................................................................... 16
10.1 PCE Instruments UK ................................................................................................................ 16
10.2 PCE Americas .......................................................................................................................... 16
Manual
3
1 Introduction
Thank you for purchasing a telescopic camera PCE-IVE 320 / PCE-IVE 330 from PCE Instruments.
The telescopic camera allows the user to get new insights of the places that are diicult to access or are
located high. Due to telescopic stick of camera is ideal for maintenance and the up to 2.3 m, the
inspections. With the help of the device, you can detect problem spots. Use in the dark is also the
possible due to the LEDs that are attached to the camera head. A very useful feature of the telescopic
camera is that you can make videos and take pictures using the digital recorder Thus, they can be used .
for analysis later. the
2 Safety notes
Please read this manual carefully and completely before you use the device for the rst time. The device
may only be used by qualied personnel and repaired by PCE Instruments personnel. There is no
warranty of damages or injuries caused by non-observance of the manual.
Do not drop the device or exert any strong physical pressure on this unit.
Attach the camera tightly to the device if you use it underwater.
Turn the display carefully. The display can be moved from left to right at less than 30° and up at
less than 90 °.
Insert the SD card the right way round to avoid damage to the device.
When you insert the SD card for the rst tim let the device format the card. e,
Do not remove the SD card when the unit is not in operation.
Use only the supplied charging adapter.
This user's handbook is published from PCE Instruments without any guarantee.
We expressly point to our general guarantee terms; they can be found in our general terms of business.
If you have any questions, please, ntact PCE Instruments. co
3 Specifications
Camera
Camera head
¼ CMOS
Pixels
0.3 megapixels
LED
12 white LEDs
Camera length
320 mm
Camera diameter
23 mm
Monitor
LCD screen
PCE-IVE 320:
5.0-inch LCD
PCE-IVE 33 0:
8 -inch LCD .0
Resolution
800 x 480
Monitor size
130 x 80 x 10 mm
Telescopic stick
Max. length
2.3 m
Min. length
0.9 m
Battery
Battery capacity
1500 mAh
Output voltage
DC 12 V
Charging adapter
Input voltage
AC 100 ... 240 V 50/60 Hz
Output voltage
DC 12 V 500 mA
DVR
PAL output
704 x 576 (PAL)
Video format
MPEG-4
Recording format
ASF
SD card
2 … 32 GB
Complete set
Length
Max. length 3 m
Voltage supply
DC 12 V
Operating / storage temperature
- 20 °C … +50 °C
Produktspecifikationer
| Varumärke: | PCE |
| Kategori: | Mätutrustning |
| Modell: | -IVE 330 |
