Peavey PV 10 BT Bruksanvisning

Peavey Stavmixer PV 10 BT

Läs nedan 📖 manual på svenska för Peavey PV 10 BT (21 sidor) i kategorin Stavmixer. Denna guide var användbar för 7 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF

Sida 1/21

www.peavey.com

PV®10AT • PV®BT

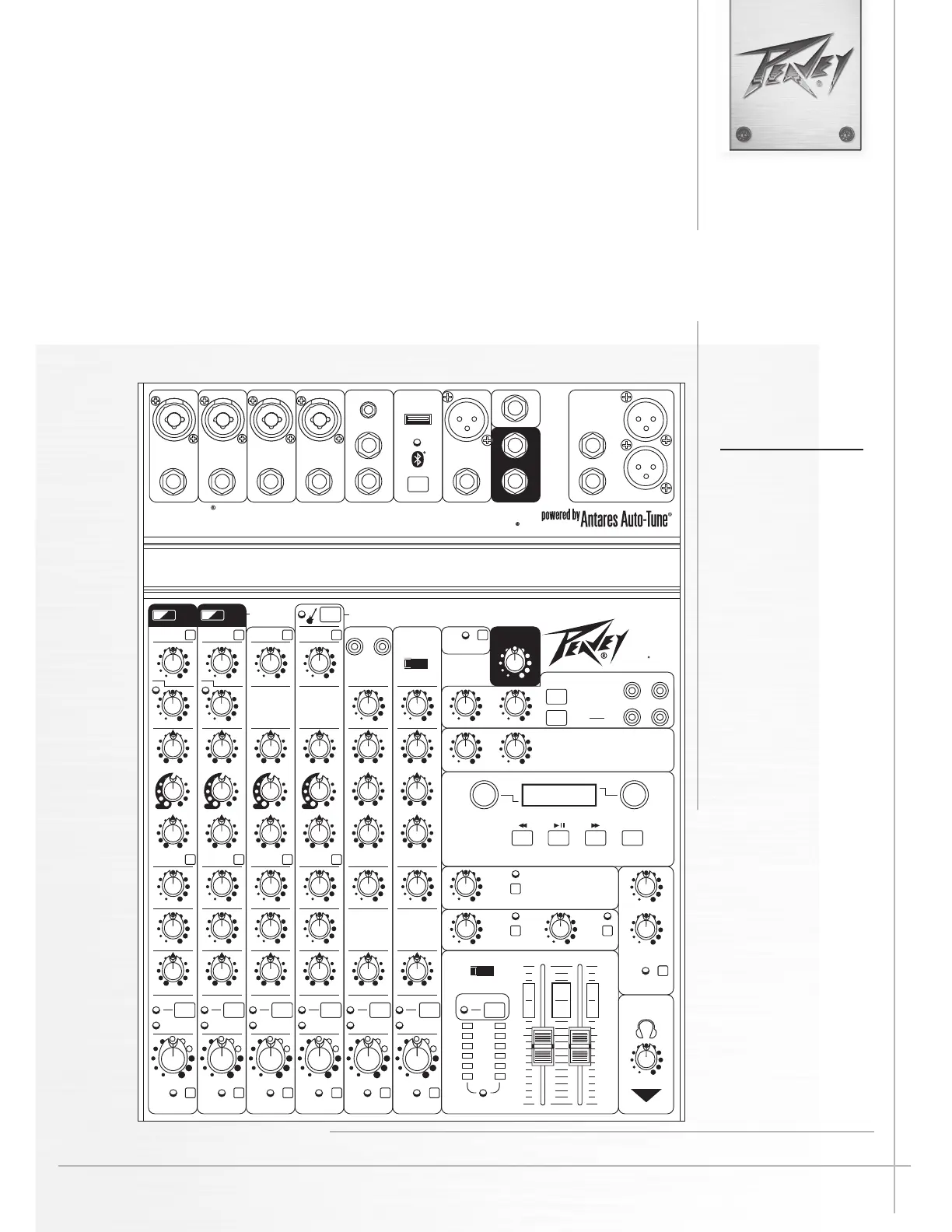

Compact Mixer

Operating

Manual

LEVEL

min max

HIGH

LOW

min max

PAN

left right

EFX

min max

AUX

min max

LEVEL

COMP

min max

SIGNAL

CLIP

GAIN

3.5mm ST EREO

MAIN

OUTPUTS

STEREO IN

AUX SEND

MAIN L+R

2 3 4 5/6 7/8

min max

DIRECT OUT

PHANTOM POWER

48V

USB A

SOLO/MAIN

CONTROL ROOM

SOLO/MAIN

USB

min max

HEADPHONE/

SOLO/MAIN

DIRECT OUT

SOLO

SOLO SOLO SOLO SOLO SOLO SOLO

Press t o

Select

Press t o

Select

or edit

EFX SELECTMEDIA SELECT

DIGITAL EFFECT/MEDIA PLAYBACK

USB MEDIA PLAYBACK

EFFECts

media

min max

comp

DIRECT OUT DIRECT OUT

HI PASS

MIC MUTEMUTE

MASTER

min max

RETURN TO MAIN RETURN TO AUX

DIGITAL

MEDIA CHANNEL

LEVEL A/B

min max REC LEVE L

min max

RECORD LEVEL

min max TO CONT ROL ROOM

min max

ANALOG

MEDIA CHANNEL

EFX

AUX

STEREO IN LEVEL

min max

ENABLE

A/B SELECT

B/REC

KOSMOS-C

min max

HIGH

LOW

USB A

USB B

Bluetooth

MONO

(SUM)

STEREO

REC

EQ BYPASS EQ BYPASS EQ BYPASS EQ BYPASS

PAIRING

MID-MORPH

low high

LEVEL

min max

HIGH

LOW

min max

PAN

left right

EFX

min max

AUX

min max

COMP

min max

GAIN

min max

comp

HI PASS

MID-MORPH

low high

LEVEL

min max

HIGH

LOW

min max

PAN

left right

EFX

min max

AUX

min max

GAIN

min max

HI PASS

MID-MORPH

low high

LEVEL

min max

HIGH

LOW

min max

PAN

left right

EFX

min max

AUX

min max

GAIN

min max

HI PASS

MID-MORPH

low high

LEVEL

min max

HIGH

LOW

min max

BAL

left right

AUX

min max

GAIN

5/6

min max

MID

LEVEL

min max

HIGH

LOW

min max

BAL

left right

AUX

min max

GAIN

7/8

1 2 3 4 5/6 7/8

min max

MID

9/10

EFX

MUTE

SOLO

1/4”-Hi-Z CH.4 On ly

SIGNAL

CLIP

SIGNAL

CLIP

SIGNAL

CLIP

SIGNAL

CLIP

SIGNAL

CLIP

MUTEMUTEMUTEMUTEMUTE

Auto-

TUNE

AT AT

Features and specifications are subject to change without notice.

Peavey Electronics Corporation • 711 A Street • Meridian, MS 39301

(601) 483-5365 • FAX (601) 486-1278 • www.peavey.com

FCC/ICES Compliancy Statement

This device complies with Part 15 of the FCC rules and Industry Canada license-exempt RSS Standard(s). Operation

is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device

must accept any interference received, that may cause undesired operation.

Le présent appareil est conforme aux CNR d’lndustrie Canada applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes: (1) I’appareil ne doit pas produire de brouillage, et (2)

I’utilisateur de I’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible

d’en compromettre le fonctionnement.

Warning: Changes or modifications to the equipment not approved by Peavey Electronics Corp. can void the user’s

authority to use the equipment.

Note – This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try and correct the interference by one or more of the following measures.

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-

nected.

• Consult the dealer or an experienced radio/TV technician for help.

Caution

The equipment complies with FCC radiation exposure limits set forth for an uncontrolled envi-

ronment.

PV®10AT and PV®10BT

Compact Mixers

Congratulations on purchasing the Peavey PV®10AT or PV®10BT Compact Mixer. e PV®10AT and PV®10BT are studio-quality mixing con-

soles designed to meet diverse needs while occupying a small space. ese are the perfect consoles for small venue performances or home record-

ing environments. PV series mixers feature built-in DSP eects that are useful in real-world recording and sound reinforcement, while parameter

controls allow you to tailor each eect to meet your needs.

e PV 10 BT includes 4 channels of reference-quality mic preamps, 4 direct outputs for recording, a stereo channel, media channel with Blue-

tooth wireless input, high quality digital eects with LCD display, streaming USB out, MP3 playback via USB A input, Peavey's exclusive Kosmos

audio enhancement, 48 volt phantom power, dual selectable control room outputs, 2 channels of compression, one channel of on board selectable

guitar preamp, 3-band EQ per channel with bypass, channel mute buttons, aux send, signal clip indicators, and a stereo master LED meter bridge.

is amazingly versatile mixer is at home both in the studio as well as live applications. Its modern features such as Bluetooth allow seamless

connection to almost any "smart" device. 4 direct outs allow easy connection to most DAW interfaces for recording; in addition, the PV 10 BT can

stream audio directly to a PC. MP3 playback is also available, just plug a ash drive with MP3 les on it into the USB A port and use the LCD to

select and playback music. e PV series Solo feature allows the user to listen to individual channels via headphone or control room outputs and

the EQ bypass allows the user to compare the EQ'd signal to the original signal with the push of a button. 2 Channels of compression keep signals

with dicult levels under control, and Peavey's exclusive guitar-shape adjusts the EQ and preamp specically for guitar. Hi pass lters on every

channel remove unwanted rumble and noise, and balanced AUX and Master outputs ensure a clean noise free signal to your powered speakers

or ower amplifier. The all new PV series non-powered mixers represent the pinnacle of performance and value. p

In addition to all of these features, the PV10AT features 2 channels of Antares® world-famous Autotune®, which can be set to subtly tighten up

vocal harmonies, or it can be set for robotic vocal eects heard in today's popular music. Peavey's exclusive custom key feature makes it a snap to

auto-tune to any scale you can think of, in a live performance. It is so easy and fast, you can set it up between songs, right in the middle of a set.

Please read this guide carefully to ensure your personal safety as well as the safety of your equipment.

FEATURES:

ENGLISH

Installation Note:

is unit must have the following clearances from any combustible surface: top: 8", sides: 12", back: 12"

• 4 Combination 1/4" and XLR low noise mic preamps

• Stereo 1/4", RCA or 3.5mm input channel

• Bluetooth wireless connectivity

• 3-band EQ on all channels

• 4 Channels of Peavey's Exclusive Mid-Morph

• 150 Hz low-cut switch on all mic inputs

• LED clip and signal present indication

• Individual channel mutes

• EQ Bypass per mic channel

• On board studio quality digital eects with individual channel control

• Eects and playback LCD display

• One pre-fader AUX send

• Precision 60 mm faders on master

• Dual selectable control room outputs / Record out with independent level

• Global 48V phantom power

• Main stereo outputs with balanced 1/4" and XLR connectors

• Rugged console design

• 2 channels of built-in compression

• Stereo pan control per channel

• On-board USB-A MP3 playback

• 4 Channels of direct out

• Kosmos -C bass and treble enhancement

• Channel 9/10 stereo return/input

• Individual Solo function

• Stereo USB-B streaming audio in and out

• High quality master LED meter bridge

• Master mic mute

• Studio quality headphone output

• Peavey's exclusive on-board 1 Meg guitar input

• Antares Auto-Tune with Peavey's exclusive Custom Key

feature
