ISSUED: 04-19-07 SHEET #: 055-9489-1
Visit the Peerless Web Site at www.peerlessmounts.com For customer care call 1-800-729-0307 or 708-865-8870.
1 of 1
Note: Actual parts may appear slightly different than illustrated.

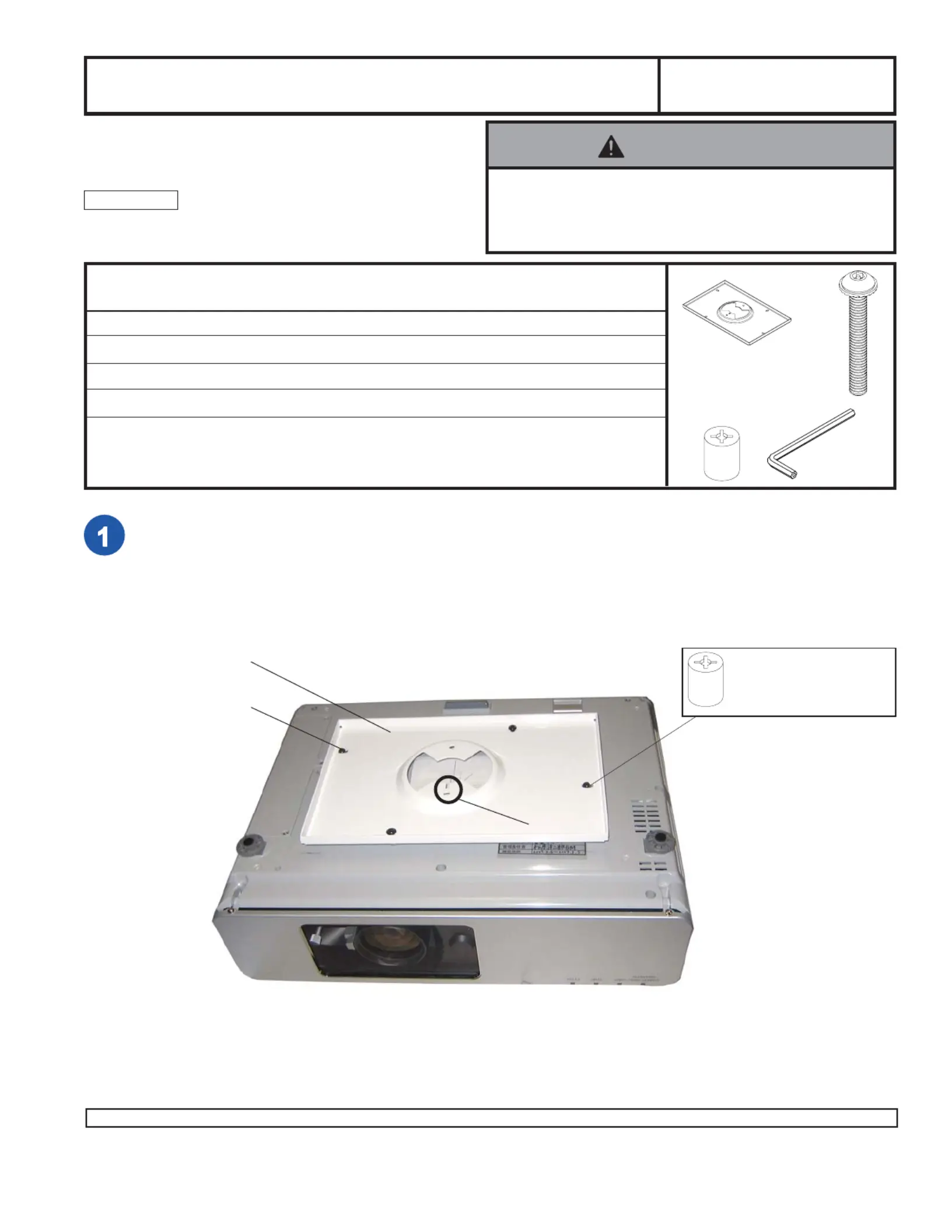

Installation and Assembly - Projector Adapter Plate for
Panasonic® PT-F100NT, PT-FW100NTU and PT-F100U Projector
Models: PAP 298, PAP 298-S,
PAP 298-W
Description Qty. PAP 298 PAP 298-S PAP 298-W
A A adapter plate 1 055-1754 055-4754 055-2754
B B M4 x 20 mm socket pin serrated washer head screw 4 510-1061 510-2163 510-2163
CC retaining spacer 4 590-2020 590-2009 590-2009
DD 4mm security allen wrench (for PAP only) 1 560-9646 560-9646 560-9646
Parts List
DD
AA
CC
BB
© 2007Peerless Industries, Inc. All rights reserved.
Peerless is a registered trademark of Peerless Industries, Inc.
All other brand and product names are trademarks or registered trademarks of their respective owners.
IMPORTANT! Read entire instruction sheet before you
start installation and assembly.
Before you start check the parts list below to make sure all
of the parts shown are included.
Installer must verify that the supporting surface will
safely support the combined weight of all attached
equipment and hardware.
WARNING
Retaining spacers (CC) go
between adapter plate
(AA) and projector.
Flip projector upside down. Attach adapter plate (AA) using four retaining spacers (CC) and four M4 x 20 mm socket pin
serrated washer head screws (BB). Tighten using 4 mm security allen wrench (DD) .
* Notch indicates front of projector
*
BB
AA
