Telemetry Installation Guide
Current as of June, 2024
1053732
EVERY SINGLE DRAFT SYSTEM IS DIFFERENT
Every single draft system is different from building to building with an infinite number of
configurations. Each system contains the following:
(A)Parts
Barbs, Clamps, Screws, Zipties extra parts,
(B)Sensors and Meters
Various Depends on the system configuration -
(C )Hub
Data collection hub with ports for sensors
(D )Cable
Data Cable, 25ft(6.6) in length (in the box
(C ))Hub
(E)Comnode
Communication Node: Cellular and power center
Part #
Description
1053622
Bevchek Kit, For One Power Pak, W/One Pump
1053623
Bevchek Kit, For One Power Pak, W/Two Pumps
1053597
Bevchek Cellular Comnode
1053551
Bevchek Telemetry Hub 16 Port
1053556
Bevchek Cooler Air Temperature Sensor
1053596
Bevchek Cooler Fluid Temperature Sensor
1053595
Bevchek Cooler Glycol Bath Temperature Sensor
1053547
Glycol Flow Sensor- Digmesa Fhku John Guest 3/8" or 1/2"
1053598
Bevchek Sensor Cable Extension, 15 Feet

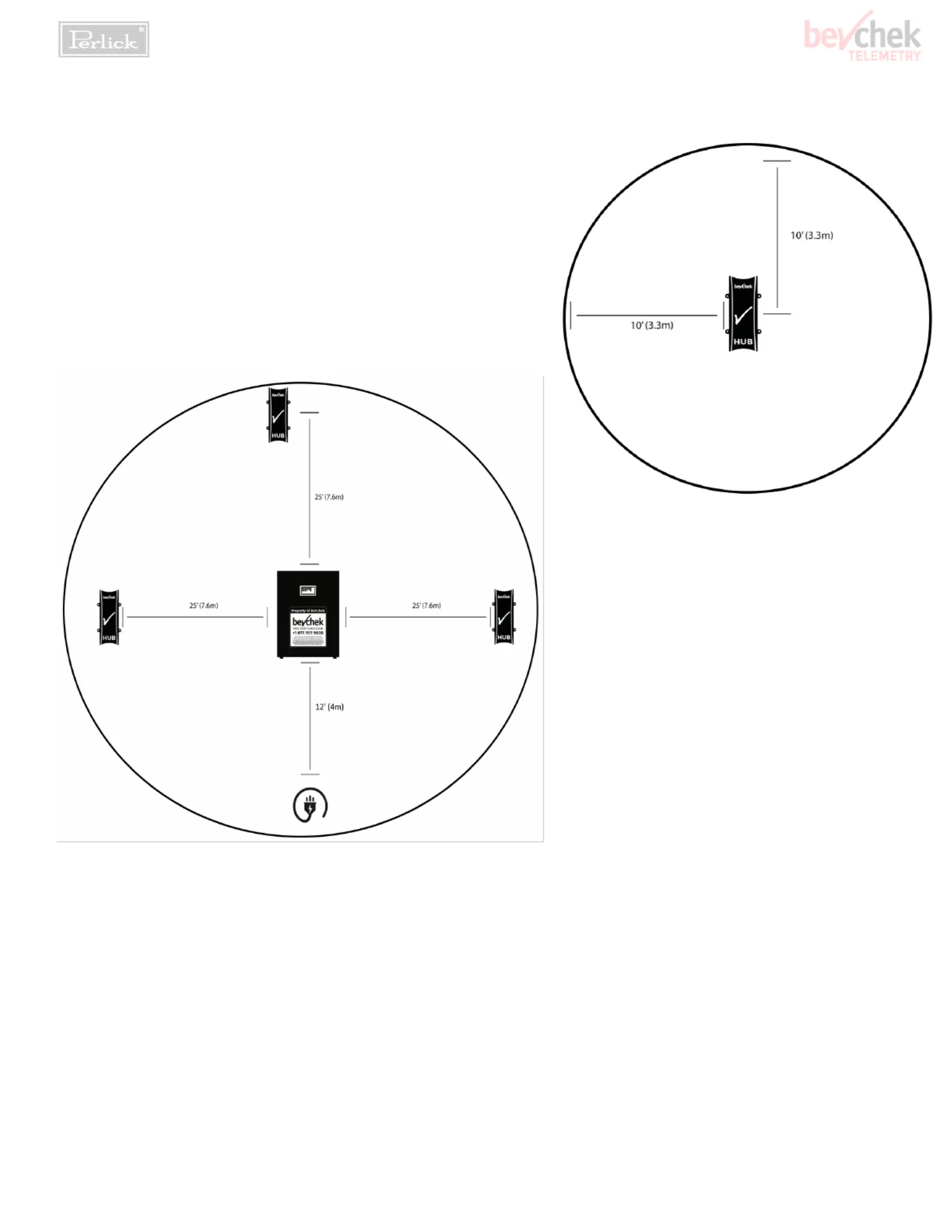

THINGS TO KEEP IN MIND WHEN INSTALLING
1. A (C)Hub has 16 sensor ports. (and +1
onboard ambient temperature)
1. Each (B)Sensors and Meters has a cable of
10ft(3.3m) and requires one(1) port on a (C)Hub
2. THEREFORE, each (C)Hub has a radius of 10’
( 3.3m) for sensors in that area
3. A (E)Comnode has three (3)
ports for (C)Hubs. Each (C)Hub
comes with a cable of has a
cable of 25ft(7.6m)
4. Each (E)Comnode has a
12ft(4m) power cable included
5. THEREFORE, each (E)Comnode
has a radius of for 25ft(7.6m)
(C)Hubs in that area.
