1 Important safety instructions
Caution
• R h n ru n for you n. you read t ese i st ctio s be e begi If a e un urs e of ny a
pa ocessr f h rt o t e p , co tact a pn rof n ntr r r n r essio al co acto o i stalle
for nce. I r r n n n r u n njur r e, assista mp ope i stallatio ca es lt i i y o damag
• The wall or mounting surface must be capable of supporting
the combined weight of the mount and the display, if not the
structure must be reinforced.
• Locate pipes, wires, or any other hazards in the wall where you
wish to install the mount before drilling.
• Three people are recommended for installation. Do not attempt
to lift a heavy display without assistance.
• This wall mount is intended for use only with the maximum
weight of 35 kg (77 lbs). Use with heavier than the maximum
weights indicated may result in instability causing possible injury
2 Full motion wall mount (for LCD, Plasma, and
LED displays)
What’s in the box
Full motion mount (×1) User manual (×1)
Adapter (×4) Hardware kit (×l)
Hardware kit
A Drywall screws (×3)
F M5×20 (×4)
B Concrete anchor (×3)
G M6x20 (×4)
C Washers (×7)
H M8x30 (×4)
Wrench (×1)
D M6×10 (×8)
I Spacer (×4)
E J M6 lock nut (×8)
Spirit bubble (×1)
Tools required
Preparation
• Phillips head screw driver
• Electric or portable drill
•
• 8 mm (5/16”) Masonry bit for concrete installation
•
•
Level

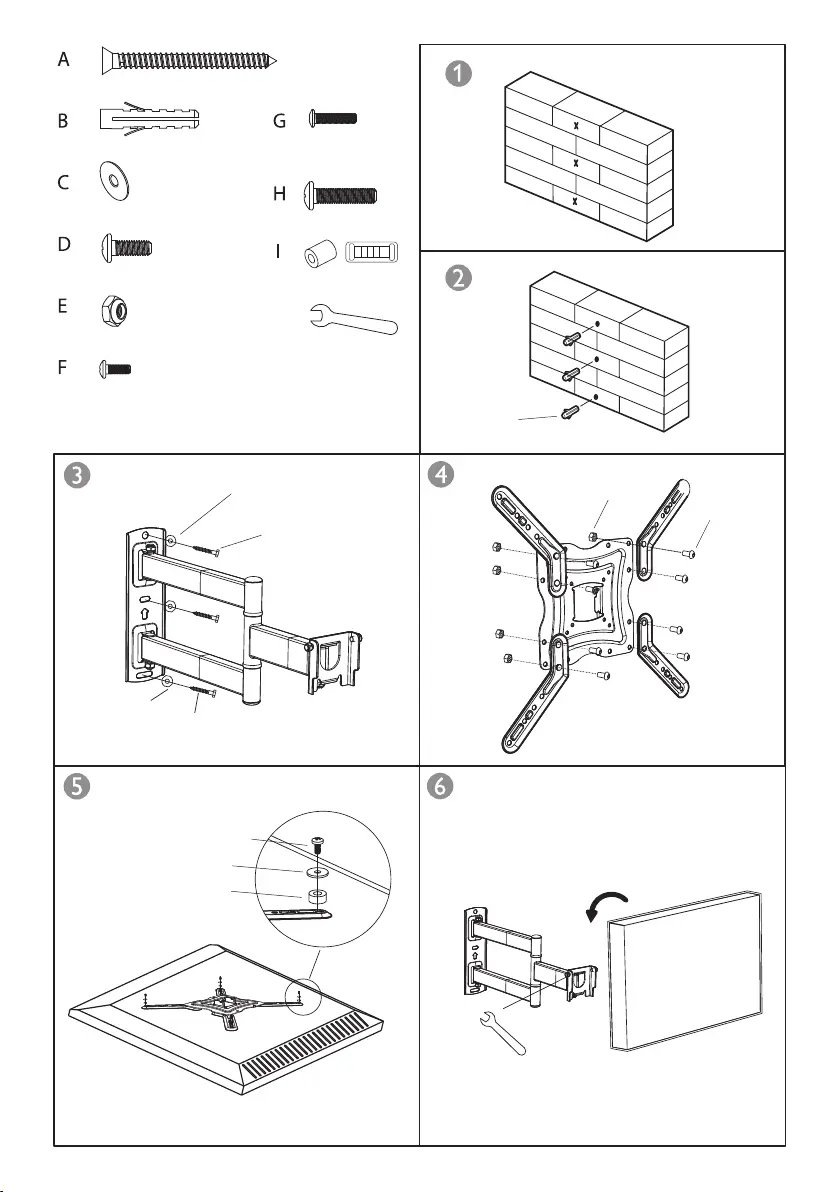

3 Installation

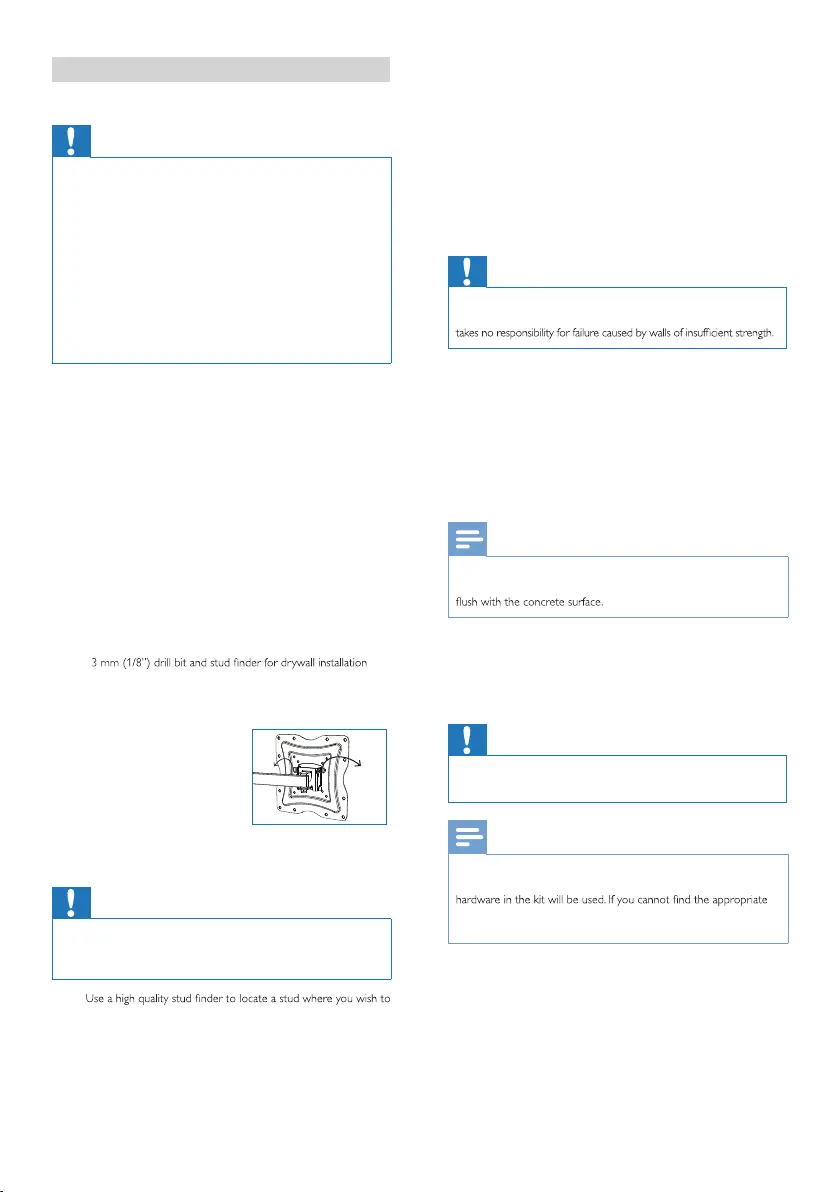

Mount to the drywall
Caution
For safety reasons, this mount must be secured to a wood stud of
supporting the combined weight of the mount and display Do not
mount to drywall alone.
1
install your mount. Mark both edges of each stud to help identify
the exact center.
2Place the mount against the wall over the marked stud. Make
sure it is level and right side up.
Prepare the mount for installation by
disassembling the display plate from
the mount. Do this by removing the
safety screws as shown .Place the
screws in a safe location.
3 Mark three Locations vertically at the center of the stud for
securing the mount to the wall (see Fig. 1) and set it aside.
4 Drill a 50 mm pilot hole at each marked location.
5 Place the mount back against the wall and attach it using the
drywall screws (A) and three of the washers (C) provided (see
Fig. 2). Do not over-tighten these screws . Ensure that the mount
remains level after all screws are secured.
Mount to the concrete wall
Caution
For safety reasons, the concrete wall must be capable of supporting
the combing weight of the mount and the display. The manufacturer
1Place the mount against the wall in the desired location and
make sure it is level and right side up.
2Mark three lotions vertically at the center of the stud for securing
the mount to the wall (see Fig.1) and set it aside.
3Drill 50mm pilot hole at each marked location.
Remove any excess dust from the holes.
4
with the concrete surface (see Fig. 2). A hammer can be used to
lightly tap the anchors into place if necessary.
Insert a concrete anchor (B) into each hole so that it is flush
Note
If the concrete wall is covered by a layer of plaster or dry wall, the
concrete anchor must pass completely through the layer to rest
5Place the mount back against the wall and attach it using the
drywall screws (A) and three of the washers (C) provided (see
Fig. 3). Do not over-tighten these screws . Ensure that the mount
remains level after both screws are secured.
Attaching the display plate to the display
Caution
Use extra care during this part of the installation. If possible, avoid
facing down your display as it may damage the viewing surface.
Note
This mount comes with a selection of different screws to
accommodate a wide variety of display models. Not all of the
screw size in the kit provided, consult the manufacturer of your
display for more information.
1Examine the mounting holes on the back of your display:
• If th ne mounti g holes are spaced 75 mm 75 mm o× r 100 mm ×
100 mm apart, skip t is sectio d ph n n a roceed w h .it step 3
• If the mounting holes are spaced 100 mm × 200 mm or
200 mm × 200 mm or 300 mm × 300 mm or 400 mm × 400
mm apart you will need to use the adapters included with
your mount Attach t mo rhese to the unt acco din g to the
ill atioustr n (see Fig. . Use the M6 × 10 screws ( , M6 lock 4) D)
nuts (E) and wrench (J) from the hardware kit.
1
