Sida 1/8
Dual Cone Design- to strengthen the rigidity of the woofer’s cone body
to minimize the distortion while increasing the handling of high pressure
produced in the subwoofer enclosure
CFL³ Voice Coil- 3x more structurally rigid, prolonging the life of voice coil
Magnetic FEA High Efciency Motor- provides highest possible, efcient
motor design
Vented Frame & Motor- provides better thermal efciency, reduces motor
compression and extended low frequency response
MLB Collar- enables micro level bonding with cone & spider for increased
strength
Dual Twisted Sleeved Leads- reduces wire roping and allows high excursion,
increased exibility and long life
BEEF’ed Up- Bent Edge Enhanced Frame- minimizes overall resonance and
provides accurate sound with less distortion
FEATURES
GX
Models: GX12 - GX10 - GX8
GX Series Subwoofers

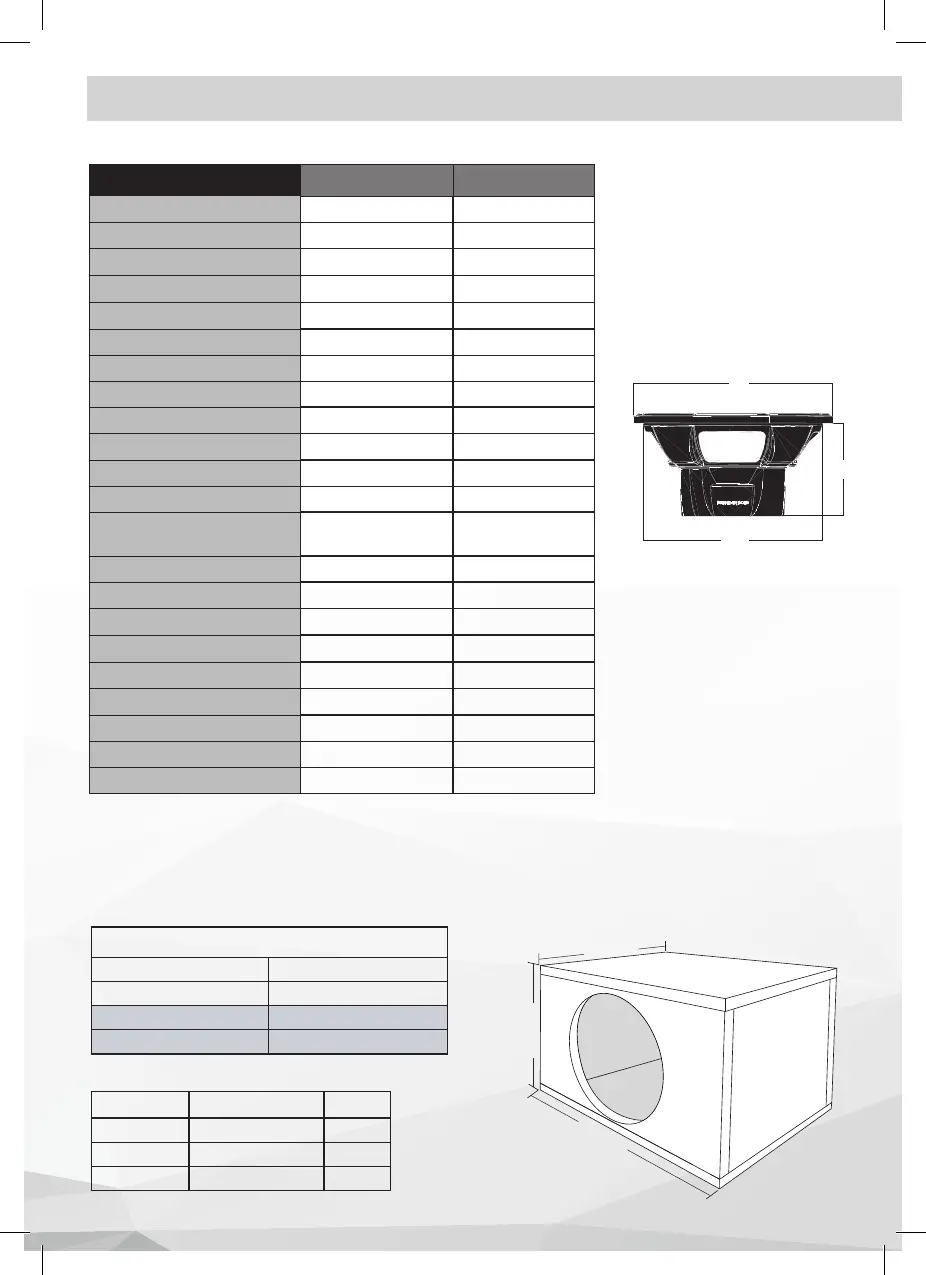

SPECIFICATION GX12D2 GX12D4
Nominal Impedance (Z) 1.85 ohms 3.50 ohms
DC Resistance (Re) 3.70 ohms 7.00 ohms
Resonance Frequency (Fs) 21.23 Hz 21.80 Hz
Piston Area (Sd) 0.0499 m20.0499 m2
Force Factor (BL) 17.35 Tm 20.77 Tm
Mechanical Q Factor (Qms) 3.63 3.25
Electrical Q Factor (Qes) 0.30 0.34
Total Q Factor (Qts) 0.27 0.31
Sensitivity 1W/M (SPL) 87.44 dB 87.72 dB
Mechanical Compliance (Cms) 0.31 mm/N 0.35 mm/N
Moving Mass (Mms) 180.89 g 152.42 g
Linear Excursion (Xmax) 9 mm 9 mm
Volume Acoustic
Compliance (Vas)
107.90 Ltr
3.81 cu ft
121.48 Ltr
4.29 cu ft
Reference Efciency (NO.) 0.33% 0.36%
Nominal Power (Pe) 400 Watts 400 Watts
Peak Power 00 Watts 00 Watts
Frequency Response 30-500 Hz 30-500 Hz
Voice Coil Diameter 2.5in/63.5mm 2.5in/63.5mm
Displacement 0.10 cu ft/2.72 Ltr 0.10 cu ft/2.72 Ltr
Overall Diameter (A) 12.50in/317.50mm 12.50in/317.50mm
Cut Out Diameter (B) 11.2 in/28 mm 11.2 in/28 mm5 5.75 5 5.75
Mounting Depth (C) 6.26in/159mm 6.26in/159mm
GX12D2 / GX12D4
Sealed Enclosure
Box External Dimensions 14.00” x 14.00” x 10.43”
Material Thickness 0.75”
Net Internal Volume .71 cu ft
Qtc 0.70
Detail Size Quantity
Top/Bottom 14.00” x 10.43” 2
Front/Rear 14.00” x 12.50” 2
Left/Right 8.94” x 12.50” 2
B
A
C
10.43 in
14.00 in
14.00 in
Enclosure Recommendations
Speaker and port displacement are already taken into account for recommended enclosures
8 8
Detail Size Quantity
Top/Bottom 24.00” x 14.12” 2
Front 21.75” x 12.50” 1
Rear 24.00” x 12.50” 1
Left 12.63” x 12.50” 1
Right 13.37” x 12.50” 1
Port 1 11.13” x 12.50” 1
Port 2 3.30” x 12.50” 1
Detail Size Quantity
Top/Bottom 24.00” x 13.31” 2
Front/Rear 24.00” x 12.50” 2
Left/Right 11.82” x 12.50” 2

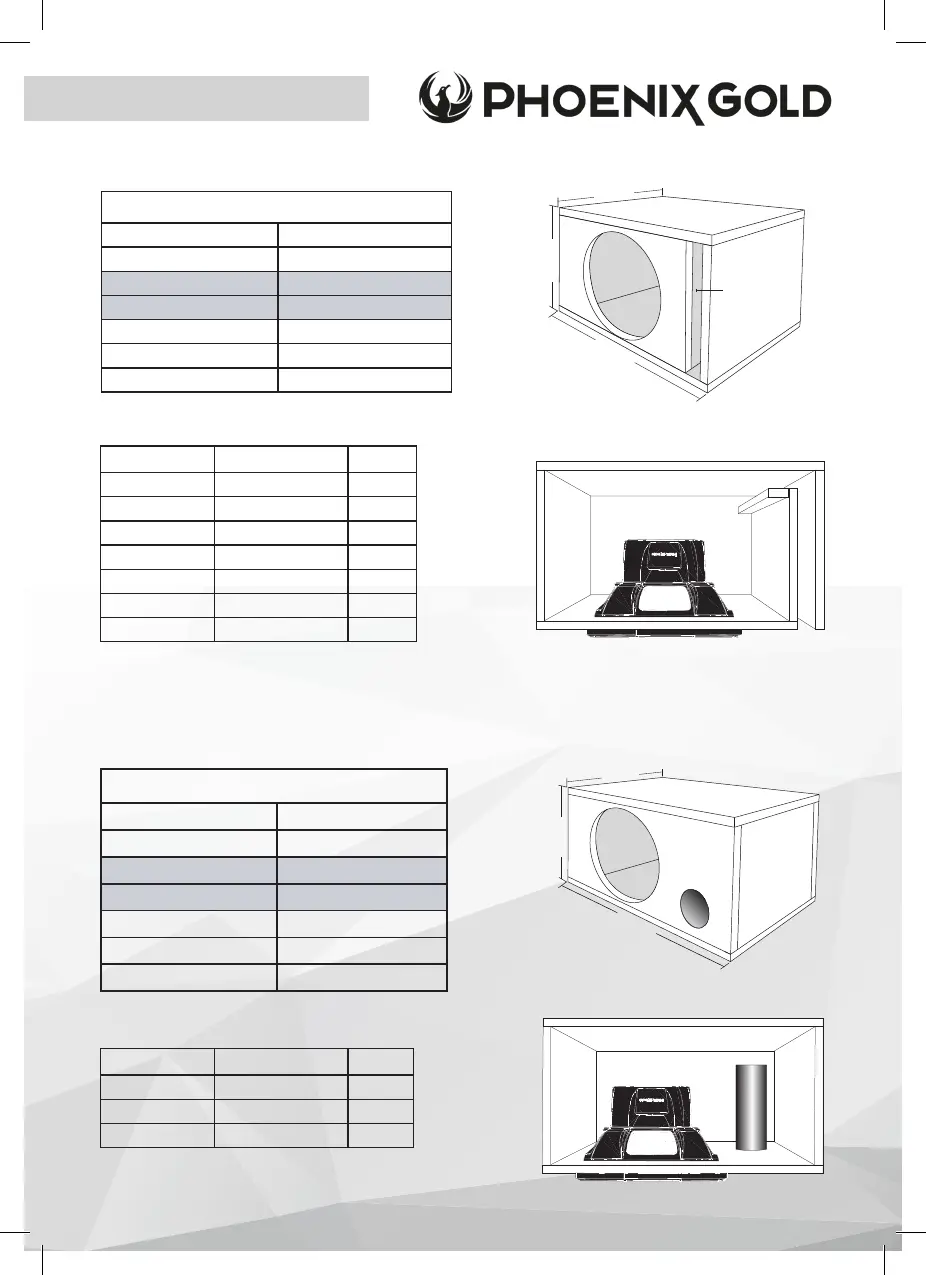

Slot Ported Enclosure
Box External Dimensions 24.00” x 14.00” x 14.12”
Material Thickness 0.75”
Net Internal Volume 1.75 cu ft
Tuning Frequency 37Hz
Port Area 18.75 inch2
Port Inlet (WxH) 1.50” x 12.50”
Port Length 17.43”
Round Ported Enclosure
Box External Dimensions 24.00” x 14.00” x 13.31”
Material Thickness 0.75”
Net Internal Volume 1.75 cu ft
Tuning Frequency 37Hz
Port Area 12.56 inch
2
Port Diameter 4.00”
Port Length 11.28”
14.12 in
24.00 in
14.00 in
Port Inlet:
1.50”W x 12.50”H
13.31 in
14.00 in
24.00 in
P1
