Phoenix Gold Z18AB Bruksanvisning
Phoenix Gold
Subwoofer
Z18AB
Läs nedan 📖 manual på svenska för Phoenix Gold Z18AB (4 sidor) i kategorin Subwoofer. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/4
Models: Z212AB-V2

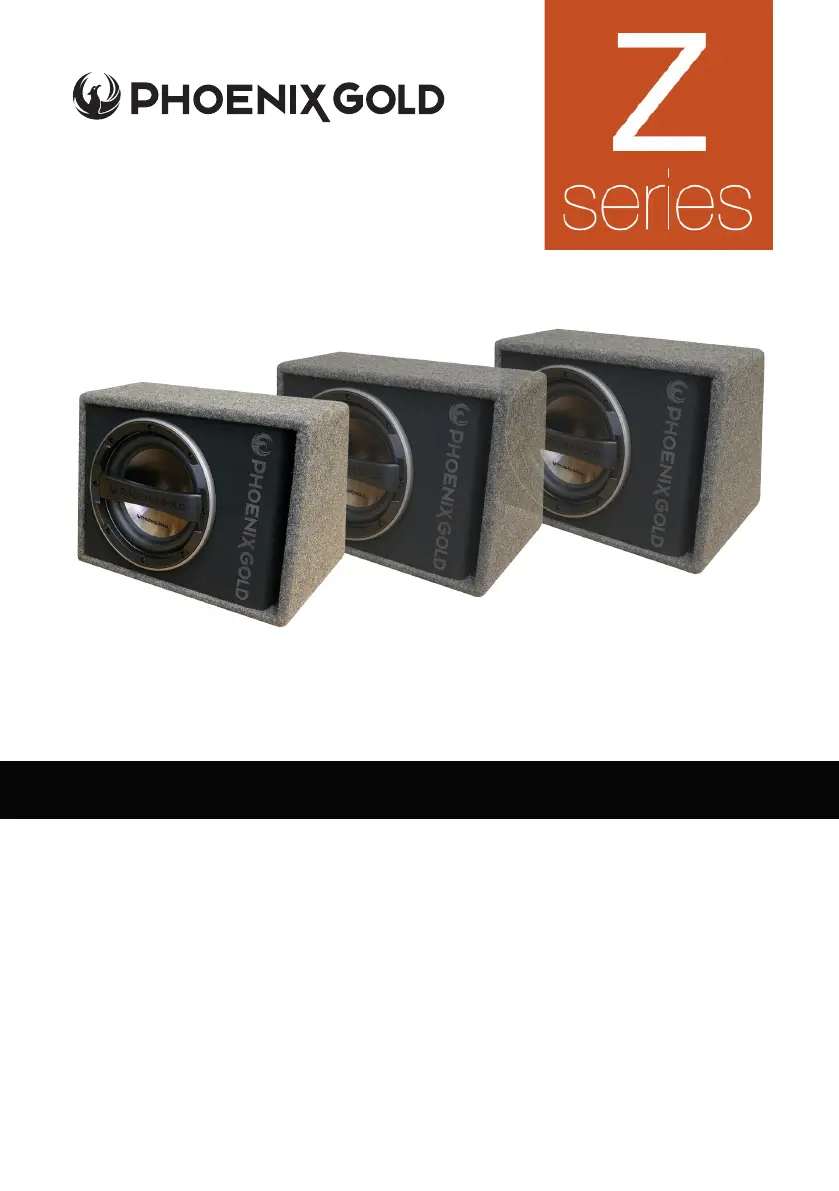

ACTIVE SUBWOOFER ENCLOSURES
Model: Z18AB | Z110ABV2 | Z112ABV2
•Built-in class A/B amplier
•Bass reex tuning
•High and low inputs
•Precision constructed trapezium enclosure
•Remote control and wiring kit included
(With Power and Signal Cables)
•Frequency Response: 10Hz-200Hz
•Signal to Noise Ratio: >60dB
•Crossover Slope: 6dB per Octave
•Crossover Range: 50Hz – 200Hz
•Fuse: 15A
SPECIFICATIONS
8"/200mm | 10"/250mm | 12"/300mm
All specications subject to change without notice.
Z-Series Enclosures
Z18AB 8” Active Enclosure | 10” Active Enclosure | Z110AB-V2 Z112AB-V2 12” Active Enclosure
SPECIFICATION Z18AB Z110AB-V2 Z112AB-V2
Max Power (Watts) 500 Watts 800 Watts 1000 Watts
RMS Power (Watts) 125 Watts 200 Watts 250 Watts
Amplier Type Class-AB Class-AB Class-AB
Frequency Response 10Hz-200Hz 10Hz-200Hz 10Hz-200Hz
Signal to noise ratio >60dB >60dB >60dB
Crossover Slope 6dB per octave 6dB per octave 6dB per octave
Crossover Range 50Hz - 200Hz 50Hz - 200Hz 50Hz-200Hz
Tuning Bass Reex Bass Reex Bass Reex
Woofer Size 8"/ 200mm 10” / 250mm 12”/ 300mm
Fuse 15A 15A 15A
Dimensions (mm) 400 x 295 x 280 bmm 476 x 343 x 331mm 560mm x 384 x 394mm
Control Descriptions
LEVEL
This allows the adjustment of the amplier level of the subwoofer. Turn clockwise to increase the level. If the sound
becomes distorted reduce the level.
LOW PASS FILTER (LPF)
This allows the adjustment of the highest frequency the active enclosure will produce. This should be adjusted to blend
with your main speakers. Typically, this will be set to around 100Hz (approximately the central position of the control
knob)
BASS REMOTE CONTROLLER
This control can be mounted in the front of the vehicle to give you control of your subwoofers output level.
Installation
Make sure the active enclosure is rmly xed in your vehicle. Check before drilling or cutting holes. DO NOT work near
fuel tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount the active enclosure in such a way as to pinch or damage the wires.
Make sure everything is rmly connected before attaching a +12V wire. Ensure the +12V wire is fused as close as
possible to the battery. Always use a fuse with the recommended rating.
Z-Series Enclosures
Disclaimer
Always ensure the Active Enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts
no responsibility for damage or injury in relation to inappropriate securing of this product.
Wiring
• Connect the ground wire to the vehicle rst (clean dirt and paint to bare metal)
• Connect the remote on (blue wire)
• Connect the RCA cables if applicable OR
• Connect the speaker level wire by splicing into the headunits speaker wires. See note1
• Connect the remote level controller with the supplied lead
• Please ensure power wire is fused within 12” of battery
• Connect the 12 volt (red wire) to the positive battery terminal.
• Check all connections.
