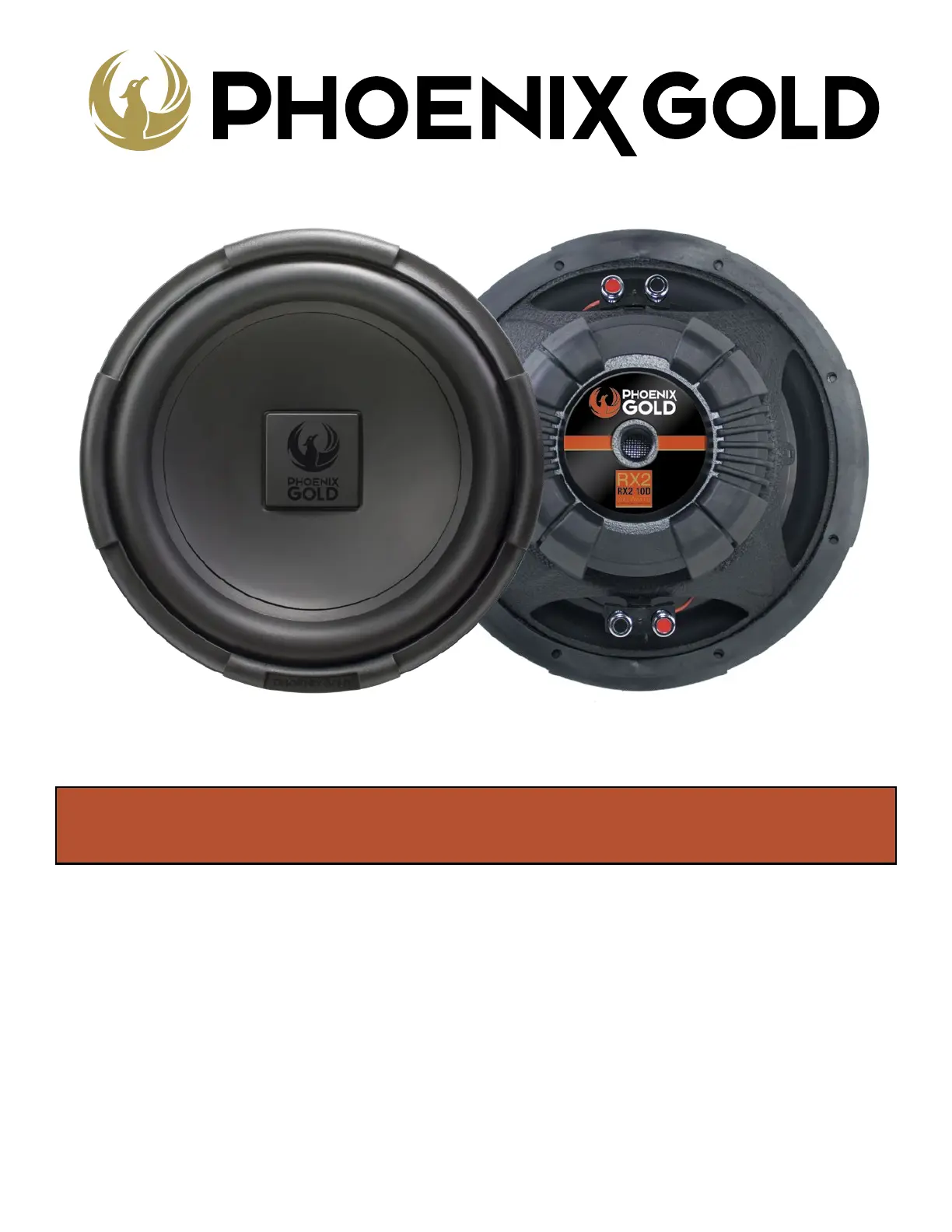

Subwoofer Manual
Features
Models: RX2 12D, RX2 12S
RX2 10D, RX2 10S
• 25mm of Peak to Peak Excursion
• Dual or Single 4 Ohm Voice Coil Models
• 12” or 10” versions with hidden screw surround
• High Excursion CAE/CAD Motor Design
KlaraForm Vented Kapton Former technology reduces
distortion by reducing heat and resistance
• UNICAP Technology provides a stiff piston for
pronounced SPL
© 2018 Phoenix Gold • www.phoenixgold.com
• Phoeniroll Surround Technology promotes
linear motion
• Torriform Voice Coil Technology:
Effectively dissipates heat and minimizes distortion
• Nickel Plated 12 Gauge Speaker Terminal
• Optimized for Sealed or Vented Enclosures
• Powder Coated Anti-Resonant Steel Basket
Subwoofer Owner’s Manual
© 2018 Phoenix Gold • www.phoenixgold.com
Enclosures
Enclosure recommendations
SEALED RX2 10s RX2 10d RX2 12s RX2 12d
Rock / Punchy Bass (cu. Ft.) 0.5 0.5 1.0 1.0
Neutral / Good All Around 0.75 0.75 1.25 1.25
Hip Hop / Low Bass / (cu. Ft.) 1.0 1.0 1.4 1.4
VENTED - Rock / Punchy Bass @ 40Hz RX2 10s RX2 10d RX2 12s RX2 12d
(cu. Ft.) 1.5 1.5 2 2
Vent Area (sq in) 15.625 15.625 21.75 21.75
Vent Length (in) 14 14 14 14
ENCLOSURE INFORMATION
Phoenix Gold subwoofers are over engineered and overbuilt in virtually every way conceivable. It is important
that the subwoofer’s enclosure is built to these same exacting standards. The enclosure must be constructed of
at least .75 inch MDF. Screws or air staples are excellent construction fasteners when used with a strong bonding
“yellow” wood working glue that can ll joint gaps. Be sure that the enclosure’s panels are airtight at all joining
seams. Lining the walls with a polyester matting 1 to 3 inches thick is sufcient. RX2 subwoofers have vented
pole pieces, we recommend leaving a minimum of 0.5” clearance behind the subwoofer to allow proper air
movement and cooling of the voicecoil.
Your PG dealer has extensive knowledge, tools and the experience needed for the design and construction
necessary for your subwoofer application. We also recommend you consult with your dealer for specic technical
assistance related to your installation. The charts provided should be used as a reference when building an
enclosure for your subwoofer. The charts contain several enclosure types. The Sound Quality enclosure provides
deeper, tighter, and more musical output to truly reproduce the original source material. The SPL enclosure ts
the “basshead’s” need for maximum output while sacricing some sound quality.
* For SQ vented enclosures a subsonic lter set at 25Hz is highly recommended.
VENTED -
Hip Hop / Low Bass
@ 35Hz RX2 10s RX2 10d RX2 12s RX2 12d
(cu. Ft.) 1.6 1.6 2 2
Vent Area (sq in) 15.625 15.625 21.75 21.75
Vent Length (in) 18 18 20 20
Enclosure recommendations already include driver and / or port displacement.
© 2018 Phoenix Gold • www.phoenixgold.com
Subwoofer Owner’s Manual
System Diagrams
All voice coils are wired in parallel for 2 Ohm load.
RX2 1000.1 makes maximum power into 1 Ohm load.
RX2 500.1 make maximum power into 2 Ohm load.
RX2 12S, RX2 10S DUAL
SUBWOOFER SYSTEM
RX2 250.1 RX2 500.1 RX + (2) RX2 12S or (2) RX2 10S
RX2 12D / RXS 10D DUAL
SUBWOOFER SYSTEM
RX2 1000.1 or RX2 500.1 + (1) RX2 12D or (1) RX2 10D
All voice coils are wired in parallel for 1 Ohm load.
RX2 1000.1 makes maximum power into 1 Ohm load.
RX2 500.1 make maximum power into 2 Ohm load.
All voice coils are wired in parallel for 2 Ohm load.
RX2 250.1 and RX2 500.1 make maximum power into 2 Ohm load.
RX2 12D, RX2 10D SINGLE
SUBWOOFER SYSTEM
(Optimal Setup)
RX2 250.1 or RX2 500.1 + (1) RX2 12D or (1) RX2 10D
Dual VC 4 Ohm Subwoofer
(2 Ohm when wired in parallel)
Two Single VC 4 Ohm Subwoofers
(2 Ohm when wired in parallel)
Single VC 4 Ohm Subwoofer
RX2 12S / RXS 10S SINGLE
SUBWOOFER SYSTEM
RX2 1000.1 or RX2 500.1 + (1) RX2 12S or (1) RX2 10S
The voice coil is wired directly for a 4 Ohm load.
RX2 1000.1 makes maximum power into 1 Ohm load.
RX2 500.1 make maximum power into 2 Ohm load.
Two Dual VC 4 Ohm Subwoofers
(1 Ohm when wired in parallel)
