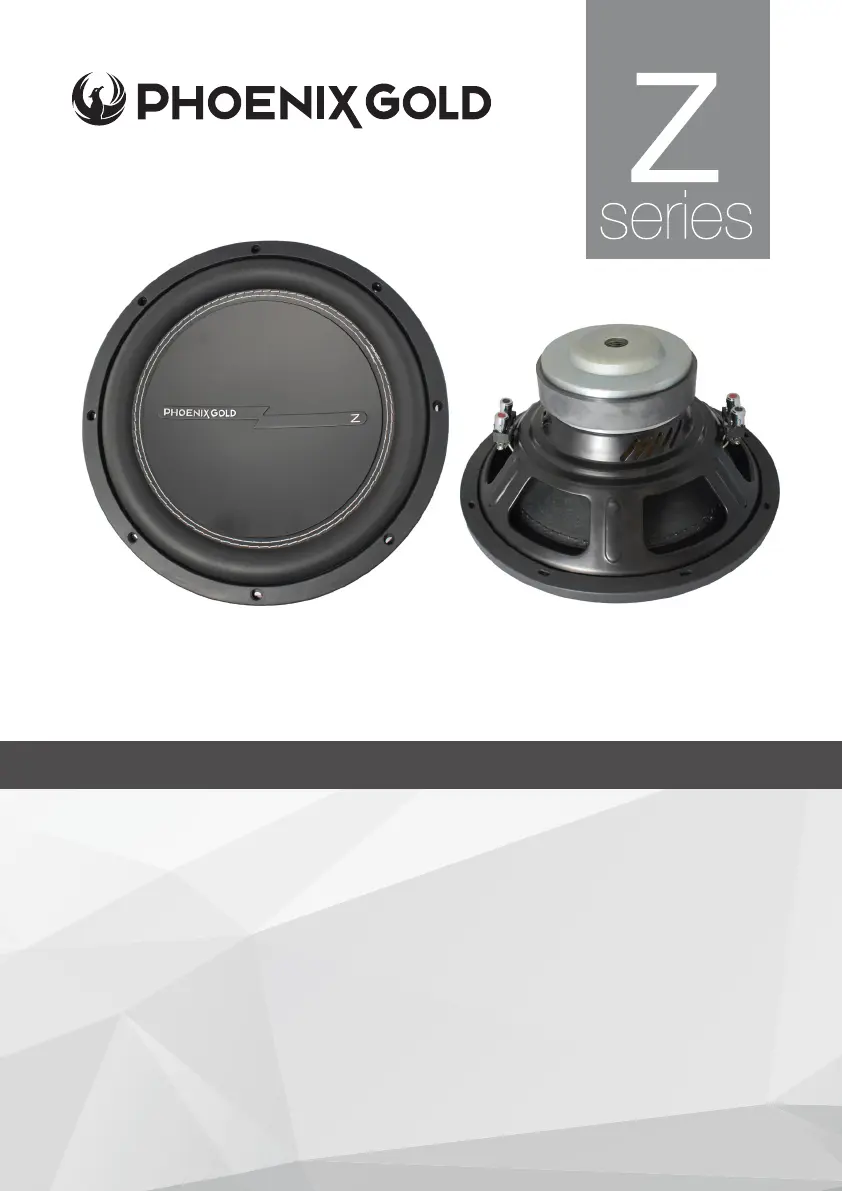

Phoenix Gold Z12D4 Bruksanvisning
Phoenix Gold
Subwoofer
Z12D4
Läs nedan 📖 manual på svenska för Phoenix Gold Z12D4 (4 sidor) i kategorin Subwoofer. Denna guide var användbar för 10 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/4
•2x 4 Ohm Voice Coils
• 40mm Peak to Peak Excursion
• 2” High Temp Copper Voice Coils
• Easy Connect Speaker Terminals
• Black Anodized Aluminium Former
•High Roll Rubber Stitched Surround
• Optimised for Sealed or Vented Enclosures
• Long Throw Spider Suspension
• Dual Cone Design
FEATURES
Models: Z12D4
12” SUBWOOFER
400W RMS - 1600W MAX OUTPUT
All specications are subject to change without notice.
© 2021 Phoenix Gold • www.phoenixgold-eu.com
SPECIFICATION Z12D4
Nominal Impedance (Z) 4 ohms (Dual)
DC Resistance (Re) 1.80 ohms
Resonance Frequency (Fs) 29.138 Hz
Piston Area (Sd) 0.51m2
Force Factor (BL) 9.07 Tm
Mechanical Q Factor (Qms) 5.476
Electrical Q Factor (Qes) 0.627
Total Q Factor (Qts) 0.562
Sensitivity 1W/M (SPL) 86.5 dB
Mechanical Compliance (Cms) 193.347 μM/N
Moving Mass (Mms) 154.301 g
Volume Acoustic Compliance (Vas) 72.739 Ltrs
Nominal Power (Pe) 400 Watts
Peak Power 1600 Watts
Voice Coil Diameter 2in/51mm
Overall Diameter (A) 12.50in/317.50mm
Cut Out Diameter (B) 11.29in/286.68mm
Mounting Depth (C) 6.26in/159mm
B
A
C
Phoenix Gold Recommended Amplier Wattage (RMS)
MAXMIN
Optimal Input
RMS Wattage
Enclosure Recommendations
Speaker and port displacement are already taken into account for recommended
enclosures
Sealed Enclosure - Punchy Bass
Net Internal Volume 28 Ltr
Frequency (FSC) 57Hz
Ported Enclosure - Punchy Bass
Net Internal Volume 50 Ltr
Frequency (FB) 42Hz
Slot Port Area 140cm2
Slot Port Length 35cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 20cm
Sealed Enclosure - Hi-Fi Bass
Net Internal Volume 35 Ltr
Frequency (FSC) 52Hz
Round Port Example
Ported Enclosure - Hi-Fi Bass
Net Internal Volume 60 Ltr
Frequency (FB) 38Hz
Slot Port Area 140cm2
Slot Port Length 38cm
Round Port Diameter 4 inch (10.16cm)
Round Port Length 21cm
Twin Box Enclosure - Punchy Bass
Net Internal Volume 120 Ltr
Frequency (FB) 42Hz
Slot Port Area 350cm
2
Slot Port Length 34cm
Round Port Diameter 2x 4 inch (10.16cm)
Round Port Length 16cm
