Sida 1/20

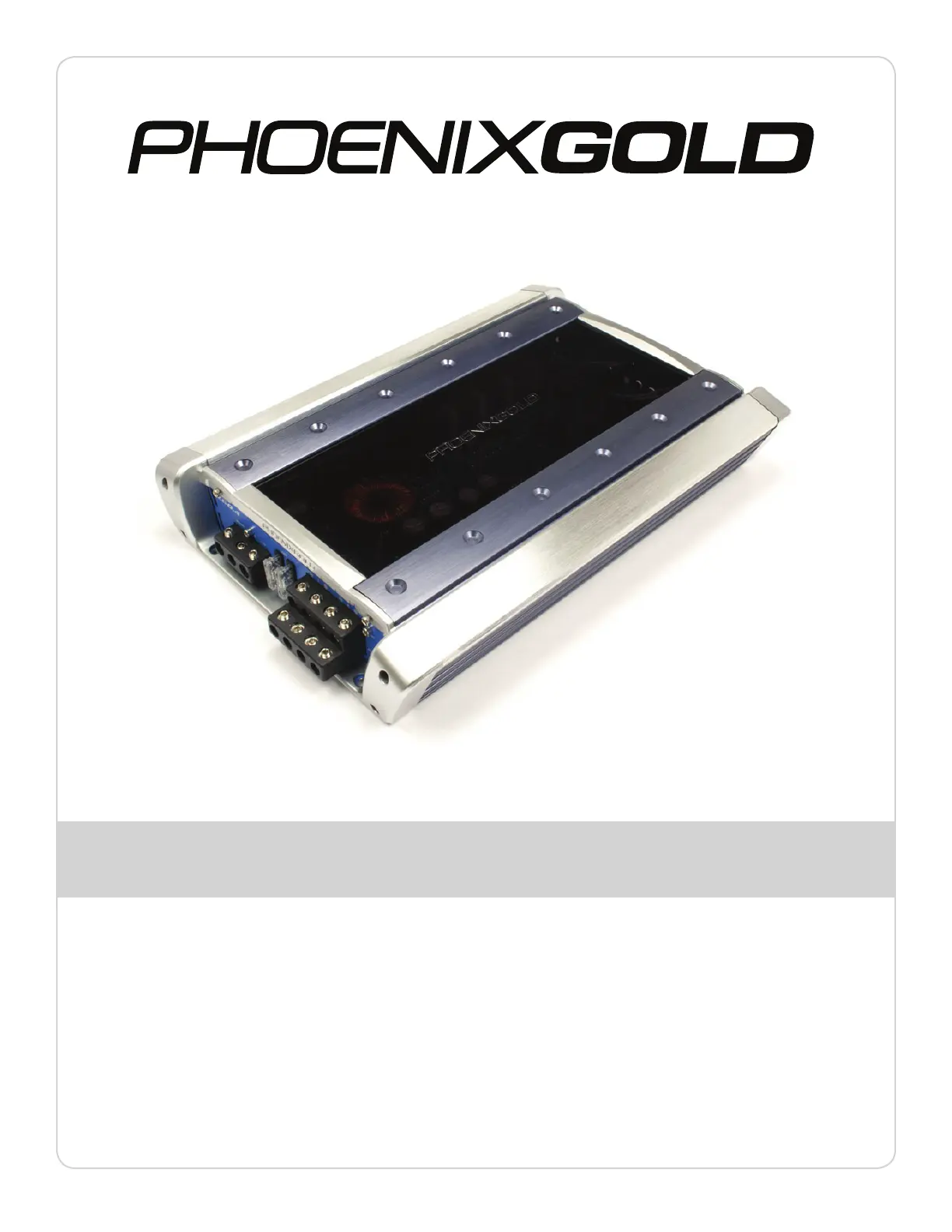

Amplifier Manual
Manual del Amplificador
Manuel del’amplificateur
Features: Caractéristiques:
Models: Z500.1, Z250.2, Z500.4
© 2012 Phoenix Gold • www.phoenixgold.com
• Compact Size for Easy Installation
• High and Low Pass Crossovers
• Audiophile BiPolar Output Transistors
• High Level Inputs for easy OEM Integration
• Robust Unregulated Power Supply
• Surface Mount Component Technology
• Direct Insert Power and Speaker Terminals
• Audio Precision Quality Control Verication
• High Temperature Plexiglass cover
• Remote subwoofer level control included
(Z500.1 only)
• RMD - Remote Monitoring Display Port
• Petit format pour faciliter l’installation
• Filtres croisés passe-haut et passe-bas
• Audiophile Transistors de Bipolaire
• Le Niveau Supérieur entre pour l’intégration
de fabricant d’origine facile
• Alimentation électrique robuste non réglementée
• Technologie de composant monté en surface
• Terminaux d’alimentation et de haut-parleurs à
insertion directe
• Vérication du contrôle de la qualité de la précision audio
• Couvercle de plexiglas résistant aux températures élevées
• Niveau de contrôle de passe-bas inclus (Z500.1)
• RMD - Entrée De L’achage de Tension a Distance
Características:
• Tamaño compacto de fácil instalación
• High and Low Pass Crossovers
• Transistores de salida BiPolar Audiophile
• Entradas de alto nivel para fácil integración OEM
• Robusta y no regulada Fuente de Poder
• Tecnología “Surface Mount Component”
• Conexiones directas de terminales de poder y de
parlantes
• Control de vericación de calidad de precisión de audio
• Cubierta de Plexiglás resistente a altas temperaturas
• Control de nivel de Subwoofer remoto incluido (solo el
Z500.1)
• Puerto de display para monitoreo remoto (RMD)
Amplier Owner’s Manual
© 2012 Phoenix Gold • www.phoenixgold.com
Owner’s Name:
Serial Number:
Purchase Location:
Purchase Date:
Installer:
Owner Information
© 2012 Phoenix Gold • www.phoenixgold.com
Amplier Owner’s Manual
Z500.1 SPECIFICATIONS
Frequency Response: ± 1dB from 20Hz to 300Hz
Signal to Noise Ratio: >100dB
Low Pass Crossover: 12dB per Octave
Subsonic Filter: 12dB per Octave
Low Pass Crossover Range: 30Hz to 300Hz
Subsonic Crossover Range: 10Hz to 55Hz
Bass Boost @ 45Hz: 0 to +18dB
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 2 ohms
Typical Eciency: 50%
Damping Factor: Greater than 200
Z500.4 SPECIFICATIONS
Frequency Response: ± 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >100dB
High and Low Pass Crossovers: 12dB per Octave
Crossover Range: 40Hz to 400Hz
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 4 ohm Bridged or 2 ohm Stereo
Typical Eciency: 50%
Damping Factor Greater than 200
Power Output: 300 x 1 @ 4 ohms
500 x 1 @ 2 ohms
Power/Ground Wire Size: 8 Gauge
Dimensions (Includes Mounting Feet): 12.5” L x 8.34” W x 2.1” H
318mm L x 213mm W x 53mm H
Power Output 75 x 4 @ 4 ohms Stereo
125 x 4 @ 2 ohms Stereo
250 x 2 @ 4 ohms Bridged
Power/Ground Wire Size: 8 Gauge
Dimensions (Includes Mounting Feet): 12.5” L x 8.34” W x 2.1” H
318mm L x 213mm W x 53mm H
Specifications
Z250.2 SPECIFICATIONS
Frequency Response: ± 1dB from 20Hz to 20kHz
Signal to Noise Ratio: >100dB
High and Low Pass Crossovers: 12dB per Octave
Crossover Range: 40Hz to 400Hz
Bass Boost @ 45Hz: 0 to +18dB
Low Level Input Range: 200 millivolts to 8 volts
Lowest Recommend Load: 4 ohm Bridged or 2 ohm Stereo
Typical Eciency: 50%
Damping Factor Greater than 200
Power Output 75 x 2 @ 4 ohms Stereo
125 x 2 @ 2 ohms Stereo
250 x 1 @ 4 ohm sBridged
Power/Ground Wire Size: 8 Gauge
Dimensions (Includes Mounting Feet): 8.2” L x 8.34” W x 2.1” H
208mm L x 213mm W x 53mm H
