Sida 1/4
•Single 4 Ohm Voice Coil
• 22mm Peak to Peak Excursion
• 1.5” High Temp Copper Voice Coil
• Easy Connect Speaker Terminals
• Black Anodized Aluminium Former
• Optimised for Sealed or Vented Enclosures
• Long Throw Spider Suspension
•High Roll Rubber Surround
• Dual Cone Design
FEATURES
Models: Z8S4

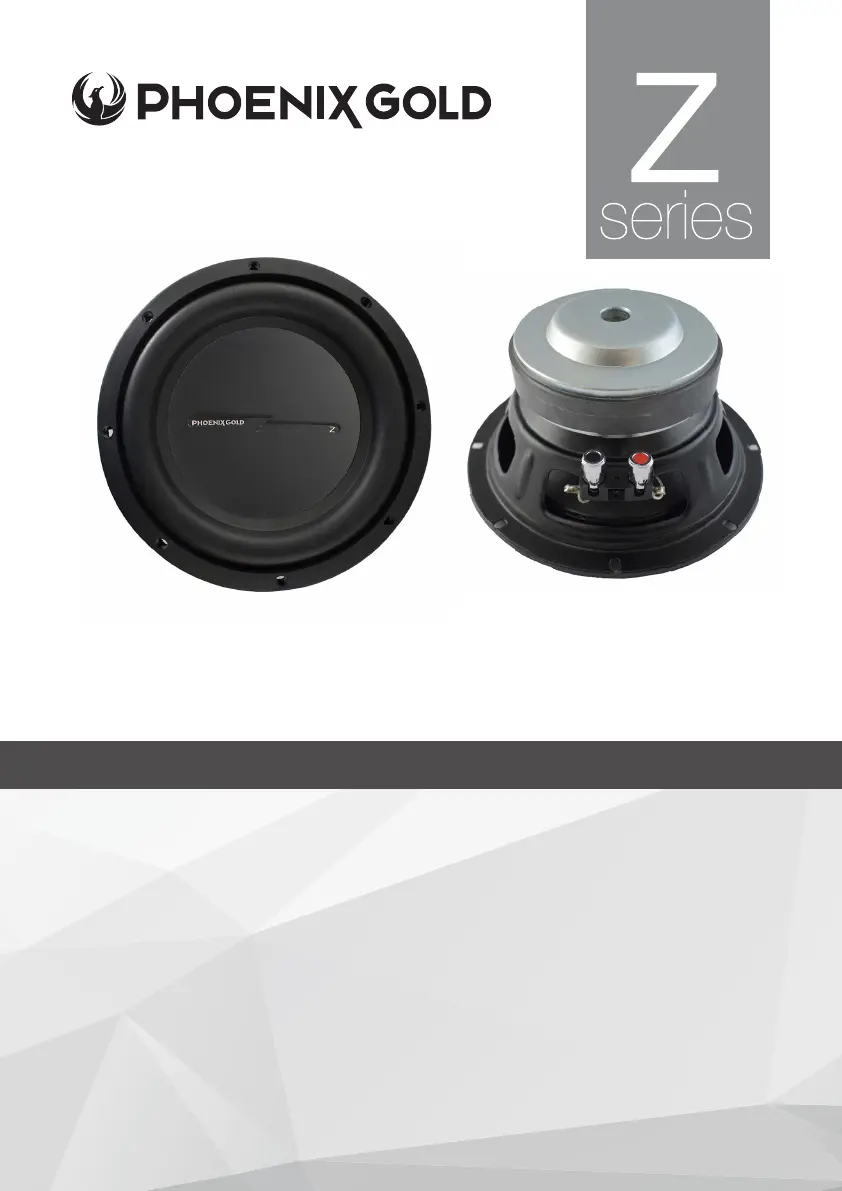

8” HIGH PERFORMANCE SUBWOOFER
150W RMS - 450W MAX OUTPUT
All specications are subject to change without notice.
© 2022 Phoenix Gold • www.phoenixgold-eu.com
SPECIFICATION Z8S4
Nominal Impedance (Z) 4 ohms (Single)
DC Resistance (Re) 3.72 ohms
Resonance Frequency (Fs) 40 Hz
Piston Area (Sd) 221.76cm2
Force Factor (BL) 10.314 Tm
Mechanical Q Factor (Qms) 7.839
Electrical Q Factor (Qes) 0.681
Total Q Factor (Qts) 0.626
Sensitivity 1W/M (SPL) 83.6
dB
Mechanical Compliance (Cms) 0.205 mm/N
Moving Mass (Mms) 77.586 g
Volume Acoustic Compliance (Vas) 14.223 Ltrs
Nominal Power (Pe) 150 Watts
Peak Power 450 Watts
Voice Coil Diameter 1.5in/38mm
Overall Diameter (A) 8.43in/214mm
Cut Out Diameter (B) 7.17in/182mm
Mounting Depth (C) 4.02in/102mm
B
A
C
Phoenix Gold Recommended Amplier Wattage (RMS)
MAXMIN
Optimal Input
RMS Wattage
Enclosure Recommendations
Speaker and port displacement are already taken into account for recommended
enclosures
Sealed Enclosure - Punchy Bass
Net Internal Volume 20 Ltr
Frequency (FSC) 120Hz
Ported Enclosure - Punchy Bass
Net Internal Volume 15 Ltr
Frequency (FB) 48Hz
Slot Port Area 56cm2
Slot Port Length 42cm
Round Port Diameter 3 inch (7.62cm)
Round Port Length 33cm
Sealed Enclosure - Hi-Fi Bass
Net Internal Volume 30 Ltr
Frequency (FSC) 101Hz
Round Port Example
Ported Enclosure - Hi-Fi Bass
Net Internal Volume 24 Ltr
Frequency (FB) 40Hz
Slot Port Area 39cm2
Slot Port Length 25cm
Round Port Diameter 3 inch (7.62cm)
Round Port Length 29cm
Twin Box Enclosure - Punchy Bass
Net Internal Volume 30 Ltr
Frequency (FB) 45Hz
Slot Port Area 76cm2
Slot Port Length 30cm
Round Port Diameter 2x 4 inch (10.16cm)
Round Port Length 32cm
