1. Package Contents
Thank you for purchasing PLANET Industrial IEEE
802.3at Gigabit High Power over Ethernet Splitter, IPOE-
162S. The term used in this “802.3at PoE Splitter”
user’s manual refers to the IPOE-162S.
Open the box of the Industrial IEEE 802.3at Gigabit
High Power over Ethernet Splitter and carefully unpack
it. The box should contain the following items:
Industrial IEEE 802.3at Gigabit High Power over
Ethernet Splitter x 1
User’s Manual x 1
DIN Rail Kit x 1
Wall Mount Kit x 1
If any of these are missing or damaged, please contact
your dealer immediately; if possible, retain the carton
including the original packing material, and use them
again to repack the product in case there is a need to
return it to us for repair.
Industrial Case / Installation
IP30 metal case protection
DIN Rail and Wall-mount type
Supports EFT protection of 6000 VDC for power
line
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Note
PSE (Power Sourcing Equipment) is a
device (switch or hub for instance) that will
provide power in a PoE setup. Maximum
allowed continuous output power per such
device in IEEE 802.3af is 15.4W and in IEEE
802.3at is 25W.
PDs (Powered Devices), such as IP phones,
network cameras, wireless access points,
etc., are PoE-enabled terminals powered by
a PSE and thus consumes energy.

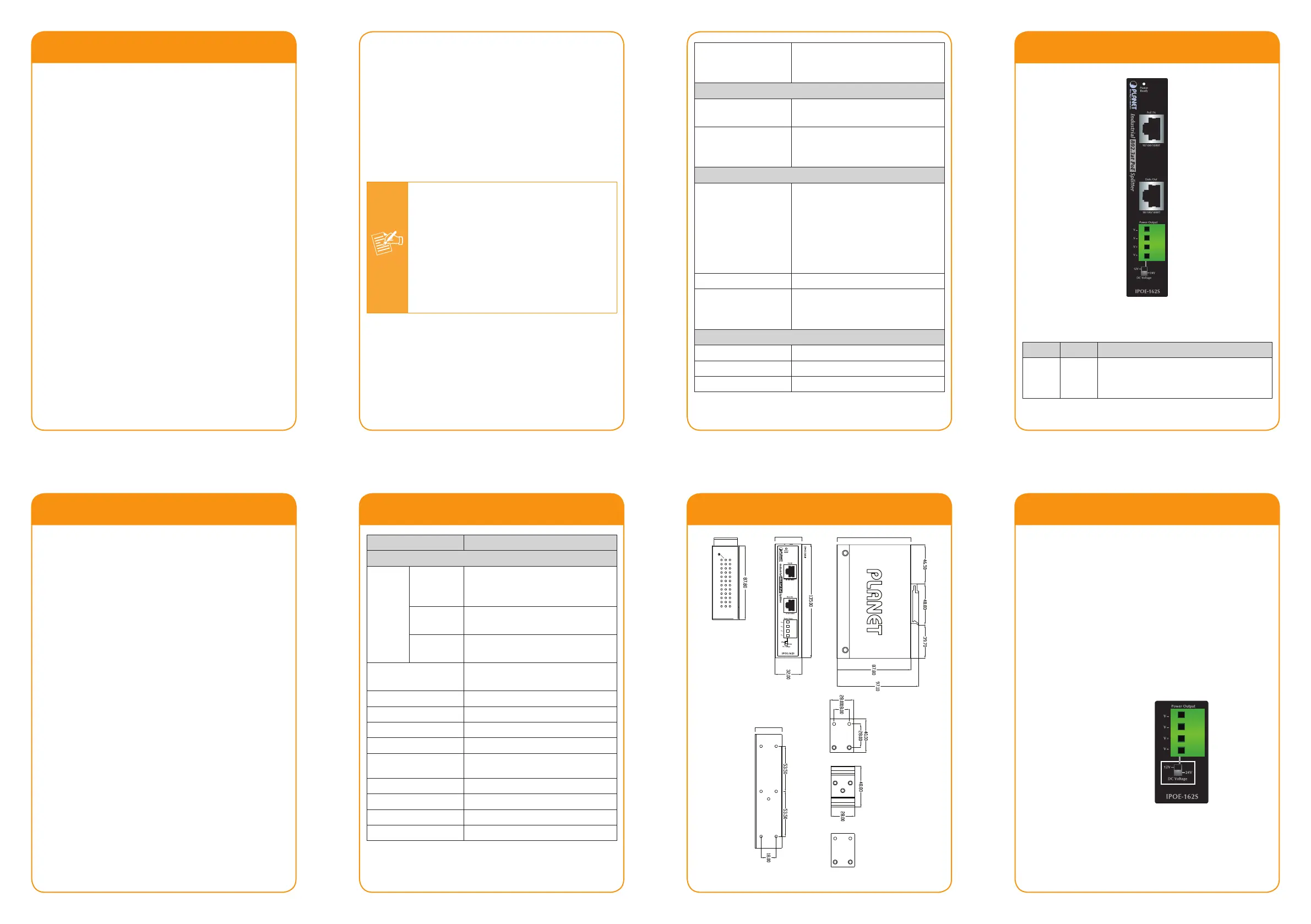

5. Product Outlook
Figure 1: Front panel of IPOE-162S
LED Indicators
LED Color Function
Power
Ready Green
Lights to indicate the port is receiving
48~56V DC in-line power and ready
for output
Network Cable
10/100/1000Base-T: 4-Pair UTP Cat.
5, 5e, 6 distance up to 100m (328ft)
EIA/TIA-568 100-ohm STP (100m)
Power over Ethernet
PoE Standard IEEE 802.3at High Power over
Ethernet
Number of device can
be powered
1 or 2 (Varies on device power
requirements; DC1 + DC2 cannot be
over 25 watts)
Standards Conformance
Standards Compliance
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast
Ethernet
IEEE 802.3ab 1000Base-T Gigabit
Ethernet
IEEE 802.3at High Power over
Ethernet
Regulation Compliance FCC Part 15 Class A, CE
Stability Testing
IEC60068-2-32 (Free fall)
IEC60068-2-27 (Shock)
IEC60068-2-6 (Vibration)
Standards Conformance
Operating Temperature -40 ~ 75 degrees C
Storage Temperature -40 ~ 85 degrees C
Humidity 5 ~ 95% (non-condensing)
2. Product Features
Interface
2 RJ-45 interfaces
1-port PoE Power+ Data input
1-port Data output
2 DC out (4-pin Terminal Block)
Power over Ethernet Splitter
Complies with IEEE 802.3at Power over Ethernet,
PD
Splits the 48~56V DC power over RJ-45 Ethernet
cable into 12 / 24V DC output
Up to 1 non-IEEE 802.3at PoE device powered
Auto-detects PoE IEEE 802.3at equipment and
protects devices from being damaged with incorrect
installation
Adjustable two different output voltage options
(12V / 2A, 24V / 1A) to t various devices
Distance up to 100 meters
3. Product Specications
Product IPOE-162S
Hardware Specications
Interface
“PoE (Power
+ Data)”
Input Port
1 x RJ-45 10/100/1000Base-T
“Data” Out
Port 1 x RJ-45 10/100/1000Base-T
DC Out Plug
Connector 1 removable 4-pin terminal block
Data Rate 10/100/1000Mbps
(vary on Ethernet device attached)
LED Indicator System: Power Ready x 1 (Green)
DIP Switch 12V DC / 24V DC output voltage
Power Input 802.3at PoE 48~56V DC
Power Output 12V / 24V DC, Max 2A (adjustable)
Dimensions
(W x D x H) 135 x 87.8 x 32 mm
Weight 421g
Enclosure IP30 metal case
Installation DIN rail kit and wall mount ear
ESD Protection 6KV DC
6. Hardware Installation
The following section describes the hardware features of
the IPOE-162S. Before connecting any network device
to the IPOE-162S, read this chapter carefully.
6-1 Before Installation
If there is no power socket in your network
environment, the IPOE-162S provides DC power for this
Ethernet Device conveniently and easily. The IPOE-162S
will separate the power and data out. It provides two
kinds of DC power output through its DIP switch and its
voltage and current shown below:
12V DC / 2A
24V DC / 1A
Figure 2: DIP Switch Outlook
4. Physical Dimensions
Top View Front View Side View
Mounting Kit
Mounting Kit
DIN-Rail Kit
Rear View
- 9 -
- 10 -
- 11 -
- 12 - - 13 - - 14 -
Hint
Please check the power requirements of
the device carefully, that is going to get the
power from IPOE-162S.
1. If the power requirement is higher
than the IPOE-162S can supply, current
overload might shut down the IPOE-162S
itself. Thus, it will also shut down your
device as well.
2. Please ensure the output voltage is
correct for remote device. Otherwise, it
will damage your remote device.
3. Forbid to switch on/off the Power DIP during
operation. Otherwise, it will damage your
IPOE-162S and remote device. If you
want to switch the output Voltage DIP,
please Plug OFF the “POE In” cable and
wait for 3 seconds until the POE LED
(Power) is completely OFF.

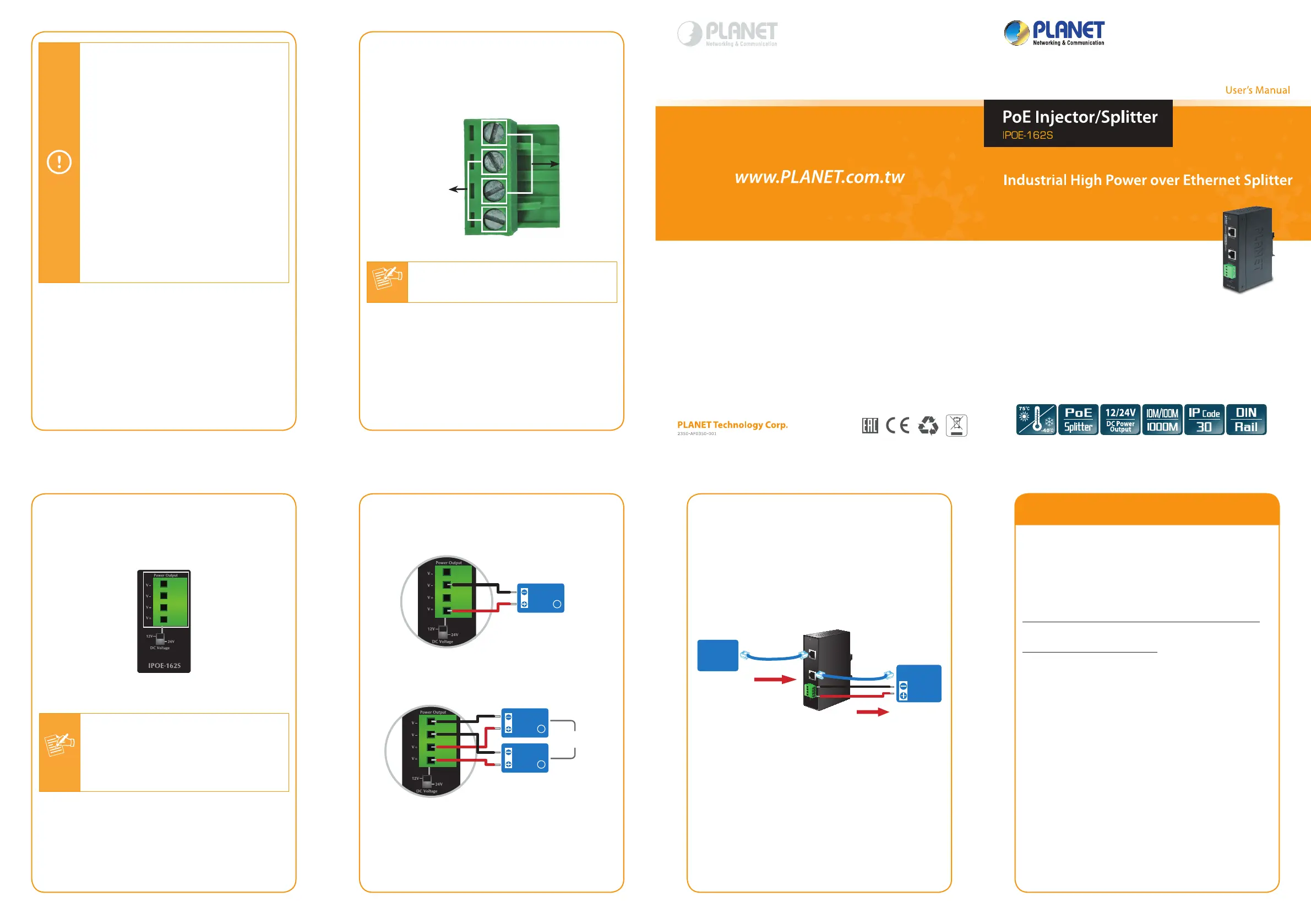

6-3 Wiring the Power Outputs
Please follow the steps below to insert the power wires.
Step 1: Please nd one terminal block connector within
two DC power outputs shown below:
1 V-
DC Output 1
DC Output 2
2 V-
3 V+
4 V+
Note
The wire gauge for the terminal block
should be in the range of 12 ~ 24 AWG.
Step 2: Insert the Negative / Positive DC wires into the
V– / V+ terminal; terminals 1 and 3 for Power
1; terminals 2 and 4 for Power 2.
6-2 4-pin Power Output Terminal Block
From top to down, there are Negative (V-), Negative
(V-), Positive (V+) and Positive (V+), and two sets of
DC power output contact.
Figure 3: DC Power Output Terminal Block Outlook
Note
Two DC outputs are sharing 12V 2A or 24V
1A, totaling 25W PoE output power, which
means that DC1 + DC2 cannot be over the
25W PoE output power. Otherwise, it might
cause the power output to malfunction or
damage.
Step 3: Connect the other point of DC power wires
to the power devices. Tighten the wire-clamp
screws for preventing the wires from loosening.
Maximum Output 25 Watts
Powered
Device 1
One Powered Device
Total Maximum
Output 25 Watts
Powered
Device
Powered
Device
1
2
Two Powered Device
Step 4: Install the terminal block on PLANET IPOE-
162S Splitter.
Step 5: Connect the network copper cable (RJ-45)
from the High Power Injector (PSE) and it will
provide power to PLANET IPOE-162S Splitter
and the IPOE-162S will separate the power
and data to the PDs (power devices). Please
see the Figure below:
Non-PoE
Device
802.3at
PSE
802.3at PoE+ Data in
Data Out
DC
-
DC+
10/100/1000T Copper
Customer Support
Thank you for purchasing PLANET products. You can
browse our online FAQ resource on PLANET Web site
rst to check if it could solve your issue. If you need
more support information, please contact PLANET switch
support team.
PLANET online FAQ :
http://www.planet.com.tw/en/support/faq.php?type=2
Switch support team mail address :
support_switch@planet.com.tw
Copyright © PLANET Technology Corp. 2014.
Contents are subject to revision without prior notice.
PLANET is a registered trademark of PLANET Technology Corp. All
other trademarks belong to their respective owners.
