LM-6807U LM-6810U
Package Contents
Rear-Mount USB POS Monitor with Bracket (x 1)
ψ3-10L Self-Tapping Screw (x 4)
USB Cable (x 1)
User Manual (x 1)
Product Features
USB interface monitor for system without secondary display
interface
7” TFT LCD panel for LM-6807U and 10” one for LM-6810U
LCD resolution up to 800 x 480 for LM-6807U and 1024 x
768 for LM-6810U
Rear-mount for PS-3000 series terminal
LM-6807U/6810U
Rear-Mount USB POS Monitor
User
Manual
19600990010 Ver. Original
2
Views of the LM-6807U/6810U

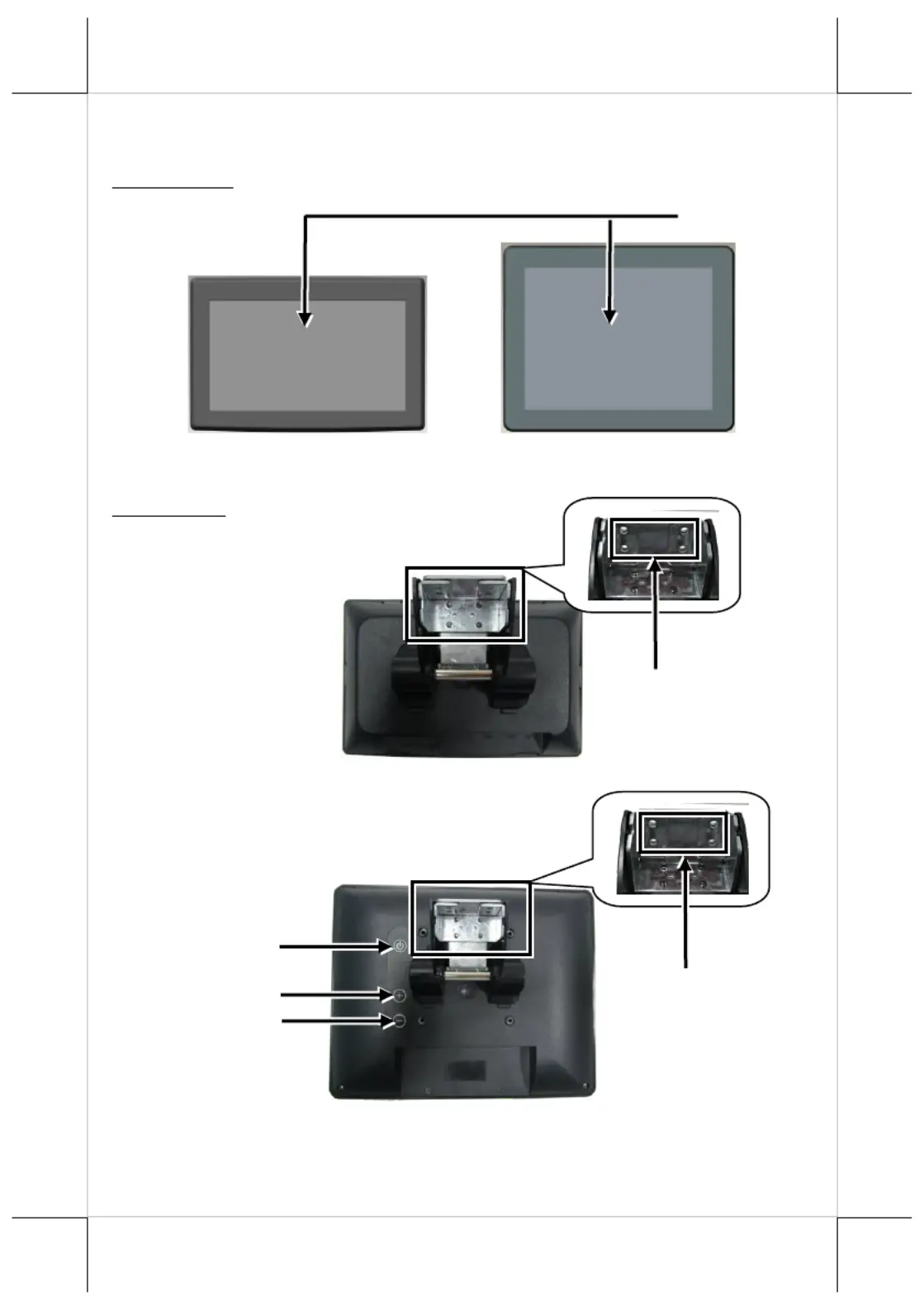

Front View
LM-6807U LM-6810U
Rear View
LM-6807U
LM-6810U
LCD
Screw Holes
Screw Holes
Power Button
Brightness-Up Button
Brightness-Down Button
3
Bottom View
LM-6807U
LM-6810U
Mounting the USB POS Monitor onto a POS Terminal
During Installation of the LM-6807U or LM-6810U USB POS
monitor, do NOT power ON your POS terminal. To mount the
monitor onto your PS-3000 series POS terminal, please apply 4
screws that are packed together with the USB POS monitor.
Before mounting the monitor, carefully read the following step-
by-step instruction on the display installation.
1. Remove the rear I/O cover of your
PS-3000 series POS terminal.
USB Port
DC-IN Power Jack USB Port
