FCC Notes:
This equipment generates, uses, and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions manual, may cause interference
to radio communications. It has been
tested an found to comply with limits for a
Class A digital device pursuant to subpart
J of Part 15 of FCC Rules, which are designed
to provide reasonable protection against
interference when operated in a commercial
environment. Operation of this equipment
in a residential area is likely to cause
interference in which case the user at
his own expense will be required to take
whatever measures to correct the interference.
Warranty Limits:
Warranty terminates automatically
when any person other than the authorized
technicians opens the machine. The user
should consult his/her dealer for the problem
happened. Warranty voids if the user does
not follow the instructions in application of
this merchandise. The manufacturer is by
no means responsible for any damage or hazard
caused by improper application.
About This Manual:
Posiflex has made every effort for the accuracy of the content in this manual. However, Posiflex
will assume no liability for any technical inaccuracies or editorial or other errors or omissions
contained herein, nor for direct, indirect, incidental, consequential or otherwise damages, including
without limitation loss of data or profits, resulting from the furnishing, performance, or use of this
material. This information is provided “as is” and Posiflex Technologies, Inc. expressly disclaims
any warranties, expressed, implied or statutory, including without limitation implied warranties of
merchantability or fitness for particular purpose, good title and against infringement.
The information in this manual contains only essential hardware concerns for general user and is
subject to change without notice. Posiflex reserves the right to alter product designs, layouts or
drivers without notification. The system integrator shall provide applicative notices and
arrangement for special options utilizing this product. The user may find the most up to date
information of the hardware from web sites: http://www.posiflex.com or
http://www.posiflex.com.tw All data should be backed-up prior to the installation of any drive unit
or storage peripheral. Posiflex will not be responsible for any loss of data resulting from the use,
disuse or misuse of this or any other Posiflex product. All rights are strictly reserved. No part of
this documentation may be reproduced, stored in a retrieval system, or transmitted in any form or
by any means, electronic, mechanical, photocopying, or otherwise, without prior express written
consent from Posiflex Technologies, Inc. the publisher of this documentation.
© Copyright Posiflex Technology, Inc. 2013
All brand and product names and trademark are the property of their respective holders.
P/N: 19430900080

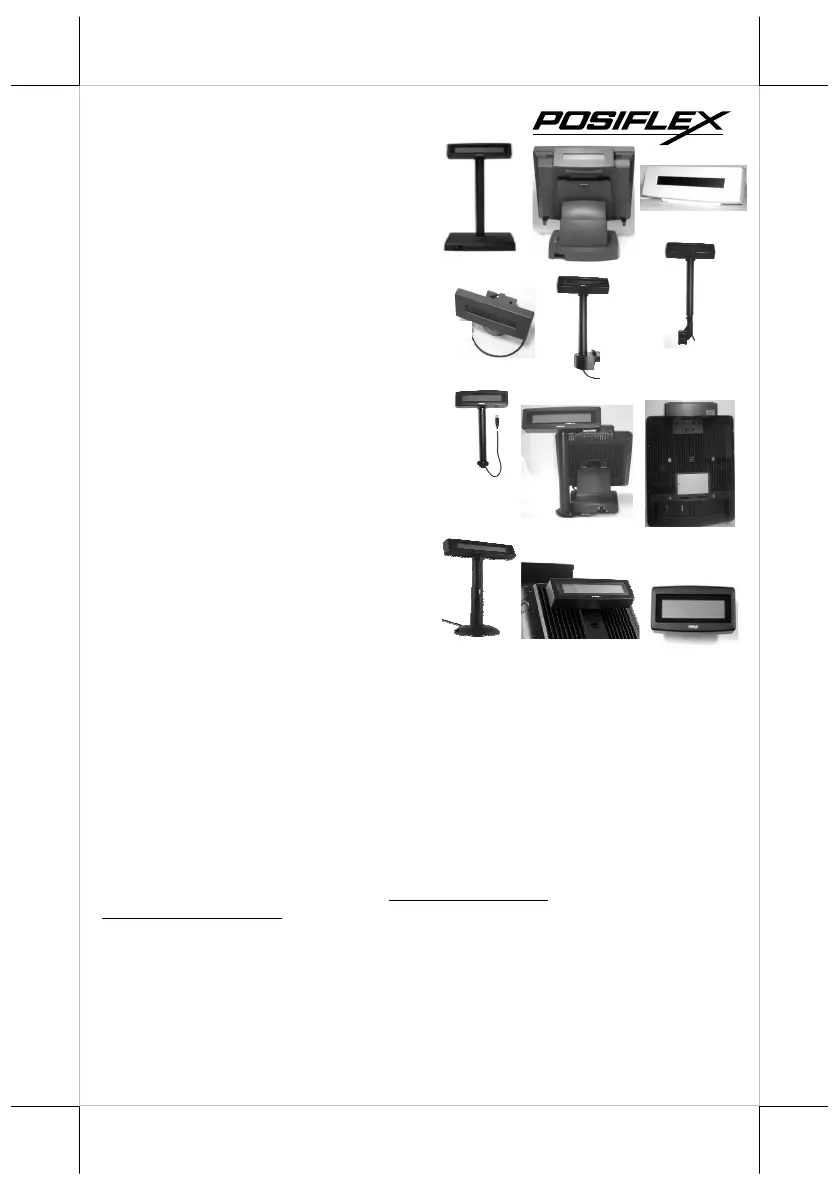

PD-30XUE Series LCD
CUSTOMER DISPLAY
PD302UE
PD303
UE
PD305UE
PD30
6
PD30
7
E
PD30
8
UE
PD300UE
PD30
9UE
PD3
10
A
UE
PD3
20UE
PD3
30UE
PD3
40/350UE
Page 2
PRODUCT MODEL NUMBER
FEATURES
• LCD (Liquid crystal display) with dark blue character and yellow
green back-light
• Two-line display with 20 characters per line
• Easy viewing characters (6.0 mm by 9.66 mm)
• Long life and trouble free operation
• Simple installation
• Selectable command emulation modes including PST and EPSON
command emulation modes
• 3 typical USB interface modes (USB-HID Class, USB-Vendor
Class, Virtual COM port) selectable by DIP switch
• Euro and Rupee dollar signs supported
INSTALLATION GUIDES
HOST SYSTEM PREPARATION
Except for PD-320UE/303UE/300UE which is a stand-alone pole display, only
PD-300UE is required with an external power adaptor and needs to come with
12V DC, the other types are powered from the POS terminal.
Page 3
MECHANICAL INSTALLATION

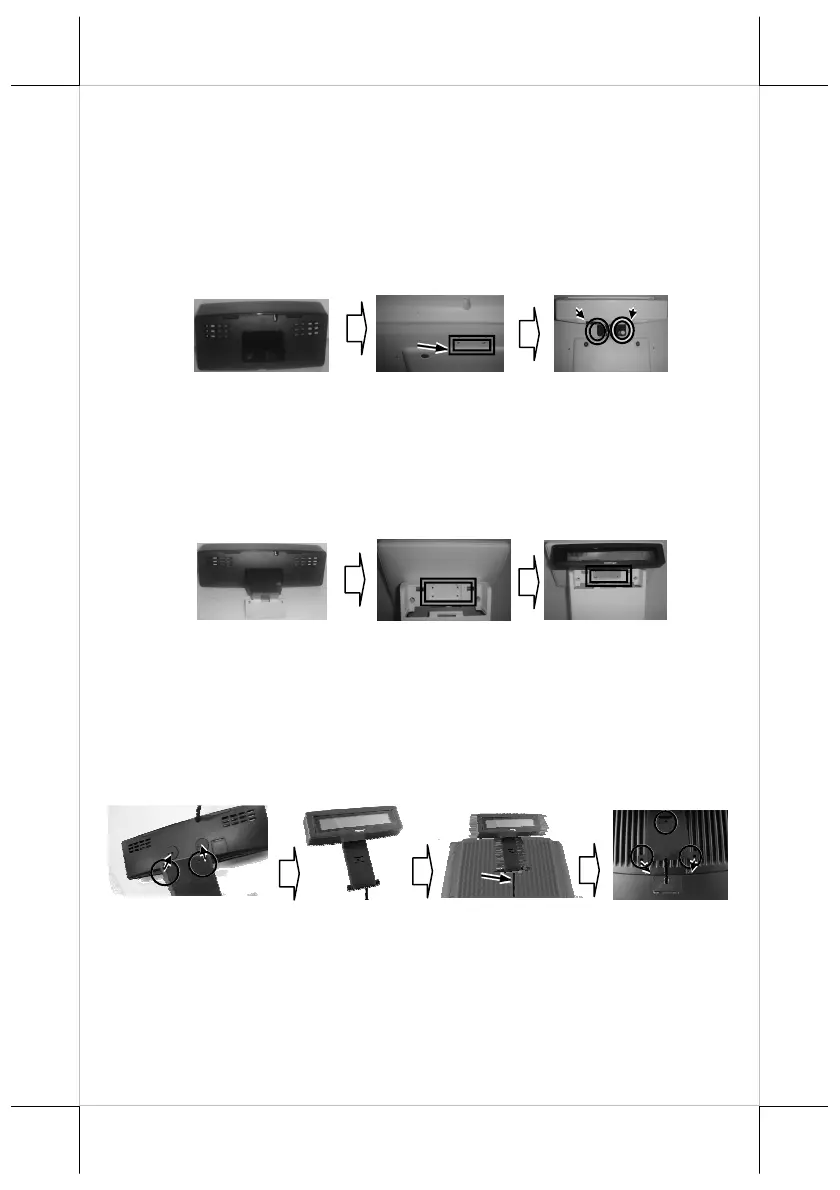

To fix the rear mount upgrade kit like PD-330UE/340UE/350 UE on the back
of XP/XT/HS series, please apply carefully 2 screws that come along with
each PD unit.
Please take out the main item with bracket from the package, and fix these
items as the following steps:
PD-350UE for XT series
A: Hold the PD unit item then turn the screen facing toward you.
B: Please find the upper 2 of 4 holes on the rear panel of XT series system.
C: Please aim the 2 PD bracket holes to the 2 screw holes on the back cover
of XT main unit and fasten them to fix PD on the XT series.
PD-340UE for HS series
A: Hold the PD unit item then turn the screen facing toward you.
B: Please find the 4 holes on the rear panel of HS series system.
C: Please aim the 4 PD bracket holes to the 4 screw holes on the back cover
of HS main unit and fasten them to fix PD on the HS series.
PD-330UE for XP series
A: Please take the bracket and find the side of two screws holes with mistake-
proofing holes and aim to the PD main unit.
B: Hold the PD unit item then turn the screen facing toward you.
C: Please route the PD cable into the cannelure between fins and near the
screw hole.
D: Please aim the 3 screw holes to the back cover of XP-2000 series
A
B
C
A
C
B
A
C
B
D
