Sida 1/8

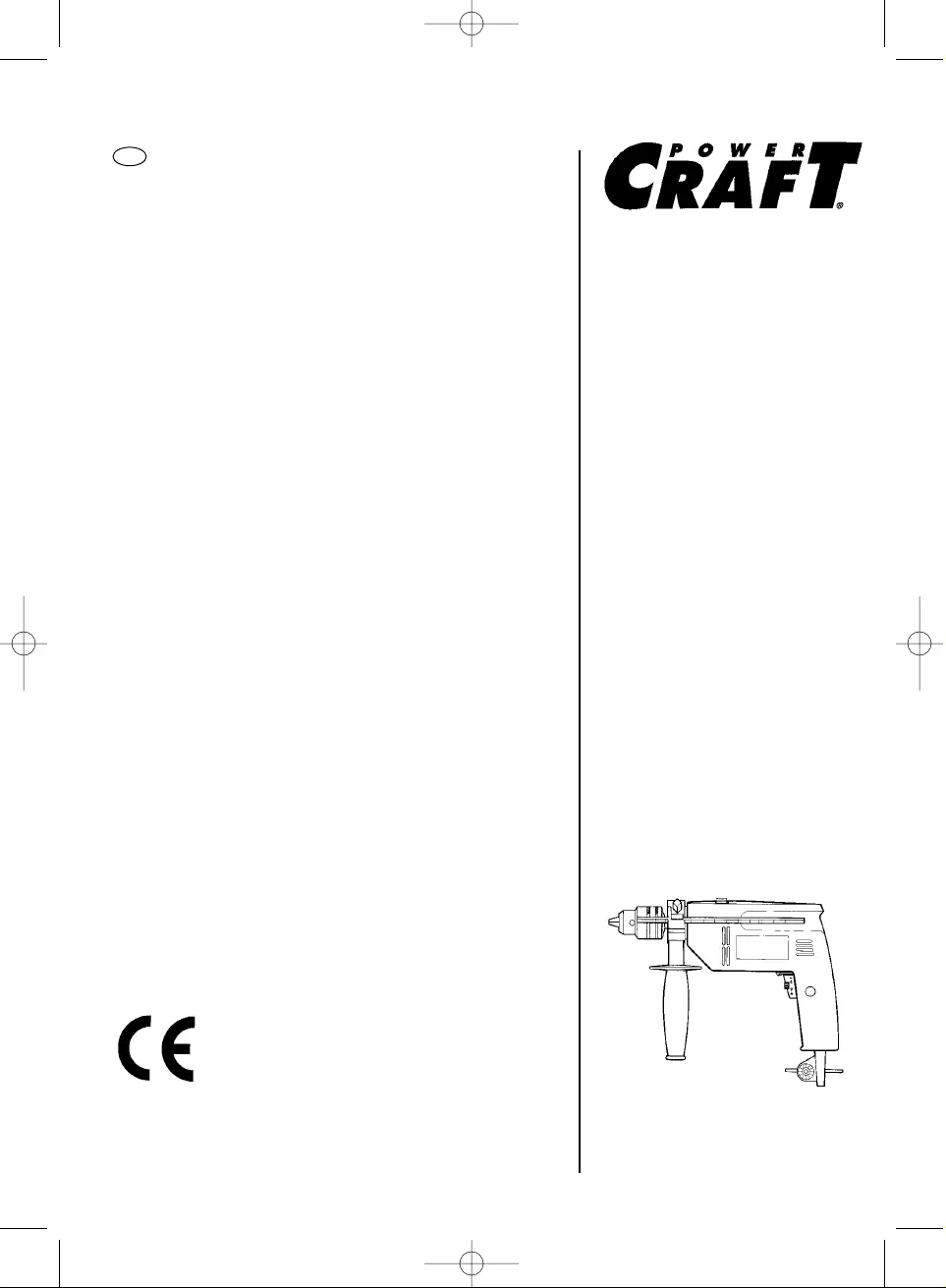

GB
Art.-Nr.: 42.586.45
Operating Instructions
Electronic Hammer Drill
PDM 600
Anleitung BDP 600 13.11.2001 13:54 Uhr Seite 1
2
GB Please read the operating instructions meticulously and
pay particular attention to the safety instructions.
Keep the operating instructions together with the drill.
Anleitung BDP 600 13.11.2001 13:54 Uhr Seite 2
3
Scope of delivery
package
PDM 600,
Self-centering chuck
1.5 -13 mm,
Additional grip with bit stop
Description
1 Scroll chuck
2 Depth stop
3 Additional handle
4 Selector button: drill/hammer
5 Rating plate
6 Selector button:
clockwise/anticlockwise
7 Speed control
8 Locking button
9 On/Off switch
10 Chuck key
Technical Data
Voltage 230 V
Power 500 Watt
input:
Drilling Concrete 16 mm
capacity: Steel 13 mm
Wood 25 mm
Load
speed: 0-2200 min
-1
Number of
blows: 0-27.000 min-1
Sound pressure
level LPA 82 dB(A)
Sound power
level LWA 92.6 dB(A)
Radio suppressed in accordance
with EC Guidelines 89/336/EEC
Caution
●The PDM 600 is not designed
for the operating of auxiliary
devices.
●Do not use near steams or
inflammable liquids.
●Only use sharp bits and suita-
ble screwing bits.
●Remove the plug from the
socket for all adjusting and
cleaning work.
●Protect the mains cable
against any damage. Oil and
acids can damage the cable.
●Do not carry the device by the
mains cable.
●Do not remove the plug from
the socket by pulling the mains
cable.
●Make sure before inserting the
plug that the operating switch
is not locked.
●When using a cable drum
uncoil the cable completely.
Cross-section of wire at least
1,5 mm2.
●Do not overload machine.
●Secure all workpieces to be
processed sufficiently.
●Do not allow children to have
access.
●Make sure you have a secure
stance on ladders or scaffold-
ing when using the drill free-
hand.
●Localise lines with a line detec-
tor in walls where power, water
or gas lines are laid invisibly.
●Wear protection goggles and
use a dust mask for dust-pro-
ducing work.
●Always arrange for a qualified
electrician to carry out repairs
●Use only original replacement
parts
●The level of noise at the work-
place may exceed 85 dB(A). In
this case you will need to intro-
duce noise protection measu-
res for the user. The noise
generated by this electric tool
was measured in accordance
with ICE 59 CO 11, IEC 704,
DIN 45635 Part 21, NFS 31-
031 (84/537/EEC).
Maintenance
●Always keep the drill clean.
●Do not use corroding agents
for cleaning plastic.
●Check carbon brushes in the
case of excessive sparking.
●Keep ventilation channels free.
●If you discover any damage,
you can define spare parts
precisely on account of the
exploded view drawing and
parts list and place your
request with our customer
service.
Anleitung BDP 600 13.11.2001 13:54 Uhr Seite 3
