1

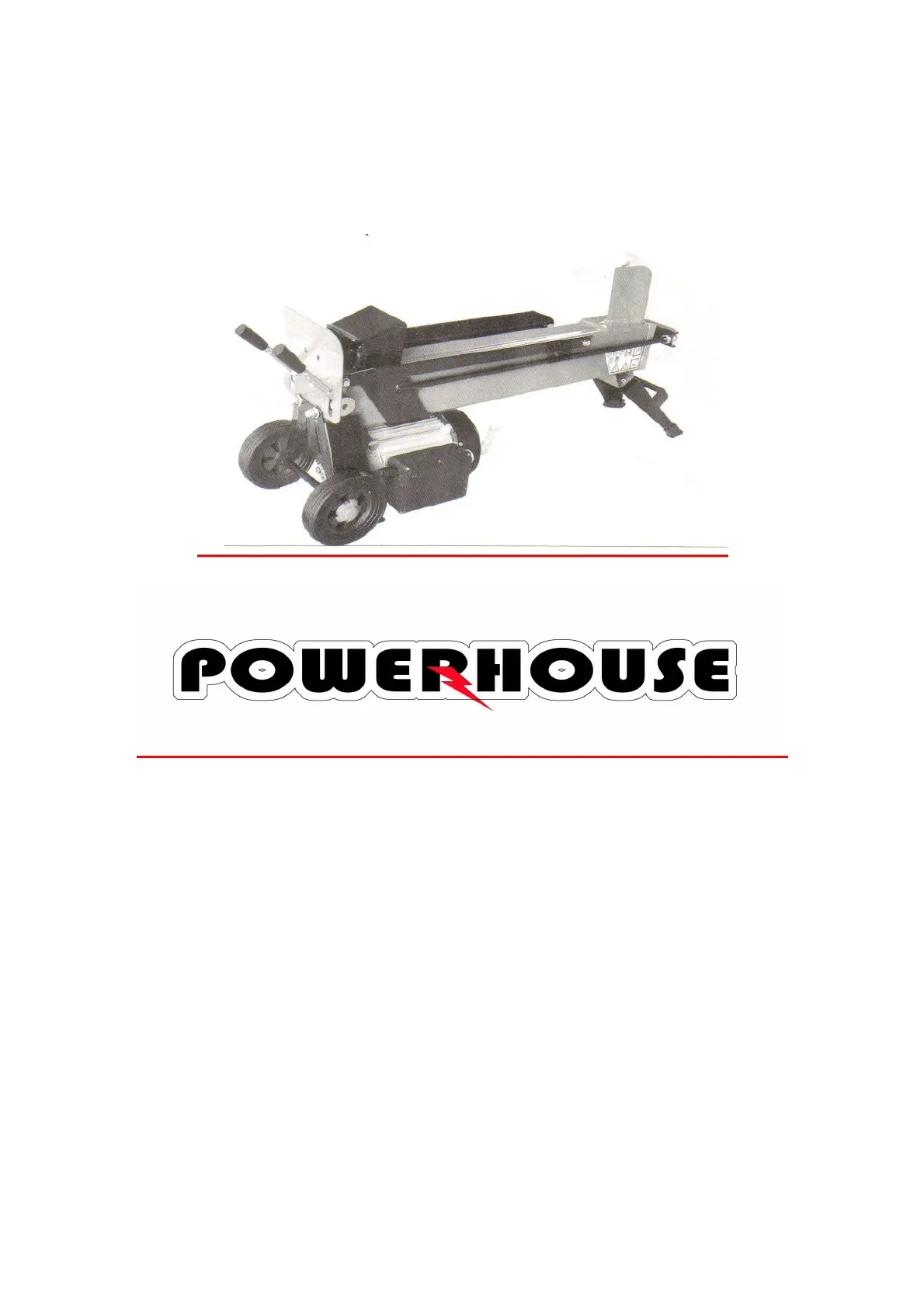

LS7T-52 LOG SPLITTER
Operation Manual
Please carefully read this operation manual before starting work.
2
IMPORTANT! READ BEFORE REMOVING LOG SPLITTER
Always use CAUTION when working with machinery.
CAUTION: Oil may leak during the assembly process. It is advised to lay down
cardboard or newspaper prior to assembly in case this happens.
1. Carefully the Main Body (part no. 45 in manual) and Motor Assembly remove
(part no. 41, packed in a separate polyfoam box) from the packaging box. Turn
over the main body and place it on the foam block, which is inside the packaging
box with the machine.
MAKE SURE THE WEDGE FACES TOWARDS THE GROUND (the log
splitter will be upside-down).
2. Remove the hexangular spanner (alan wrench) from the spare parts bag. Unscrew
the THREE (3) silvery inner hexangular bolts on the end of the main body.
Remove the YELLOW QUADRATE IRON PLATE (this piece will be re-not
attached).
Remove the two (2) O-ring oil seals the YELLOW QUADRATE IRON inside
PLATE.
Take the O-ring oil seals and insert them into the two (2) holes on top of the oil
pump cover (part no. 40) which is attached to the Motor Assembly (part no. 41).
(These two (2) wholes are the same size as the holes inside the yellow quadrate
iron plate). the O-ring oil seals on the pump cover in the same fashion they Install
were when they were on the yellow quadrate iron plate.
3. Connect the Motor Assembly (part no. 41) onto the main body (part no. 45).
These parts will be connected in the same manner they were prior to removing the
yellow quadrate plate.
Align the three (3) holes on top of the Oil Pump Cover (part no. 40) with the three
(3) holes on the Main Body. Tighten the holes with the three silvery inner
hexangular bolts. *Accurate alignment will ensure against spilling oil*
4. To complete assembly of WHEELS, SUPPORT FEET, AND OPERATING
HANDLE, see Operation Manual.
3
WARRANTY
We warrant this product against any manufacturing defects in material and
workmanship for a period of one (1) year from date of purchase. This
warranty is valid only by completion of the warranty card AND original or
photocopy of sales receipt.
This warranty does not cover any defects or damages caused by the
following:
• Misuse of the product.
• Negligence or lack of maintenance.
• Normal wear on parts.
• Use of parts not manufactured by the manufacturer.
• Modification or removal of parts.
NOTE: Do Not Return This Product To The Store Where It Was Purchased.
To make a claim, write to Sylvan Company, Inc. at the address below. Customer Service
will inform you of the appropriate procedure to follow. The Warranty Card must be
attached to the sales receipt and be presented when Warranty Services are required.
The purchaser is responsible for all related expenses if product is not covered under
warranty.
NAME: ____________________________________________________________
ADDRESS: _________________________________________________________
_________________________________________________________
STORE WHERE PURCHASED: ________________________________________
DATE OF PURCHASE: _______________________________________________
MODEL: ___________________________________________________________
SCH Imports
5958 Snow Hill Road
Suite #144 P126
Ooltewah, TN, 37363
IMPORTANT: KEEP FOR FUTURE REFERNCE!
