Sida 1/23

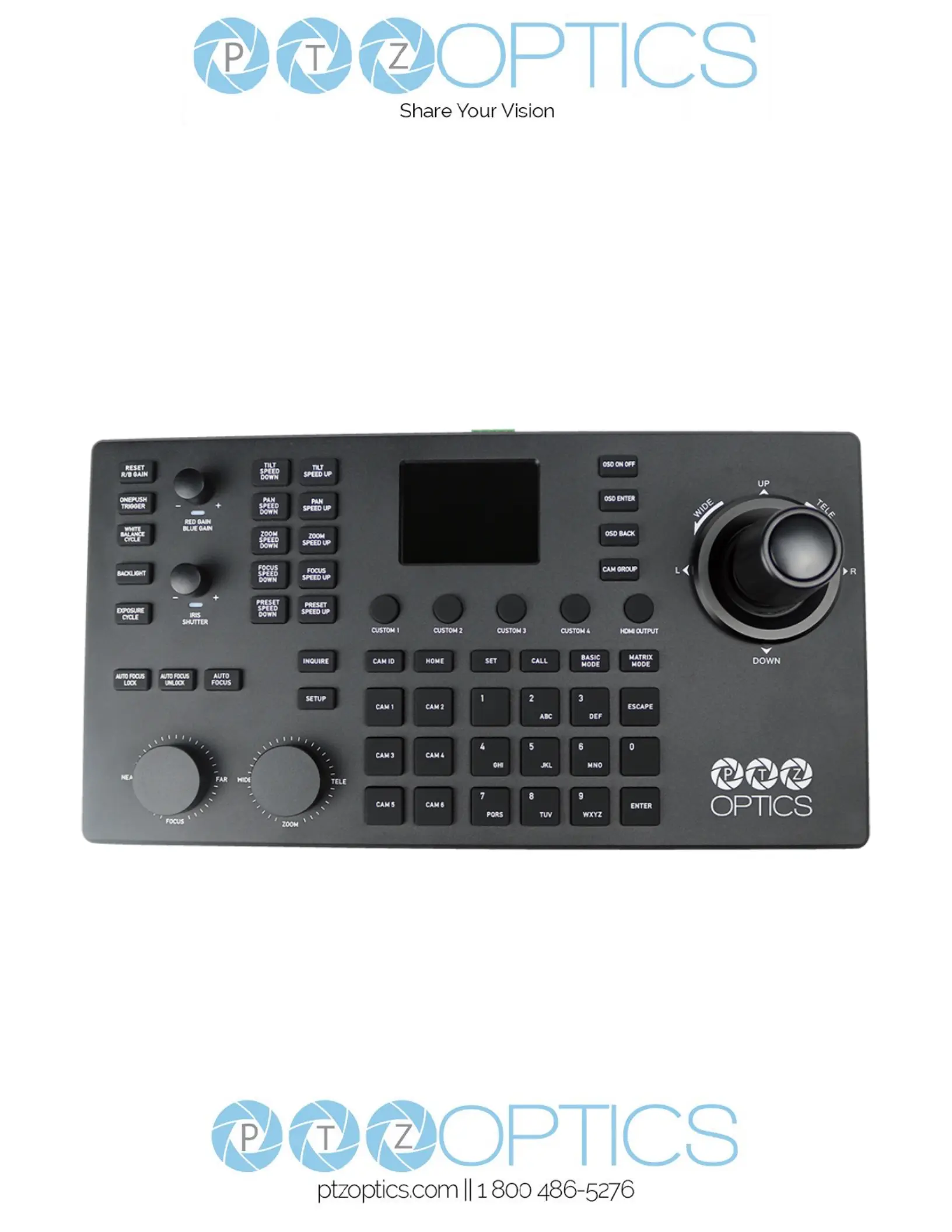

A 1st-Generation Network and Serial Camera Controller
PT-SUPERJOY-G1
User Guide
V1.3
Thank You!
Thank you for selecting our joystick camera controller built to support both IP and serial/analog
communication. As you read through this manual it will help identify the options you have for setting up
the device, connecting equipment as well as recommended configurations; as a result we recommend
reading over this guide prior to beginning any setup to have the best possible experience.
-The PTZOptics team
Using this guide to Get Started
We recommend that you read the entire user guide prior to any setup and please refer to the Table of
Contents when attempting to locate specific product information or setup instructions.
Copyright Notice
The entire contents of this manual / guide, whose copyright belongs to PTZOptics, may not be cloned, copied,
or translated in any way without the explicit permission of the company. The product specifications referred to
in this document are for reference only and as such are subject to updating at any time without prior notice.
What’s in the Box?
● PT-SUPERJOY-G1 joystick controller
2
Rev 1.3 3/21
● 12V 2A international power supply
● RS-232C / DB9 female to 8-pin mini-din male cable
● PTZOptics PT-SUPERJOY-G1 Quick Start Guide
Introducing the PT-SUPERJOY-G1
The PT-SUPERJOY-G1 is designed to provide in depth control of the PTZOptics and HuddleCamHD line of
cameras for use in production environments and more. With the ability to support both IP and Serial/Analog
control from a single controller, the PT-SUPERJOY-G1 presents itself as a flexible control solution.
When used via a Local Area Network (LAN), you can connect to cameras using TCP or UDP communications
to send PTZOptics VISCA over IP commands, with limited support for NDI & Sony VISCA over IP capable
cameras. If using the serial connections via RS-232, RS-485 or RS-422 you have PTZOptics VISCA
commands, Pelco-D, Pelco-P and limited Sony VISCA support.
Note using this with non PTZOptics or HuddleCamHD products may offer limited or no control capabilities.
You can view the PTZOptics VISCA and VISCA over IP command libraries at
ptzoptics.com/downloads/
How to care for your PT-SUPERJOY-G1
Please read the recommendations below to ensure you do not damage the product or possibly void your
warranty.
● Keep the joystick away from rain and out of moist environments
● Do not remove any portions of the case, cover or interfaces
○ Removal may result in the risk of an electrical shock
○ Removal will void the manufacturer's warranty.
● Only use the product within the recommended temperature and humidity ranges
○ Operating temperature range: 14° ~ 122°F (-10° ~ +50°C)
○ Operating humidity range: 10 ~ 90% *Non-condensing
● Do not use any other power supply than the one originally supplied with the joystick.
● Keep the joystick and signal cables away from strong electromagnetic sources or abnormal and
unreliable control may be experienced
● If you need to clean the surface of the product please use a soft dry cloth.
○ If the joystick becomes extremely dirty, use a diluted neutral detergent to clean the surface.
○ Do not use any type of solvents, which may damage the surface of the product.
In case of abnormal operation, please contact our support team at
support@ptzoptics.com
3
Rev 1.3 3/21
