Sida 1/2

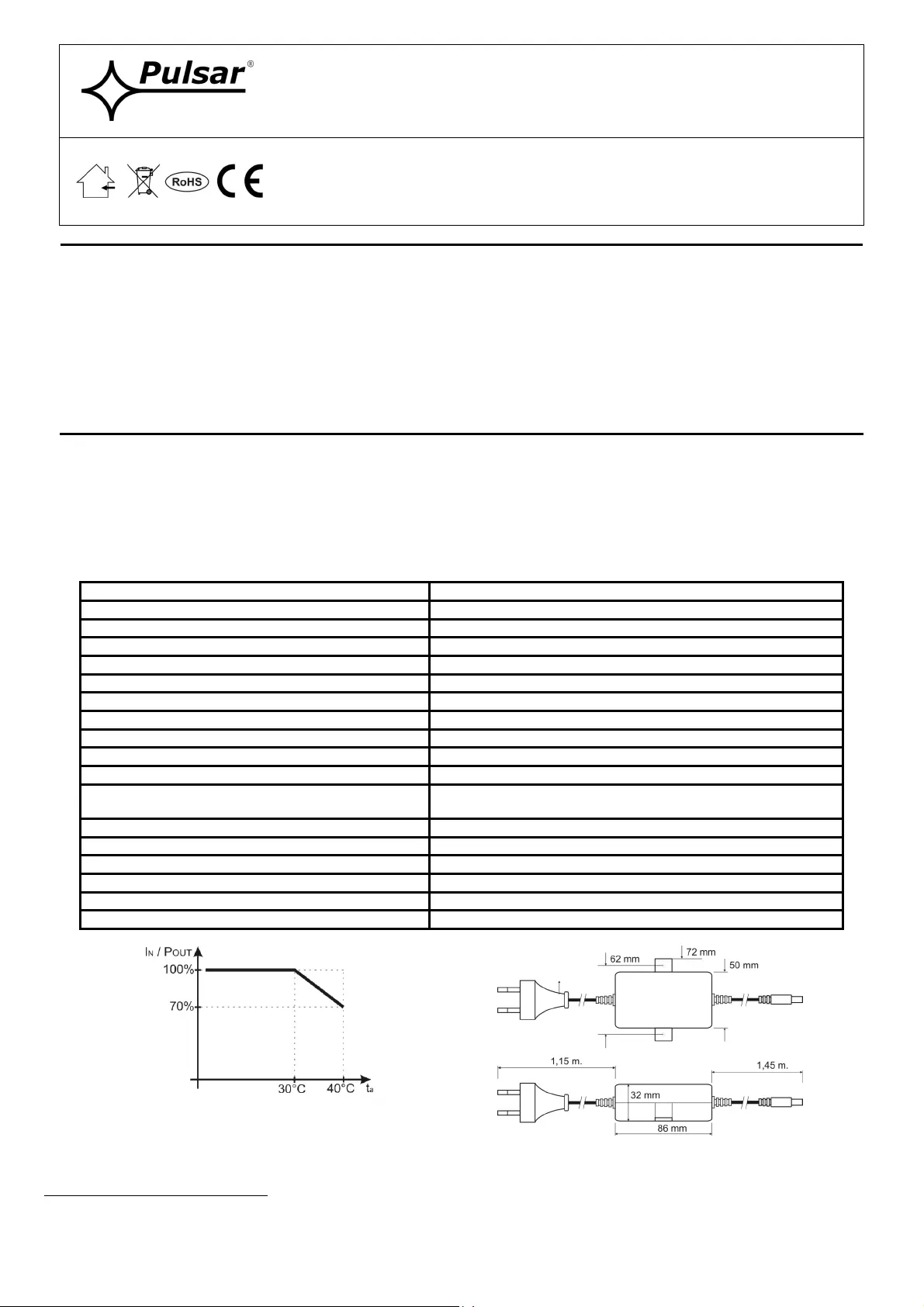

1
PSD12020
PSD 12V/2A switch mode
power supply desktop for CCTV
Edition: 8 from 01.04.2014
Supersedes edition: 7 from 10.03.2014
EN
Features of the power supply unit:
power output 2A/12VDC*
universal AC input voltage range 90÷264V
high efficiency 83%
LED optical signalisation
standby power <0,3W
efficiency level: V
protections:
SCP short-circuit protection
overvoltage protection (AC input)
overload (OLP)
warranty – 2 year from the production date
1. Technical description.
1.1. General description.
Stabilized DC power supply is intended for supply CCTV cameras that require stabilised voltage of The unit has a 12V DC.
cable with a DC5.5/2.1 plug. When connected to fuse blocks of the LB4/xx/xx or LB8/xx/xx family, the power supply unit can feed
more cameras (max. 4 or 8). The unit is protected against short-circuit and overload.
1.2. Technical parameters.
Supply voltage 90 ÷ 264V AC 50÷60Hz
Current consumption 0,23A@230V AC max.
Supply power 24W max.
Efficiency 83%
Output voltage 12V DC
Output current tAMB<30°C 2A - refer to graph 1.
Output current tAMB=40°C 1,4A - refer to graph 1.
Ripple voltage 100mV p-p max.
Short-circuit protection SCP electronic, automatic recovery
Overload protection OLP 105-150% of power supply, automatic recovery
Optical signalisation LED – presence of DC voltage
Operation conditions temperature 0 oC÷40 oC
relative humidity 20%...90%, without condensation
Dimensions (LxWxH) 86 x 72 (50) x32 [mm]
Net/gross weight 0,21kg / 0,24kg
Protection class PN-EN 60950-1:2007 II (second)
Lenght of DC cable 1,45m + plug DC5,5/2,1 female
Lenght of AC cable 1,15m + mains plug
Storage temperature -20ºC...+60ºC
* In order to extend the life of the power supply, the load current of 1,4A is recommended.
Graph 1.
Relation between output current and ambient
temperature (instantaneous load).
Fig.1. Dimension of power supply.
* Refer to graph 1
2
1.3. Accessories.
For power supplies are available accessories - fuse blocks and cable adapter. For details –visit www.pulsar.pl.
2. Installation.
2.1. Requirements.
The power supply shall be mounted by the qualified installer having appropriate (required and necessary for a given country)
permissions and qualifications for connecting (operating) low-voltage installations. The power supply shall be mounted in closed rooms,
according to the environment class II, of the normal air humidity (RH=90% max. without condensation) and the temperature within the
range from 0°C to +40°C.
The power supply shall be mounted in a close casing (a cubicle, a terminal device) and in order to fulfill LVD and EMC
requirements the rules for power supplies, encasing and shielding shall be observed according to application.
2.2. Installation procedure.
1. Connect the DC output to the load/loads.
2. Connect the power supply unit to the AC line. The power supply has to be installed in such way to keep the air flow
around the supply unit.
3. After tests and operation control are performed, the casing (cubicle) shall be closed etc.
3. Maintenance.
Any and all maintenance operations may be performed following the disconnection of the power supply from the power
network. The power supply does not require any specific maintenance procedures, however, in the case of significant level of dust, it
should be cleaned with the compressed air.
WEEE MARK
According to the EU WEE Directive – It is required not to dispose of electric or electronic waste as
unsorted municipal waste and to collect such WEEE separately.
THE GENERAL WARRANTY CONDITIONS
1. Pulsar K. Bogusz Sp.j. (the manufacturer) grants a two-years warranty for the equipment, counted from the device’s production date.
2. The warranty includes free-of-charge repair or replacement with an appropriate equivalent (the selection is at the manufacturer’s
discretion) if the malfunction is due to the manufacturer, includes manufacturing or material defects, unless such defects have been
reported within the warranty period (item 1).
3. The equipment subject to warranty is to be brought to the place where it was purchased, or directly to the main office of the
manufacturer.
4. The warranty applies to complete equipment, accompanied by a properly filled warranty claim with a description of the defect.
5. Should the claim be accepted, the manufacturer is obliged to provide warranty repairs, at the earliest convenienve, however not later
that within 14 days from the delivery to the service centre of the manufacturer.
6. The repair period mentioned in item 5 may be prolonged, if there are no technical possibilities to carry out the repairs, or if the
equipment has been conditionally accepted, due to the breaking warranty terms by the claimant.
7. All the services rendered by force of the warranty are carried out at the service centre of the manufacturer, exclusively.
8. The warranty does not cover the defects of the equipment, resulting from:
- reasons beyond the manufacturer's control,
- mechanical damage,
- improper storage and transport,
- use that violates the operation manual or equipment’s intended use
- fortuitous events, including lightning discharges, power failures, fire, flood, high temperatures and chemical agents,
- improper installation and configuration (in defiance with the manual),
9. The warranty is void in any of the following circumstances:
- construction changes
- repairs carried out by any unauthorized service center
- damage or removal of warranty labels
- modifications of the serial number
10. The liability of the manufacturer towards the buyer is limited to the value of the equipment, determined according to the wholesale
prices suggested by the manufacturer on the day of purchase.
11. The manufacturer takes no reponsibility for the defects that result from:
- the damaging, malfunctioning or inability to operate the equipment
- defects that result from using the equipment outside its stated specifications and operating parameters failing to abide by the
recommendations and requirements contained in the manual, or the use of the equipment.
Pulsar K.Bogusz Sp.j.
Siedlec 150, 32-744 Łapczyca, Poland
Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50
e-mail: biuro@pulsar.pl sales@pulsar.pl,
http:// www.pulsar.pl, www.zasilacze.pl
