www.pure-acouscs.com

Model #SBW-175

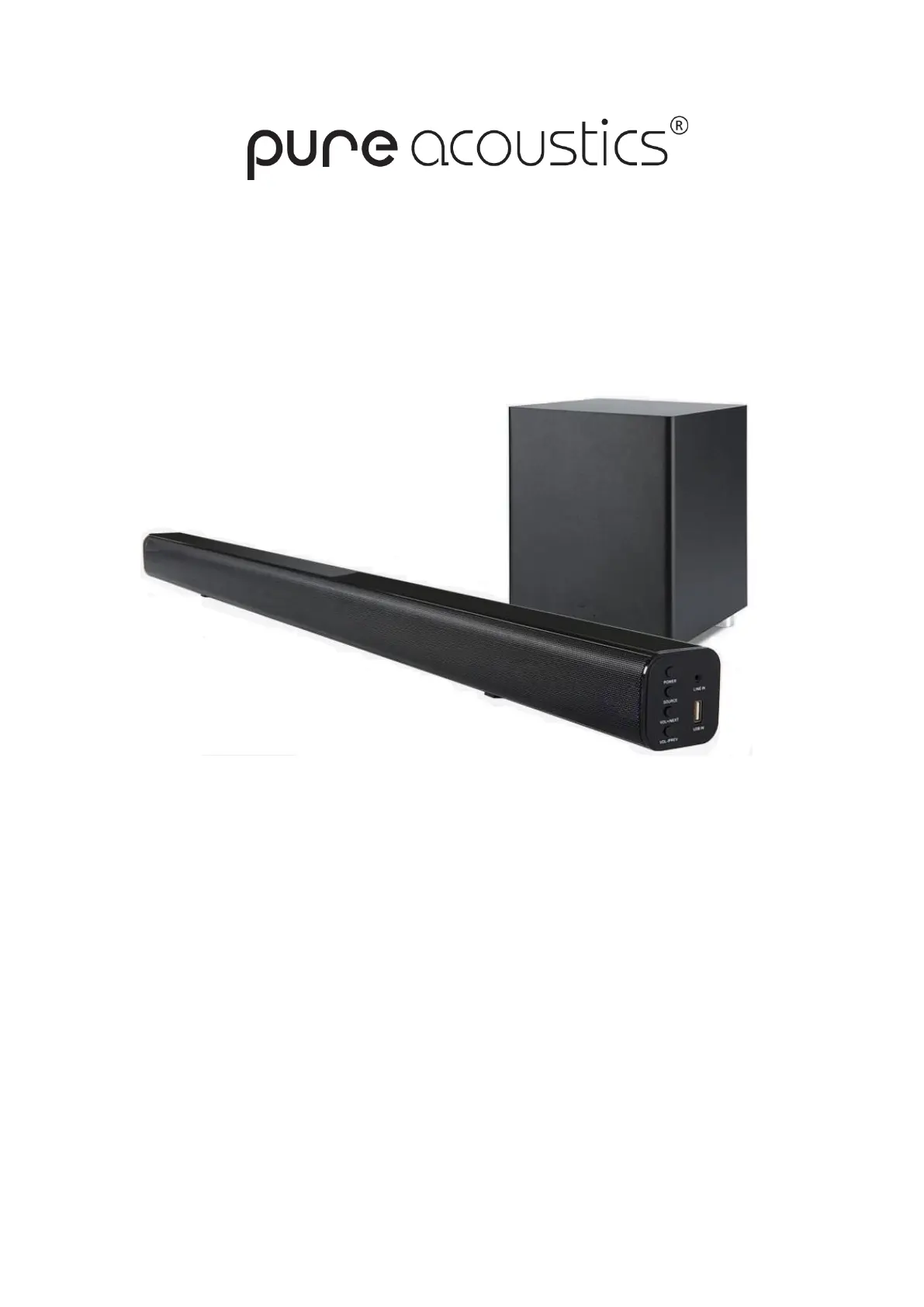

Wireless Bluetooth Surround Bar & Subwoofer

User manual

Safety Guide

www.pure-acouscs.com

Thank you for choosing Pure Acoustics. We hope you enjoy each and every use of this

product. We suggest that you read this user manual carefully before primary use in order to

utilize all of the features in functions installed. Please store it in a safe place for future

reference and pass it on to the next owner.

Caution & Safety Guide:

Please power off the unit when not in use. If the unit will not be in use for extended periods it

is suggested that you disconnect the unit from its power source.

To prevent damage to the unit do not install in areas of extreme heat or in areas with direct

exposure to sunlight.

Don’t install the unit in or near a place where it may come in contact with rain, moisture or

other liquids.

Install the unit on a horizontal, at and rm surface with good ventilation. Never block the

speaker, blocking these vents may cause damage to the speaker as a result of overheating.

To clean the unit, simply wipe down using dry, soft cloth. The unit should never be it a

cleaned chemicals or detergent.

In the rear occurrence of malfunction do no attempt to repair the unit on your own. Contact t

a certied service professional for a proper diagnosis and repair.

Caution: Dismantling the unit on your own is dangerous and may cause damage to your

person or property and will void the warranty.

The lighting ash is intended to alert the user to the presence of dangerous

voltage within the product’s enclosure and touching the internal components may result in

electric shock to your person.

The exclamatory mark is intended to alert the user to the presence of important

operating instructions.

To reduce the risk of electric shock or re, do not remove the cabinet cover

simply contact a service professional.

www.pure-acouscs.com

Features:

 - stream and enjoy music wirelessly from any Bluetooth enabled device Bluetooth

 2.1Ch Surround Sound Bar - full range true cinematic surround sound

 Wireless Subwoofer - simple one step wireless connection delivers deep wide

bass and life like sound eects

 - Digitally enhance sound eects, audio and spoken word Optical Input

applications

 - Digital FM tuner with auto scan upto 20 presets FM Radio and

 - simple do it yourself plug and play connection will have you all setup Easy Setup

in minutes.

 IR Remote Control - Full control over all modes features via IR remote control.

Main Chart of Panel

Multimedia Panel:

1.Line In

2.USB Port

3.Power Button

4.Mode

5.Volume+/Next

6.Volume-/Prev
