Sida 1/4
P / N : 570-281804-03

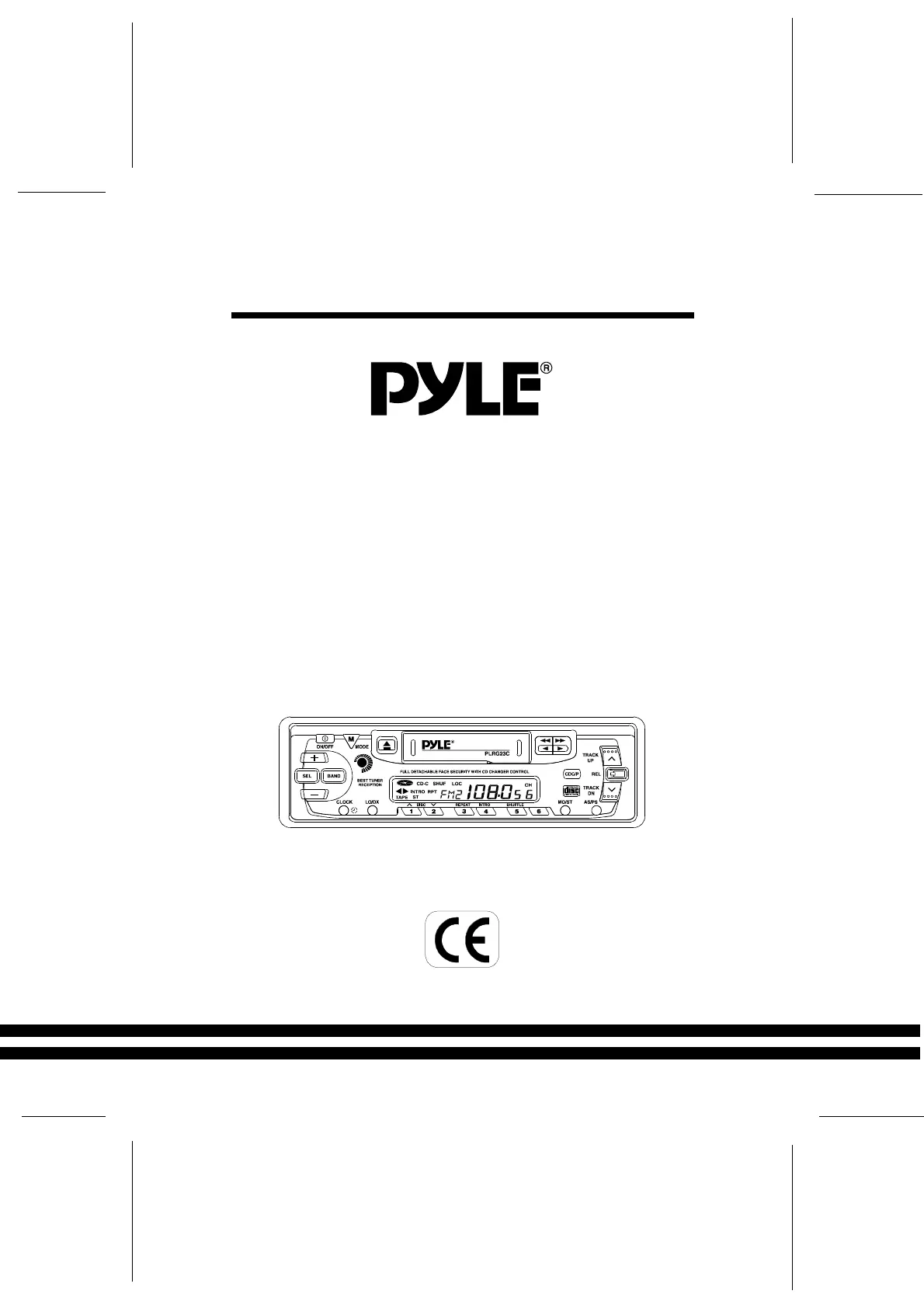

OWNER'S MANUAL
MODEL : PLRG23C
AUTO REVERSE CASSETTE PLAYER
AM/FM-MPX RADIO WITH HIGH POWER
DETACHABLE FACE SECURITY SYSTEM
CD CHANGER HEAD UNIT CONTROL
P / N : 570-281804-03
Page. 2
LOCATION OF CONTROLS
OPERATING INSTRUCTIONS
1. POWER ON/OFF
Press the button to turn the power "ON" or "OFF".
2. MODE CONTROL
Press this button to select in either radio or cassette or CD changer mode.
3/4. MANUAL UP / DOWN TUNING TRACK SEEK UP / DOWN CONTROL
On radio mode, press this button will tune one frequency step higher or lower. On CD
mode, press this button will locate the beginning of the track being played or will locate
the beginning of the next track. When pressing more than 2 seconds, it will allow you to
seek up or down on the specific track.
5. EJECT BUTTON
Depressing the eject button will stop the tape play, eject the cassette and turn on the
radio.
6. TAPE SLOT
Holding the cassette lengthwise insert into the tape slot. The tape mechanism will now
engage into the cassette play model.
7. LCD DIGITAL DISPLAY
The unit utilizes a digital type display which shows numerical indication of station
FREQUENCY and other FUNCTIONS.
8. CLOCK
During radio operation, press this button to call the time display on the incorporated
quartz clock. Pressing the button again or activating any tuning function, will return the
display to station frequency read-out. During the tape operation, the time display will
always be shown.
SETTING CLOCK TIME
1. Press CLOCK button until the clock timing is flashing.
2. Press tuning button to set the HOUR or press tuning button to set MINUTES.
9. PANEL RELEASE BUTTON
This button is used to release the mechanism that holds the front panel to the chassis.
To detach the front panel, press the button so that the right side of the panel is
released. Grasp the released side and pull it off of the chassis. To re-attach the panel,
position the left side of the panel in place first and then press the right side of the panel
until the mechanism locks it into place.
10. MONO/STEREO CONTROL
Press this button to select "FM STEREO" or "MONO" reception. A display reading of
"ST" indicates the "STEREO" mode is selected.
P / N : 570-281804-03
Page. 3
11. LOCAL/DX
Press this button to prevent strong local stations from overlapping weaker stations. For
normal operation, press this button again for distance.
12. CD CHANGER / PAUSE CONTROL
Press this button to control the optional CD Changer. Press the same button again
to pause the disc played and the circle disc is flashing on display.
13. BAND SELECTOR
Each time this button is pressed, the radio band is changed.
The indication "FM1", "FM2", "FM3", "MW1" or "MW2" will appear on the display panel
according to your selection.
14. STATION PRESET BUTTON
The PRESET BUTTONS on the unit are used to store station frequencies which you
may wish to recall. Each preset button can store FM1, FM2, FM3, MW1, MW2 station
frequency. Pressing the button momentarily recalls the station frequency which was
memorized. There are 6 preset buttons, giving you capability of storing 18FM/12MW.
NOTE: When the preset button to be memorized is kept pressed for more than 2
seconds, the receiving station frequency will be stored in the button pressed. After this,
the memorized station can be recalled by tapping that button once.
On CDC Mode
Preset knob 1, press this button to search the disc numbers ahead.
Preset knob 2, press this button to search previous disc numbers.
Preset knob 3, press this button to repeat the specific track on the currently disc "RPT".
Preset knob 4, press this button to introduce the first 10 seconds of all the tracks on the currently selected disc
Preset knob 5, press this button to select disc randomly - Disc shuffle play.
15. PRE-SCAN/AUTO-STORE BUTTON
This button allows you to enjoy "Preset Memory Scan" function by pushing it within 2
seconds, and allows you enjoy "Auto Memory" function at pushing it continuously more
than 2 seconds.
* PS (PRESET MEMORY SCAN )
It calls the memorized station frequencies ( from 1-6 ) automatically every 5 seconds.
* AS (AUTO-STORE MEMORY )
It se arc he s a ll sta tio n fr e que nc ie s up w ard a nd m emo rize a ut oma tic a lly 6 st at i ons by
catching the frequency which has scan-stop level strong on "LO" mode, weaker signal on "DX" mode or
over at the time, the memorized station is shown on LCD as "CH1...6".After memorizing, auto memory
function will be changed to "Preset Memory Scan" function automatically.
16. AUDIO SELECTOR
Press this button to select "VOLUME/BASS/TREBLE/BALANCE/FADER" adjustment modes.
Each time button is pressed, accessed selection is displayed and + or - to adjust level as
desired.
17/18. AUDIO LEVEL Down Control ( - Button ) / AUDIO LEVEL Up Control ( + Button )
With the exception of VOLUME, to access all other adjustment modes "BASS/TREBLE/BAL/
FAD", first press SEL button then press the + or - button for selective audio control.
• VOLUME - Press + button to increase, or - to decrease sound level.
• BASS - While "BAS" is being displayed, press + to increase or - to decrease the bass level.
• TREBLE - While "TRE" is being displayed, press + button to increase or - to decrease
the treble level.
• BALANCE - While "BAL" is being displayed, press + or - button to level balance of speaker
right or left.
• FADER - While "FAD" is being displayed, press the AUDIO CONTROL + or - button to level
balance of front speakers and LINE OUT jacks.
19. FAST FORWARD/REWIND BUTTON
At the end of tape in fast forward or rewind, the unit will automatically select play mode.
To release either fast forward or rewind button from the lock position, push in the other
button approximately half-way. During cassette play, press the fast forward and rewind
buttons simultaneously and the reverse side of the tape will play automatically.
