www.avsl.com 154.110 User Manual UK

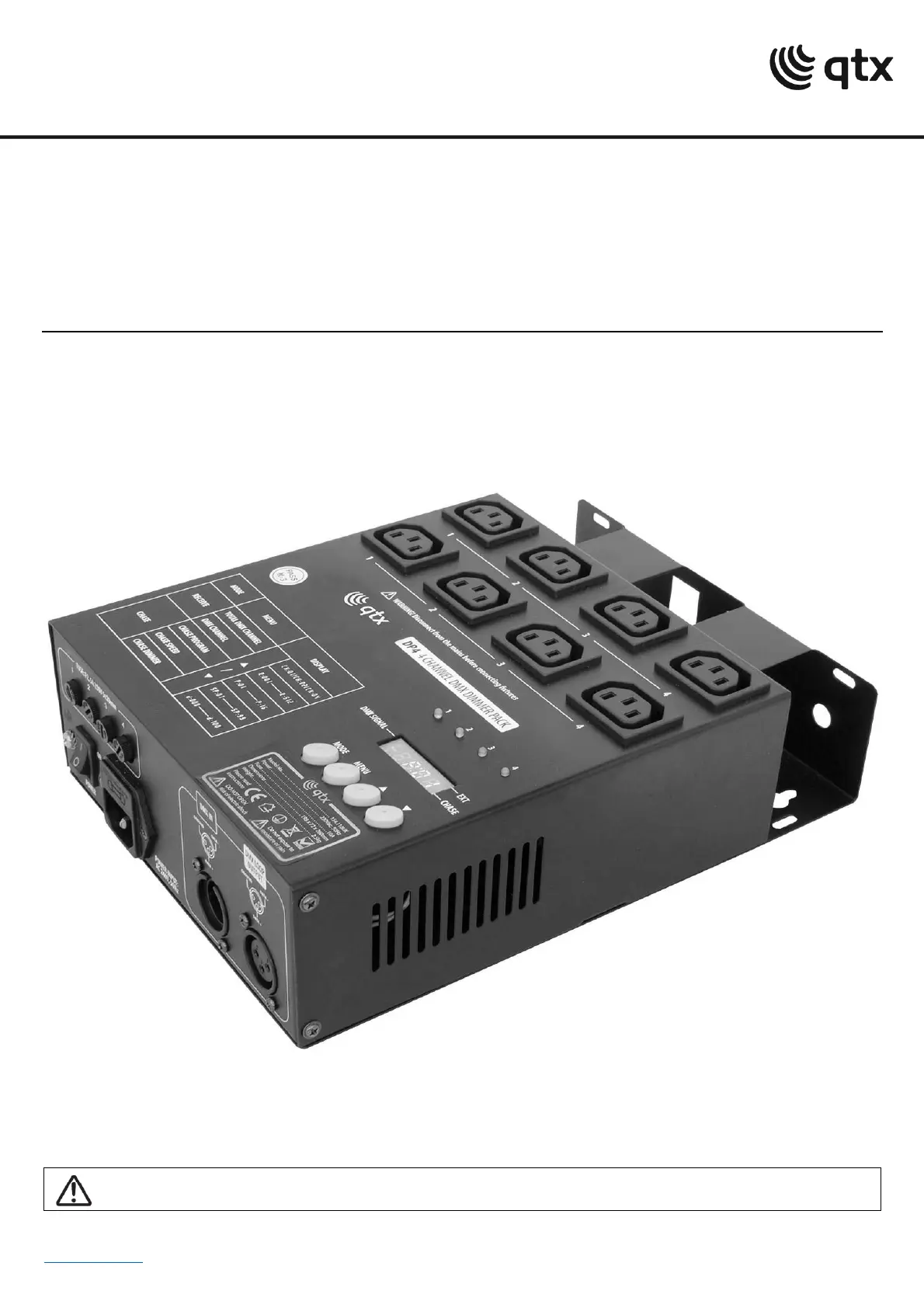

DP4
4-Channel DMX Dimmer Pack
Item ref: 154.110 UK
User Manual
Caution: Please read this manual carefully before operating
Damage caused by misuse is not covered by the warranty
www.avsl.com 154.110 User Manual UK
Introduction
The DP4 4-channel DMX dimmer pack has 4 channels each with 2 IEC power outputs per channel.
It has 16 built-in chase programs or can be controlled by 4 channels DMX.
Warning before use
• This item is for professional use only. Please take note of the following instructions before using this dev ice.
• This product is not suitable for LED products
• This unit must be earthed.
• Do not turn on the power until all connections are securely made.
• Always disconnect from the mains before replacing any fuse
• There are no user serviceable parts inside
Fuses
The DP4 can carry maximum overall load of 10 amps. Each channel can also carry a maximum overall load of
10 amps but the unit is factory fitted with 2.5amps. These can be changed but the maximum overall load for
each channel should not exceed 10 am and you must be professionally qualified in order to change the ps
fuses to suit.
Layout
1.
IEC power outlets (2 per channel)
2.
Channel fuses
3.
Power on/off switch
4.
Power inlet
5.
DMX input XLRM
6.
DMX output XLRF
7.
LED display
8.
MODE but n (Chase or DMX) to
9.
MENU button (select various Chase or DMX options)
10.
UP button (step up through options)
11.
DOWN button (step down through options)
www.avsl.com 154.110 User Manual UK
Operation
The unit has two working modes. It can be used as a four-channel chaser or as a 1, 2, or 4 channel DMX
dimmer pack. Please follow up the instructions below to operate the unit for your desired performance.
Chase Mode
Choose this working mode only when you want the device to act as a 4-channel chaser. This device has 16
built-in programs. You can select to run any of these programs specifically, or set the unit to chase in a
random sequence among all 16 built-in programs for a more dramatic show effect. The chase speed can also
be adjusted.
1. Connect your light fixtures to any of the eight power sockets available on the pack.
2. Use the mode button to select a chase mode: Chase mode is indicated in LCD display as “PA” followed
by numbers 01-16. “PA” stands for Program Applied. If an “A” appears in the LCD display, you are in
DMX mode.
3. Once you have selected CHASE MODE function, use the MENU button to select your desired program.
The chase pattern is represented on the LCD display by “P” followed by two numbers. You may select
any of the 16 built-in programs to run at a single time by pressing e UP and DOWN buttons. th
4. To change your desired chase speed press the MENU button until the “SP” followed by two numbers is
displayed on the LCD display. Use the UP and DOWN buttons to adjust the chase speed. A value of 99
will give you the fastest chase speed (about one step per 0.1 second). A value of 01 will give you the
slowest chase speed (one step per 30 second).
5. You may change the light intensity by pressing the MENU button to select “d” on the LCD. Use the UP
and DOWN buttons to change the light output intensity. 00 will give the lowest output and 99 will give
you full intensity.
DMX Mode
Use this operating mode only if you plan to use the device as a DMX dimmer. This function will allow you to
turn on or off and control the intensity of non-DMX with the use of a DMX controller. You may also set your
dimmer pack to function as a 1, 2, or 4 channel DMX dimmer pack so you can combine the output functions.
1. Connect a DMX controller to your DP4 dimmer pack via the 3-pin XLR connector.
2. Connect your lighting fixture to any of the eight power sockets on the front of the pack.
3. Decide if you are going to use your dimmer pack as 1, 2, or 4 channels. This function allows you to:
a. Control the output to all four outlets with one DMX channel.
b. Group outlet channels one and two and group outlets channels three and four. The first group will
be controlled by one DMX channel and the second group will be controlled by another DMX
channel. This gives the pack a DMX value of two.
c. The default setting is a four channel DMX dimm , each channel is controlled by onechannel er
DMX channel
4. To change the channel function mode be sure you are in DMX mode. Use the MENU button to select
“CH” followed by two digits. Then use the UP and DOWN buttons to change the setting from 01, 02, or
04. Your dimmer pack is initially set as a four channel DMX switcher.
5. The dimmer pack is initially set to be activated by DMX address one. To change this setting be sure
you are in DMX mode. Use the MENU button to select the address settings, this will be indicated by an
“A” in the first character of the LCD followed by three numbers. Use the UP and DOWN buttons to
select your desired DMX address.
6. Once you have set the pack’s DMX address be sure your controller’s address matches that of the pack
7. Your pack will now operate as DMX dimmer, you may control the light output intensity through your
DMX controller. 0 will give no output and 100 will give you full output.
