Sida 1/10

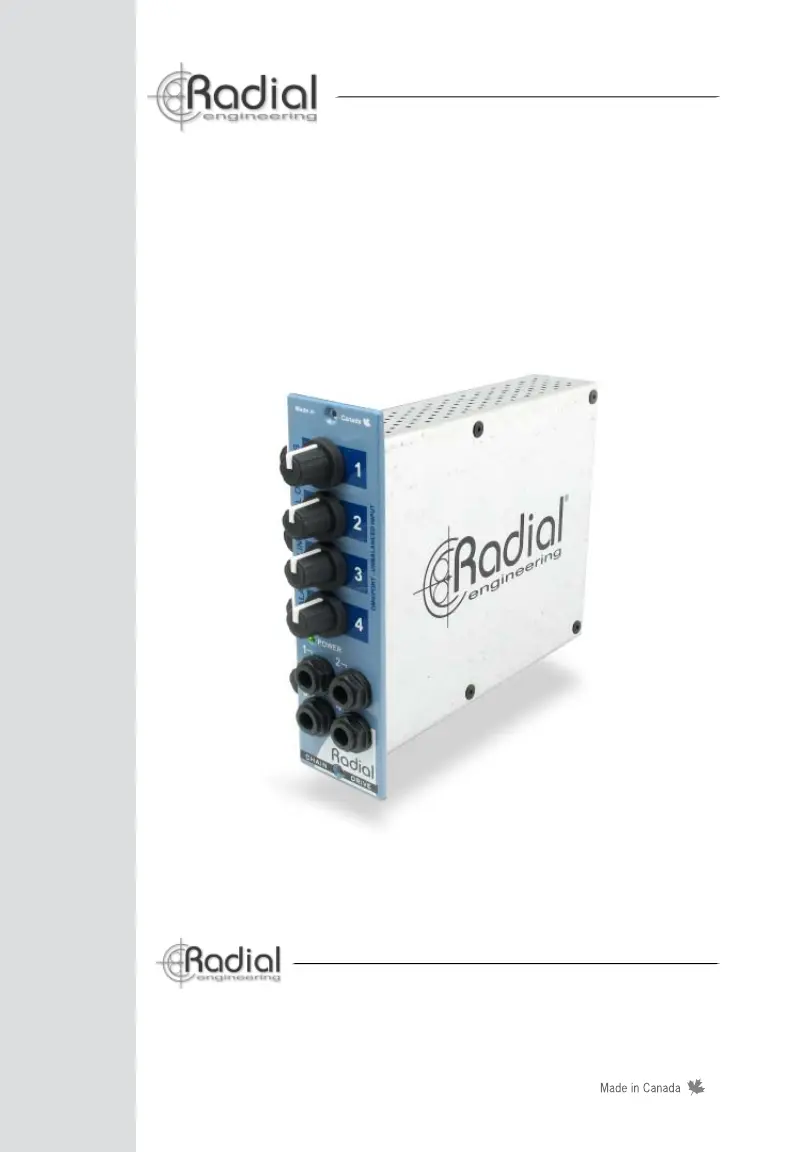

True to the Music
www.radialeng.com
®
True to the Music
®
User Guide
www.radialeng.com
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam
British Columbia, Canada, V3C 5M5
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com
CHAINDRIVE
500 Series
1x4 Line Distribution Amplifi er
™
ChainDrive
500 Series 1x4 Line Distribution Amplifi er
™
Table of Contents Page
Overview.......................................................................................................................1
Features .......................................................................................................................2
Making Connections .....................................................................................................3
Using the ChainDrive....................................................................................................4
Ominport .......................................................................................................................6
Specifi cations ...............................................................................................................7
Block Diagram ..............................................................................................................7
Radial Limited Warranty ................................................................................Back Cover
Congratulations on your purchase of the Radial ChainDrive, an innovative 500 series module
that lets you distribute four balanced line-level signals to eect processors, preamps and just
about any other audio input from your 500 series rack.
Although the ChainDrive is designed to be intuitive and easy to use, we recommend that you
take a minute to read this short manual to make sure you take full advantage of the many
features that are built in. Should you fi nd yourself asking a question that is not addressed,
we invite you to view the ChainDrive FAQ page on our website. This is where we post the
latest hints and of course questions from users. If you still do not fi nd what you are looking
for, feel free to send an email to info@radialeng.com and we will do our very best to respond
to you in short order.
Now get ready to patch, process and listen to the ChainDrive because this is what audio
engineers love to do the most!
WARNING NOTICE TO USER!
Although preventative safety measures have been designed into Radial 500 series
products we strictly advise against hot swapping modules or plugging and
unplugging them when the Workhorse or other 500 series rack is powered on. Hot
swapping can cause connection sparks at the card-edge connector that could send
damaging transients to other equipment. This also greatly reduces the life span of the
contacts. Damage due to hot swapping is not covered under warranty. There are no
user serviceable parts inside.
Radial Engineering Ltd. ChainDrive™ Distribution Ampli er
True to the Music
®
1
OVERVIEW
The ChainDrive is an innovative 1x4 ‘distro’ module designed to fi t inside the popular 500
series rack format. It follows convention with a 15-pin card-edge connector so that it works in
all 500 series power racks. Once connected, it enables the engineer to send four balanced
or unbalanced audio signals to various processors, eects or remote audio systems
simultaneously as a means to create innovative signal paths.
REAR
INPUT
REAR
OUTPUT
2
3
4
1
¼”
OUT-1
OUT-2
OUT-3
OUT-4
Applications include splitting the signal for parallel processing like multi-band compression or
feeding a variety of eects processors simultaneously.
BALANCED
MICROPHONE PREAMP CHAINDRIVE RECORDER INPARALLEL PROCESSING
BALANCED
UNBALANCED
Made in Canada
2
3 4
1
2
3
4
BALANCED LINE LEVEL OUTPUTS
POWER
OMNIPORT - UNBALA NCED INPUT
1
UNBAL
ANCED
-20 -2-10 -4-6 +1 +2 +4 +6
MIC INPUT TRIM
OUTPUT LEVEL
Radial
- 60 0dB dB
POWER TUBE
GAIN VU
dB
0
NORMAL
48V
INVE RT
OMNIPORT:
INSTRUMENT INPUT
HPF
GAIN
+ 60dB
+ 350dB
f
AIR
5kHz
80Hz
The ChainDrive can distribute a line signal for Reamping where a clean instrument track from
a multitrack recorder is fed to various guitar amps and the sound re-recorded to new tracks.
REORDER OUT CHAINDRIVE RECORDER INAMPLIFIERS MICS & PREAMPS
Made in Canada
2
3 4
1
2
3
4
BALANCED LINE LEVEL OUTPUTS
POWER
OMNIPORT - UNBALA NCED INPUT
1
