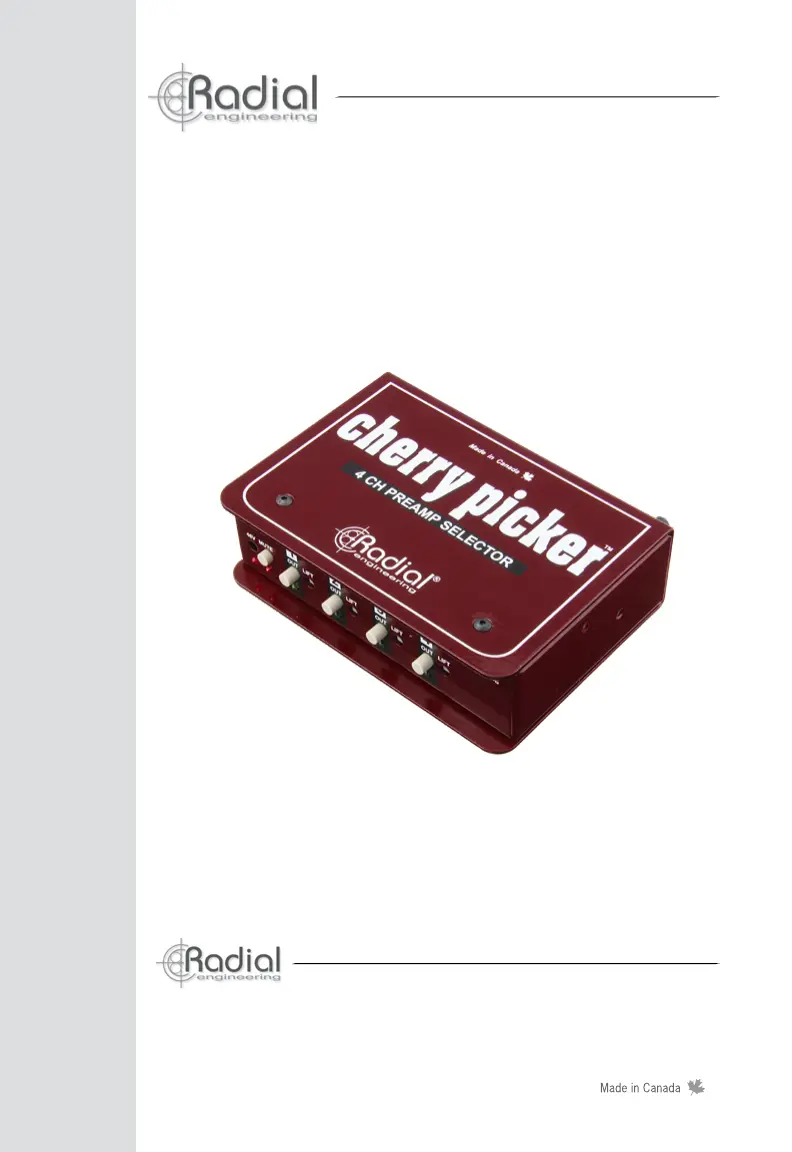

True to the Music
www.radialeng.com
®
True to the Music
®
User Guide
www.radialeng.com
Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam, BC V3C 1S9, Canada
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com
Cherry Picker
MIC/LINE SWITCHER
Radial® Cherry Picker Mic/Line Switcher®
Table of Contents Page ......................................................
Feature Set 1 ...................................................................
Overview 2 ........................................................................
Making Connections 3 .......................................................
Using the Cherry Picker 4 .................................................
Specications ................................................................. 5
Block Diagram 5 ................................................................
Warranty Back cover ............................................................
www.radialeng.com
INTRODUCTION
Thank you for purchasing a Radial Cherry Picker. You will nd that it will help improve
the efciency and work ow in your studio by speeding the preamp selection process,
comparing compressors and introducing innovative patching options that spur on creative
new opportunities.
Although the Cherry Picker is plug & play’ easy to use please take a few minutes to read
through this manual. Inside, you will nd details on how the signal ows and maybe a few
ideas to get your creative juices owing. If by chance you do not nd everything you need,
please visit the Cherry Picker web site’s FAQ page. This is where we post the latest updates
and answers to questions from users like you. If after viewing the page you still do not nd
the answers you need, feel free to send an email to info@radialeng.com and we will do our
very best to reply in short order.
Now get ready to maximize your signal path like never before!
Radial Engineering Ltd. Cherry Picker™
True to the Music
®
1
1. 48V: Phantom power switch is
recessed to prevent accidental turn-on
which could damage more sensitive
equipment. An LED illuminates when
phantom power is active.
2. MUTE: Use to turn off all four outputs
so that you can change the mic or DI
without noise. Saves having to change
your preamp or mixer settings when re-
conguring.
3. OUTPUT SELECTORS 1~4: ‘Radio’
style switches automatically turn
the current output off when another
selector switch is depressed. Helps to
streamline the comparison process.
An LED indicator displays the active
output.
4. LIFT 1~4: Disconnects the ground at
the XLR output (pin-1) to help eliminate
hum and buzz caused by ground loops.
FEATURE SET
5. BOOK- END DESIGN: Creates a
protected zone to prevent damage to
the front panel controls.
6. 14 GAUGE STEEL: Heavy-duty
construction eliminates stress on the
PCB and provides excellent shielding
against magnetic elds and RF which
could otherwise introduce noise.
7. CABLE CLAMP: A handy cable
clamp prevents accidental power
disconnection.
8. POWER ADAPTER: Connection for
the included 15VDC Radial power
supply.
9. OUTS 1~4: Four fully insulated XLR-M
outputs are used to connect to your
various preamps or audio destinations.
10. INPUT: Balanced mic/line input is used
to connect microphones, direct boxes
or other audio devices to the Cherry
Picker.
10
1 32 4 5
7 8 9
6
