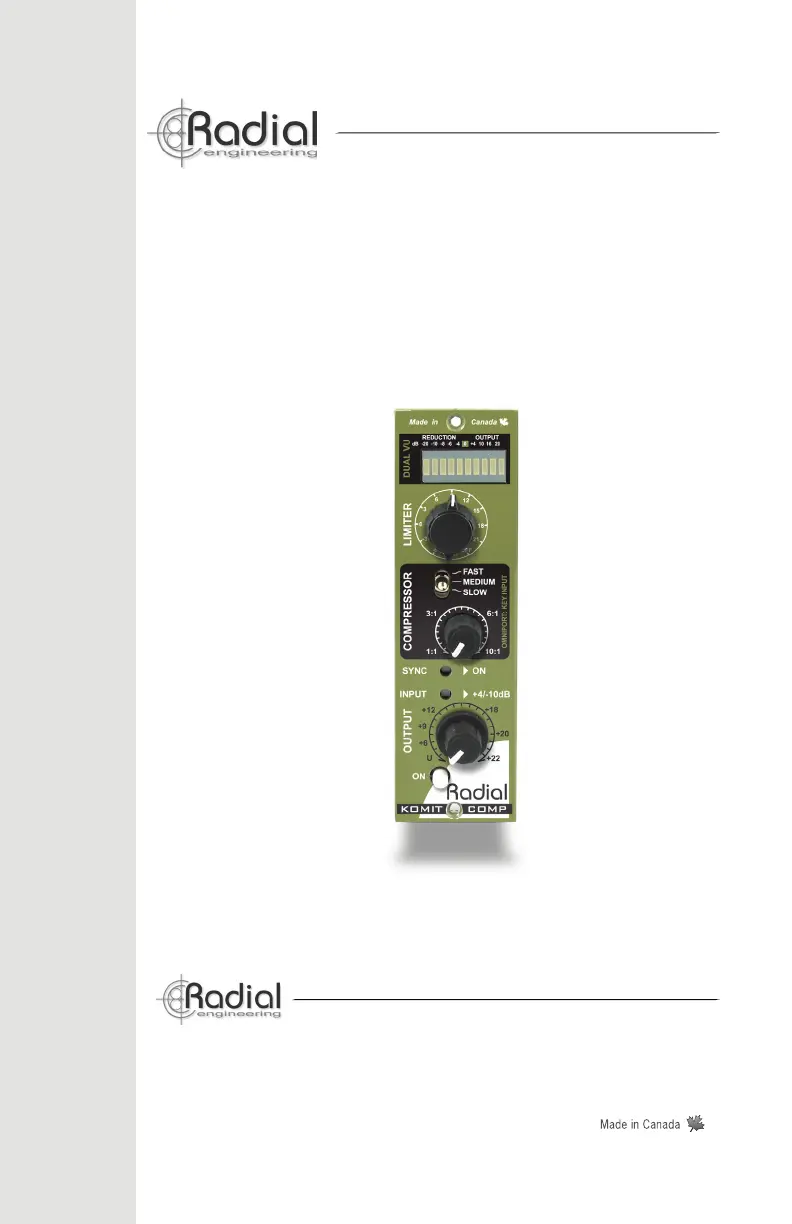

True to the Music
www.radialeng.com
®
True to the Music
®
User Guide
KOMIT™ 500
www.radialeng.com
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam
British Columbia, Canada, V3C 5M5
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com
500 Series Module
Compressor
Radial® Komit™ 500 User Guide
Table of Contents ........................................................Page
Feature Set .................................................................... 1
Overview ........................................................................ 2
Getting Started ............................................................... 7
Using The Compressor .................................................. 8
Using The Limiter ........................................................... 9
Example Applications ....................................................10
Specifi cations ................................................................12
Block Diagram ...............................................................13
Warranty ........................................................... Back cover
Congratulations and thank you for purchasing the Radial Komit 500 module. The Komit
is a unique compressor-limiter that is designed to produce effective musical results without
the complexity normally associated with dynamic processors. In other words, the Komit is
all about getting there quickly whether you are looking for simple clean compression or wish
to create dramatic effects.
This manual describes installing and operating your Komit in the Radial Workhorse or other
500 series module power racks. To take full advantage of the unique features that have been
incorporated into the Komit, please read through this manual before using it. This will give you
a broader sense of its capabilities. If you have questions that are not covered in this manual,
please visit the FAQ section on our website. This is where we post answers to questions from
users. If you cannot fi nd the answer to your question please feel free to send an email to:
info@radialeng.com and we will do our very best to respond as quickly as possible.
The Radial Komit lets you elegantly control with realism or squash it beyond recognition!
WARNING NOTICE TO USER!
Although preventative safety measures have been designed into Radial 500 series
products we strictly advise against hot-swapping modules or plugging and
unplugging them when the Workhorse or other 500 series rack is powered on. Hot
swapping can cause connection sparks at the card-edge connector that could send
damaging transients to other equipment. This also greatly reduces the life span of the
contacts. Damage due to hot swapping is not covered under warranty. There are no
user serviceable parts inside.
True to the Music
®
Radial Engineering Ltd. Komit 500 Module
FEATURE SET
1. DUAL BALLISTIC LED METER - Divided in half with
gain reduction on the left and output on the right. Easy
to read and fast, it provides instant visual monitoring
of signal status.
2. LIMITER - 12 position dial lets you choose between
brick wall limiting, bypass and ‘old school diode-bridge
clipping limiter’ circuit. Ten graduated settings that
range from slight clipping to over the top distortion.
3. BW (LIMITER DIAL) - Doubles the compression ratio
(1:1; 6:1; 20:1) and bypasses the clipping limiter.
Turns the Komit into a set & forget brick wall limiter (at
20:1 compressor setting) for digital recording.
4. FAST / MEDIUM / SLOW - Three speed settings with
feed-forward auto-detection make it easy to address
the attack and release time constants. Slow for vocals,
medium for instruments and fast for percussion.
5. COMPRESSOR RATIO - State of the art VCA
FlexKnee™ compression circuit delivers dynamic
control from slight to extreme with up to a 10:1
compression ratio. Single RATIO control says it all!
6. SYNC - Lets you control two Komits sharing the same
time constant. Set up in a master-slave confi guration
for optimal stereo dynamic coupling. Sync ‘on’ turns
unit into slave.
7. INPUT - Lets you toggle the input threshold between
+4dB and -10dB to optimize signal input range making
the Komit easy to interface with all types of program
material.
8. GAIN - Used as gain make-up when signals are
compressed to set the output level. Variable with up
to +22dBu of gain, is also used to drive the limiter for
extra character.
9. ON - Bypass switch lets you quickly compare the
original pre-compressed signal to the settings you
have selected on the Komit. Push in to turn on!
10. LINK - When used with the Workhorse, the stereo link
switch lets you combine two Komits together following
the same time constant. Also active on standard 500
series racks using the pin-6 card edge terminal.
11. OMNIPORT - Designated as a key input to allow
external control over the compressor side chain.
Available only when used with the Workhorse.
8
7
1
4
3
6
5
9
1
10
11
2
INPUT
OMNIPORT
FEED
LINK
1
OFF
OFF
CARD SLOT 1
OUTPUT
OUTPUT INPUT
Radial Workhorse
Rear Panel
