Radial Engineering Ltd.
1845 Kingsway Ave., Port Coquitlam BC V3C 1S9
Tel: 604-942-1001 • Fax: 604-942-1010 • Email: info@radialeng.com

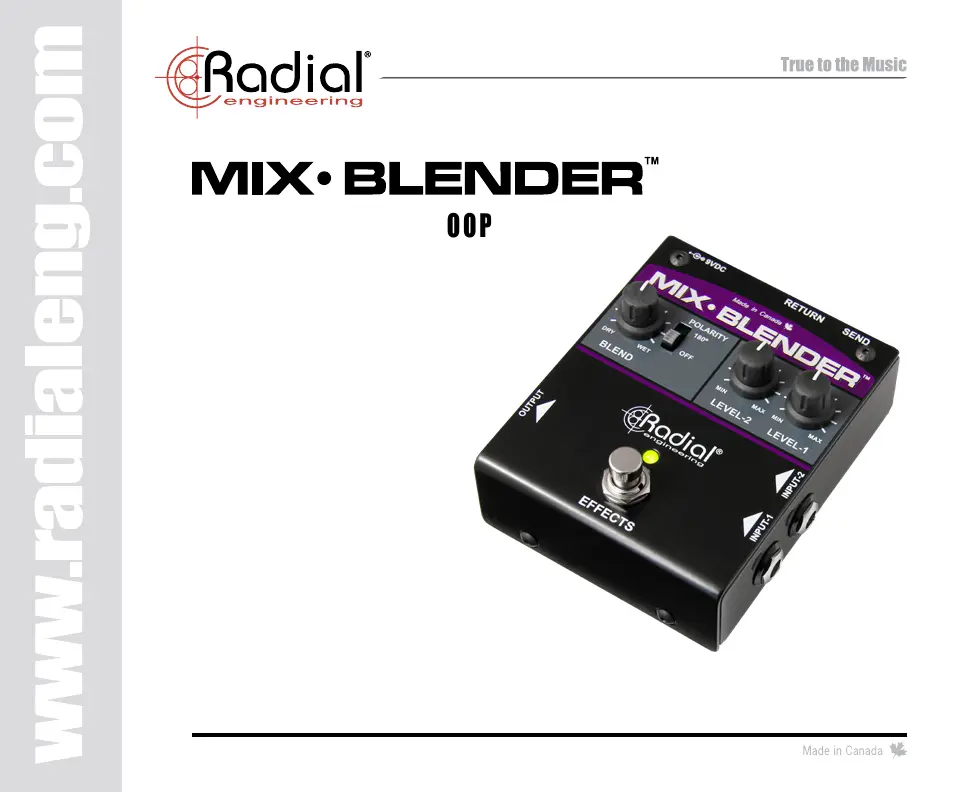

M I X E R A N D E F F E C T S L
U s e r G u i d e
Radial Engineering Ltd. Mix-Blender™ User Guide
1
MIX-BLENDER™ MIXER AND EFFECTS LOOP USER GUIDE
Introduction 1 ......................................................................................
Features 2 ..........................................................................................
Overview.......................................................................................... 3
Making Connections 4 ........................................................................
Using the Mix Section 4-5 ...................................................................
Using the Effects Loop 6 ....................................................................
Using a Tuner .................................................................................. 7
Using a Third Guitar 8 ........................................................................
Using the Polarity Reverse Switch 9 ..................................................
Specications ................................................................................ 10
Warranty Back Cover .........................................................................
Thank you for purchasing the Radial Mix-Blender™, one of the most exciting
Although the Mix-Blender is super easy to use, please take a few moments to read through the manual in order to familiarize
yourself with the features and functions. This will not only enhance your musical experience, but also help you better
understand the problems and xes that are built in.
If you nd yourself asking questions that are not covered herein, please visit the Mix-Blender FAQ page on our website.
This is where we post questions and answer from users along with updates. If you still nd yourself asking questions, feel
free to send us an email at info@radialeng.com and we will do our best to reply in short order.
Now get ready to squeeze your creative juices like a space-aged Osterizer!
Radial Engineering Ltd. Mix-Blender™ User Guide
2
FEATURES
1. 9VDC POWER: Connection for 9 volt power adapter (not
included). Includes a cable clamp to prevent accidental
power disconnection.
2. RETURN: ¼" jack brings the effects pedal chain back
into the Mix-Blender.
3. SEND: ¼" jack is used to feed the effects pedal chain or
a tuner.
4. LEVEL 1 & 2: Used to adjust the relative levels between
the two instruments.
5. INPUT 1 & 2: Standard ¼" guitar inputs for two
instruments or effects.
6. EFFECTS: Heavy-duty footswitch activates the Mix-
Blender’s effects loop.
7. OUTPUT: Standard ¼" guitar level output use to feed a
stage amp or other pedals.
8. BLEND: Wet-Dry blend control lets you blend in as much
of the effects as you like into the signal path.
9. POLARITY: Toggles the effects SEND relative phase by
180º to compensate for pedals that may be out of phase
with the dry signal path.
10. STEEL ENCLOSURE: Heavy-duty 14-gauge steel
enclosure.
6
7
8
9
10
5
4
1 2 3
+-
The Mix-Blender requires a 9 volt
power supply with a negative center.
