Sida 1/16

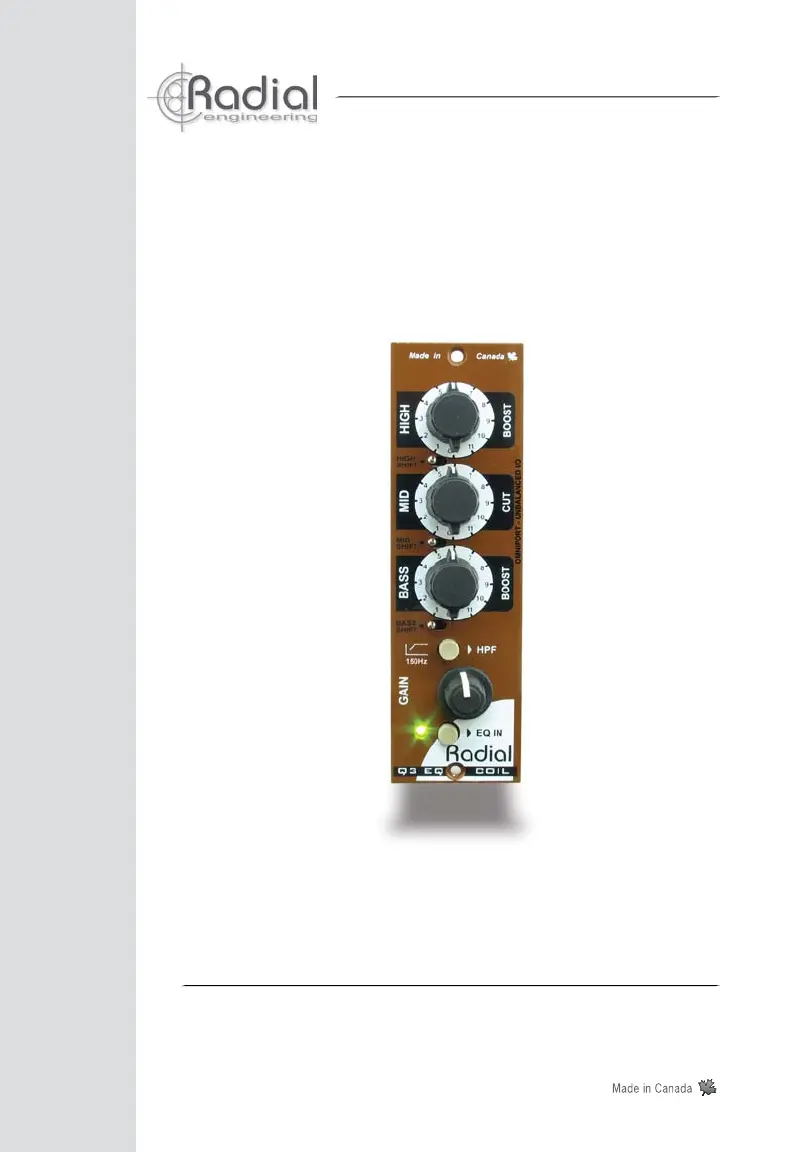

True to the Music
www.radialeng.com
True to the Music
®
User Guide
Q3 ™
Coil Equalizer
5 0 0 S e r i e s M o d u l e
www.radialeng.com
Radial Engineering Ltd.
1588 Kebet Way, Port Coquitlam
British Columbia, Canada, V3C 5M5
tel: 604-942-1001 • fax: 604-942-1010
email: info@radialeng.com

WARNING NOTICE TO USER!
Although preventative safety measures have been designed into Radial
500 series products we strictly advise against hot-swapping modules
or plugging and unplugging them when the Workhorse or other 500 series
rack is powered on. Hot swapping can cause connection sparks at the card-
edge connector that could send damaging transients to other equipment.
This also greatly reduces the life span of the card-edge contacts. Damage
due to hot swapping is not covered under warranty. There are no user
serviceable parts inside.
Radial® Q3™
Coil EQ User Guide
Table of Contents ......................................................Page
Feature set ..................................................................... 1
Overview ........................................................................ 2
Getting started ................................................................ 3
Using the coil EQ ........................................................... 4
Preset curves ................................................................. 6
Suggested settings ......................................................... 9
User settings records ..................................................... 12
Specifi cations ................................................................. 13
Block diagram ................................................................ 13
Warranty ............................................................Back cover
Thank you for joining the growing number of Radial 500 series module users. We are
confi dent that you will fi nd the Q3 Coil Equalizer to be a great addition to your recording
studio setup. And although the Q3 is ‘plug and play’ easy to use, we recommend that you
take a few minutes to read through this manual to familiarize yourself with the design and
more importantly, the reasoning behind the way we created it.
If for some reason you do not fi nd all of the answers to your quest, we suggest you log
onto radialeng.com and peruse the Q3 Coil Equalizer FAQ section. This is where we post
questions and answers from users like yourself along with the latest updates. If you do not
fi nd what you are looking for, feel free to send us an email at info@radialeng.com. We will do
our very best to get an answer to you in short order.
Now reach out, close your eyes, turn the dials and listen. You are about to hear Nirvana!
(without all of the grunge)

True to the Music
®
Radial Engineering Ltd. Q3 Coil Equalizer 500 Module
1
FEATURE SET
1. HIGH BOOST - 12 position rotary
switch features a wide variety
of high-frequency preset curves
designed to add clarity, shimmer and
presence to the voice on instrument.
2. SHIFT - This two position toggle
switch changes the slope and
amplitude of the preset curve. The
SHIFT position offers an steeper
EQ slope with increased amplitude
creating a more pronounced eect.
3. MID CUT - 12 position rotary switch
presents an array of eleven preset
curves, most of which are designed
to cut mid frequencies where the
human ear is most sensitive.
4. BASS BOOST - 12 position rotary
switch is outfi tted with eleven preset
curves designed to boost bass and
add warmth, body and punch to the
audio track.
5. HPF - High-pass fi lter rolls off
excessive low frequencies that can
cause resonant feedback on a live
stage or clutter up the bottom-end of
a track when mixing.
6. GAIN - Adjustable level control
allows you to compensate for the
EQ amplitude boost or cut and
maintain unity gain through the Q3.
7. EQ IN - This switch lets you
compare the original program
material with the eect introduced by
the passive inductor coil EQ circuit.
The LED indicator will illuminate
when the EQ is engaged.
8. OMNIPORT - Unbalanced ¼” TRS
input and output receives a signal
from an external device, processes
it throught the Q3 and outputs the
signal at the Omniport.
5
6
1
2
3
4
Rear Panel 8
Rear Panel
7
