Sida 1/24

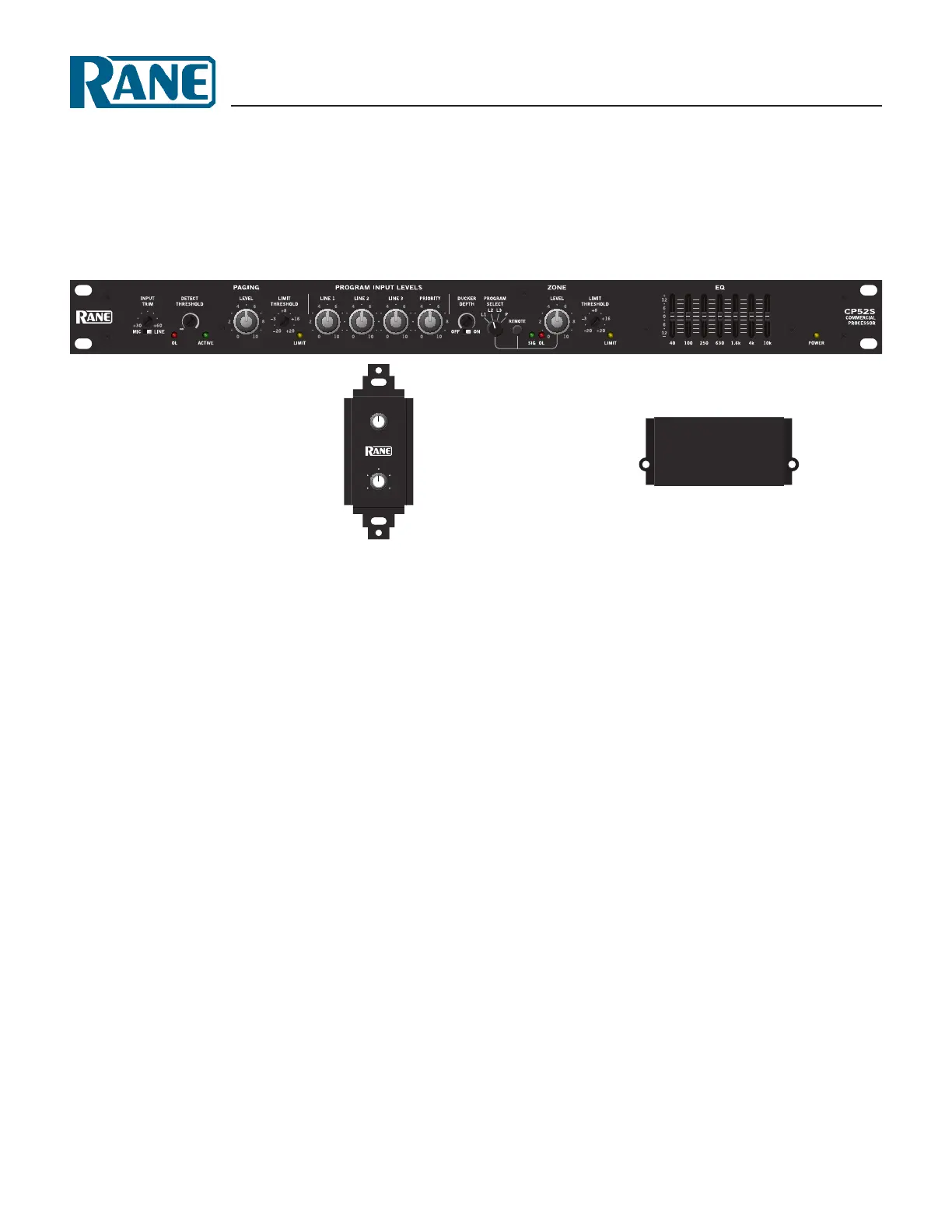

CP52S
COMMERCIAL PROCESSOR
INSTALLATION GUIDE
PROGRAM SELECT
LEVEL
82
100
4 6
L1
L3L2
P
SCP1S Equalizer Security CoverZR1 Program and
Level Remote
Contents
Important Safety Instructions 2
Quick Start 3
Block Diagram 4
General Description 5
CP52S Front Panel 6
CP52S Rear Panel 7
CP52S Connections 8
ZR1 Remote 8
Recommended Calibration Procedure 10
Restaurant and Lounge 14
Cardio Fitness Room 15
Technical Support 16
Sound System Interconnection 17
The schematic is downloadable at rane.com/cp52s.html 20741

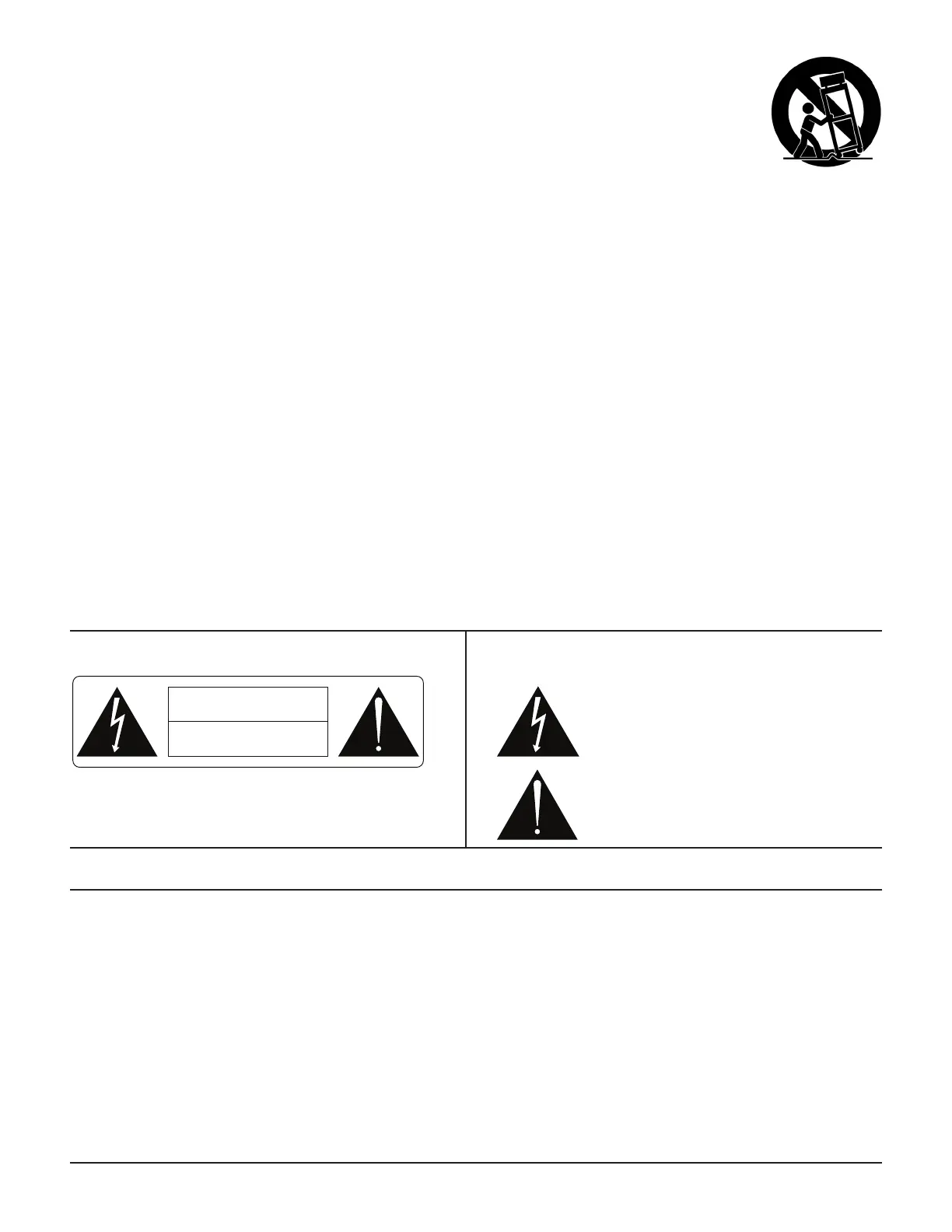

RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION
To reduce the risk of electrical shock, do not open the unit. No user
serviceable parts inside. Refer servicing to qualied service personnel.
e symbols shown below are internationally accepted symbols
that warn of potential hazards with electrical products.
is symbol indicates that a dangerous voltage
constituting a risk of electric shock is present
within this unit.
is symbol indicates that there are important
operating and maintenance instructions in the
literature accompanying this unit.
WARNING
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block any ventilation openings. Install in accordance with manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, registers, stoves, or other apparatus (including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. e wide blade or third prong is provided for your safety. If the provided plug
does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord and plug from being walked on or pinched particularly at plugs, convenience receptacles, and the point where it exits from
the apparatus.
11. Only use attachments and accessories specied by Rane.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply
cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does
not operate normally, or has been dropped.
15. e plug on the power cord is the AC mains disconnect device and must remain readily operable. To completely disconnect this apparatus from
the AC mains, disconnect the power supply cord plug from the AC receptacle.
16. is apparatus shall be connected to a mains socket outlet with a protective earthing connection.
17. When permanently connected, an all-pole mains switch with a contact separation of at least 3 mm in each pole shall be incorporated in the
electrical installation of the building.
18. If rackmounting, provide adequate ventilation. Equipment may be located above or below this apparatus, but some equipment (like large power
ampliers) may cause an unacceptable amount of hum or may generate too much heat and degrade the performance of this apparatus.
19. is apparatus may be installed in an industry standard equipment rack. Use screws through all mounting holes to provide the best support.
WARNING: To reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture. Apparatus shall not be exposed to dripping
or splashing and no objects lled with liquids, such as vases, shall be placed on the apparatus.
NOTE: is equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
ese limits are designed to provide reasonable protection against harmful interference in a residential installation. is equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
CAUTION: Changes or modications not expressly approved by Rane Corporation could void the user's authority to operate the equipment.
is Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
WARNING: is product may contain chemicals known to the State of California to cause cancer, or birth defects or other reproductive harm.
3
CP52S
COMMERCIAL PROCESSOR

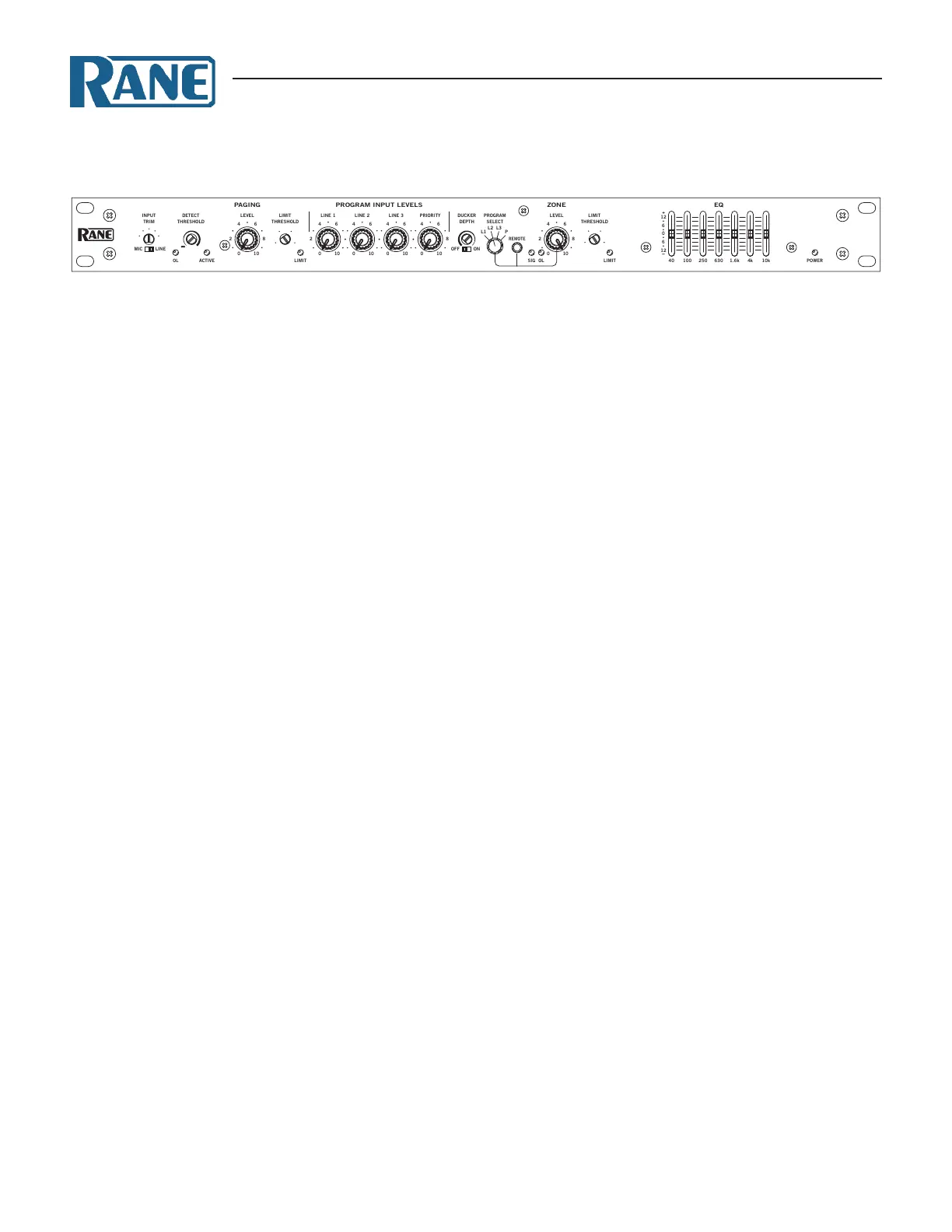

Quick Start
If you were the type that cheated on school book reports by just
skimming through the reading assignments, then this section is
for you! It gives you not quite enough information to really know
what you’re doing. But, if you follow the recommended set up
procedure, you should get at least a “B.”
Keep the ampliers and the CP52S turned until all con-o
nections are made.
PAGE INPUT
Connect the PAGING INPUT to the Euroblock on the rear
panel. On the front, select the appropriate switch MIC or LINE
position. en set the gain with the INPUT TRIM control,
then set the PAGING DETECT THRESHOLD and nally the
PAGING LEVEL. , MIC PHANTOM POWER HIGH/LOW
CUT FILTER and PAGE LEVEL TRACKS ZONE LEVEL
switches are located on the rear panel.
PROGRAM INPUTS
Connect line level program sources to the RCA PROGRAM
INPUT jacks (LINE L1, L2, L3 & PRIORITY). If you have a
priority program, like a jukebox, connect it to the PRIORITY
Input. e rear panel PRIORITY switch turns priority override
ON or OFF. e Priority program is automatically selected when
signal is detected at its Input. Set the rear panel PROGRAM
DETECT THRESHOLD and RELEASE TIME as desired.
WEAR PARTS:is product contains no wear parts.
LEVEL
4k
630
1.6k
40
100
PROGRAM
SELE CT
OL
LIMIT
PRIORIT Y
LIMIT
THRESHOLD
LIMIT
LEVEL
LINE 1
LINE 2
LINE 3
ACTIVE
INPUT
TRIM
OL
LINE
MIC
ON
OFF
DET ECT
THRESHOLD
DUCKER
DEPT H
CP52S
COMMERCIAL
PROCESSOR
POWER
ZONE
EQ
PROGRAM INPUT LEVELS
PAGING
LIMIT
THRESHOLD
REMOTE
L1
P
L2
L3
+60+30
12
•
6
•
•
•
6
12
0
+
+8
–3
+20–20
+16
+8
–3
+20–20
+16
10
0
2
4
8
6
2
8
10
0
4
6
10
0
4
6
10
0
4
6
10
0
4
6
10
0
2
4
8
6
EXPAND OUTPUT
Wire the EXPAND OUTPUT Euroblock as required to a mono
feed delivering -only or PAGE-only, PROGRAM ZONE (both)
signal depending on the switch setting. is Output uses a cross-
coupled line driver and may be used balanced or unbalanced.
Adjust the EXPAND OUTPUT LEVEL trim as desired.
ZONE OUTPUT
e uses a cross-coupled line driver and may ZONE OUTPUT
be used balanced or unbalanced. Set the front panel LIMIT
THRESHOLD as required. Depress the rear panel MONO
switch for a mono Zone.
ZR1 REMOTE
You may use one Remote (sold separately) with the CP52S. ZR1
Wire it to the ZONE REMOTE Euroblock as indicated. If a
ZR1 remote is not used, any simple switch closure to ground will
work for the pins. ese pins are TTL compatible (0 D0 and D1
to 5 VDC). e logic is inverse Gray Code. Any ground refer-
enced 5 volt DC control may be used as the input to . Do Vc not
ground the Vr pin.
READ ME
e CP52S is versatile. While this makes a large number of very
system applications possible, it also results in complexity. For this
reason, it is important to use an organized approach for setup and
calibration. A highly recommended setup is at "Recommended
Calibration Procedure" on page 10. Please follow it to encoun-
ter fewer problems and reduce the need to increase our collective
phone bills.
