Reflecta 23219 Bruksanvisning
Läs nedan 📖 manual på svenska för Reflecta 23219 (2 sidor) i kategorin TV-skåp. Denna guide var användbar för 3 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2

8a
To avoid TV falling, anti-fall wire rope should be installed.
ø 3.5mm
(ø 1/8")
40mm
40mm
40mm
40mm
1.6"
1.6"
1.6"
1.6"
(
(
(
()
)
)
)
40mm
( )1.6"
8b
To avoid TV falling, anti-fall wire rope should be installed.
2
1
O
P
40mm
40mm
40mm
40mm
1
1
1
1.6"
.6"
.6"
.6"
(
(
(
()
)
)
)
40mm
(1.6")
ø 7mm
(ø 9 /32")
1
3
2

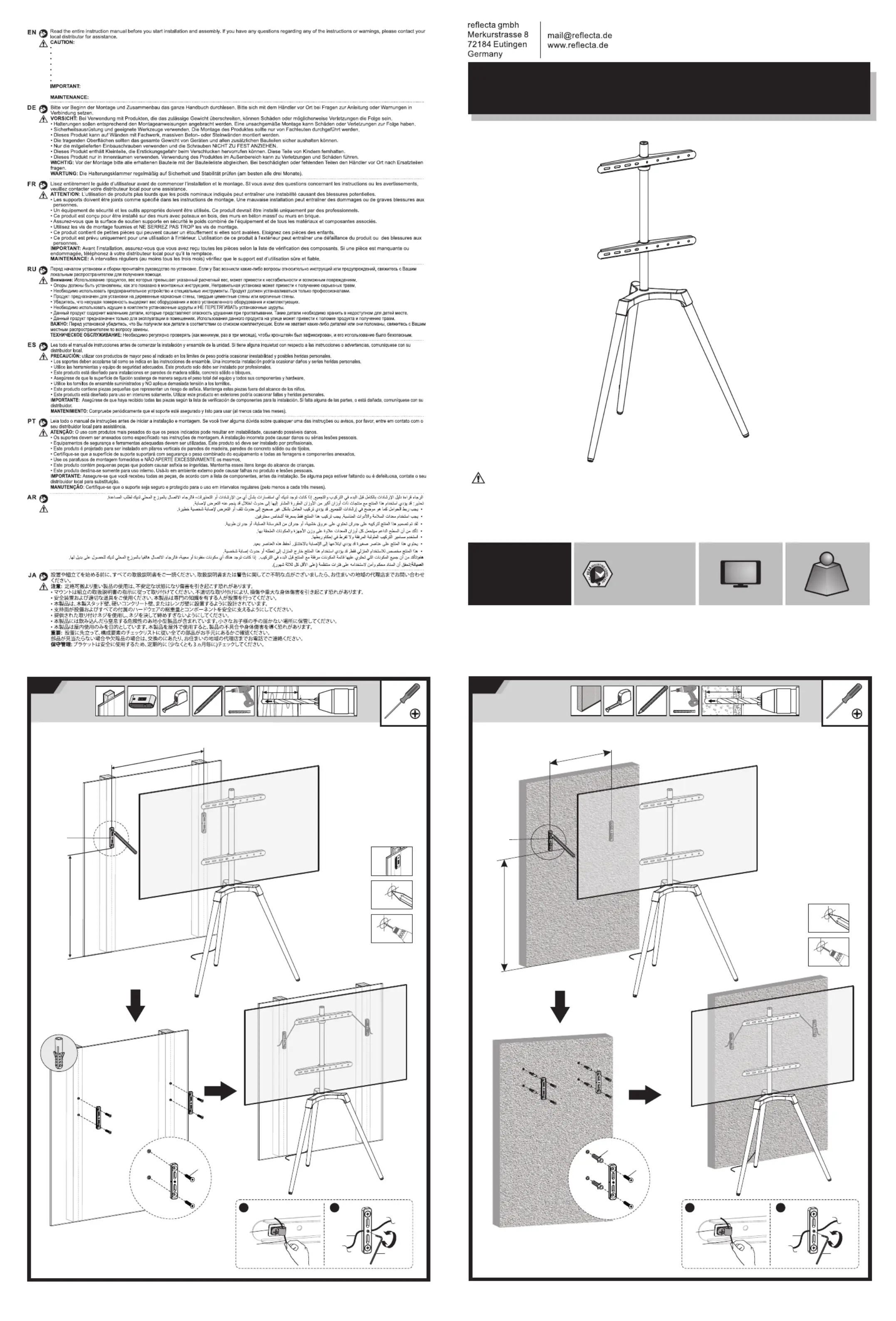

Easel Studio TV Stand
Safety Disclaimer
This product includes an anti-tip kit that must be used in conjunction with the product and will
prevent the product from falling or tipping over. Please follow the enclosed information to
properly install these safety accessories. In no event shall the Seller be liable for any direct,
indirect, punitive, incidental, special consequential damages, to property or life, whatsoever
arising out of or connected with the use or misuse of this product.
200x200/300x200
300x300/400x200
400x300/400x400
23219
65"
MAX 35kg
(77lbs)
RATED
Use with products heavier than the rated weights indicated may result in instability causing possible injury.
Please closely follow the assembly instructions. Improper installation may result in damage or serious personal injury.
Safety gear and proper tools must be used. This product should only be installed by professionals.
This product is designed to be installed on solid concrete walls, masonry walls or wood stud walls.
Make sure that the supporting surface will safely support the combined weight of the equipment and all attached hardware and components.
Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
This product contains small items that could be a choking hazard if swallowed. Keep these items away from children.
This product is intended for indoor use only. Using this product outdoors could lead to product failure and personal injury.
Ensure that you have received all parts according to the component checklist prior to installation. If any parts are missing or faulty, contact your place of
purchase for a replacement.
Check that the product is secure and safe to use at regular intervals (at least every three months).
O
X
X
X
XX
L
G
G
H
21
L
G
G
H
21
1100-1350mm
400-650mm
I
1100-1350mm
400-650mm
I
INSTALLATION MANUAL

E
F
E
F

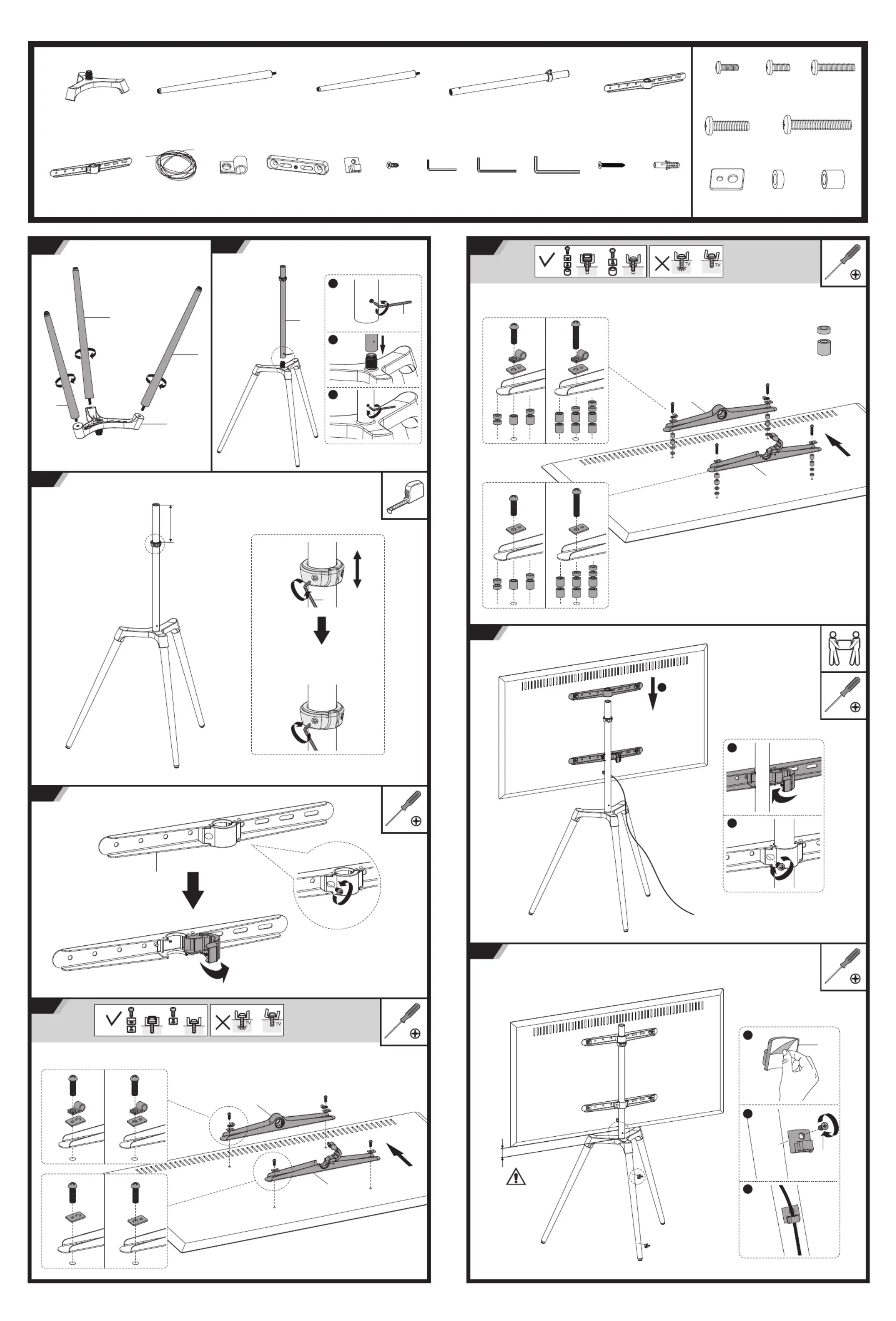

5a
TVTV
4
F
2
7
5b
TVTV
Make sure the cable clips(H) are attached to the upper bracket for the following security installation.
6
3
1
I (x2)
B (x2)A (x1)
G (x1)
C (x1)
M8x50
M-E
(x4)
M8x30
M-D
(x4)
M6x30
M-C
(x4)M6x14
M-B
(x4)M5x14
M-A
(x4)
(x4)
M-F
(x8)
M-G
(x8)
M-H
(x1)D
J (x2) K (x2)H (x2)
2mm(x1)
LP (x4)O (x4)
(x1)E
(x1)F
3mm(x1)
M
A
B
C
B
1
2
3
M
4mm(x1)
N
M-G
M-H
M-F
H
M-E
M-F
H
M-C
M-D
M-F
M-C
M-D
M-F
M-E
K
1
2
3
J
Make sure the cable clips(H) are attached to the upper bracket for the following security installation.
M-F
H
M-A
M-F
H
M-B
M-F
M-A
M-F
M-B
3
2
N
Note:
·Please secure the locking collar
before attaching the TV screen.
·Make sure the screw hole turns
to back.
Recommended 50-150mm
D
>20mm
Mind your hands.
1
