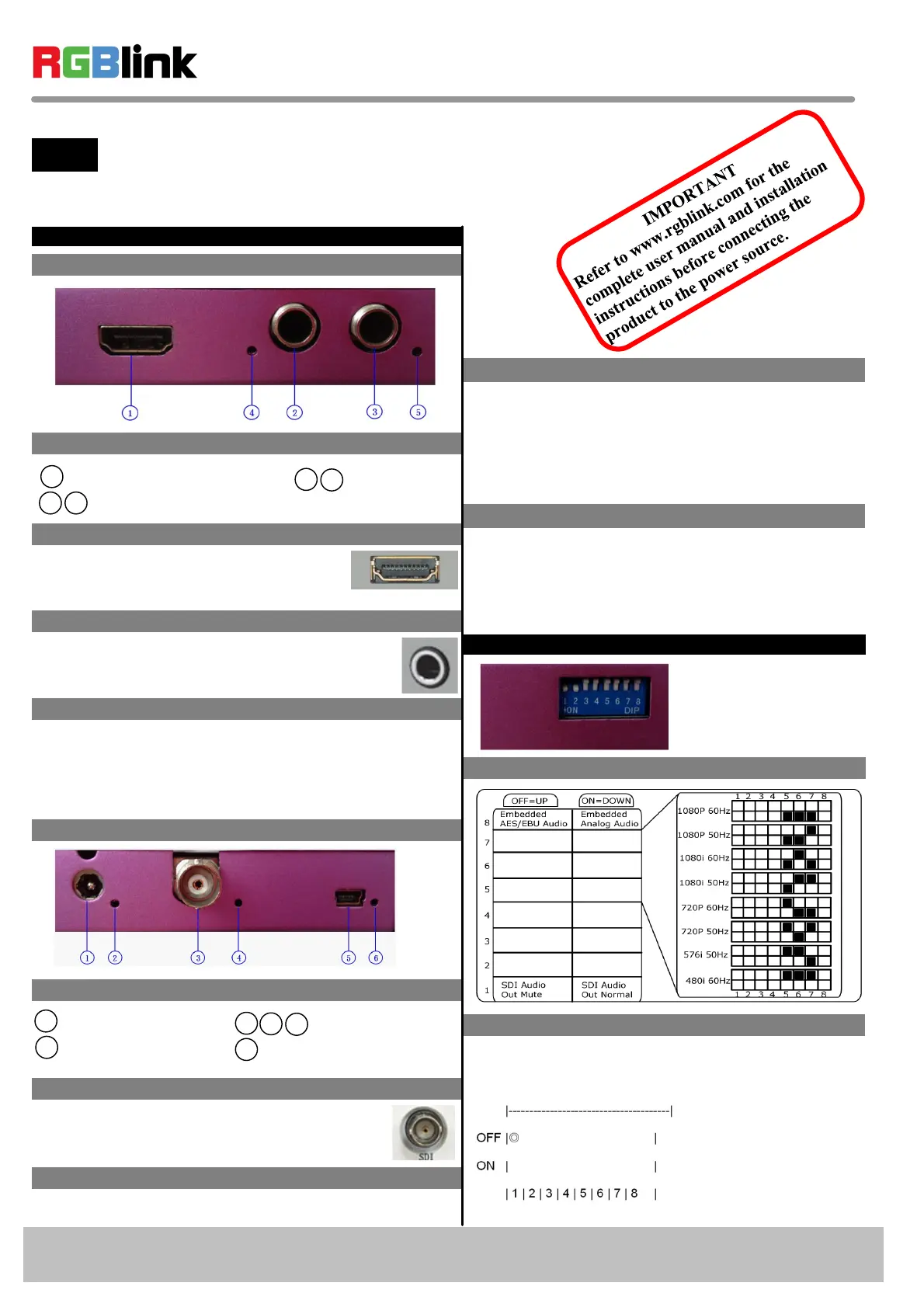

Interfaces
4
2
NOTE
3
5
1HDMI Input Port
HDMI Input
Input the video signal from HD player,
DVD, set top box, computer, disk, etc.
VIEWSIZE THE WORLD
MSP 210H Quick Start–
This quick start provides basic instructions for an experienced installer
to set up and operate MSP 210H.
For full installation, configuration, and operation details, please refer to
MSP 210H user manual, which is available at www.rgblink.com.
Interface Description
Input Interface
Audio Input
Input audio signals from DVD player, set top
box, hardware player, etc.
Indicator
When input analog audio signal, LED indicator4, 5 light,
when input digital AES/EBU signal, LED indicator4
lights.
Audio Input port
Indicator
Output and Other Interface
SDI Output
Can connect the next level device with SDI
interface.
USB Interface
Used to control the computer.
Interfaces
4
3SDI Output port
Indicator
6
1Power 2
5 USB Interface
Power indicator 2 lights when device has power
supply.
LED indicator 4 lights when output SDI signal.
LED indicator 6 lights when connect USB to
computer.
Indicator
Power
Connect one end of the power adapter with the
device, the other end into a socket. Plug in, power
indictor light means the device works normally.
The device uses the standard 12V/3A power supply.
Dial Switch
Functional Description Block Diagram
Instructions
The dial switch upwards is OFF, downwards is ON：
1. Dial switch1 OFF: mute.
MSP 210H Quick Start
Version 1.0
Page 1 of 3
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C：
Tel: 00865925771197 Fax:00865925771202
Email: sales@rgblink.com http://www.rgblink.cn
4. Dial switch 5, 6, 7 ON: SDI output resolution is
1080p 60Hz.
5. Dial switch 5, 6 ON, dial switch 7 OFF: SDI output
resolution is 1080p 50Hz.
6. Dial switch 5, 7 ON, dial switch 6 OFF: SDI output
resolution is 1080i 60Hz.
7. Dial switch 5 ON , dial switch 6, 7 OFF: SDI output
resolution is 1080i 50Hz.
8. Dial switch 5 OFF, dial switch 6, 7 ON: SDI output
resolution is 720p 60Hz.
9. Dial switch 5, 7 OFF, dial switch 6 ON: SDI output
resolution is 720p 50Hz.
10. Dial switch 5, 6 OFF, dial switch 7 ON: SDI
output resolution is 576i 50Hz.
11. Dial switch 5, 6 7 OFF: SDI output resolution is
480i 60Hz.
12. Dial switch 8 OFF: AES/EBU output, no analog
audio output.
13. Dial switch 8 ON: L-analog and R-analog audio
output, no AES/EBU output.
MSP 210H Quick Start
Version 1.0
Page 2 of 3
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C：
Tel: 00865925771197 Fax:00865925771202
Email: sales@rgblink.com http://www.rgblink.cn
2. Dial switch 1 ON: cancel mute.
3. Dial switch 2 must be set to ON.
Functional Description
Functional Description
1. HDMI input to SDI output.
2. Support input resolution of VESA:800*600@60Hz,
1024*768@60Hz, 1280*720@60Hz, 1280*768@60Hz,
1280*800@60Hz, 1280*1024@60Hz, 1360*768@60Hz,
1366*768@60Hz, 1440*900@60Hz, 1400*1050@60Hz,
1600*1200@60Hz, 1680*1050@60Hz,
1920*1080@60Hz and SMPTE: 480i, 576i, 720P@50Hz,
720p@60Hz, 1080i@50Hz, 1080i@60Hz, 1080p@50Hz,
1080p@60Hz.
MSP 210H Quick Start
Version 1.0
Page 3 of 3
Address S603-604 Weiye Building Torch Hi-Tech Industrial Development Zone Xiamen,Fujian Province, P.R.C：
Tel: 00865925771197 Fax:00865925771202
Email: sales@rgblink.com http://www.rgblink.cn
Functional Description Block Diagram
3. Support output resolution of SMPTE: 480i, 576i,
720p@50Hz, 720p@60Hz, 1080i@50Hz,
1080i@60Hz, 1080p@50Hz, 1080p@60Hz.
4. Support SCALE, left and right analog sound channel
input, digital AES/EBU input, CVBS embedded
audio input and mute function.
5. The LED indicator beside SDI interface lights when
output SDI signal.
When input analog audio signal, the LED indicators
beside L-ANALOG and R-ANALOG light.
When input digital AES/EBU signal, the LED
indicator beside L-ANALOG or AES/EBU lights.
