Instruction Manual Book

A6M ZERO

Item code: BH171.

Made in Vietnam.

OPTION ELECTRIC RETRACT GEAR (NOT INCLUDING).

ONLY INCLUDING OLEO STRUTS.

ALL BALSA - PLY WOOD CONSTRUCTION.

COVERED IN A HEAT-SHRINK FILM WITH PRINTED.

SPECIFICATION:

- Wingspan: 1,720 mm (67.72 in).

- Length: 1,375 mm (54.13 in).

- Weight: 4.4 - 4.6 kg (9.68 - 10.12lbs).

- Wing area: 46.5 dm .

- Wing loading: 94.62 g/dm .

- Servo mount: 42mm x 21mm.

- Wing type: Naca Airfoil.

- Spinner: 70mm.

- Gear type: Electric retract gear,

size: (92.2 x 51 x 30.6)mm .(not included)

Oleo struts (included).

Parts listing required (not included):

- Radio: 06 channels.

- Servo: 07 servos.

- Engine: 75 - 95 2 strokes; 15 cc gas.

- Motor: Brushless outrunner 1200-2200W, 650KV.

- Propeller: Suit with your engine.

Recommended Motor and Battery set up (not included):

- Motor: RIMFIRE.60.

- Lipo cell: 6 cells 4,000-5,000mAh.

- Receiver battery: 6V/ 800-1200 mAh.

- ESC: 80A.

95% ALMOST READY TO FLY

Glow and EP

4Installing the Engine . . . . . . . . . . . . . . . . . . 18

4Installing the throttle . . . . . . . . . . . . . . . . . . 21

4Mounting the cowl. . . . . . . . . . . . . . . . . . . . . 22

4Installing horizontal stabilizer . . . . . . . . . . . . 24

4Installation the tail gear. . . . . . . . . . . . . . . . . 27

4Installing the rudder . . . . . . . . . . . . . . . . . . . 28

4Installing the switch, receiver and battery. . . 30

4Installing cockpit fuselage. . . . . . . . . . . . . . . 31

4Installing the wing to the fuselage . . . . . . . . 33

4Installing the spinner, propeller. . . . . . . . . . . 34

4Balancing . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

4Lateral balance . . . . . . . . . . . . . . . . . . . . . . . 36

4Control throws . . . . . . . . . . . . . . . . . . . . . . . 36

4Pre-flight check . . . . . . . . . . . . . . . . . . . . . . . 36

4For your radio installation basic connection for

airplane and adjustment of servos. . . . . . . . . . . 37

4Main gear dimensional detail.. . . . . . . . . . . . 38

4Symbols used throughout this instruction

manual, comprise: . . . . . . . . . . . . . . . . . . . . . . . . 2

4Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4Disclaimer. . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4Suggestion . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

4Safety precaution . . . . . . . . . . . . . . . . . . . . . . 3

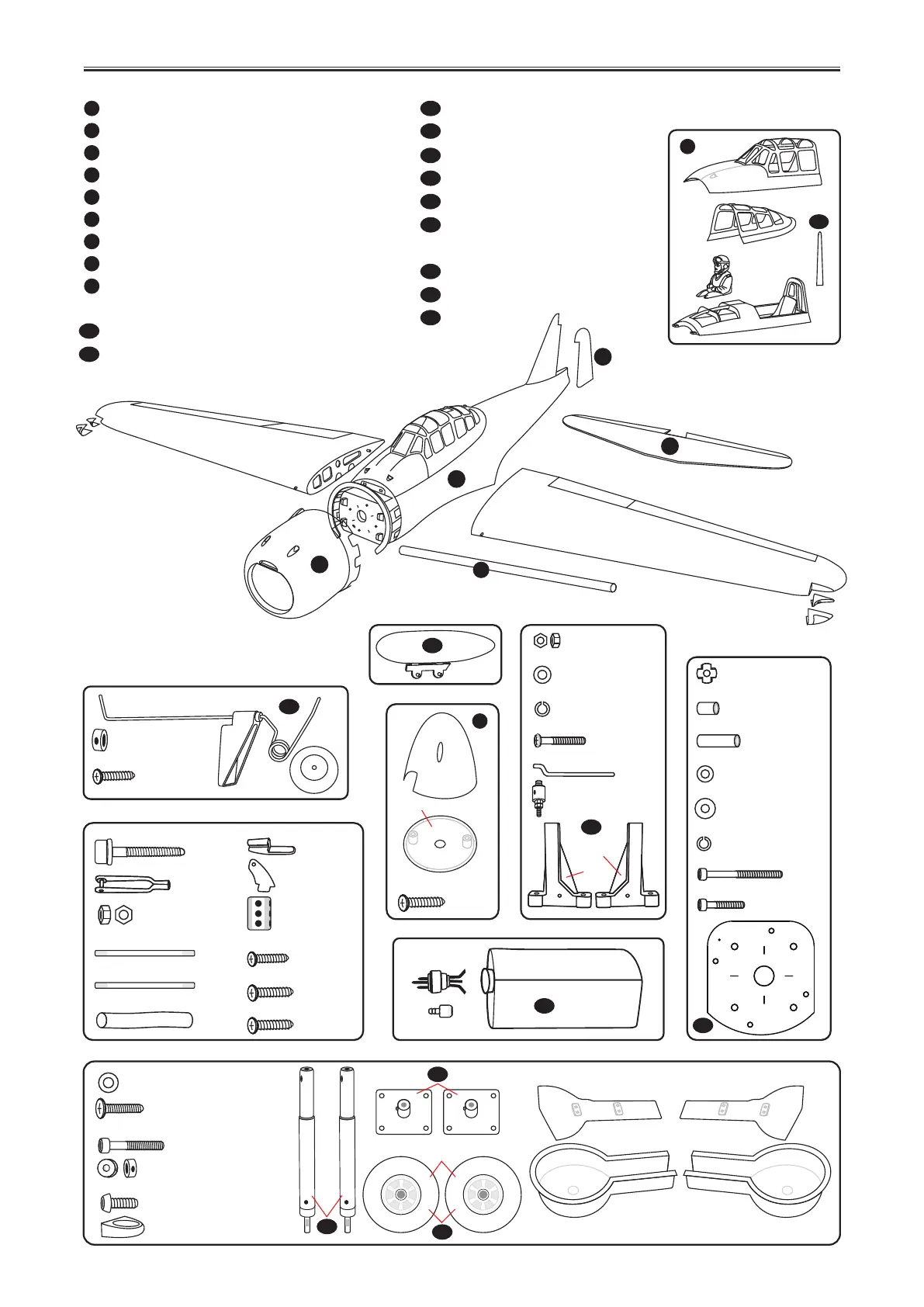

4Parts listing (not included). . . . . . . . . . . . . . . . 4

4Tools & supplies needed. . . . . . . . . . . . . . . . . 4

4ing plastic light. . . . . . . . . . . . . . . . . . . . . . . 6

4Installing the ailerons and flaps. . . . . . . . . . . . 6

4Installing the ailerons and flaps servos. . . . . . 7

4Installing the control horns and linkages . . . . 8

4Installing the wheel well . . . . . . . . . . . . . . . . 10

4Installing main gear. . . . . . . . . . . . . . . . . . . . 11

4Installing the fuselage servos . . . . . . . . . . . . 15

4Installing the engine mount. . . . . . . . . . . . . . 16

4Installing the electric motor (EP version) . . . 16

INSTRUCTION MANUAL A6M ZERO Item code: BH171

TABLE OF CONTENTS

Academy of Model Aeronautics: If you are not already a member of the AMA, please join! The AMA is the

governing body of model aviation and membership provides liability insurance coverage, protects modelers’

rights and interests and is required to fly at most R/C sites.

Academy of Model Aeronautics

5151 East Memorial Drive Muncie IN 47302-9252

Tele. (800) 435-9262

Fax. (765) 741-0057

Or via the Internet at: http://www.modelaircraft.org

SINCE 1939

SINCE 1939SINCE 1939

Cut off excess.

BApply epoxy glue.

Apply threadlocker

(screw cement).

C.A

Apply instant glue

(C.A glue, super glue).

Cut off shaded portion

carefully.

Assemble left and right

sides the same way.

Must be purchased

separately!

Ensure smooth, non-binding

movement when assembling.

Warning!

Set all scerws securely. If they come off during

flight you will lose control of your aircraft!

Pay close attention here. Drill holes using the stated.

(in this case 1.5mm ).

1.5mm

Take particular care here.

The number of times

the same way Assembly

(in this case twice).

Symbols used throughout this instruction manual, comprise:

To avoid scratching your new airplane, do not

unwrap the pieces until they are needed for assembly.

Cover your workbench with an old towel or brown paper,

both to protect the aircraft and to protect the table. Keep

a couple of jars or bowls handy to hold the small parts

after you open the bag.

SUGGESTION

Please trial fit all the parts. Make sure you have the

correct parts and that they fit and are aligned properly

before gluing! This will assure proper assembly. is

hand made from natural materials, every plane is unique

and minor adjustments may have to be made. However,

you should find the fit superior and assembly simple.

The painted and plastic parts used in this kit are fuel

proof. However, they are not tolerant of many harsh

chemicals including the following: paint thinner, C/A glue

accelerator, C/A glue debonder and acetone. Do not let

these chemicals come in contact with the colors on the

covering and the plastic parts.

Caution: This model is not a toy!

If you are a beginner to this type of powered model,

please ask an experienced model flyer for help and

support. If you attempt to operate the model without

This kit

NOTE:

Black Horse Model guarantees the component

parts in this kit to be free from defects in both material

and workmanship at the date of purchase by the

purchaser.

This warranty does not cover cosmetic damage or

damage due to acts of God, accident, misuse, abuse,

negligence, commercial use, or modification of or to any

part of the Product.

This warranty does not cover damage due to

improper installation, operation, maintenance, or

attempted repair by anyone other than Black Horse

Model.

Return only the component part that is defective in

materials or workmanship. Please pack the unit carefully

and insure it, as this warranty does not cover loss or

damage in transit.

WARRANTY

DISCLAIMER

Read this disclaimer carefully before using this

product. Please strictly follow the instruction manual to

assemble and use this.

In that Black Horse Model has no control over the

final assembly or material used for final assembly, black

Horse Model is not responsible for loss of use, or other

incidental or consequential damages.

Furthermore, Black Horse Model cannot be held

liable for personal injury or property damage caused by

the use or misuse of Black Horse Model products. By the

act of using the user-assembled products, the user

accepts all resulting liability.

knowing what you are doing you could easily injure

yourself or somebody else. Please keep your safety and

well-being in mind at all times.

Important: Before you start construction

Even if you have built a large number of RC

modelsplease read right through these instructions and

check all the kit components against the parts list. We

have taken great trouble to keep construction as simple

as possible, without making any compromises in the area

of safety.

Note regarding the film covering

Minor creases or bubbles may develop in the film

covering due to major fluctuations in weather conditions

(temperature, humidity etc.); in rare cases you may even

find a slight warp in a component. These minor faults are

in the nature of film-covered built-up wooden structures,

and can easily be corrected using a heat gun, as

commonly used for modelling.

Creases: Blow warm air over the area and rub down

with a soft cloth.

Wing wrap: Hold the panel twisted gently in the

opposite direction to the wrap, and apply warm air to

remove the creases from the covering.

Caution! do not heat the film more than is absolutely

necessary. If the air or the iron is too hot, the film may melt

and holes may be formed.

This model is highly pre-fabricated and can be built

in a very short time. However, the work which you have to

carry out is important and must be done carefully. The

model will only be strong and fly well if you complete your

tasks competently - so please work slowly and

accurately.

When self-tapping screws have to be screwed

into wood, apply a little white glue to prevent them

shaking loose: just squirt white glue into the hole

and fit the screw

§This model is not a toy and pilots must be over the

age of 14.

§Be sure that no other flyers are using your radio

frequency.

§Do not smoke near fuel.

§Store fuel in a cool, dry place, away from children

and pets.

§Wear safety glasses.

§The glow plug clip must be securely attached to the

glow plug.

§Do not flip the propeller with your fingers.

§Keep loose clothing and wires away from the

propeller.

§Do not start the engine if people are near. Do not

stand in line with the side of the propeller.

§Make engine adjustments from behind the propeller

only. Do not reach around the spinning propeller.

§Moisture causes damage to electronics. Avoid water

exposure to all equipment not specifically designed and

protected for this purpose.

SAFETY PRECAUTION:
