1312111098

Clear a work area.

Ensure the packaging is the right-way up.

Open the packaging carefully.

Lift out each item, identify it, and carefully place it to one side.

Top cover

Base unit with tone-arm

Turntable platter with belt

Rubber mat

Head-shell with cartridge

Counterweight for the tone-arm

Hinges x 2

Cables x 3, comprising

USB cable (type-A - type-B)

Stereo phono plugs - Stereo phono plugs

Stereo phono sockets - 3.5mm stereo plug

Mains power adaptor with EU and UK pin options

STEP 1 - Assembling your turntable STEP 2 - Setting the tracking force

What is in the Box?

Assembling the turntable (part 1)

Note: An incorrect tracking weight can have a signicant effect on the quality of the audio when playing records. If the

tracking weight is set too low or too high then excessive wear to the stylus or damage to the surface of the record may

be caused.

When removing the stylus cover, do not touch the stylus. Damage caused to the stylus by mishandling is not

covered by the guarantee. When balancing the tone-arm it is important that the stylus never contacts the

turntable platter, mat or base.

We recommend that all packaging is kept to allow

the turntable to be safely transported in the future.

Features

1. Counterweight

This is used to set the tracking force.

2. Anti-skating control

This is used to set the anti-skating force.

3. Cueing lever

Use this lever to lower and raise the tone-arm.

4. Tone-arm rest and securing clip

This holds the tone-arm in place when not in use.

5. Head-shell

This holds the cartridge and stylus.

6. 33 / 45 r.p.m. speed switch

Selects the speed for the record to be played.

7. Platter and rubber mat

Place the record here for playing.

8. Phono sockets (right and left)

Audio output to an amplier.

Red = Right channel; White = Left channel.

9. Pre-Amp On/Off Switch

Controls use of the built-in phono preamplier.

If connected to a Line or Aux input set this switch to On.

10. USB port

Connect to a computer for making recordings.

11. Auto Stop On/Off switch

Controls the use of the automatic switch off.

12. DC input socket

13. Power On/Off switch

1. Unwrap the base unit, taking care not to put pressure on the tone-

arm or the cueing lever.

2. Do not assemble the platter onto the base just yet. There is

less chance of damage to the cartridge and stylus if the tone-arm

is assembled and balanced rst.

3. Ensure that the tone-arm is locked on its rest with the securing clip.

4. Take the head-shell and identify the locating pin on the head-shell

connector. Do not remove the stylus cover at this time.

5. Align the locating pin on the head-shell connector with the slot in

the socket at the end of the tone-arm.

6. Gently push the head-shell into the tone-arm, at the same time

rotate the locking ring at the end of the tone-arm to pull the two

parts together. Note that the locking ring rotates anti-clockwise when

viewed from the front.

7. Tighten the locking ring gently by hand. Do not apply force or use

any tools.

8. Slide the counterweight on to the tone-arm, rotating it clockwise when

viewed from the rear until it engages and some slight resistance is

felt.

Note that the scale on the counterweight rotates freely. The

counterweight itself must be rotated in order to engage correctly

with the tone-arm.

Tone-arm

securing clip

Counterweight

Tone-arm

Head-shell Locating pin Tone-arm

Locking ring

Stylus cover

Stylus

1. Set the anti-skating control to zero.

2. Raise the cueing lever.

3. Unclip the tone-arm from its securing clip so that it

can move freely.

4. Take the head-shell and observe that it is currently

unbalanced. At this point the head-shell should drift

upwards.

5. Rotate the counterweight so that it moves further

onto the tone-arm.

6. Keep checking the balance by lowering the cueing

lever to see whether the tone-arm falls, rises or

remains level. Take care when lowering the tone-

arm that the stylus does not come into contact with

the turntable base.

You should ignore the scale on the front of the

counterweight at this time.

7. Adjust the counterweight further by rotating the

counterweight so that it moves in or out until the

tone-arm is balanced and remains level when the

cueing lever is lowered.

8. Carefully remove the stylus cover and adjust the

counterweight again until the tone-arm is balanced.

Counter-

weight

Balance the tone-arm Cueing lever (to raise

or lower the tone-arm)

Removing the stylus cover

Setting the anti-skating control to zero

9. When you have balanced the tone-arm, place it so that it is again secured on its rest using the securing clip.

10. Carefully replace the stylus cover.

11. Keeping the counterweight in place, rotate the scale on the front of the counterweight so that it reads zero.

12. We recommend that a tracking force of 3.0 grams is used for the supplied cartridge. The tracking force should not exceed

4.0 grams.

The counterweight adjusts the tracking force by 3.0 grams for one complete revolution. Therefore the scale on the

counterweight will read zero when the tone-arm is balanced and also when the tracking force is set to 3.0 grams.

13. Rotate the counterweight and scale together (clockwise, viewed from the rear) so that the counterweight moves further

towards the tone-arm pivot and so that the scale then reads the desired tracking force.

Please see the photos to the right showing the counterweight setting when rst balanced and then after setting the

tracking force. Note that the counterweight is closer to the tone-arm pivot after setting the tracking force.

14. Adjust the anti-skating control next to the tone-arm pivot so that it also reads 3.0 grams. Note that this adjustment should

normally be set to match the chosen tracking force. Anti-skating control set to 3.0 grams

Scale set to zero after balancing the tone-arm

Scale reads zero after setting to 3.0 grams

1. Unpack the platter and identify the drive belt.

2. Place the platter on the spindle. Use one of the holes in the platter to

access the drive belt and place it over the pulley of the drive motor.

3. Slowly rotate the platter by hand to ensure that it moves freely and

that the belt is not twisted.

4. Place the rubber mat on the platter.

5. Fit the two hinges onto the top cover. Note that the hinges are sprung

and will tend to spring away from the cover.

6. Locate the other end of the hinges in the two sockets at the rear of

the turntable base.

7. Lower the cover into place over the platter and tone-arm.

Hinges

Sockets

Cover

Drive

belt

Underside of

the platter

Drive belt

Platter

Access hole

in the platter

Hinges

Cover

Motor pulley

Step 3 - Assembling the turntable (part 2)

This product is guaranteed for twenty four months from the date of

purchase by the original owner against failure due to faulty workmanship

or component breakdown, subject to the procedure stated below.

Should any component or part fail during this guarantee period it will

be repaired or replaced free of charge.

The guarantee does not cover: 1. Damage resulting from incorrect use.

2. Consequential damage. 3. Product with removed or defaced serial

numbers.

N.B. The stylus will not be replaced under this guarantee if it is

damaged or broken.

Procedure: Any claim under this guarantee should be made through

the dealer from whom the product was purchased. It is likely that your

Roberts dealer will be able to attend to any defect quickly and efciently,

but should it be necessary the dealer will return the product to the

company’s service department for attention. In the event that it is not

possible to return the product to the Roberts dealer from whom it was

purchased, please contact Roberts Radio using the contact details on the

www.robertsradio.com website.

For product repairs falling outside the guarantee period, please refer

to the “customer care” tab on the www.robertsradio.com website.

These statements do not affect the statutory rights of a consumer.

Designed & Engineered in the UK

Made in China

Turntable with USB connection and

built-in preamplier

Please read this manual before use

ROBERTS RADIO LIMITED

Roberts Radio Ltd, Stoney Lane, Whiston, Prescot, L35 2XW, UK

Glen Dimplex Europe Ltd, Airport Road, Cloghran, Co. Dublin, K67 VE08, Ireland

www.robertsradio.com

Issue 1

In the event of a malfunction due to electrostatic discharge, mains

power supply transients or short interruptions, remove the power for

30 seconds and then re-apply power to resume normal operation.

If the product is used in an environment with any ESD Immunity /

Radiated Immunity / Conducted Immunity disturbance, the product

may malfunction. It will automatically recover to normal when the ESD

Immunity / Radiated Immunity / Conducted Immunity disturbance

is stopped.

Electro-magnetic compatibility advice

Guarantee

Mains adaptor

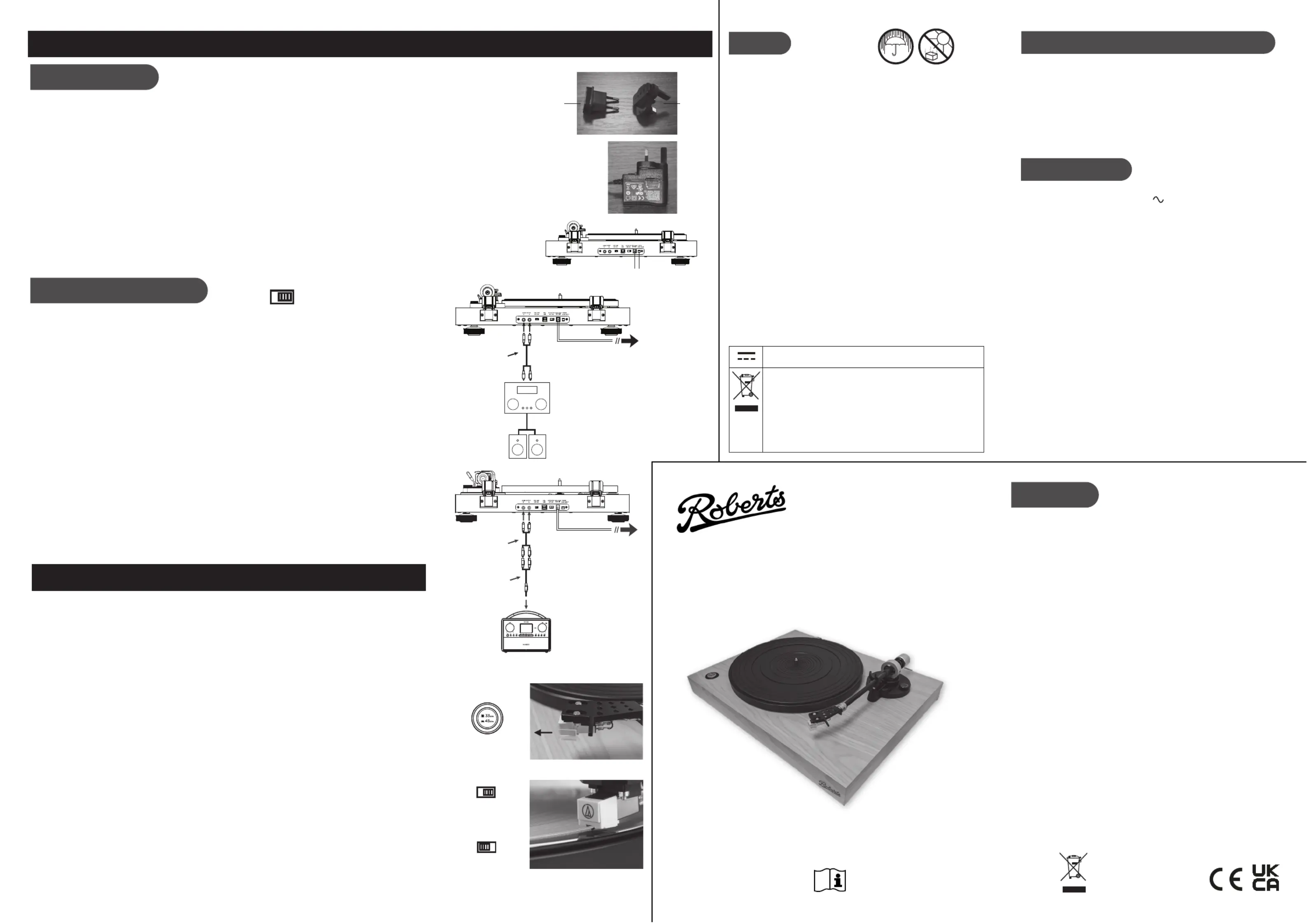

Connecting the turntable

Stylus

STEP 4 - Connecting the turntable

STEP 5 - Playing a record

IMPORTANT: The mains adaptor is used as the means of connecting

the product to the mains supply. The mains socket and any multi-way

mains block used for the product must remain accessible during

normal use. In order to disconnect the product from the mains, the

mains adaptor should be removed from the mains socket completely.

Use only the mains adaptor provided with the product, or a genuine

replacement provided by Roberts Radio. The use of alternative adaptors

will invalidate the guarantee.

• Your turntable and AC/DC adaptor should not be exposed to liquids

or steam and no objects lled with liquids, such as vases, shall be

placed on the turntable or adaptor.

• It is recommended to operate the product such that there is a

minimum distance (10cm recommended) to adjacent objects in

order to ensure good ventilation.

• The ventilation of the product should not be restricted by covering

it with items such as newspapers, tablecloths, curtains etc.

• No naked ame sources such as lighted candles should be placed

on the product.

• It is recommended to avoid using or storing the product at extremes

of temperature. Avoid leaving the unit in cars, on window sills, in

direct sunlight etc.

• There are no user serviceable parts inside this product.

The head-shell, stylus and cartridge are considered to be parts

that the user may replace if so desired.

• Do not attempt to disassemble any part of the product.

• The product must be used in a moderate climate.

The name plate is located underneath the turntable.

DC Voltage

Power input 12V / 0.5A

Recycling This product bears the selective sorting

symbol for Waste Electrical and Electronic Equipment

(WEEE). This means that this product must be handled

pursuant to European directive 2012/19/EU in order to

be recycled or dismantled to minimize its impact on the

environment. The user has the choice to give the product

to a competent recycling organization or to the retailer

when buying a new electrical or electronic equipment.

Safety

Specications

Mains Adaptor AC 100-240 volts, 50/60Hz

(Use only the supplied adaptor)

Operating temperature range +5°C to +40°C

Cartridge Moving magnet type

Audio Technica AT-3600L

Load impedance 47kΩ

Tracking force 3.0 - 4.0 grams

Replacement stylus Audio Technica ATN-3600L

The company reserves the right to amend the specication without notice

To clean the turntable use a soft lint-free cloth, ideally made from

natural bres in order to prevent a build-up of static electricity which

can attract dust. Do NOT use polish or any solvent based cleaners.

To remove dust from the mat on the platter, use a slightly damp

lint-free cloth, removing the mat rst if needed. To clean records,

only use a purpose designed record cleaning brush with the record

on the platter.

For support with using the recording function and for general

troubleshooting, please visit our website at www.robertsradio.com

1. Assemble either the UK or EU pins onto the mains power adaptor to suit the mains sockets installed at your location.

2. Note that the rounded end of the pins section needs to engage with the adaptor before the rectangular end.

3. It is important to check that the pins are fully secured to the adaptor before it is used.

4. Plug the DC lead from the mains adaptor into the DC input socket on the back of the turntable.

5. Plug the adaptor into a suitable mains socket.

The AC adaptor should be disconnected from the mains supply and from the turntable when not in use.

IMPORTANT: The mains adaptor is used as the means of connecting the product to the mains supply. The mains socket and any

multi-way mains block used for the product must remain accessible during normal use. In order to disconnect the product from

the mains, the mains adaptor should be removed from the mains socket completely. Use only the mains adaptor provided with

the product, or a genuine replacement provided by Roberts Radio. The use of alternative adaptors will invalidate the guarantee.

6. Switch on at the mains socket and then switch on using the switch next to the DC input socket.Power On/Off

7. Release the tone-arm securing clip. Raise the cueing lever fully to raise the tone-arm. Move the tone-arm towards the platter.

Observe that the platter rotates, and that its speed changes according to the speed switch setting.

8. Return the tone-arm to its rest and secure it. Observe that the platter stops rotating.

DC input socket Power On / Off switch

UK pins

EU pins

AC adaptor

assembled with

UK pins

The turntable cannot play music without being connected to a device providing amplication and one

or more loudspeakers. This device may be a hi- system, a radio or sound system, a soundbar, a

multi-room speaker, or just about any audio device with a spare auxiliary input.

Many Roberts products are compatible with the turntable. These include the Revival RD70 radio, the

Blutune 300 sound system, and the Stream 94i internet radio.

1. If you are connecting the turntable to a hi- amplier or receiver with a built-in phono preamplier

you should set the Pre-amp switch on the back of the turntable to Off. In all other cases you should

set the Pre-amp switch on the back of the turntable to On (as shown).

2. Using the supplied audio cables, connect two phono sockets on the back of the turntable to the

Auxiliary input, Line input or Phono input on the chosen amplifying device.

To connect to a hi- system you would typically use the cable with phono plugs at each end.

To connect to devices with an auxiliary input you would typically use the cable with phono plugs at

each end in combination with the short adaptor cable to convert the connection to a 3.5mm plug.

3. Switch on the amplifying device and select the input to which you have connected the turntable.

Select a moderate volume level.

4. At this point, nothing should be heard. If there is audible hum, check that all of the plugs and sockets

are securely connected.

PRE AMP

OFF ON

Plug the mains adaptor into

the mains socket and

switch on the wall socket

Hi-Fi Amplifier

Speaker

Cable with two phono

plugs at each end

Plug the mains adaptor into

the mains socket and

switch on the wall socket

Cable with two phono

plugs at each end

Radio with Auxiliary input socket

Cable with two phono

sockets to a 3.5mm plug

1. Ensure that the record is clean and dust free. Use a record cleaner if required.

2. Carefully place the record on the platter and set the speed switch to 33 or 45 r.p.m. as needed for the

record.

3. Carefully remove the stylus cover by pulling it forwards.

4. Unclip the tone-arm securing clip. Raise the cueing lever fully to raise the tone-arm.

5. Position the tone-arm so that the stylus is centred above the lead-in area of the record.

6. Lower the cueing lever. The tone-arm will drop slowly and the stylus should then settle into the groove

at the start of the record which will then start playing.

7. You may wish to gently lower the dust cover while the record is playing. Do not let it close suddenly to

avoid a sudden jolt to the tone-arm and stylus

8. Provided that you have everything connected correctly, you will be able to listen to the record through

your connected equipment.

9. At the end of the record, the turntable will switch off.

Note that the automatic switch off feature is dependent on the placement of the run-out groove at the

end of the record and may take a few seconds to operate. In the event that the turntable switches off

prematurely, you will need to set the Auto Stop switch on the rear panel to Off.

10. Raise the cueing lever and return the tone-arm to its rest. The platter may rotate briey during this step.

11. Lock the tone-arm in place with the securing clip.

12. If not playing another record for a while, it is recommended to close the dust cover, to switch off the DC

power switch at the back of the turntable, and to switch off the mains supply to the turntable.

13. If you wish to stop playing a record before it has nished, use the cueing lever to raise the stylus from

the record before returning the tone-arm to its support.

Note: Always use the cueing lever to lower and raise the tone-arm and stylus in order to minimise

the risk of damage to either the stylus or the record’s surface.

When playing records it is important to ensure that the stylus never contacts the turntable platter, mat or

turntable base.

Damage caused to the stylus by mishandling is not covered by the guarantee..

Stylus positioned over the lead-in groove

just before playing

Removing the stylus cover

AUTO STOP

OFF ON

Speed Switch

AUTO STOP

OFF ON

Produktspecifikationer

Varumärke:	Roberts
Kategori:	Radio
Modell:	Stylus
Enhetsplacering:	Vrijstaand
Färg på produkten:	Wit
Dörrgångjärn:	Rechts
Bredd:	545 mm
Djup:	566 mm
Höjd:	1440 mm
Nettoskatt:	60 W
Ljudnivå:	40 dB
Årlig-energiförbrukning:	- kWu
Energieffektivitetsklass (gammal):	A+
Dörröppningsriktning utbytbar:	Ja
Kylskåpets nettokapacitet:	242 l
Kylskåp med bruttokapacitet:	- l
Antal hyllor i kylskåp:	5
Antal-grönsakslådor:	1
Hyllmaterial:	Gehard glas
Energianvändning per dag:	0.35 kWh/24u
Kylmedium:	R600a
Antal kompressorer:	1
Klimaatklasse:	ST
Termostat:	Ja
AC-ingångsspänning:	220 V
AC-ingångsfrekvens:	50 Hz
