1 Set the control to zero, raise the and unclip the Anti-skating Cueing lever Tone-arm so that it
moves freely.
2 Hold the It is currently Head-shell .
unbalanced and will drift upwards.
3 Rotate the so that Counterweight
it moves further onto the Tone-arm.
4 Check the balance and lower the
Cueing lever to see if the tone-arm
falls, rises or remains level.
5 Adjust the so that it Counterweight
moves in or out until the Tone-arm
is balanced and remains level when
the cueing lever is lowered.
6 Carefully remove the and adjust the Stylus cover
Counterweight again until the tone-arm is balanced.
Rear view
Clear a work area.
Ensure the packaging is the right-way up.
Open the packaging carefully.
Lift out each item, identify it, and carefully place it to one side.
Dust cover
Base unit with tone-arm
Turntable platter
Rubber mat
Head-shell with cartridge
Counterweight for the tone-arm
Hinges x 2
Cables x 3, comprising
USB cable (type-A - type-B)
Stereo phono plugs - Stereo phono plugs
Stereo phono sockets - 3.5mm stereo plug
45 r.p.m. adaptor holder with screws x 2
45 r.p.m. adaptor
Mains power adaptor with EU and UK pin options
Features
1. Counterweight
2. Anti-skating control
Used to set the anti-skating adjustment.
3. Cueing lever
Use to lower and raise the tone-arm.
4. Tone-arm rest and securing clip
Holds the tone-arm in place when not in use.
5. Tone-arm
6. Head-shell
Holds the cartridge and stylus.
7. 33 / 45 r.p.m. speed switch
Selects the speed for the record to be played.
8. Platter and rubber mat
Place the record here for playing.
45 r.p.m. adaptor holder9.
10. Earthing connection
11. Phono sockets (right and left)
Audiooutputtoanamplier.
Red = Right channel; White = Left channel.
12. Pre-Amp On/Off Switch
Controlsuseofthebuilt-inphonopreamplier.
If connected to a Line or Aux input set this switch to On.
13. USB port (see website for details on recording)
Connect to a computer for making recordings.
14. Auto Stop On/Off switch
Controls the use of the automatic switch off.
15. DC input socket
16. Power On/Off switch
continued overleaf...

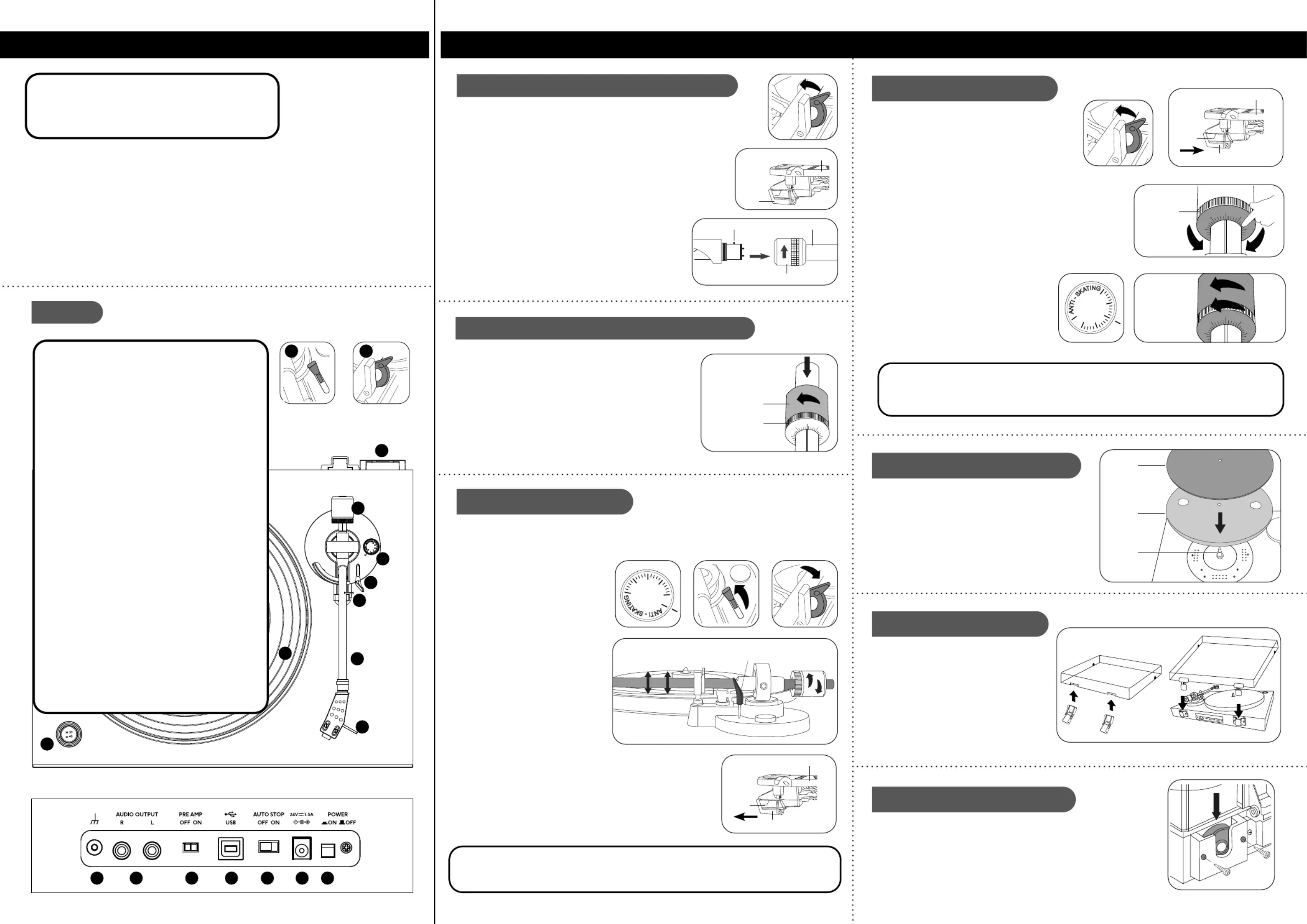

STEP 1 - Assembling your turntableWhat’s in the B ox?
B - Attach the counterweight to the tone-arm
1 Slide the on to the .Counterweight Tone-arm
2 Rotate the anti-clockwise (when Counterweight
viewed from the front) until it engages and some
slight resistance is felt.
Note: The scale rotates freely. The counterweight
itself must be rotated in order to engage correctly
with the tone-arm. E - Attach the platter and mat
F - Attach the dust cover
G - Attach the adaptor holder
1 Unpack the . Place the on the Platter Platter
Spindle.
2 Slowly rotate the platter by hand to ensure that it
moves freely.
3 Place the on to the . Rubber mat Platter
1 Fit the two onto the .Hinges Dust cover
2 Locate the other end of the in the Hinges
two Sockets at the rear of the turntable
base.
3 Lower the into place over the Cover
platter and tone-arm.
1 Attach the 45 r.p.m. onto the rear of the turntable Adaptor holder
using a cross head screwdriver. Do not overtighten screws.
2 Place the 45 r.p.m. adaptor into the holder for storage.
A - Connect the head-shell to the tone-arm
Unwrap the base unit and take care not to put pressure on the tone-arm or
the cueing lever. Do not assemble the platter on to the base just yet.
1 Lock the Tone-arm with the securing clip.
2 Take the and identify the locating pin.Head-shell Do not
remove the stylus cover at this time.
3 Align the on the with the slot Locating pin head-shell
in the socket at the end of the . Gently push.tone-arm
4 Rotate the (anti-clockwise when viewed Locking ring
from the front) to pull the two parts together. Only
tighten by hand.
D - Set the tracking weight
1 When the Tone-arm is balanced, place it on its
rest using the securing clip. Carefully replace the
Stylus cover.
2 Keeping the counterweight in place, rotate the
Scale counterweight on the front of the to
zero.
3 A tracking weight of 2.0 grams is recommended for the supplied
cartridge.The tracking weight should not exceed 2.5 grams.
4 Rotate the and together so that the Counterweight Scale
counterweight moves further towards the
tone-arm pivot until the scale reads 2.0
grams.
5 Adjust the control so that it Anti-skating
also reads 2.0 grams. This should normally
match the chosen tracking weight.
A
N
T
I
-
S
K
A
T
I
N
G
1
2
3
4
0
C - Balance the tone-arm
Balance the tone-arm Cueing lever (to raise or
lower the tone-arm)
Head-shell
Stylus cover
Stylus
A
N
T
I
-
S
K
A
T
I
N
G
1
2
3
4
0
Note:Anincorrecttrackingweightcanhaveasignicanteffectonthequalityoftheaudiowhenplaying
records. If the tracking weight is set too low or too high then excessive wear to the stylus or damage
to the surface of the record may be caused.
9
1
2
3
4
5
6
8
7
10 12 13 14 15 1611
When removing the stylus cover, do not touch the stylus. Damage caused to the stylus by mishandling
is not covered by the guarantee. When balancing the tone-arm it is important that the stylus never
contacts the turntable platter, mat or base.
Platter
Rubber
mat
Spindle
0
0.5
1
2
2.5
Counterweight
Scale
0
0.5
1
2
2.5
Rotate
Scale 0 to
2
2.5
0
1
1.5
Rotate Counter
weight & scale
to grams2
43
Head-shell
Stylus cover
Stylus
We recommend that all packaging is kept to allow the turntable to be safely transported in the future.
Head-shell
Stylus
cover
Locating pin Tone-arm
Rotate locking ring
Push
8 At the end of the record, the turntable will
switch off. The automatic switch off Note:
feature is dependent on the placement of the
run-out-groove at the end of the record and may
take a few seconds to operate. If the turntable
switches off prematurely, you will need to set
the to .Auto Stop switch Off
9 Raise the and return the tone-Cueing lever
armtoitsrest.Theplattermayrotatebriey
during this step.
10 Lock the in place with the securing tone-arm
clip.
11 If not playing another record for a while it is
recommended to close the dust cover, switch
off the turntable and switch off the mains supply
to the turntable.
12 If you wish to stop playing a record before it
hasnished,usethecueinglevertoraisethe
stylus from the record before returning the
tone-arm to its support.
This product is guaranteed for twenty four months from the date of
purchase by the original owner against failure due to faulty workmanship
or component breakdown, subject to the procedure stated below.
Should any component or part fail during this guarantee period it will
be repaired or replaced free of charge.
The guarantee does not cover: 1. Damage resulting from incorrect use.
2.Consequentialdamage.3.Productwithremovedordefacedserial
numbers.
N.B. The stylus will not be replaced under this guarantee if it is
damaged or broken.
Procedure: Any claim under this guarantee should be made through
the dealer from whom the product was purchased. It is likely that your
Robertsdealerwillbeabletoattendtoanydefectquicklyandefciently,
but should it be necessary the dealer will return the product to the
company’s service department for attention. In the event that it is not
possible to return the product to the Roberts dealer from whom it was
purchased, please contact Roberts Radio using the contact details on the
www.robertsradio.com website.
For product repairs falling outside the guarantee period, please refer
to the “customer care” tab on the www.robertsradio.com website.
These statements do not affect the statutory rights of a consumer.
Designed & Engineered in the UK
Made in China
Direct-drive turntable with USB connection and
built-inpreamplier
Please read this manual before use
ROBERTS RADIO LIMITED
Roberts Radio Ltd, Stoney Lane, Whiston, Prescot, L35 2XW, UK
Glen Dimplex Europe Ltd, Airport Road, Cloghran, Co. Dublin, K67 VE08, Ireland
www.robertsradio.com
© 2022 Roberts Radio Limited
Issue 1
Aug 2022
In the event of a malfunction due to electrostatic discharge, mains
power supply transients or short interruptions, remove the power for
30 seconds and then re-apply power to resume normal operation.
If the product is used in an environment with any ESD Immunity /
Radiated Immunity / Conducted Immunity disturbance, the product
may malfunction. It will automatically recover to normal when the ESD
Immunity / Radiated Immunity / Conducted Immunity disturbance
is stopped.
Electro-magnetic compatibility advice
DC Voltage
Power input 24V / 1.5A
Recycling This product bears the selective sorting
symbol for Waste Electrical and Electronic Equipment
(WEEE). This means that this product must be handled
pursuant to European directive 2012/19/EU in order to
be recycled or dismantled to minimize its impact on the
environment. The user has the choice to give the product
to a competent recycling organization or to the retailer
whenbuyinganewelectricalorelectronicequipment.
Product markings
A - Audio connection Playing a record
Guarantee
B - Mains adaptor
C - Switch on
1 Assemble either the UK or
EU pins on to the Mains
power adaptor to suit the
mains sockets installed at
your location.
2 The AC adaptor should
be disconnected from the
mains supply and from the
turntable when not in use.
1 Plug the from the mains adaptor DC lead
into the .DC input socket
2 Plug the into a suitable mains adaptor
socket.
3 Switch on the mains socket and then
switch the switch .Power On/Off On
DC input socket On / Off switch
Stylus Luxe
1 Ensure the record is clean and dust free. Use a record cleaner if
required.
2 Carefully place the record on the platter and set the Speed switch
to or r.p.m. as needed for the record.33 45
3 Remove the , unclip the Stylus cover Tone-arm Cueing and raise the
lever.
4 Position the Tone-arm so that the stylus is centred above the
lead-in area of the record. The record should now rotate.
5 Lower the . The tone-arm will drop slowly and the Cueing lever
stylus should then settle into the groove at the start of the record
which will then start playing.
6 You may wish to gently lower the dust cover while the record is
playing. Do not let it close suddenly to avoid a sudden jolt to the
tone-arm and stylus.
7 Youwillbeabletolistentotherecordthroughyourconnectedequipment.

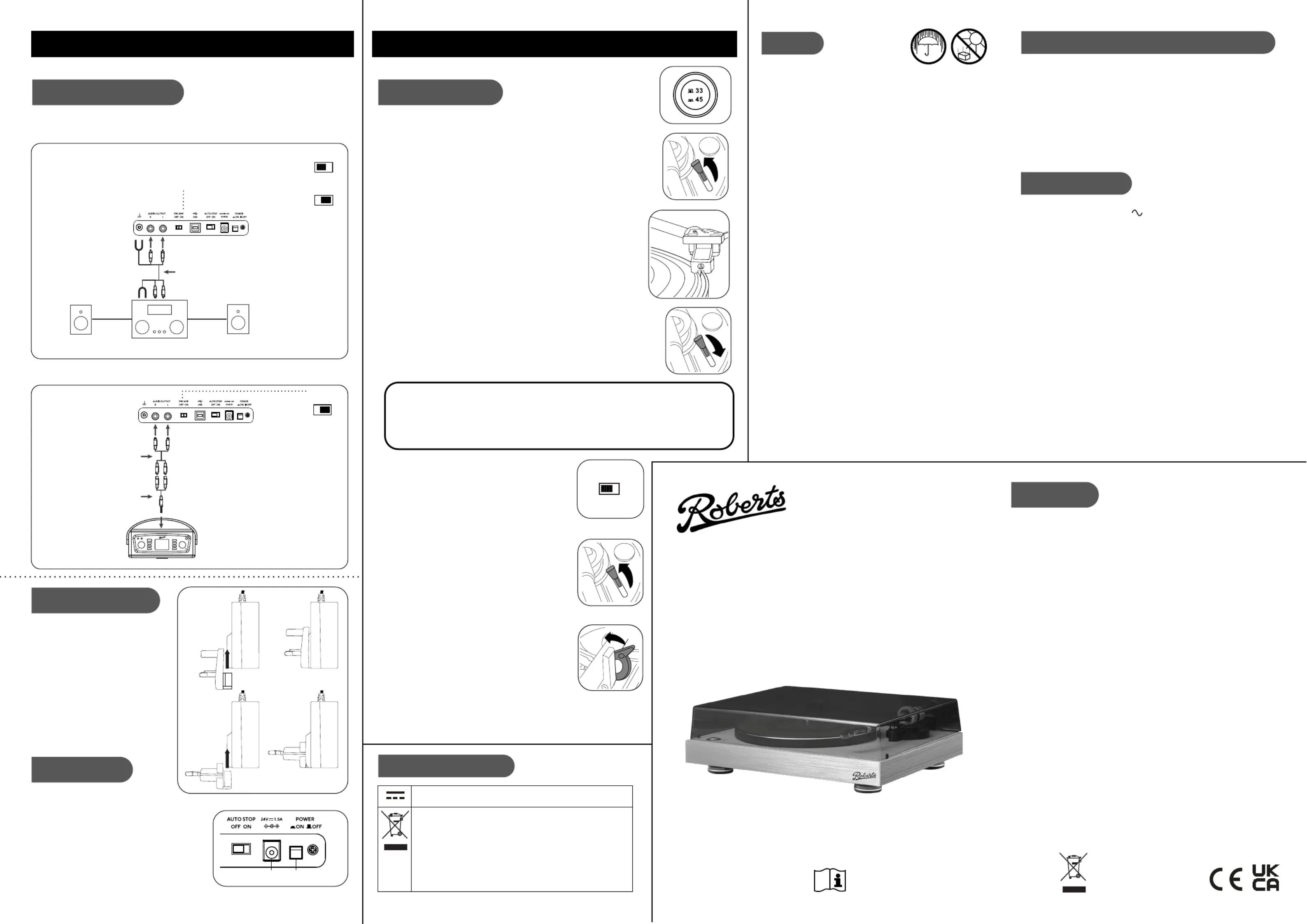

STEP 2 - Connecting STEP 3 - Playing a record
IMPORTANT: The mains adaptor is used as the means of
connecting the product to the mains supply. The mains socket
and any multi-way mains block used for the product must
remain accessible during normal use. In order to disconnect
the product from the mains, the mains adaptor should be
removed from the mains socket completely.
Use only the mains adaptor provided with the product, or a
genuine replacement provided by Roberts Radio. The use of
alternative adaptors will invalidate the guarantee.
• Your turntable and AC/DC adaptor should not be exposed
toliquidsorsteamandnoobjectslledwithliquids,such
as vases, shall be placed on the turntable or adaptor.
• It is recommended to operate the product such that there
is a minimum distance (10cm recommended) to adjacent
objects in order to ensure good ventilation.
• The ventilation of the product should not be restricted by
covering it with items such as newspapers, tablecloths,
curtains etc.
• Nonakedamesourcessuchaslightedcandlesshould
be placed on the product.
• It is recommended to avoid using or storing the product
at extremes of temperature. Avoid leaving the unit in cars,
on window sills, in direct sunlight etc.
• There are no user serviceable parts inside this product.
The head-shell, stylus and cartridge are considered to be
parts that the user may replace if so desired.
• Do not attempt to disassemble any part of the product.
• The product must be used in a moderate climate.
The name plate is located underneath the turntable.
Device with an
auxiliary input
Cable with two phono
plugs at each end
Radio with Auxiliary input socket
Cable with two phono
sockets to a 3.5mm plug
PRE AMP
OFF ON
Safety
Specications
Mains AC 100 240 volts, 50/60Hz (adaptor)
(Use only the supplied adaptor)
Operating temperature range +5°C to +40°C
Cartridge Moving magnet type
Audio Technica AT-95E
Loadimpedance47kΩ
Tracking weight 2.0 - 2.5 grams
Replacement stylus Audio Technica ATN-95E
Thecompanyreservestherighttoamendthespecicationwithoutnotice
AUTO STOP
OFF ON
Automatic stop
disabled
Note: Always use the cueing lever to lower and raise the tone-arm and stylus in order to
minimise the risk of damage to either the stylus or the record’s surface. When playing
records it is important to ensure that the stylus never contacts the turntable platter,
mat or turntable base. Damage caused to the stylus by mishandling is not covered by
the guarantee.
UK pins
EU pins
Note: In order to play music the turntable must be connected to a device providing
amplicationandoneormoreloudspeakers.
OR
PRE AMP
OFF ON
Hi-Fi AmplifierSpeaker
Cable with two phono plugs at each end.
Connect ground wire at both ends if there is
hum or buzzing from the speakers.
Speaker
Hi-Fi System
Set Pre Amp to OFFifAmplierhasphonoinput
Set Pre Amp to for all other casesON PRE AMP
OFF ON
To clean the turntable use a soft lint-free cloth, ideally made from
naturalbresinordertopreventabuild-upofstaticelectricitywhich
can attract dust. Do NOT use polish or any solvent based cleaners.
To remove dust from the mat on the platter, use a slightly damp
lint-freecloth,removingthematrst ifneeded.Toclean records,
only use a purpose designed record cleaning brush with the record
on the platter.
For support with using the recording function and for general
troubleshooting, please visit our website at www.robertsradio.com
Produktspecifikationer
| Varumärke: | Roberts |
| Kategori: | Radio |
| Modell: | Stylus Luxe |
Behöver du hjälp?
Om du behöver hjälp med Roberts Stylus Luxe ställ en fråga nedan och andra användare kommer att svara dig
Radio Roberts Manualer
24 Februari 2025
31 December 2025
21 December 2024
24 Oktober 2024
13 Oktober 2024
5 Oktober 2024
29 September 2024
23 September 2024
19 September 2024
10 September 2024
Radio Manualer
- Radio Sony
- Radio Xiaomi
- Radio Bosch
- Radio AEG
- Radio Philips
- Radio Panasonic
- Radio Daewoo
- Radio DeWalt
- Radio Garmin
- Radio Grundig
- Radio JVC
- Radio JBL
- Radio Kenwood
- Radio Karcher
- Radio Motorola
- Radio Medion
- Radio Pioneer
- Radio Quigg
- Radio Topcom
- Radio Toshiba
- Radio Yamaha
- Radio Adler
- Radio Aiwa
- Radio Albrecht
- Radio Akai
- Radio Acoustic Energy
- Radio Aluratek
- Radio Argon
- Radio Icy Box
- Radio OneConcept
- Radio Lexibook
- Radio Ozito
- Radio Sharp
- Radio Telefunken
- Radio Silvercrest
- Radio Makita
- Radio Hitachi
- Radio Nedis
- Radio Thomson
- Radio Tristar
- Radio Lenco
- Radio Pyle
- Radio Vonroc
- Radio Audizio
- Radio Stanley
- Radio Manta
- Radio Tevion
- Radio GPO
- Radio Caliber
- Radio Timex
- Radio OK
- Radio Hyundai
- Radio Sonoro
- Radio Matsui
- Radio Hilti
- Radio Renkforce
- Radio ECG
- Radio Moulinex
- Radio Ryobi
- Radio Bush
- Radio RCA
- Radio Clatronic
- Radio Lowrance
- Radio Sencor
- Radio GPX
- Radio Festool
- Radio Blaupunkt
- Radio Metabo
- Radio Manhattan
- Radio Exibel
- Radio Logik
- Radio Milwaukee
- Radio Hikoki
- Radio Telestar
- Radio EMOS
- Radio Salora
- Radio Denver
- Radio Imperial
- Radio Schneider
- Radio Sanyo
- Radio Vitek
- Radio Einhell
- Radio Hama
- Radio Soundmaster
- Radio Brigmton
- Radio Denon
- Radio Sunstech
- Radio Sennheiser
- Radio Maginon
- Radio Midland
- Radio Emerson
- Radio GlobalTronics
- Radio Technisat
- Radio La Crosse Technology
- Radio GoGEN
- Radio Rockford Fosgate
- Radio Marquant
- Radio Technics
- Radio Nordmende
- Radio AudioAffairs
- Radio Krüger And Matz
- Radio Binatone
- Radio Steren
- Radio Kicker
- Radio Bose
- Radio Audiosonic
- Radio Clarion
- Radio Proline
- Radio Coby
- Radio Crosley
- Radio Envivo
- Radio Muse
- Radio Teufel
- Radio Mac Audio
- Radio Bigben Interactive
- Radio Craftsman
- Radio Kathrein
- Radio Olympia
- Radio Pure
- Radio Powerplus
- Radio Porter-Cable
- Radio Uniden
- Radio Audiovox
- Radio Ion
- Radio Cotech
- Radio Yaesu
- Radio Tesco
- Radio Artsound
- Radio Dual
- Radio Boss
- Radio Terris
- Radio Oricom
- Radio Camry
- Radio Cobra
- Radio MB Quart
- Radio NGS
- Radio Switel
- Radio Bigben
- Radio Auna
- Radio Sunwind
- Radio Laser
- Radio Alba
- Radio Clas Ohlson
- Radio Naxa
- Radio Lexon
- Radio Sven
- Radio Ricatech
- Radio Konig
- Radio Delta
- Radio Boston Acoustics
- Radio Icom
- Radio Mpman
- Radio Sweex
- Radio Trevi
- Radio Sogo
- Radio JL Audio
- Radio Zebra
- Radio Technaxx
- Radio Nikkei
- Radio PerfectPro
- Radio Peaq
- Radio Audac
- Radio Nevir
- Radio Freecom
- Radio Navman
- Radio Jensen
- Radio Omnitronic
- Radio Roadstar
- Radio Gira
- Radio Scott
- Radio Jung
- Radio Tronic
- Radio Sangean
- Radio Basetech
- Radio Dnt
- Radio Balance
- Radio MT Logic
- Radio Audio Pro
- Radio Kunft
- Radio HQ
- Radio Be Cool
- Radio Noveen
- Radio Irradio
- Radio Karcher Audio
- Radio Easy Home
- Radio CRUX
- Radio Fusion
- Radio PAC
- Radio Terratec
- Radio IHome
- Radio August
- Radio Infinity
- Radio AIC
- Radio Ruarkaudio
- Radio Tivoli Audio
- Radio Go Green
- Radio ILive
- Radio Wolfgang
- Radio Victrola
- Radio Revo
- Radio Linn
- Radio Numan
- Radio Elta
- Radio Iluv
- Radio Monitor Audio
- Radio TELEX
- Radio Multiplex
- Radio Tangent
- Radio Furrion
- Radio SPC
- Radio Stabo
- Radio Clint
- Radio Soundstream
- Radio Xoro
- Radio Zolid
- Radio Sagemcom
- Radio Block
- Radio Power Dynamics
- Radio Berker
- Radio Woxter
- Radio Xhdata
- Radio Dreamgear
- Radio View Quest
- Radio Monacor
- Radio Noxon
- Radio Orava
- Radio Geneva
- Radio Ferguson
- Radio Wet Sounds
- Radio Eissound
- Radio DAP Audio
- Radio Dcybel
- Radio Oregon Scientific
- Radio Tecsun
- Radio Reflexion
- Radio JGC
- Radio Duronic
- Radio Scansonic
- Radio TFA Dostmann
- Radio Audisse
- Radio Tivoli
- Radio ETON
- Radio Kruger Matz
- Radio Vimar
- Radio Lenoxx
- Radio H-Tronic
- Radio Equity
- Radio Intertechno
- Radio Schwaiger
- Radio EKO
- Radio Pinell
- Radio Videologic
- Radio Mtx Audio
- Radio Aquatic AV
- Radio Roswell
- Radio Intek
- Radio Digitalbox
- Radio Whistler
- Radio Xact
- Radio Ruark Audio
- Radio Magnavox
- Radio Digitech
- Radio GME
- Radio NUVO
- Radio Graphite
- Radio Narex
- Radio Tiny Audio
- Radio Sirius
- Radio R-MUSIC
- Radio Klein Tools
- Radio E-bench
- Radio Konig Electronic
- Radio Peha
- Radio SiriusXM
- Radio Sanwa
- Radio SW-Stahl
- Radio Sailor
- Radio SSV Works
- Radio Microlab
- Radio QFX
- Radio Voxx
- Radio SACK It
- Radio BasicXL
- Radio Roth
- Radio Majestic
- Radio Ices Electronics
- Radio AmpliVox
- Radio Memphis Audio
- Radio AMX
- Radio Elbe
- Radio GBS Elettronica
- Radio Sang
- Radio Gewiss
- Radio Lutron
- Radio Axxess
- Radio Majority
- Radio Retekess
- Radio Wintal
- Radio Acoustic Solutions
- Radio Atlantis Land
- Radio Ranger
- Radio BLUEPALM
- Radio MAAS
- Radio Weather X
- Radio Data-Tronix
- Radio Aconatic
- Radio Mebby
- Radio Yamazen
- Radio Blonder Tongue
- Radio MOOOV
Nyaste Radio Manualer
14 Mars 2025
11 Mars 2025
5 Mars 2025
5 Mars 2025
5 Mars 2025
25 Februari 2025
25 Februari 2025
25 Februari 2025
25 Februari 2025
25 Februari 2025
