Robot Coupe MP 350 Turbo V.V. Bruksanvisning

Robot Coupe Blandare MP 350 Turbo V.V.

Läs nedan 📖 manual på svenska för Robot Coupe MP 350 Turbo V.V. (62 sidor) i kategorin Blandare. Denna guide var användbar för 5 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare

Ladda ner PDF

Sida 1/62

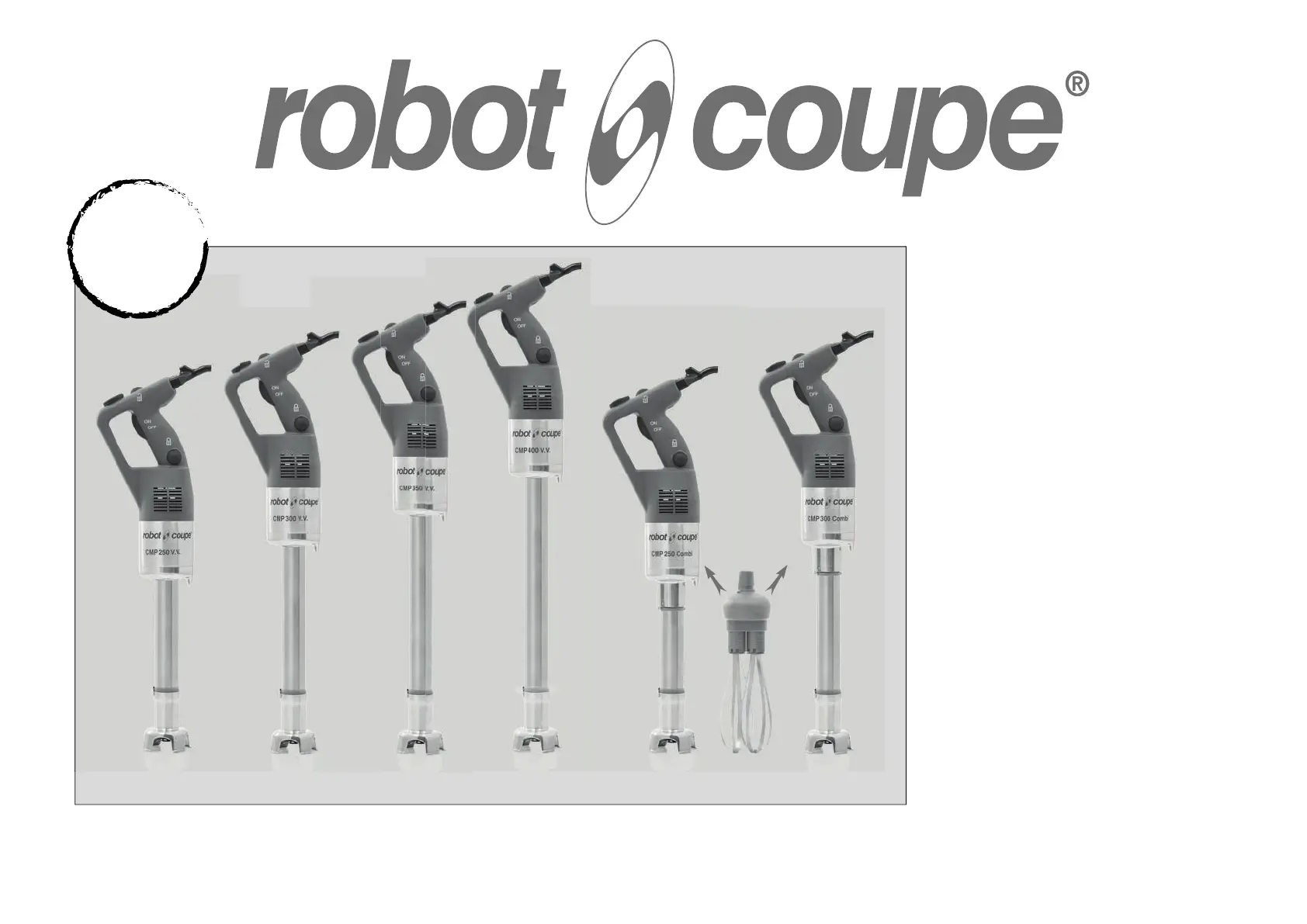

• MP 350 Turbo

• MP 350 Turbo V.V.

• MP 450 Turbo

• MP 450 Turbo V.V.

• MP 550 Turbo

• MP 600 Turbo

• MP 800 Turbo

• MP 350 Turbo Combi

• MP 450 Turbo Combi

• MP 450 Turbo FW

• MP 450 Turbo FW XL

Robot-Coupe® USA Inc.

P.O. Box 16625, Jackson, MS 39236-6625 - 264 South Perkins St., Ridgeland, MS 39157

Phone : 1-800-824-1646 - e-mail: info@robotcoupeusa.com - website: www.robotcoupeusa.com

UNPACKING

• Carefully remove the equipment from the packaging

and take out all the boxes or packets containing attach-

ments or specific items.

• Warning- Some parts are very sharp e.g.blade.Wear

cutting gloves when handling the blade.

STORAGE

• You are advised to install the wall bracket provided

with the machine and to store your Power Mixer on it.

Hang the mixer with the motor unit UP.

POWER SUPPLY

a. Connect the mixer to 110-120 Volt 60 Hz Power supply.

b. Connect the mixer only to Ground Fault Interrupt (GFI)

Safety type outlet.

c. Do not connect the mixer with extension type power cord.

d. GFI type outlets protect the machine from expensive

damage and protect the operator from serious injury

or death.

SPECIFICATIONS

• MP 350 Turbo - 120V/60Hz / 5,5 Amp. “Series C”

• MP 450 Turbo - 120V/60Hz / 6 Amp. “Series C”0,

• MP 550 Turbo - 120V/60Hz / 7 Amp. “Series C”0,

• MP 600 Turbo - 120V/60Hz / 7,7 Amp. “Series C”

• MP 800 Turbo - 120V/60Hz / 8,3 Amp. “Series C

• MP 350 Turbo V.V. “Series C” • MP 350 Turbo Combi

“Series C” - 120V/60Hz / 5,5 Amp.

• MP 450 Turbo V.V. “Series C” • MP 450 Turbo Combi

“Series C”. • MP 450 Turbo FW “Series C” • MP 450

Turbo FW XL “Series C” - 120V/60Hz / 6 Amp.

DIMENSIONS (In Inches)

Blade Attachment Capacities

• Thanks to a very powerful motor, the MP 350 Turbo

can process up to 50 quarts, the MP 450 Turbo up to 100

quarts, the MP 550 Turbo up to 200 quarts, the MP 600

Turbo up to 300 quarts and the MP 800 Turbo up to 400

quarts. The quality of the finished product is outstanding.

Whisk Attachment Capacities

• Using the whisk attachment all three models process

from 2 to 50 egg whites and 30 kg of mashed potatoes

or 60 litre of industrial puree.

• Each power mixer is supplied with a wall support for

easy storage.

SAFETY FEATURES

• Safety on Control Switches :

This safety mechanism prevents any unintentional star-

ting of the power mixer. Two buttons must be pressed to

start the power mixer. See section ON OPERATING THE

POWER MIXER (page 6).

• Safeties on motor thermal protection

If the machine is overused, the thermal protection will

stop the unit. In this case, wait for the unit to cool down

(a period of up to 30 minutes) before restarting and

proceed to the steps of THE OPERATING SECTION

(page 6).

• No volt release safety (Supply failure) :

if there is a power failure or the machine is unplugged,

the power mixer will not restart by itself. See section ON

OPERATING THE POWER MIXER (page 6).

• Safeties on motor overload protection :

If there is an obstruction in the container (a spoon or

ustensil) or the machine is overused and becomes hot,

the unit will stop. This stop indicates that the preparation

is too thick or is not adapted for a power mixer. To

restart the machine, see section ON OPERATING THE

POWER MIXER (page 6).

1 2 3

MP 350

Turbo

A = 05

B = 28 35

/64

C = 03 15

/16

D = 14 11

/64

I = 6 015

/16

MP 350

Turbo V.V.

A = 05

B = 28 35

/64

C = 03 15

/16

D = 14 11

/64

I = 6 015

/16

MP 450

Turbo

A = 05

B = 32 31

/64

C = 03 15

/16

D = 18 07

/64

I = 6 015

/16

MP 450

Turbo V.V.

A = 05

B = 32 31

/64

C = 03 15

/16

D = 18 07

/64

I = 6 015

/16

MP 550

Turbo

A = 05

B = 36 27

/64

C = 04 21

/64

D = 21 03

/64

I = 6 015

/16

MP 600

Turbo

A = 05

B = 38 03

/32

C = 04 03

/16

D = 22 53

/64

I = 6 015

/16

MP 800

Turbo

A = 05

B = 45 03

/16

C = 04 21

/64

D = 29

/64

G = 08

H = 07

04/9

I = 6 015

/16

MP 350

Turbo Combi

A = 5

B = 30 33

/64

C = 03 15

/16

D = 16 09

/64

E = 17 21

/64

F = 04 47

/64

I = 6 015

/16

MP 450

Turbo Combi

A = 5

B = 34 29

/64

C = 03 15

/16

D = 20 05

/64

E = 17 21

/64

F = 04 47

/64

I = 6 015

/16

MP 450

Turbo FW

A = 5

B = 31 11

E = 17

/64

F = 04 47

/64

I = 6 015

/16

MP 450

Turbo FW XL

A = 05 29

/32

B = 46 11

C = 32 17

/64

D = 06 07

WARNING: In order to limit accidents such as electric shocks, personal injury or fire, and in order to limit material damage due to misuse of the appliance, please read

these instructions carefully and follow them strictly. Reading the operating instructions will help you get to know your appliance and enable you to use the equipment

correctly. The operation manual should be kept within easy access to all users for reference and should be read completely by all first time users of the machine.

IMPORTANT WARNING W A R N I N G

KEEP THESE INSTRUCTIONS IN A SAFE PLACE
