Installation & Operation

AMPLIFIERS

P300X1 P300X2 P400X1

P400X2 P400X4 P500X1BD

P500X2 P600X4 P1000X1BD

P1000X2 P1000X5

Dear Customer,

Congratulations on your purchase of the world’s ﬁnest brand of car audio

products. At Rockford Fosgate we are fanatics about musical reproduc-

tion at its best, and we are pleased you chose our product. Through

years of engineering expertise, hand craftsmanship and critical testing

procedures, we have created a wide range of products that reproduce

music with all the clarity and richness you deserve.

For maximum performance we recommend you have your new Rockford

Fosgate product installed by an Authorized Rockford Fosgate Dealer,

as we provide specialized training through Rockford Technical Training

Institute (RTTI). Please read your warranty and retain your receipt and

original carton for possible future use.

Great product and competent installations are only a piece of the puzzle

when it comes to your system. Make sure that your installer is using

100% authentic installation accessories from Rockford Fosgate in your

installation. Rockford Fosgate has everything from RCA cables and

speaker wire to power wire and battery connectors. Insist on it! After all,

your new system deserves nothing but the best.

To add the ﬁnishing touch to your new Rockford Fosgate image order

your Rockford accessories, which include everything from T-shirts to

jackets.

Visit our web site for the latest information on all Rockford products;

www.rockfordfosgate.com

or, in the U.S. call 1-800-669-9899 or FAX 1-800-398-3985. For all other

countries, call +001-480-967-3565 or FAX +001-480-966-3983.

Table of Content

If, after reading your manual, you still have questions regarding this prod-

uct, we recommend that you see your Rockford Fosgate dealer. If you need

further assistance, you can call us direct at . Be sure to 1-800-669-9899

have your serial number, model number and date of purchase available

when you call.

Safety

This symbol with “WARNING” is intended

to alert the user to the presence of important

instructions. Failure to heed the instructions

will result in severe injury or death.

This symbol with “CAUTION” is intended to

alert the user to the presence of important

instructions. Failure to heed the instructions

can result in injury or unit damage.

•฀To prevent injury and damage to the unit, please read and follow the

instructions in this manual. We want you to enjoy this system, not get

a headache.

•฀If you feel unsure about installing this system yourself, have it installed

by a qualiﬁed Rockford Fosgate technician.

•฀Before installation, disconnect the battery negative (-) terminal to

prevent damage to the unit, ﬁre and/or possible injury.

Introduction

Corporation in the United States and/or other countries. All other trademarks are the property of their respective owners. Speciﬁcations subject to change without notice.

PRACTICE SAFE SOUND

Continuous exposure to sound pressure levels over 100dB may cause

permanent hearing loss. High powered auto sound systems may

produce sound pressure levels well over 130dB. Use common sense

and practice safe sound.

2 Introduction

3 Speciﬁcations

4-5 Design Features

6-17 Installation

Installation Considerations

Mounting Locations

Battery and Charging

Wiring the System

18-19 Operation

Clip Indicator Setup

Adjusting Crossover Frequency

2/4 Channel Switch

Subwoofer Input Switch

Infrasonic Filter

Punch EQ

20 Troubleshooting

21 Limited Warranty Information

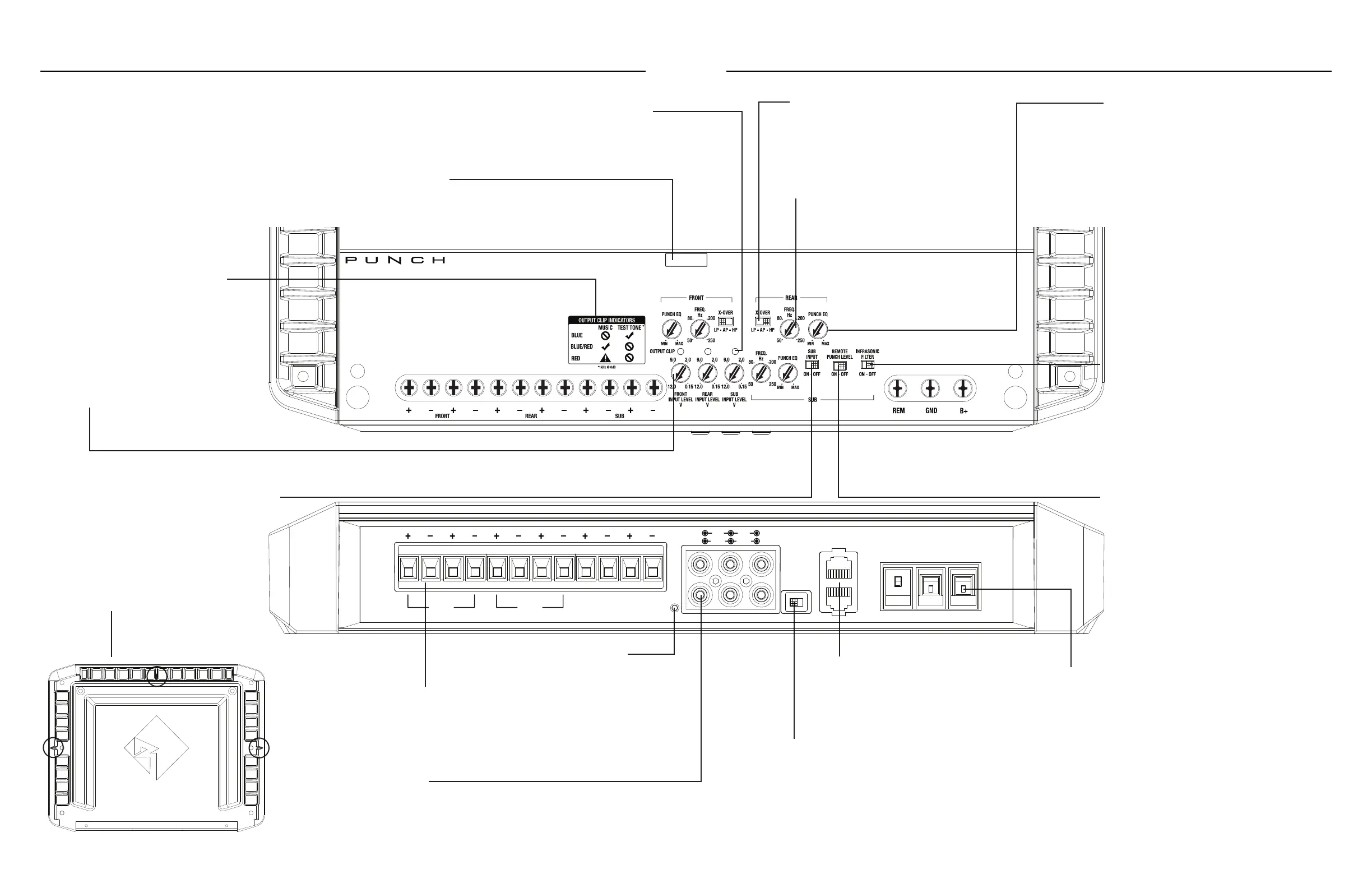

Design Features

Power/Protect LED

Power LED illuminates blue when the unit is turned on. Protect

LED illuminates yellow if a short circuit or to low of an impedance

is detected at the speaker connections. Thermal LED illuminates

red when ampliﬁer overheats. The ampliﬁer will automatically shut

down if this occurs.

Output Clip Indicator Chart

Reference chart for the output clip in-

dicator LED illumination color during

input level setup.

Speaker Terminals

The Speaker Terminals are nickel-plated

captive c-clamp wire connectors (+ and -)

will accommodate 8 AWG.

RCA Input/Pass-Thru

The RCA inputs are capable of accepting signal from either high-level(speaker) to low-

level(RCA). When utilizing high-level for input signal the auto turn-on feature is active.

The pass-thru RCA’s are passive, including full input signal range and auto turn-on

functionality when active.

Subwoofer Input

Setting this switch to the “On” position, utilizes the

“Sub” inputs. (P1000X5)

Centering Indicators

Indicators are located on the bottom side of the

ampliﬁer.

Output Clip Indicator

The output clip indicator works in conjunction with

the input level knob, illuminating to appropriate

color depending on the audio content used for the

setup.

Intput Clip Indicator

The input clip indicator works in con-

junction with the audio source volume

knob, illuminating red when audio

source reaches it’s clipping point.

Input Level Knob

The input level control is used to match

the output of the audio source.

INPUT CLIP

FRONT REAR

RIGHTLEFT

BRIDGED

RIGHTLEFT

BRIDGED

SUB

SPEAKERS
