Installation & Operation
RFX3-FWED
CAN-AM MAVERICK X3®
FRONT SUBWOOFER
ENCLOSURE (DRIVER)
R O C K F O R D F O S G A T E . C O M
600 South Rockford Drive • Tempe, Arizona 85281
United States
Direct: (480) 967-3565 • Toll Free: (800) 669-9899
Installation assistance available at:
www.rockfordfosgate.com/rech
2
Dear Customer,
Congratulations on your purchase of the world’s finest brand of
audio products. At Rockford Fosgate we are fanatics about musical
reproduction at its best, and we are pleased you chose our product.
Through years of engineering expertise, hand crasmanship and critical
testing procedures, we have created a wide range of products that
reproduce music with all the clarity and richness you deserve.
For maximum performance we recommend you have your new
Rockford Fosgate product installed by an Authorized Rockford Fosgate
Dealer, as we provide specialized training through Rockford Technical
Training Institute (RTTI). Please read your warranty and retain your
receipt and original carton for possible future use.
Great product and competent installations are only a piece of the puzzle
when it comes to your system. Make sure that your installer is using
100% authentic installation accessories from Rockford Fosgate in your
installation. Rockford Fosgate has everything from RCA cables and
speaker wire to power wire and battery connectors. Insist on it! Aer all,
your new system deserves nothing but the best.
To add the finishing touch to your new Rockford Fosgate image order
your Rockford accessories, which include everything from T-shirts to
hats.
Visit our web site for the latest information on all Rockford products;
www.rockfordfosgate.com
or, in the U.S. call 1-800-669-9899 or FAX 1-800-398-3985. For all other
countries, call +001-480-967-3565 or FAX +001-480-966-3983.
Table of Contents
If, aer reading your manual, you still have questions regarding this
product, we recommend that you see your Rockford Fosgate dealer.
If you need further assistance, you can call us direct at 1-800-669-
9899. Be sure to have your serial number, model number and date of
purchase available when you call.
Safety
This symbol with “WARNING” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
will result in severe injury or death.
This symbol with “CAUTION” is intended to
alert the user to the presence of important
instructions. Failure to heed the instructions
can result in injury or unit damage.
• To prevent injury and damage to the unit, please read and
follow the instructions in this manual. We want you to enjoy
this system, not get a headache.
• If you feel unsure about installing this system yourself, have
it installed by a qualified Rockford Fosgate technician.
• Before installation, disconnect the battery negative (-)
terminal to prevent damage to the unit, fire and/or possible
injury.
Contents
Installation Tools
The following is a list of suggested tools needed for installation:
Introduction
©2017 Rockford Corporation. All Rights Reserved. ROCKFORD FOSGATE and associated logos where applicable are registered
trademarks of Rockford Corporation in the United States and/or other countries. All other trademarks are the property of their respective
owners. Specifications subject to change without notice.
2Introduction
3Installation
4Warranty
• T-40 Torx Driver
• Wire Cutters
• Rachet
• Misc. Sockets
• Panel Tool
• (1) Front Subwoofer Enclosure
• (1) Wire Harness
• (1) Amplifier Bracket
• Mounting Hardware
• Plastic Wire Tie Wraps
PRACTICE SAFE SOUND
Continuous exposure to sound pressure levels over 100dB
may cause permanent hearing loss. High powered auto
sound systems may produce sound pressure levels well
over 130dB. Use common sense and practice safe sound.
3
Installation Considerations
This section focuses on some considerations for installing your Can-Am
Maverick X3 subwoofer kit. This subwoofer enclosure is designed to
work in conjunction with Rockford’s other X3 specific audio kits and
parts.
If you feel unsure about installing this system yourself, have it installed
by a qualified technician.
When drilling holes, make sure what is on the other side. Be sure that
any electrical, fuel lines or any other important components are free
and clear from the area.
Before installation, disconnect the battery
negative (-) terminal to prevent damage to
the unit, fire and/or possible injury.
Before beginning any installation, follow
these simple rules:
Be sure to carefully read and understand the
instructions before attempting to install this
wiring kit.
• Consult your UTV’s service manual for model specific information.
Models may dier from year to year depending on factory options
and aermarket accessories added.
• This subwoofer kit is specifically designed to work with Rockford
Fosgate’s RM series of subwoofers.
• With the addition of an amplifier or source unit, be sure that your
current charging system is in proper working order.
• Visit rockfordfosgate.com for more comprehensive product
information.
• Visit our YouTube channel for comprehensive installation videos
demonstrating complete installation guides and install tips.
Installation
Applicable Models:
Can-Am Maverick X3 (2 & 4 seat models)
This front subwoofer enclosure is designed to work with Rockford
Fosgate’s RFX3-K4 / RFX3-K8 amplifier wiring kits. The enclosure is
installed in both 2-seat and 4-seat models on the driver side of the
vehicle underneath the front seat.

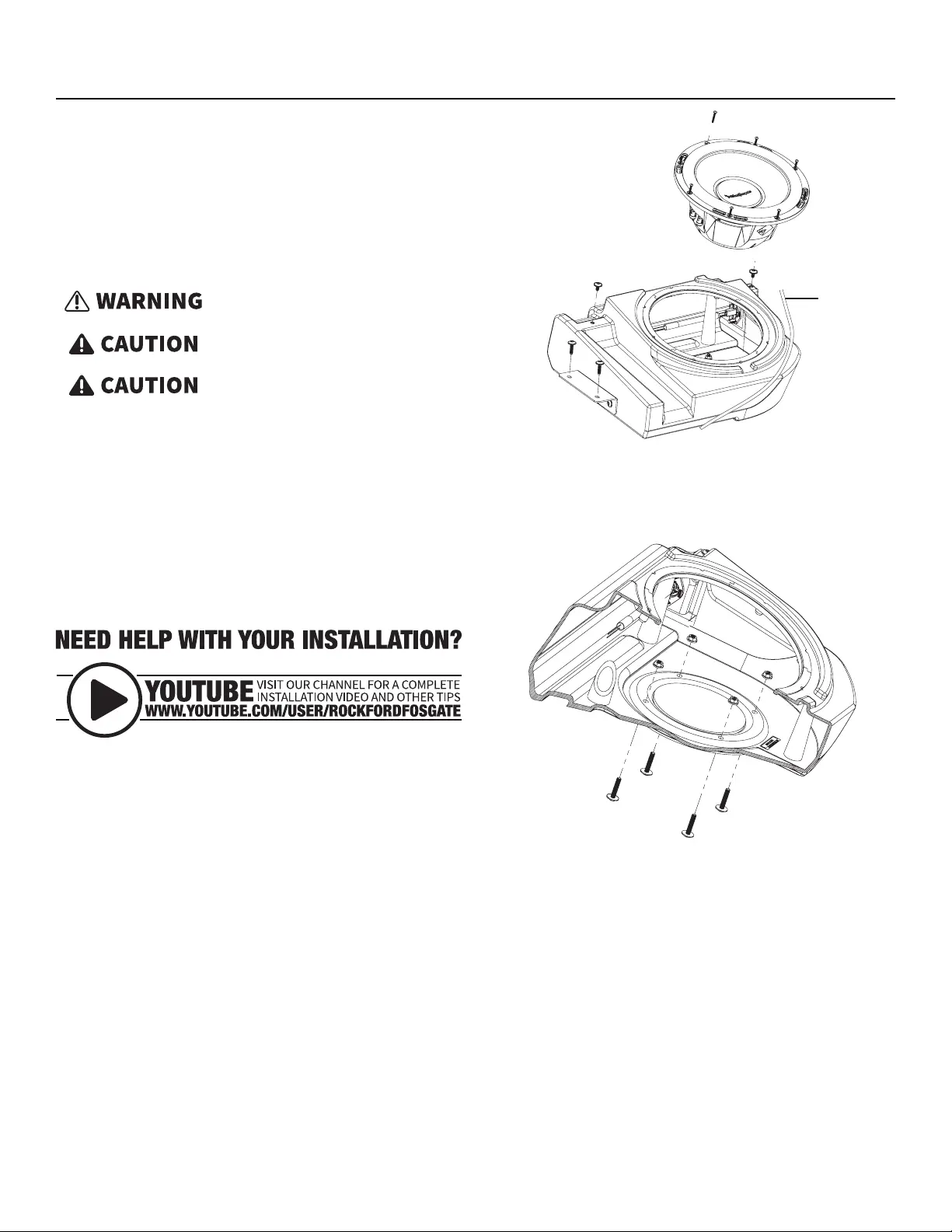

Step 1. Remove the driver side seat.
Step 2. Remove the panel below the shier to give you access to route
the subwoofer enclosure harness.
NOTE: Routing harness will be done aer enclosure is mounted.
Step 3. Remove the bracket that holds the brake line to the chassis.
Step 4. Place the subwoofer enclosure into the vehicle.
Step 5. Route the brake line above the enclosure and reattach the
brake line bracket to the vehicle.
Step 6. Secure the enclosure with supplied hardware.
Step 7. Drill (4) holes through the bottom skid plate. Secure with
supplied hardware.
Step 8. Load the subwoofer into the enclosure using the supplied
screws that came with the woofer. The subwoofer protective
grille will be installed.
NOTE: Be sure to maintain proper polarity and impedance rating for
the amplifier being used for this installation. When using a RM110D2B
subwoofer, be sure use the supplied Red wire to wire the subwoofer in
series to achieve a 4 ohm load.
Step 9. Connect the subwoofer harness to enclosure and route the
wire harness through the center console and up the dash.
NOTE: Be sure to use supplied plastic wire ties to secure harness.
Step 10. Connect to radio harness.
Step 11. Power up the system and verify all functions. Once done, the
vehicle can be reassembled in reverse order.
Brake Line
