Sida 1/2

Ultra-Fidelity Outdoor Speakers

Contact: SoundTube, 855.663.5600 / 913.663.5600 / sales@soundtube.com

Please read the following instructions carefully before

installing your SoundTube Rockustics Monument Series

speaker. If you have any questions regarding installation

that are not answered in the following directions, please

contact your local sound contractor, or the SoundTube

technical support team.

Basic Wiring

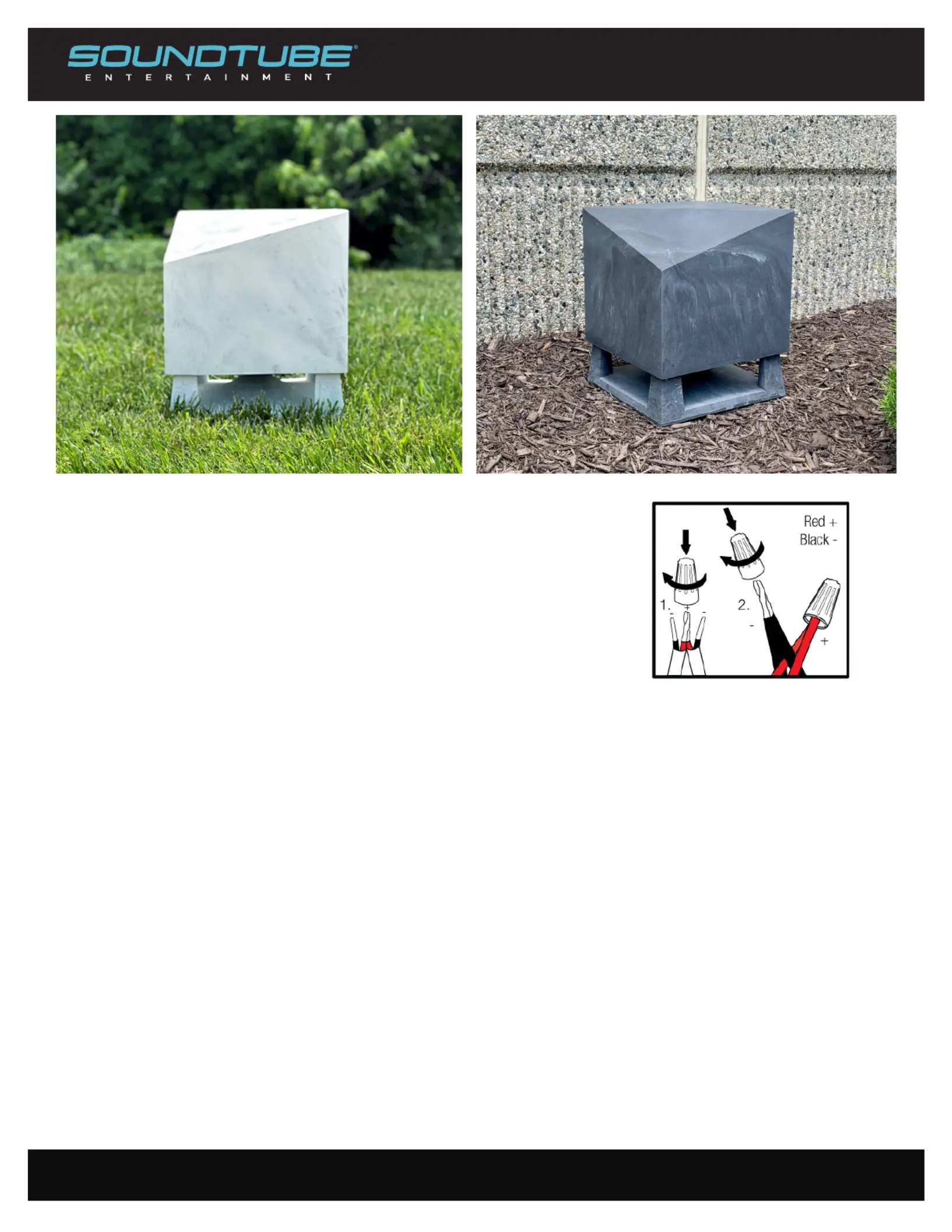

( ) Locate speaker wire on the underside of the Diagram A

rock. If necessary, strip the wire ends and trim the wire to

the appropriate length. Use the supplied silicone wire nut

to connect the positive (red) leads of the speaker and

input wires. Repeat this step with the negative (black) leads.

SoundTube recommends using 14ga or heavier Direct

Burial cable for the connection between the amplier and

speakers.

NOTE: The provided wire nuts are meant for permanent

installation use only. If you are temporarily wiring the

speakers, do not use these wire nuts. In the event you

have used wire nuts, and need to re-wire your system, do

not attempt to unscrew the nuts. Instead, clip the wires

below the nut, and follow the steps in the

Basic Wiring

section with a new pair of waterproof wire nuts (available

at most hardware stores).

Optimizing Speaker Placement for

Best Sound

All SoundTube speakers can generate a high SPL (sound

pressure level). Be ready to rock, but be considerate of

your neighbors! Maximum acoustic performance should

be an important factor in determining speaker placement.

Here is how to achieve it:

1) Establish where the most likely or average listening

position will be.

2) The speakers should be placed at or close to the

same distance from that point.

3) The actual distance between the listening position

and the location of the speakers is not critical. How

ever, keep in mind that as the distance between

listening area and speaker is increased, there will be

a noticeable decrease in perceived volume.

4) Be sure to conrm amp power matches the power

rating on the speaker. Over-driving the speaker can

lead to permanent damage that is not covered under

warranty.

Optimizing Aesthetics with

Speaker Placement

All SoundTube products are designed with a boost in

high frequency response to accommodate for placement

near plants and other landscaping features. Feel free to

position the product within or around your landscaping.

Rockustics Monument series products are designed to

stand out from their surroundings.

Diagram A

Rockustics Monument Series

INSTALL INSTRUCTIONS

Ultra-Fidelity Outdoor Speakers

Contact: SoundTube, 855.663.5600 / 913.663.5600 / sales@soundtube.com

Be sure to account for the wires which will run from the

rock to your stereo or audio source. Camouage wires by

running them an inch below ground level when possible.

Cautions and Maintenance

All SoundTube Rockustics Monument Series speakers are

sealed and fully weatherproof. However, DO NOT place

speakers where the grille will be in the path of a sprinkler

system.

Sprinklers typically have a high water pressure level that

can damage speaker cones if hit directly.

DO NOT place soil or wood chips over the bottom plate of

the speaker. If buildup does occur, simply rinse the plate

with a garden hose set to a low pressure level.

Accumulated soil may also promote undesired insect traf-

c into the speaker. Insects may eat through the speaker

cone. Chemical sprays may also cause damage to the

rubber of the speaker surround. This includes bug spray,

deck sealant, some fertilizers and oil based products.

Speakers MUST be covered when applying these treat-

ments or chemicals in your yard.

For environments that get snow and ice during the winter

months, be sure to check that the openings and woofer

cone are clear and there is no hard-packed snow or ice

built up in these areas before playing. If there is ice or

snow present on the cone, use a hair dryer set on a low

setting to melt it away. If the speakers are not going to

be used during the winter months, it is recommended

that they either be disconnected and brought indoors,

or covered with a plastic bag to help protect the speaker

components.

Wiring for 70V/100V Applications

For speakers with transformers, use to nd the Diagram C

proper wire selection for your desired tap setting. Once the

desired tap setting is conrmed, trim the unused wires to

minimize corrosion. For harsh and wet environments, it is

recommended to apply a bead of silicone to the end of the

unused wires for added protection.

If daisy-chaining, follow wire preparations as outlined in

the section. Review for a typical

Basic Wiring Diagram E

daisy-chain wiring system for 70V and 100V applications.

Be sure to connect the wires going to the next speaker in

the chain as shown in . There should be three

Diagram D

pairs of wires at each speaker, but the last speaker in the

chain will only have two pairs. Follow standard protocol

for polarity and make sure all units are wired with the

same polarity.

Diagram E

Diagram DDiagram C

Rockustics Monument Series

INSTALL INSTRUCTIONS
