Operator’s Manual

RC7172 / RC7172 / RC7173

Angle Grinders

WARNING

To reduce risk of injury, everyone using, installing, repairing, maintaining,

changing accessories on, or working near this tool must read and

understand these instructions, as well as separately provided safety

instructions part number 8956000278, before performing any such task.

06/2015

8956001105 Rev 01

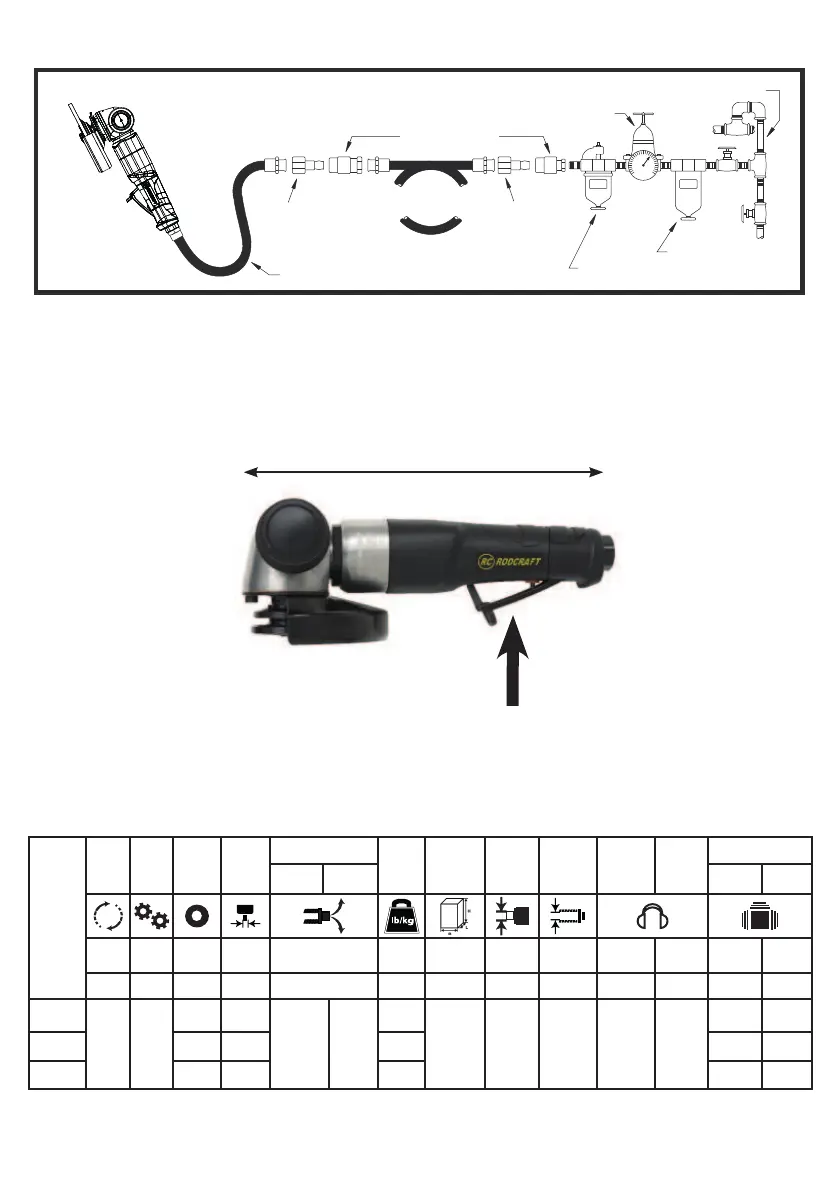

Fig. 1

Air Diagram:

Model

Speed Power Wheel Spindle

thread

Air consumption

Weight Dimension

L×W Air Inlet. Inner hose

diameter

Sound

Pressure

Sound

Power

Vibrations

Average Continu-

ous ahd k



[RPM] [HP]

[W]

[inch]

[mm] /[NI/min]

[SCFM]

[lb.]

[kg]

[in.]

[mm] [in.] [in.] [dB(A)] [dB(A)] [m/s

2] [m/s2]

1 2 3 4 56 7 8 9 10 11 12 13

RC7171

1200 0.93

700

3.9

100 M10

324

540

1.4

9.6x3.1

245x80 1/4”NPT 10 84 95

7.2 1.9

RC7172 4.5

115 M10 1.5 9 3.5

RC7173 4.9

125 M14 1.5 9.4 2.4

Fig. 2

(

)

(

)

(

)

(

)

(

)

(

)

(

)

(

)

(

)

Start

1.Technical Data

Model

Speed Power Wheel Spindle

Thread

Air Consumption

Weight Dimension

LXH Air Inlet Inner Hose

Dia.

Sound pressure

LpA

Sound power

LwA

Vibrations

ahd K

Average continu-

ous

1 2 3 5 6 7 8 9 10 11 12 13 14

[RPM] [Hp]

[W]

[inch]

[mm] /[l/min]

[SCFM]

[kg]

[lb]

[inch]

[mm] [inch] [inch] [dB(A)] [dB(A)] [m/s²] [m/s²]

max. pressure 6.3bar(90psi)

ah : Vibration level, Uncertainty ; k L

pA Sound pressure dB(A), KpA K= WA

= 3 dB Uncertainty.

Declaration of noise and vibration statement (ISO 15744 and ISO 28927-10)

All values are current as of the date of this publication. For the latest information please visit www.cp.com.

These declared values were obtained by laboratory type testing in accordance with the stated standards and are suitable for comparison with the declared

values of other tools tested in accordance with the same standards. These declared values are not adequate for use in risk assessments and values measured

in individual work places may be higher. The actual exposure values and risk of harm experienced by an individual user are unique and depend upon the way

the user works, the workpiece and the workstation design, as well upon the exposure time and the physical condition of the user. We, CHICAGO PNEUMATIC

TOOLS , cannot be held liable for the consequences of using the declared values, instead of values reﬂ ecting the actual exposure, in an individual risk

assessment in a work place situation over which we have no control. This tool may cause hand-arm vibration syndrome if its use is not adequately managed.

An EU guide to managing hand-arm vibration can be found at www. pneurop.eu/uploads/documents/pdf/PN3-02-NV_Declaration_info_sheet_0111.pdf. We

recommend a programme of health surveillance to detect early symptoms which may relate to noise or vibration exposure, so that management procedures can

be modiﬁ ed to help prevent future impairment.

2. Machine type(s)

• This product is designed for removing material using abrasives. No other use permitted. For professional use only.

• Please read the instructions carefully before starting the machine.

3. Operation

• Fix the accessories properly to the tool.

• Connect device as shown in Fig. 01.

• To use a backing plate, it must be screwed tightly to the drive spindle.

• Remove the wrench for tightening prior to operating the machine.

• To start the machine, pull the trigger (A). Machine speed is increase by increasing pressure on the trigger. Release the trigger to stop.

4. Lubriﬁ cation

Motor

• Only use RODCRAFT accessory air oil

• Clean air intake nipple before use

• Fill air oil (approx. 3 drops) into the air intake nipple and briefly operate the machine.

• Follow abovementioned steps before and after using the machine. This increases the machine‘s service life.

5. Maintenance instruction

• Follow local country environmental regulations for safe handling and disposal of all components.

• Maintenance and repair work must be carried out by qualified personnel using only original spare parts. Contact the manufacturer or your nearest authorised

dealer for advice on technical service or if you require spare parts.

• Always ensure that the machine is disconnected from energy source to avoid accidental operation.

• Disassemble and inspect the tool every three 3 months if the tool is used every day. Replace damaged or worn parts.

6. Disposal

• The disposal of this equipment must follow the legislation of the respective country.

• All damaged, badly worn or improperly functioning devices MUST BE TAKEN OUT OF OPERATION.

• Repair only by technical maintenance staff.

7. Declaration of conformity

We : Rodcraft Customer Center - Langemarckstr.35 bis 45141 Essen- Germany

Machine type(s): Angle Grinder

Declare that the product(s): RC7171, RC7172, RC7173 Serial Number: 01-12

Origin of the product : TaÏwan

is in conformity with the requirements of the council Directives on the approximation of the laws of the Member States relating : to “Machinery“ 2006/42/EC (17/05/2006)

applicable harmonised standard(s) : EN ISO 11148-7:2012

Name and position of issuer : Pascal Roussy (R&D Manager)

Place & Date : Saint-Herblain, 30/06/2015

Technical ﬁ le available from EU headquarter. Nicolas Lebreton R&D manager CP Technocenter 38, rue Bobby Sands - BP10273 44800 Saint Herblain - France
