Rolls RA235 Bruksanvisning
Läs nedan 📖 manual på svenska för Rolls RA235 (2 sidor) i kategorin mottagare. Denna guide var användbar för 2 personer och betygsatt med 4.5 stjärnor i genomsnitt av 2 användare
Sida 1/2

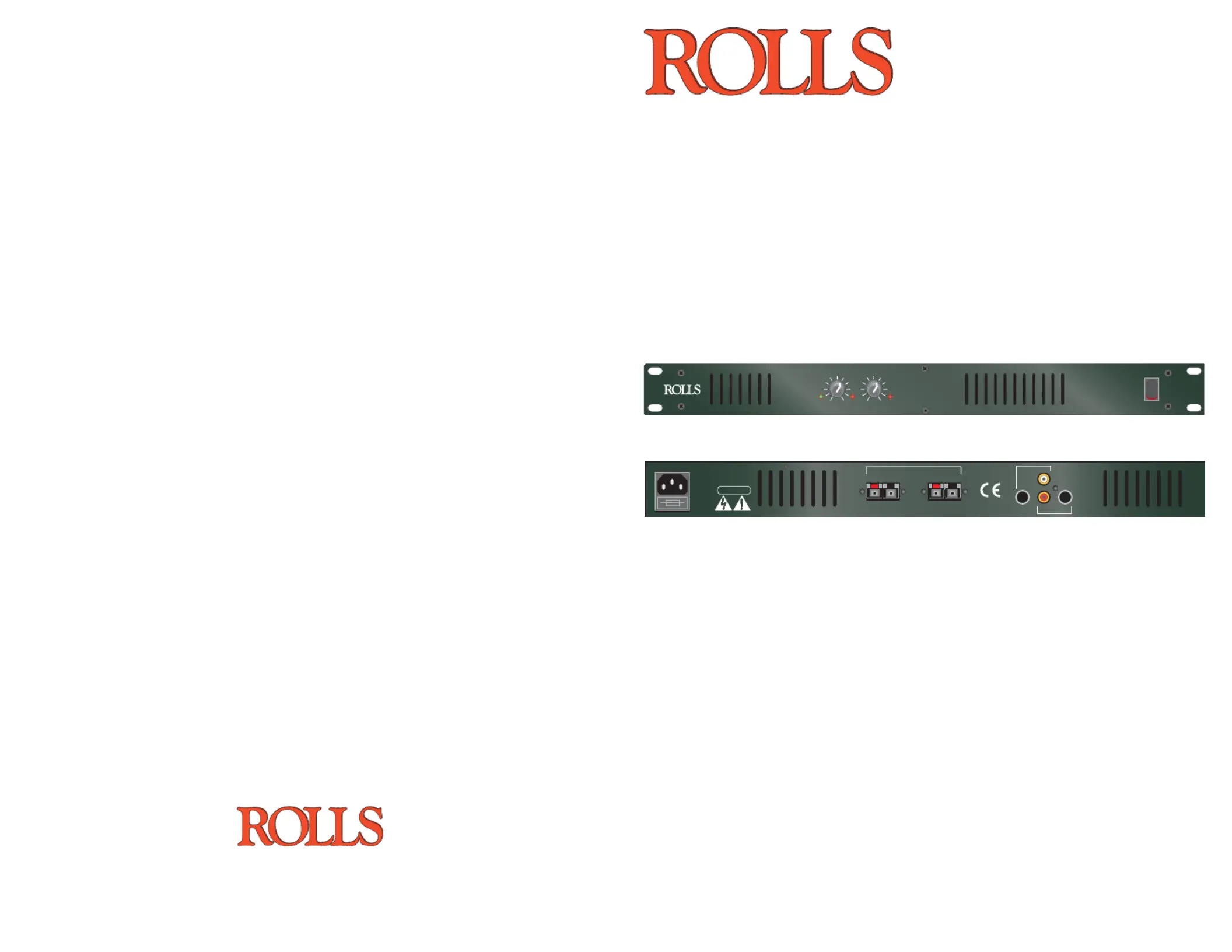

RA235
STEREO 35 WATT
POWER AMPLIFIER
Quick Start Guide
ROLLS CORPORATION
SALT LAKE CITY, UTAH
10/10
CHANNEL 2
INPUT
CHANNEL 1
INPUT
WARNI NG: DO NO T EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
NO USER SERVICABLE PARTS INSIDE.
MODEL RA235
SERIAL NUMBER
235 -
OUTPUTS
CHANNEL TWO CHANNEL ONE
120VAC 50/60Hz 100VA
1.5A Fuse
RISQUE DE CHOC - NE PAS ENLEVER
INTRODUCTION
Thank you for your purchase of the ROLLS RA235 35 Watt Power Ampli er. The
RA235 is a virtually indestructible single rack space ampli er intended for musi-
cians and studio owners alike. The unit is ideal for home studio applications or
wherever a clean, e cient, medium wattage amp is required. Please read the
following manual carefully to achieve the best results from this product.
DESCRIPTION
FRONT PANEL
VOLUME 1 / VOLUME 2: This control adjusts the output level of the correspond-
ing channel.
PWR: LED indicating the unit’s power status.
CLIP: These LEDs light in the event of overload in the corresponding channel.
REAR PANEL
CHANNEL 2
INPUT
CHANNEL 1
INPUT
WARNI NG: DO NO T EXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE
NO USER SERVICABLE PARTS INSIDE.
MODEL RA235
SERIAL NUMBER
235 -
OUTPUTS
CHANNEL TWO CHANNEL ONE
120VAC 50/60Hz 100VA
1.5A Fuse
RISQUE DE CHOC - NE PAS ENLEVER
120 VAC 50/60 HZ 15 VA: IEC Power Cord. Connect to a properly grounded
AC source. NOTE: REPLACE THE FUSE WITH ONLY THE PROPER RATED
FUSE. INSTALLING A FUSE OTHER THAN THE RECOMMENDED RATING
WILL DAMAGE THE UNIT.
Outputs: Spring loaded terminals to be connected to 8 Ohms speaker loads only.
MAIN INPUTS: 1/4” and RCA jacks to be connected to line level signals to be
ampli ed. Note: Do not directly connect the output of a phono player as those
devices require special equalization.
For MONO operation, plug one RCA connector between the two RCA jacks. Either
Channel One or Channel Two 1/4” inputs may also be used as the MONO input.
BURN WARNING!
THE FRONT PANEL OF THE RA235 IS THE HEAT DISTRIBUTION FOR THE
OUTPUT STAGES. IF THE UNIT IS OPERATED AT HIGH VOLUMES, IT MAY
GET HOT.
INSTALLATION
Mount the RA235 in a safe and sturdy rack. Connect the output of the signal
source to the selected input of the RA235, and connect the Outputs to your
speakers.
Plug the AC cord into a properly grounded AC outlet.
Send signal to the RA235 and adjust the VOLUME controls for a comfortable
listening level.
SPECIFICATIONS
Recommended Load: 8 Ohms minimum
Frequency Response: 5 Hz to 40 kHz
Equiv. Input Noise: 100 microVolt typical, A weighted
600 Ohm input
S/N Ratio: 114 dB @ 35 Watts
Gain: 34 dB
Input Impedance: 47 k Ohms
Size (W x H x D): 19” x 1.75” x 5” (48 x 4.5 x 12.7)
Weight: 5.5 lbs (2.5 kg)
SCHEMATIC
