Sida 1/44

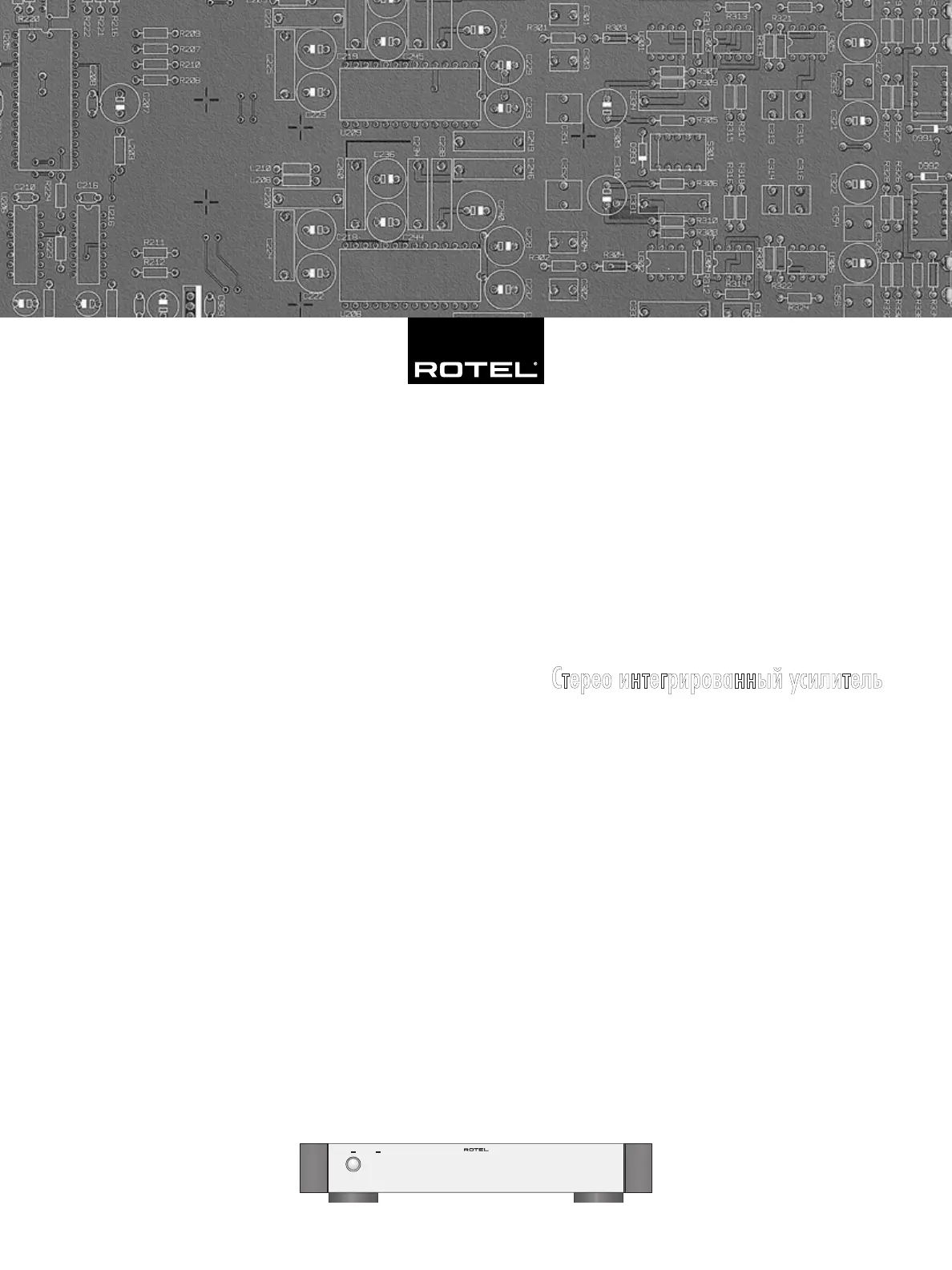

Owner’s Manual

Manuel d’utilisation

Bedienungsanleitung

Manual de Instrucciones

Manuale di Istruzioni

Gebruiksaanwijzing

Instruktionsbok

Стерео интегрированный усилитель

RMB-1077

Seven-Channel Power Ampliﬁer

Ampliﬁcateur de puissance 7 canaux

Siebenkanal-Endstufe

Etapa de Potencia de Siete Canales

Finale di Potenza a Sette Canali

Zeven Kanaals Eindversterker

Sjukanals Slutsteg

Руководство пользователя 7-канального усилителя мощности

        

  

Important Safety Information

WARNING: There are no user serviceable parts inside.

Refer all servicing to qualified service personnel.

WARNING: To reduce the risk of fire or electric shock, be

sure that the apparatus shall not be exposed to dripping

or splashing and that no objects filled with liquids, such

as vases, shall be placed on the apparatus.

Do not allow foreign objects to get into the enclosure. If

the unit is exposed to moisture, or a foreign object gets

into the enclosure, immediately disconnect the power

cord from the wall. Take the unit to a qualified service

person for inspection and necessary repairs.

Read all the instructions before connecting or operating the component.

Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on

the product itself. Follow all op erating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

You must allow 10 cm or 4 inches of unobstructed clear-

ance around the unit. Do not place the unit on a bed, sofa, rug,

or similar surface that could block the ventilation slots. If the component

is placed in a bookcase or cabinet, there must be ventilation of the

cabinet to allow proper cooling.

Keep the component away from radiators, heat registers, stoves, or

any other appliance that produces heat.

The unit must be connected to a power supply only of the type and

voltage specified on the rear panel of the unit.

Connect the component to the power outlet only with the supplied power

supply cable or an exact equivalent. Do not modify the supplied cable

in any way. Do not attempt to defeat grounding and/or polarization

provisions. Do not use extension cords.

Do not route the power cord where it will be crushed, pinched, bent

at severe angles, exposed to heat, or damaged in any way. Pay par-

ticular attention to the power cord at the plug and where it exits the

back of the unit.

The power cord should be unplugged from the wall outlet if the unit is

to be left unused for a long period of time.

Immediately stop using the component and have it inspected and/or

serviced by a qualified service agency if:

• The power supply cord or plug has been damaged.

• Objects have fallen or liquid has been spilled into the unit.

• The unit has been exposed to rain.

• The unit shows signs of improper operation

• The unit has been dropped or damaged in any way

Please use Class 2 Wiring when connecting the speaker terminals of

the unit to ensure proper insulation and minimize the risk of electrical

shock.

Place the unit on a fixed, level surface strong enough

to support its weight. Do not place it on a moveable

cart that could tip over.

RMB-1077 Seven Channel Power Ampliﬁer

This symbol means that this unit is double insulated.

An earth connection is not required.

> 10 cm

> 4 in

> 10 cm

> 4 in

> 10 cm

> 10 cm > 4 in

3English

               

     

Figure 1: Controls and Connections

Commandes et branchements

Bedienelemente und Anschlüsse

Pannello frontale e posteriore

Controles y Conexiones

De bedieningsorganen en aansluitingen

Kontroller och anslutningar

Органы управления и разъемы

Produktspecifikationer

Varumärke:	Rotel
Kategori:	mottagare
Modell:	RMB-1077
Färg på produkten:	Zwart, zilver
Vikt:	1335 g
Höjd (max):	600 mm
Typ av lampa:	LED
Typ av strömkälla:	AC
Antal per paket:	1 stuk(s)
Inspänning:	100 - 240 V
