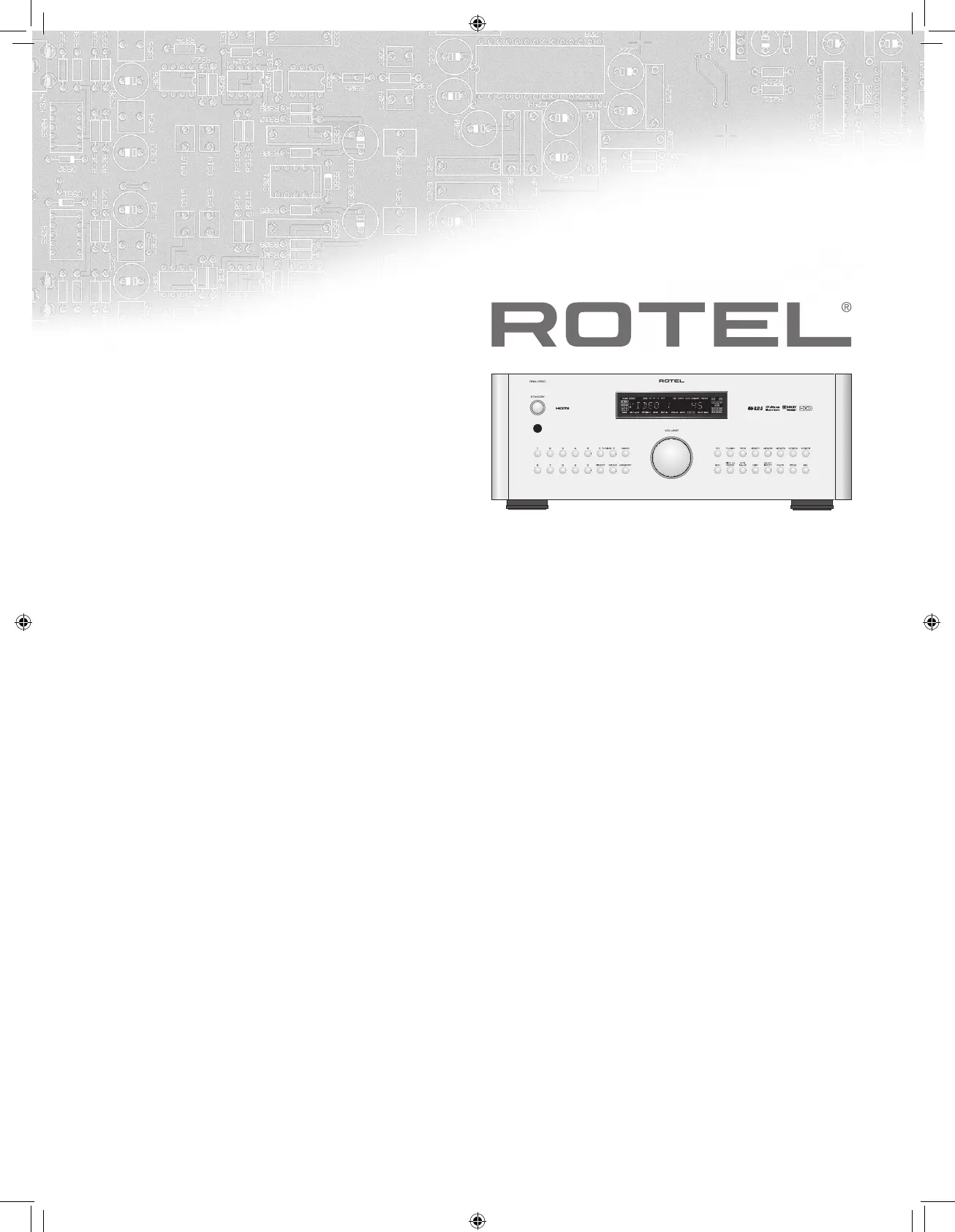

Owner’s Manual

RSX-1550

Surround Sound Receiver

www.Rotel.com/register

RSX-1550 English v2.indd 1 27/8/08 14:19:57

2RSX-1550 Surround Sound Receiver

Rotel products are designed to comply with international

directives on the Restriction of Hazardous Substances

(RoHS) in electrical and electronic equipment and the

disposal of Waste Electrical and Electronic Equipment

(WEEE). The crossed wheelie bin symbol indicates

compliance and that the products must be appropriately

recycled or processed in accordance with these directives.

This symbol means that this unit is double insulated. An

earth or ground connection is not required.

RSX-1550 English v2.indd 2 27/8/08 14:20:01

English

Notice

The COMPUTER I/O connection should be handled by authorized persons only.

FCC Information

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instruction,

may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is encouraged to try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.(TV, radio, etc.)

• Increase the separation between the equipment and receiver

• Connect the equipment to an outlet on circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for additional help.

Caution

This device complies with part 15 of the FCC Rules. Operation is subject to the following to

conditions: (1) This device may not cause harmful interference, and (2) this device must accept any

interference received, including interference that may cause undesired operation.

NOTE TO CATV SYSTEM INSTALLER: Call the CATV system or antenna installer’s attention to

Article 820-40 of the NEC. This provides guidelines for proper grounding and, in particular, speciﬁes

that the cable ground shall be connected to the grounding system of the building, as close to the

point of cable entry as practical. See installation diagram.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against interference in a residential installation. This equipment generates and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause interference to radio or TV communications. There is no guarantee that interference will

not occur in a particular installation. If this equipment does cause interference to radio or television

reception, which can be determined by turning the equipment off and on, try to correct the

interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the unit and the television tuner.

• Connect the unit to an AC power outlet on a different electrical circuit.

• Consult your authorized Rotel retailer for assistance.

Important Safety Instructions

WARNING: There are no user serviceable parts inside. Refer all servicing to qualiﬁed service

personnel.

WARNING: To reduce the risk of ﬁre or electric shock, do not expose the unit to moisture or water.

Do not expose the unit to dripping or splashing. Do not place objects ﬁlled with liquids, such as

vases, on the unit. Do not allow foreign objects to get into the enclosure. If the unit is exposed to

moisture, or a foreign object gets into the enclosure, immediately disconnect the power cord from

the wall. Take the unit to a qualiﬁed service person for inspection and necessary repairs.

Read all the instructions before connecting or operating the unit.

Keep this manual so you can refer to these safety instructions.

Heed all warnings and safety information in these instructions and on the product itself. Follow all

operating instructions.

Clean the enclosure only with a dry cloth or a vacuum cleaner.

Do not use this unit near water.

You must allow a minimum 10 cm or 4 inches of unobstructed clearance around the unit. Do not

place the unit on a bed, sofa, rug, or similar surface that could block the ventilation openings. If

the unit is placed in a bookcase or cabinet, there must be ventilation of the cabinet to allow proper

cooling.

Keep the component away from radiators, heat registers, stoves, or any other appliance that

produces heat.

The unit must be connected to a power supply only of the type and voltage speciﬁed on the rear

panel. (USA: 120 V/60Hz, EC: 230V/50Hz)

Connect the component to the power outlet only with the supplied power supply cable or an exact

equivalent. Do not modify the supplied cable. A polarized plug has two blades, with one wider than

the other. A grounding plug has two blades plus a third grounding prong. These are provided for

your safety. Do not defeat grounding and/or polarization safety provisions. If the supplied plug

does not ﬁt your outlet, please consult an electrician for replacement of the obsolete outlet. Do not

use extension cords.

The main plug of the power cordset is a disconnect device of the apparatus. In order to completely

disconnect the apparatus from the supply mains, the main plug of the power cordset should be

unplugged from the mains (AC) outlet. The stand-by LED indicator will not be lit up to show the

power cord is unplugged. The disconnect device should remain readily operable.

Do not route the power cord where it will be crushed, pinched, bent, exposed to heat, or damaged in

any way. Pay particular attention to the power cord at the plug and where the cord exits the unit.

The power cord should be unplugged from the wall outlet during a lightning storm or if the unit is to

be left unused for a long period.

Use only accessories speciﬁed by the manufacturer.

Use only with a cart, stand, rack, bracket or shelf system recommended by Rotel. Use caution when

moving the unit in a stand or rack to avoid injury from a tip-over.

Use Class 2 wiring for speaker connections to ensure proper installation and minimize the risk of

electrical shock.

Immediately stop using the component and have it inspected and/or serviced by a qualiﬁed service

agency if:

• The power supply cord or plug has been damaged.

• Objects have fallen or liquid has been spilled into the unit.

• The unit has been exposed to rain.

• The unit shows signs of improper operation

• The unit has been dropped or damaged in any way

WARNING: The master power switch is located on the rear panel. The unit must be located in the

open area allowing unobstructed access to the main power switch.

RSX-1550 English v2.indd 3 27/8/08 14:20:05
