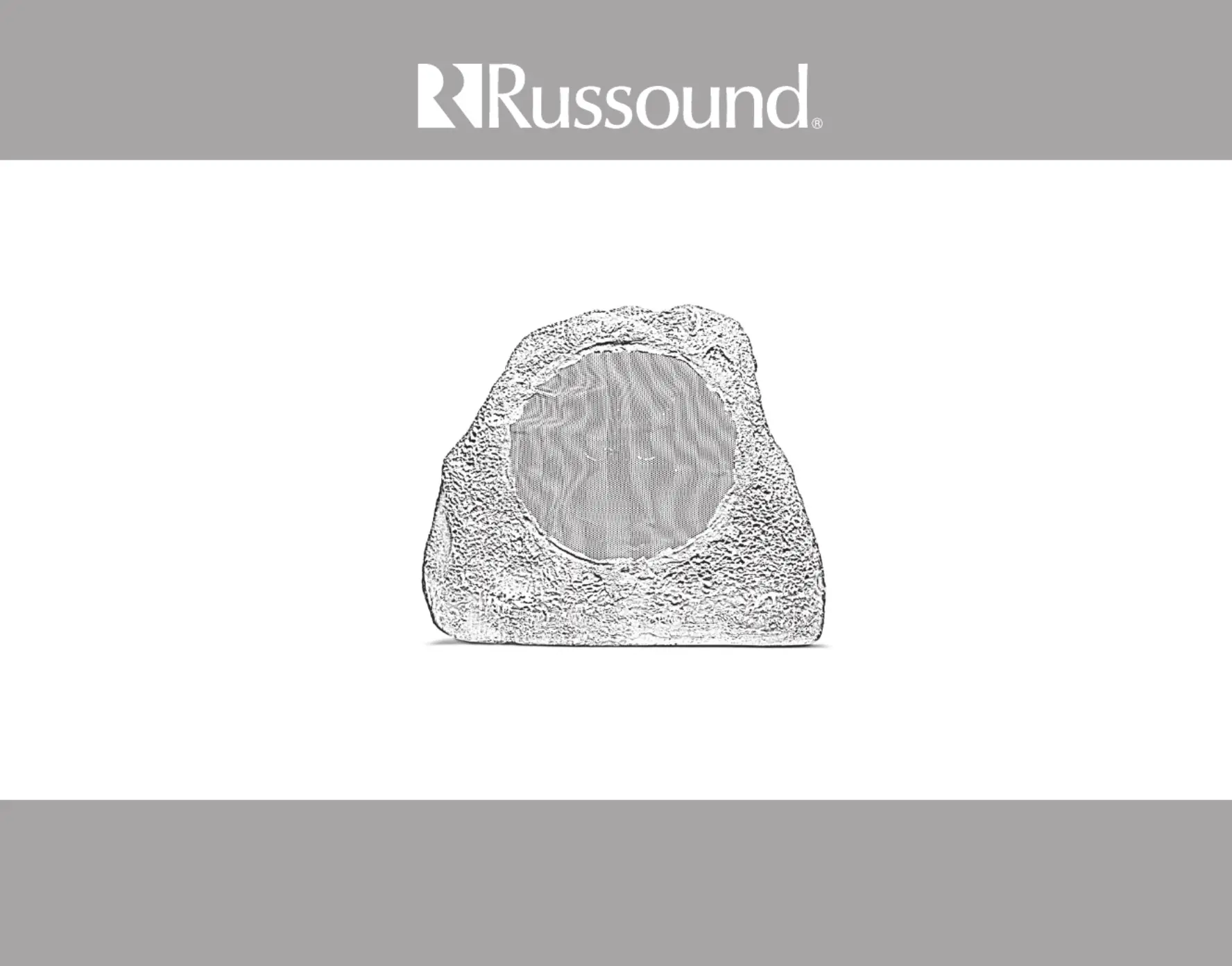

Acclaim™ 5 Series OutBack
Outdoor Rock Loudspeaker
Installation Manual
2Russound Acclaim OutBack Rock Speaker Installation Manual
INTRODUCTION
Introduction
Thank you for selecting Russound Acclaim 5 Series Outdoor Rock Speakers.
Like all Russound speakers, they combine acoustic technology with durability
and will provide years of musical enjoyment.
These Rock Speakers are designed to look like natural outcroppings of rock
instead of bulky aluminum and plastic speakers that detract from nature’s
beauty. Russound Rock Speakers are a distinctive addition to your yard
and blend into any landscape for a convenient and practical outdoor audio
solution.
The realistic rock speakers are o ered in three styles to match your landscape:
Gray Granite, Gray Cobblestone and Sandstone. These shapes and  nishes
closely mimic rocks found in nature for a quality, believable look. The secret
to the realistic look of the rock speakers is in the way they are crafted. The cast
enclosure process produces more lifelike shapes and surfaces. This process is
more expensive, but the three-layer berglass and resin construction results
in an acoustically better speaker with low resonance for better sound. The
process also creates an environmentally stable and durable speaker housing.
The resulting Rock Speaker has a sturdy, waterproof cabinet tough enough
for use in all types of weather and environments. The enclosure is silicone
sealed and equipped with a water drain for the speaker opening. For added
convenience an attached security eyelet is provided to prevent the speaker
from getting ‘carried away.’
Each speaker has an 8” coaxial two-way or single-point stereo driver with a
polypropylene cone and fully painted aluminum grille.
With 10 – 125 watt power handling, Russound Rock Speakers  t any outdoor
speaker necessities, for monaural or stereo applications.
Ampli er Considerations
The Rock Speakers should be powered by an ampli er that provides a
minimum of 10 watts per channel. An ampli er that has both stereo and mono
capability is a plus, as you may want to use mono for large areas.
If you intend to use more than one pair of speakers at a time it’s important
to consider both the impedance of the speakers and the capabilities of the
ampli er or receiver. Not all ampli ers or receivers can safely operate two sets
of speakers at once.
3
Russound Acclaim OutBack Rock Speaker Installation Manual
Number of Speaker Pairs
First, determine the size of the listening area, and identify any gathering
areas where folks will sit or stand. The typical coverage area is 20 feet from the
front of the speaker for normal listening levels. There should be a maximum of
20 feet between speakers for better stereo imaging. Too far away from each
other creates an acoustic void when used for stereo. Monaural will not be
a ected to the same degree.
Use as many pairs of speakers as needed to achieve the desired coverage and
dispersion of sound. Getting more sound with more speakers is better than
cranking the volume, which may lead to amp clipping. Large areas are better
served by monaural audio instead of stereo. In most outdoor environments,
there is no ideal listening area to give stereo image or separation.
Speaker Placement
An important factor for speaker placement is the location elevation. Select a
spot wires can be run to from the audio system. The speakers should face the
listening area and be spaced for best sound coverage for the area.
The realistic rock shape and nish will blend in best if placed in a manner
that mimics nature, such as near a rock wall or amidst ground plantings. Be
sure to avoid placing the speaker in low spots that collect water.
Elevation and Slope
Speakers should be placed on the same level for balanced sound delivery.
Speakers on di erent elevations will have di erent sound characteristics. The
acoustic design is optimized to provide the best sound when placed on level
ground at the same elevation as the listening area. Placing the speaker on
higher elevations or tilting it upwards will provide less than optimal sound.
Speakers should be placed for best sound delivery with the base of the
speaker as level as possible. Never lean a speaker back to aim the sound up as
this could allow it to retain water.
The Rock Speakers have been optimized to provide the best response when
placed on the same elevation as the listening area and sitting  at on the
ground. Tilting the speaker up can potentially create a problem with proper
rainwater drainage also.
SPEAKER PAIRS / PLACEMENT
Ideal placement
Poor placement
Optimum
sound eld
Example of speaker elevation placement
