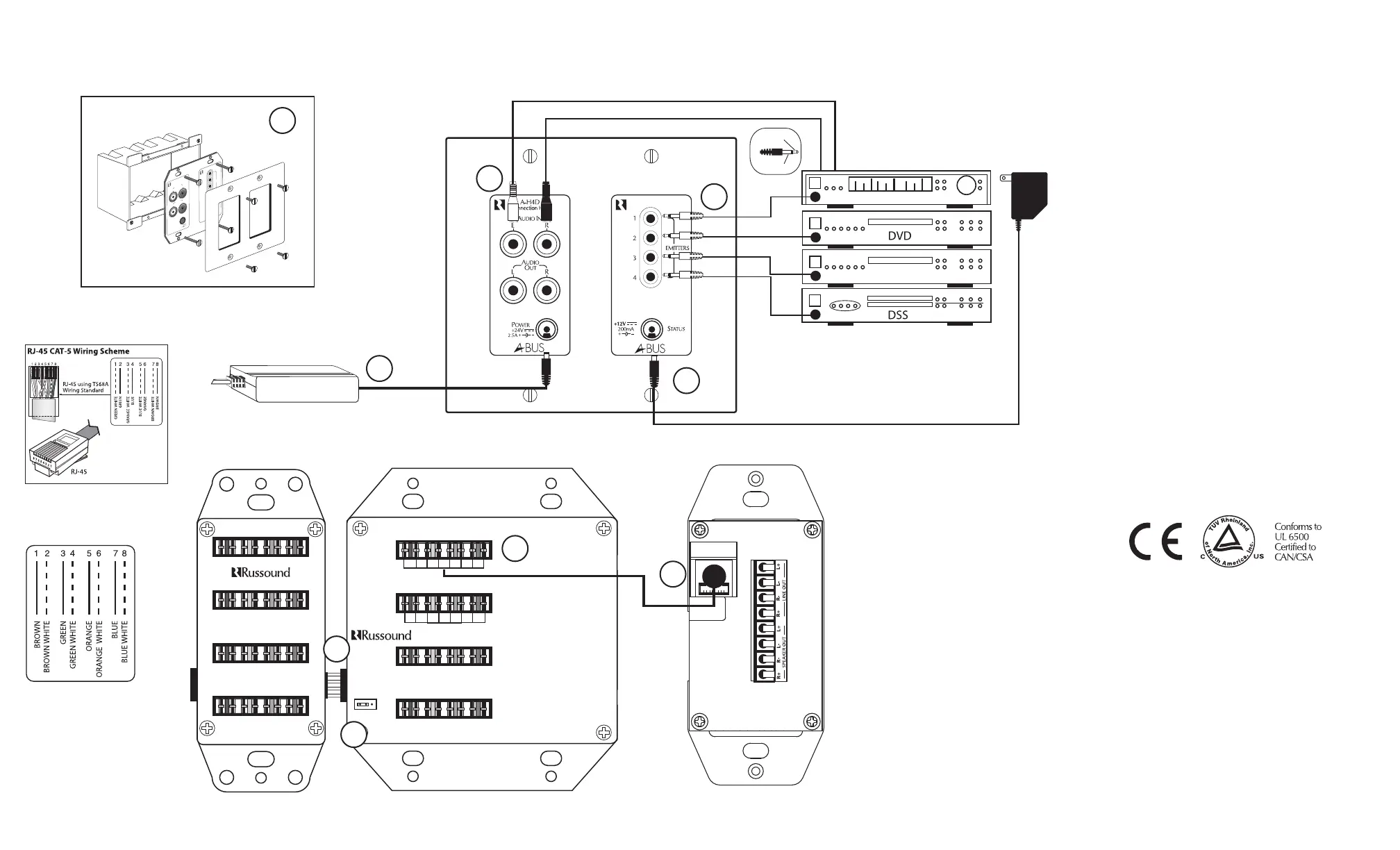

CONNECTION DIAGRAM FOR A-H4D. REFER TO THE NUMBERED INSTRUCTIONS ON REVERSE. DIAGRAMS ARE NOT TO SCALE.
A-H4DX
KP1
B BW G GW O OW BL BLW
B BW G GW O OW BL BLW
B BW G GW O OW BL BLW
B BW G GW O OW BL BLW
KP2
KP3
KP4
Pos (+)
Neg (–)
CD Changer
Receiver
KP1
B BW G GW O OW BL BLW
B BW G GW O OW BL BLW
B BW G GW O OW BL BLW
B BW G GW O OW BL BLW
KP2
KP3
KP4
12
STATUS
3
A-H4D
L GAIN R
Hub
A-K4 (back)
RCA cables
Emitter attaches
to each source
component’s
IR window
Optional Status power supply
to switched AC outlet
A-PS power supply
A-H4D (back)
A-H4Dx (back)
A-H4D (front)
CAT-5 cable
A
UDIO
I
N
L R
A
UDIO
O
UT
L R
P
OWER
1
EMITTERS
2
3
4
S
CAT-5 110 punchdown
connection detail
Note: This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment o
and on, the user is encouraged to try to correct the interference
by one of or more of the following measures: reorient or relocate
the receiving antenna; increase the separation between the
equipment and receiver; connect the equipment into an outlet on
a circuit di erent from that to which the receiver is connected, or
consult the dealer or an experienced radio/TV technician for help.
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
2
5
3
3
1
1
6
8
4
A-H4D Overview
The Russound A-H4D is an in-wall four-zone, one-source
audio distribution hub used with A-BUS amplified
keypads. The double-gang Decora® style A-H4D can
accommodate four additional amplified keypads when
used with the in-wall A-H4Dx expansion hub, which
plugs into the side of the A-H4D.
NOTE: Before installation, review the manuals included
with each component in the system.
A-H4D Features
• Status power input with selector jumper
• One Stereo audio input and loop output
• Front-panel connections for audio, IR emitters, power
and Status
• Expansion hub support
• 4 common IR outputs
A-H4D Specifications
Power Supply: A-PS, 24VDC, 2.5A
Status Power: 12VDC, 100mA
Keypad Connection: CAT-5, 110 punchdown
Link Connection: 8-pin female connector
IR Emitter Connection: 1/8” male, tip (+), sleeve (-)
Dimensions (in-wall): 3.54”W x 2.91”H x 1.46”D
(90 x 74 x 37mm)
Weight: 8.0 oz. (226g)
Safety Instructions
1. Read Instructions - All the safety and operating instructions should
be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be
retained for future reference.
3. Heed Warnings - All warnings on the appliance in the operating
instructions should be adhered to.
4. Follow Instructions - All operating and user instructions should be
followed.
5. Water and Moisture - The appliance should not be used near water;
for example, near a bathtub, washbowl, kitchen sink, laundry tub, in
a wet basement, or near a swimming pool.
6. Wall or Ceiling Mounting - The appliance should be mounted to a
wall or ceiling only as recommended by the manufacturer.
7. Heat - The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (includ-
ing amplifiers) that produce heat.
8. Power Sources - The appliance should be connected to a power
supply only of the type described in the operating instructions or as
marked on the appliance.
9. Grounding or Polarization - Precaution should be taken so that the
grounding or polarization means of an appliance is not defeated.
10. Object and Liquid Entry - Care should be taken so that objects do
not fall and liquids are not spilled into the enclosure through the
openings.
11. Damage Requiring Service - The appliance should be serviced by
qualified service personnel when:
The power supply cord or the plug has been damaged;
Objects have fallen, liquid has been spilled into the appliance
The appliance has been exposed to rain
The appliance does not appear to operate normally
The appliance has been dropped or enclosure is damaged.
12. Servicing - The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servic-
ing should be referred to qualified service personnel.
13. Care – From time to time you should wipe off the front panel with a
soft dry cloth.
Limited Warranty
The Russound A-H4D is fully guaranteed for two (2) years from the date of purchase
against all defects in materials and workmanship. During this period Russound will
replace any defective parts and correct any defect in workmanship without charge
for either parts or labor. For this warranty to apply, the unit must be installed and used
according to its written instructions. If service is necessary, it must be performed by
Russound. Russound assumes no responsibility for defects resulting from abuse or
servicing performed by an agency or person not specifically authorized in writing by
Russound. Damage to or destruction of components due to improper use voids the
warranty. In these cases the repair will be made at the owner’s expense. Accidental dam-
age and shipping damage are not considered defects under the terms of the warranty.
To return for repairs, the unit must be shipped to Russound at the owner’s expense,
along with a Return Authorization number and documentation explaining the nature
of the service required. Any product returned without prior written permission will
be returned to sender. Russound sells products only through authorized Dealers and
Distributors to ensure that customers obtain proper support and service. Any Russound
product purchased from an unauthorized dealer or other source, including retailers, mail
order sellers and online sellers will not be honored or serviced under existing Russound
warranty policy. Any sale of products by an unauthorized source or other manner not
authorized by Russound shall void the warranty on the applicable product.
CONNECTION INSTRUCTIONS FOR A-H4D. REFER TO NUMBERED DIAGRAM ON REVERSE.
A-H4D
In-wall Four-zone Hub
for A-BUS® System
Installation Manual
1 Amplified Keypads
Connect four A-BUS amplified keypads. A CAT-5 cable is
used to connect each A-K4 to a keypad output (KP1 - KP4)
on the A-H4D Hub. CAT-5 connections for the A-H4D are
110 punchdown. The A-K4 has an RJ-45 connector with
T568A wire configuration.
2 IR Emitters
Common IR Outputs. Connect an IR emitter such as
the 845.1 to each of the 4 IR connectors on the front of
the A-H4D (you need use only one IR emitter if you’ve
connected a single source directly to the A-H4D). The IR
signal that is received through a zone’s amplified keypad
is routed to the A-H4D’s Common IR outputs. This allows
remote operation of sources such as CD, DVD or DSS
from each zone.
3 Status
The Status option provides visual indication when source
equipment is powered on and permits a system-wide ‘all
off’ function.
To enable Status:
Move the status jumper on all amplified keypads
to the “Enabled” position.
Move the status jumper on the back of the A-H4D
to the “2-3” position.
Using a Russound 846C 120V/12VDC or
comparable power adapter, connect the coaxial plug end
to the STATUS input on the hub, and plug the adapter
into a switched AC outlet on the source component.
Status function and operation:
When the source is powered on, the Status circuit
is powered by 12VDC and turns the keypad’s Status LED
to green. This indicates to the user that the source is on
and ready to receive remote control commands.
When the source is powered off (remotely or
manually), it shuts off the 12VDC Status power connected
to it, and turns off all the keypads (green LED off)
connected to the hub.
IMPORTANT: When the status feature is enabled, it
must be supplied with power for proper operation with
accessories such as the A-LC3 Local Source Input Module.
4 A-H4Dx Expansion Hub
The A-H4Dx is an expansion hub for the A-H4D that
provides connections for four additional amplified
keypads. It plugs into the side of the A-H4D. Multiple
A-H4Dx hubs can be added. Each A-H4Dx requires its
own A-PS power supply.
5 Source
The A-H4D has one stereo audio input, and it can be
connected to multiple audio sources via the Tape 2 or
Zone 2 output of a stereo or home theater receiver.
Connecting to a receiver gives the A-H4D access to any
audio source connected to that receiver. Alternatively,
a single audio source can be connected directly to the
A-H4D.
6 Power Supply
The A-H4D hub and amplified keypads are powered by
the A-PS 24VDC/2.5A power supply. The A-PS should be
plugged into an unswitched AC outlet (one that is live all
the time).
7 Operation
A-K4 keypads can be operated manually or by using the
A-LRC2 remote control. . If using installed IR emitters,
sources can be operated with their own remote control
by aiming it at the IR window on an A-K4 keypad.
8 Installation
Install the A-H4D in a standard UL/CSA approved double-
gang electrical J-box. Choose a spot near the receiver and
source equipment. Check all connections and test the
system’s operation before installing the A-H4D into the
wall.
Russound, Inc. 5 Forbes Rd., Newmarket, NH 03857, USA
tel 603.659.5170 • fax 603.659.5388 www.russound.com
technical support: 866.888.7466 e-mail: tech@russound.com
28-1133 Rev. 3 06/05/13
Copyright ©2012 Russound® All rights reserved. All trademarks
are the property of their respective owners. Russound is not
responsible for typographical errors or omissions. Speci cations
are subject to change without notice.
A-BUS is a registered trademark of LeisureTech Electronics Pty
Ltd Australia. This product may be covered by one or more of the
following patents: US #7,181,023, #6,389,139; EP #1004222, AU
#739808, NZ #502982, Mexico #241196, Canada #CA2301062.

Produktspecifikationer

Varumärke: Russound
Kategori: Inte kategoriserad
Modell: A-H4D

Behöver du hjälp?

Om du behöver hjälp med Russound A-H4D ställ en fråga nedan och andra användare kommer att svara dig


Inte kategoriserad Russound Manualer

Russound

Russound CA4-KP Bruksanvisning

25 September 2024
Russound

Russound SA-ZX3 Bruksanvisning

25 September 2024
Russound

Russound KNX-RIO-1 Bruksanvisning

25 September 2024
Russound

Russound CB-140 Bruksanvisning

25 September 2024
Russound

Russound A-H4D Bruksanvisning

25 September 2024
Russound

Russound CA4-WP Bruksanvisning

25 September 2024
Russound

Russound A-K4 Bruksanvisning

25 September 2024
Russound

Russound HTP-7.2 Bruksanvisning

21 September 2024
Russound

Russound SLM-1K Bruksanvisning

21 September 2024
Russound

Russound ALT-70V-50 Bruksanvisning

21 September 2024

Inte kategoriserad Manualer

Nyaste Inte kategoriserad Manualer

Philips

Philips 43PUL7672 Bruksanvisning

27 Oktober 2024
Manhattan

Manhattan 461504 Bruksanvisning

27 Oktober 2024
Sungrow

Sungrow SG125HV Bruksanvisning

27 Oktober 2024
Schneider

Schneider CCT724319 Bruksanvisning

27 Oktober 2024
Technoline

Technoline WS 250 Bruksanvisning

27 Oktober 2024
Livarno

Livarno IAN 354423 Bruksanvisning

27 Oktober 2024
Kupper

Kupper 12152 Bruksanvisning

27 Oktober 2024
JennAir

JennAir CARBON24L Bruksanvisning

27 Oktober 2024
Medion

Medion Life E74001 (MD 81035) Bruksanvisning

27 Oktober 2024
POLARIS

POLARIS Sportsman Touring 850 SP (2015) Bruksanvisning

27 Oktober 2024
